SANT CI BUTTERFLY VALVE PN2.0 WITH SS-304 DISC (CR27)
Price List of CR-27 Cast Iron Butterfly Valve PN20 with SS-304 DISC
(Rates in INR- Per Unit Piece)
| Size/Inch | MM | Price/Pc. |
|---|---|---|
| 1-1/2" | 40mm | 3025.00 |
| 2" | 50mm | 3473.00 |
| 2-1/2" | 65mm | 3738.00 |
| 3" | 80mm | 4541.00 |
| 4" | 100mm | 5618.00 |
| 5" | 125mm | 7557.00 |
| 6" | 150mm | 8547.00 |
| 8" | 200mm | 17959.00 |
| 10" | 250mm | 29480.00 |
| 12" | 300mm | 37133.00 |
Discount on Sant Butterfly Valves PN20: 45%
GST @ 18% and Freight is extra.
Product Description

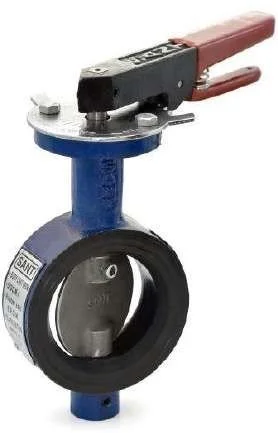

Product : SANT Cast Iron Butterfly Valve
Type of Pattern : Wafer Type
Pressure / Class / Rating : PN 20
Body Material cum Standard : Cast Iron to IS:210 Gr.FG200
Description : Wafer Type
Type of Seat : Nitrile / EPDM Lining
Type of Disc : SS Seat CF8
Trim : SS AISI-410
End Details : Suitable insertion between Flanges as per BS 10
Table D/E or ASMEB 16.1, Class 125
Testing & Certification
Ratings : PN20
Body Test Pressure : 3.0 MPa Hyd
Seat Test Pressure : 2.2 MPa Hyd
Our Works’ Test Certificate is furnished with every supply.
Materials of Construction
| Components | Materials | Specifications |
|---|---|---|
| Lower Stem, Upper Stem | S.S | AISI-410 |
| Index Plate | Carbon Steel | — |
| Body, Gear box, Handwheel | C.I. | IS:210 Gr.FG200 |
| Body Lining | Rubber | Nitrile / EPDM Lining |
| Disc | S.S. | CF8 |
| Bolt & Nuts | Steel | SS-304 |
| Lever | M.S. / D.I. | — |

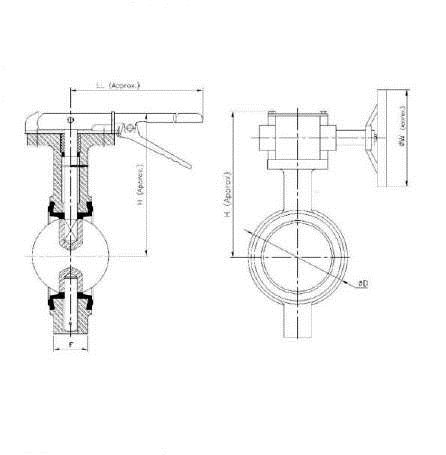

Dimensions (in mm)
| Nominal Size | Nominal Size (Inches) | F | ØD | H (Approx.) | H1 (Approx.) | LL(Approx.) | ØW (Approx.) |
|---|---|---|---|---|---|---|---|
| 40 | 1-1/2 | 33±2 | 85 | 145 | - | 175 | - |
| 50 | 2 | 43±2 | 95 | 150 | - | 175 | - |
| 65 | 2-1/2 | 46±2 | 110 | 165 | - | 175 | - |
| 80 | 3 | 46±2 | 125 | 175 | - | 260 | - |
| 100 | 4 | 52±2 | 153 | 200 | - | 260 | - |
| 125 | 5 | 56±2 | 179 | 210 | - | 260 | - |
| 150 | 6 | 56±2 | 209 | 245 | - | 260 | - |
| 200 | 8 | 60±2 | 260 | - | 335 | - | 240 |
| 250 | 10 | 68±2 | 315 | - | 375 | - | 240 |
| 300 | 12 | 78±3 | 370 | - | 480 | - | 285 |
Sant CR-27 Cast Iron Butterfly Valve is a valve designed for a wide range of industrial applications. With its sturdy cast iron construction, this valve is known for its durability and reliability. The butterfly valve design allows for efficient flow control and shut-off capabilities.
The Sant CR-27 Cast Iron Butterfly Valve finds applications in industries such as water treatment, HVAC systems, chemical processing, and general industrial processes. It is commonly used in water distribution systems for regulating and isolating the flow of water. The valve's ability to provide precise flow control makes it suitable for HVAC systems, where it helps regulate the flow of air and water in heating, cooling, and ventilation applications.
In chemical processing plants, the CR-27 Butterfly Valve is utilized for fluid control, ensuring smooth operation and efficient production processes. Its versatility allows it to handle different fluids, including water, air, gases, and compatible chemicals.
Overall, the Sant CR-27 Cast Iron Butterfly Valve is a reliable choice for various industrial applications. Its robust construction, efficient flow control, and versatility make it a valuable component in ensuring smooth and efficient operation across industries.
