MS FLANGES PRICE LIST
(RATES ARE IN INR)
(GST EXTRA & FREIGHT EXTRA)
MS Flanges Table E Price List
| Description | Size | NET RATE (per unit) |
|---|---|---|
| MS FLANGE TABLE 'E' | 15NB | ₹48.00 |
| MS FLANGE TABLE 'E' | 20NB | ₹54.00 |
| MS FLANGE TABLE 'E' | 25NB | ₹66.00 |
| MS FLANGE TABLE 'E' | 32NB | ₹78.00 |
| MS FLANGE TABLE 'E' 7-8MM THK | 40NB | ₹81.00 |
| MS FLANGE TABLE 'E' 8-9MM THK | 50NB | ₹87.00 |
| MS FLANGE TABLE 'E' 8-9MM THK | 65NB | ₹120.00 |
| MS FLANGE TABLE 'E' 11MM THK | 80NB | ₹150.00 |
| MS FLANGE TABLE 'E' 11MM THK | 100NB | ₹192.00 |
| MS FLANGE TABLE 'E' 14MM THK | 125NB | ₹330.00 |
| MS FLANGE TABLE 'E' 12MM THK | 150NB | ₹285.00 |
| MS FLANGE TABLE 'E' 15MM THK | 150NB | ₹360.00 |
| MS FLANGE TABLE 'E' 16MM THK | 200NB | ₹600.00 |
| MS FLANGE TABLE 'E' 16MM THK | 250NB | ₹1,110.00 |
| MS FLANGE TABLE 'E' 16MM THK | 300NB | ₹1,380.00 |
| MS FLANGE TABLE 'E' 20MM THK | 300NB | ₹1,500.00 |
| MS FLANGE TABLE 'E' 16MM THK | 350NB | ₹2,100.00 |
| MS FLANGE TABLE 'E' 20MM THK | 350NB | ₹2,250.00 |
| MS FLANGE TABLE 'E' 20MM THK | 400NB | ₹2,970.00 |
| MS FLANGE TABLE 'E' 20MM THK | 450NB | ₹3,600.00 |
| MS FLANGE TABLE 'E' 20MM THK | 500NB | ₹4,200.00 |
| MS FLANGE TABLE 'E' 20MM THK | 600NB | ₹5,700.00 |
MS Blind Flanges Table E Price List
| Description | Size | NET RATE (per unit) |
|---|---|---|
| MS BLIND FLANGE TABLE 'E' | 15NB | ₹71.40 |
| MS BLIND FLANGE TABLE 'E' | 20NB | ₹66.00 |
| MS BLIND FLANGE TABLE 'E' | 25NB | ₹90.00 |
| MS BLIND FLANGE TABLE 'E' | 32NB | ₹109.00 |
| MS BLIND FLANGE TABLE 'E' 7-8MM THK | 40NB | ₹114.00 |
| MS BLIND FLANGE TABLE 'E' 8-9MM THK | 50NB | ₹117.00 |
| MS BLIND FLANGE TABLE 'E' 8-9MM THK | 65NB | ₹186.00 |
| MS BLIND FLANGE TABLE 'E' 11MM THK | 80NB | ₹252.00 |
| MS BLIND FLANGE TABLE 'E' 9MM THK | 100NB | ₹219.00 |
| MS BLIND FLANGE TABLE 'E' 11MM THK | 100NB | ₹315.00 |
| MS BLIND FLANGE TABLE 'E' 14MM THK | 125NB | ₹429.00 |
| MS BLIND FLANGE TABLE 'E' 12MM THK | 150NB | ₹465.00 |
| MS BLIND FLANGE TABLE 'E' 15MM THK | 150NB | ₹651.00 |
| MS BLIND FLANGE TABLE 'E' 16MM THK | 200NB | ₹990.00 |
| MS BLIND FLANGE TABLE 'E' 16MM THK | 250NB | ₹1,554.00 |
| MS BLIND FLANGE TABLE 'E' 16MM THK | 300NB | ₹1,932.00 |
| MS BLIND FLANGE TABLE 'E' 16MM THK | 350NB | ₹2,940.00 |
| MS BLIND FLANGE TABLE 'E' 20MM THK | 400NB | ₹4,158.00 |
| MS BLIND FLANGE TABLE 'E' 20MM THK | 450NB | ₹5,040.00 |
| MS BLIND FLANGE TABLE 'E' 20MM THK | 500NB | ₹5,880.00 |
| MS BLIND FLANGE TABLE 'E' PERFECT 19MM THK | 200NB | ₹1,210.00 |
| MS BLIND FLANGE TABLE 'E' PERFECT 22MM THK | 250NB | ₹2,178.00 |
MS Flange Table F Price List
| Description | Size | NET RATE (per unit) |
|---|---|---|
| MS FLANGE TABLE 'F' 12MM THK | 25NB | ₹93.00 |
| MS FLANGE TABLE 'F' 12MM THK | 32NB | ₹102.00 |
| MS FLANGE TABLE 'F' 14MM THK | 40NB | ₹150.00 |
| MS FLANGE TABLE 'F' 14MM THK | 50NB | ₹180.00 |
| MS FLANGE TABLE 'F' 14MM THK | 65NB | ₹210.00 |
| MS FLANGE TABLE 'F' 16MM THK | 80NB | ₹330.00 |
| MS FLANGE TABLE 'F' 16MM THK | 100NB | ₹390.00 |
| MS FLANGE TABLE 'F' 20MM THK | 100NB | ₹465.00 |
| MS FLANGE TABLE 'F' 20MM THK | 150NB | ₹900.00 |
| MS FLANGE TABLE 'F' 16MM THK | 200NB | ₹1,080.00 |
| MS FLANGE TABLE 'F' 20MM THK | 200NB | ₹1,200.00 |
| MS FLANGE TABLE 'F' 25MM THK | 200NB | ₹1,620.00 |
| MS FLANGE TABLE 'F' 20MM THK | 250NB | ₹1,620.00 |
| MS FLANGE TABLE 'F' 25MM THK | 250NB | ₹2,100.00 |
| MS FLANGE TABLE 'F' 20MM THK | 300NB | ₹1,830.00 |
| MS FLANGE TABLE 'F' 28-29MM THK | 300NB | ₹2,997.00 |
| MS FLANGE TABLE 'F' 20MM THK | 350NB | ₹2,760.00 |
MS Flange Table H - BS 10 Price List
| Description | Size | NET RATE (per unit) |
|---|---|---|
| MS FLANGE TABLE 'H' 11-12MM THK | 15NB | ₹113.00 |
| MS FLANGE TABLE 'H' 11-12MM THK | 20NB | ₹115.00 |
| MS FLANGE TABLE 'H' 13-14MM THK | 25NB | ₹150.00 |
| MS FLANGE TABLE 'H' 16-17MM THK | 40NB | ₹242.00 |
| MS FLANGE TABLE 'H' 18-19MM THK | 50NB | ₹420.00 |
| MS FLANGE TABLE 'H' 21-22MM THK | 80NB | ₹592.00 |
| MS FLANGE TABLE 'H' 26MM THK | 100NB | ₹782.00 |
| MS FLANGE TABLE 'H' 29MM THK | 125NB | ₹1,219.00 |
| MS FLANGE TABLE 'H' 29MM THK | 150NB | ₹1,357.00 |
| MS FLANGE TABLE 'H' 30MM THK | 200NB | ₹2,053.00 |
MS ‘IS’ Flange Price List
| Description | Size | NET RATE (per unit) |
|---|---|---|
| MS 'IS' FLANGE 200MM OD | 80NB | ₹189.00 |
| MS 'IS' FLANGE N.O.H- 8, 13-14MM THK | 100NB | ₹300.00 |
| MS 'IS' FLANGE N.O.H- 8 | 150NB | ₹435.00 |
| MS 'IS' FLANGE 15MM THK | 32NB | ₹165.00 |
| MS 'IS' FLANGE 15MM THK | 40NB | ₹210.00 |
| MS 'IS' FLANGE 15MM THK | 50NB | ₹240.00 |
| MS 'IS' FLANGE 15MM THK | 65NB | ₹285.00 |
| MS 'IS' FLANGE 15MM THK | 80NB | ₹315.00 |
| MS 'IS' FLANGE 15MM THK | 100NB | ₹345.00 |
MS Flange ASA 150# Price List
| Description | Size | NET RATE (per unit) |
|---|---|---|
| MS FLANGE ASA 150# 10-11MM THK | 15NB | ₹52.00 |
| MS FLANGE ASA 150# 12MM THK | 20NB | ₹82.00 |
| MS FLANGE ASA 150# 14MM THK | 25NB | ₹106.00 |
| MS FLANGE ASA 150# 15MM THK | 32NB | ₹119.00 |
| MS FLANGE ASA 150# 17MM THK | 40NB | ₹157.00 |
| MS FLANGE ASA 150# 18-19MM THK | 50NB | ₹242.00 |
| MS FLANGE ASA 150# 21MM THK | 65NB | ₹315.00 |
| MS FLANGE ASA 150# 23MM THK | 80NB | ₹472.00 |
| MS FLANGE ASA 150# 23MM THK | 100NB | ₹678.00 |
| MS FLANGE ASA 150# 23MM THK | 125NB | ₹799.00 |
| MS FLANGE ASA 150# 24MM THK | 150NB | ₹859.00 |
| MS FLANGE ASA 150# 27-28MM THK | 200NB | ₹1,440.00 |
| MS FLANGE ASA 150# 29-30MM THK | 250NB | ₹2,105.00 |
| MS FLANGE ASA 150# 30-31MM THK | 300NB | ₹3,086.00 |
| MS FLANGE ASA 150# 33-34MM THK | 350NB | ₹4,235.00 |
| MS FLANGE ASA 150# 35-36MM THK | 400NB | ₹5,203.00 |
| MS FLANGE ASA 150# 36MM THK | 450NB | ₹5,929.00 |
| MS FLANGE ASA 150# 37-38MM THK | 500NB | ₹7,381.00 |
MS Blind Flange ASA 150# Price List
| Description | Size | NET RATE (per unit) |
|---|---|---|
| MS BLIND FLANGE ASA 150# 10-11MM THK | 15NB | ₹56.00 |
| MS BLIND FLANGE ASA 150# 12MM THK | 20NB | ₹95.00 |
| MS BLIND FLANGE ASA 150# 14MM THK | 25NB | ₹120.00 |
| MS BLIND FLANGE ASA 150# 15MM THK | 32NB | ₹137.00 |
| MS BLIND FLANGE ASA 150# 17MM THK | 40NB | ₹195.00 |
| MS BLIND FLANGE ASA 150# 18-19MM THK | 50NB | ₹286.00 |
| MS BLIND FLANGE ASA 150# 21MM THK | 65NB | ₹514.00 |
| MS BLIND FLANGE ASA 150# 23MM THK | 80NB | ₹592.00 |
| MS BLIND FLANGE ASA 150# 23MM THK | 100NB | ₹845.00 |
| MS BLIND FLANGE ASA 150# 23MM THK | 125NB | ₹1,099.00 |
| MS BLIND FLANGE ASA 150# 24MM THK | 150NB | ₹1,326.00 |
| MS BLIND FLANGE ASA 150# 27-28MM THK | 200NB | ₹2,236.00 |
| MS BLIND FLANGE ASA 150# 29-30MM THK | 250NB | ₹3,380.00 |
| MS BLIND FLANGE ASA 150# 30-31MM THK | 300NB | ₹5,070.00 |
| MS BLIND FLANGE ASA 150# 33-34MM THK | 350NB | ₹7,020.00 |
| MS BLIND FLANGE ASA 150# 35-36MM THK | 400NB | ₹8,905.00 |
| MS BLIND FLANGE ASA 150# 37-38MM THK | 500NB | ₹14,040.00 |
Terms & Conditions
These are Net Rates - Email your requirement to: sales@vijaysalescorp.com
Rates are EX Delhi Warehouse; Cartage & Freight shall be as per actual
GST @ 18% shall be extra
A Comprehensive Guide to Understanding Flange Prices
Flanges are crucial components used in the pipeline industry to connect and secure pipes, valves, and other equipment together. In this blog, we'll explore the factors determining the price of flanges and what you should consider when purchasing them.
Material: The most common materials used in the production of flanges include carbon steel, stainless steel, and alloy steel. The cost of flanges can vary greatly based on the type of material used. For instance, carbon steel flanges are typically less expensive compared to stainless steel flanges due to the lower cost of production. However, stainless steel flanges are more durable and corrosion-resistant, making them ideal for use in harsh environments.
Size: The size of the flange also plays a significant role in determining its price. Larger flanges, such as those used in high-pressure applications, are typically more expensive compared to smaller flanges. This is because they require more raw materials and greater production effort.
Manufacturing process The method used to produce flanges can also impact the final price. For example, casting flanges are typically less expensive compared to forged flanges due to the lower cost of production. However, forged flanges offer improved strength and durability, making them ideal for use in high-pressure applications.
Quantity Finally, the number of flanges purchased can also affect their overall cost. Larger orders often receive bulk discounts, making it more cost-effective to purchase flanges in bulk rather than in small quantities.
In conclusion, when purchasing flanges, it's essential to consider the material, size, manufacturing process, and quantity to determine the best option for your needs. While cost is an essential factor, it's also important to consider the quality and durability of the flange and its ability to meet the specific requirements of your application. By taking these factors into account, you can ensure that you are getting the best value for your money.
Vijay Sales Corporation is your go-to expert when it comes to Piping and all its accessories. We understand flanges, and their applications and provide our customers with the best prices and the widest variety of flanges possible. Please drop in an email at sales@vijaysalescorp.com so that we can help you out.
Understanding MS Flanges: Types, Uses, and Installation Guide
MS Flanges Table E - BS 10
A "MS Flange Table 'E'" refers to a specification for mild steel flanges that fall under the 'Table E' classification. In flange specifications, tables denote different pressure ratings and dimensions standards.
The 'Table E' specification is one part of the British Standard BS 10 that covers flange dimensions and drilling patterns. These flanges are commonly used for industrial, commercial, and institutional applications involving pipes where a flat face flange is required.
In the context of MS (Mild Steel) flanges, 'Table E' specifies the dimensions such as the outer diameter, thickness, bolt circle diameter, number of bolt holes, and the diameter of the bolt holes. This standard ensures that flanges conform to a set pattern that fits with other components in piping systems of the same standard.
For example, if you purchase two 'Table E' flanges from different manufacturers, they should be interchangeable because they both follow the same dimension guidelines laid out by BS 10 'Table E'.
MS Flange Table E, adhering to the specifications outlined in the British Standard BS 10, is widely utilized across a range of applications in industrial and commercial piping systems. Its primary use lies in facilitating secure and efficient connections between various components such as pipes, valves, pumps, and other equipment, ensuring a seamless flow of fluids or gases. The precise dimensional standards of Table E ensure compatibility and a tight seal, crucial for maintaining system integrity under varying pressures and conditions. These flanges are instrumental in constructing robust piping networks, offering the versatility needed for applications across water supply, wastewater treatment, oil and gas distribution, chemical processing, and many other sectors that require reliable fluid management solutions.

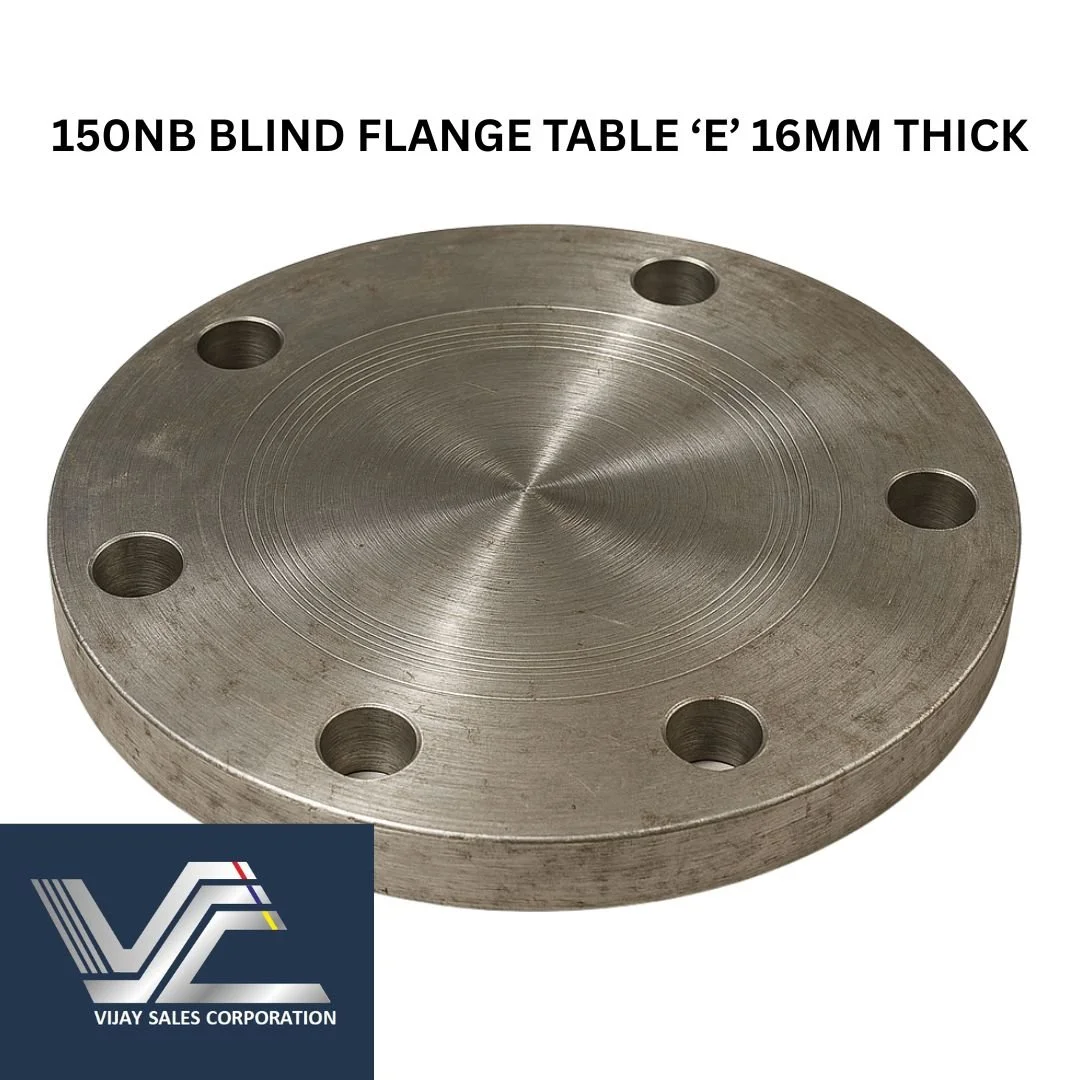

MS Blind Flanges Table E - BS 10
The MS Blind Flange Table E is specifically crafted to close off the end of a piping system securely. It’s a type of steel flange that is blank with no center hole, hence the term 'blind'. This design characteristic makes it fundamentally different from other types of MS Flanges Table E, which typically have a bore in the center to allow the passage of fluid or gas.
The MS Blind Flange Table E is crucial in various industrial and commercial settings for its role in securely sealing off sections of piping systems. Its primary application is in the maintenance and testing phases of pipeline management, where it facilitates pressure testing without necessitating the flow of the medium, thus ensuring the integrity and safety of the system. This is particularly valuable in sectors such as oil and gas, chemical production, and water treatment, where pipeline integrity is paramount. Moreover, MS Blind Flanges are indispensable for isolating segments of the pipeline for repairs, modifications, or routine maintenance, allowing such tasks to be performed without disrupting the entire system. This versatility and functionality make MS Blind Flanges an essential component in the construction and upkeep of efficient and safe piping networks. These flanges adhere to the dimensional criteria set forth in Table E of the British Standard BS 10, ensuring compatibility and integrity across piping installations.

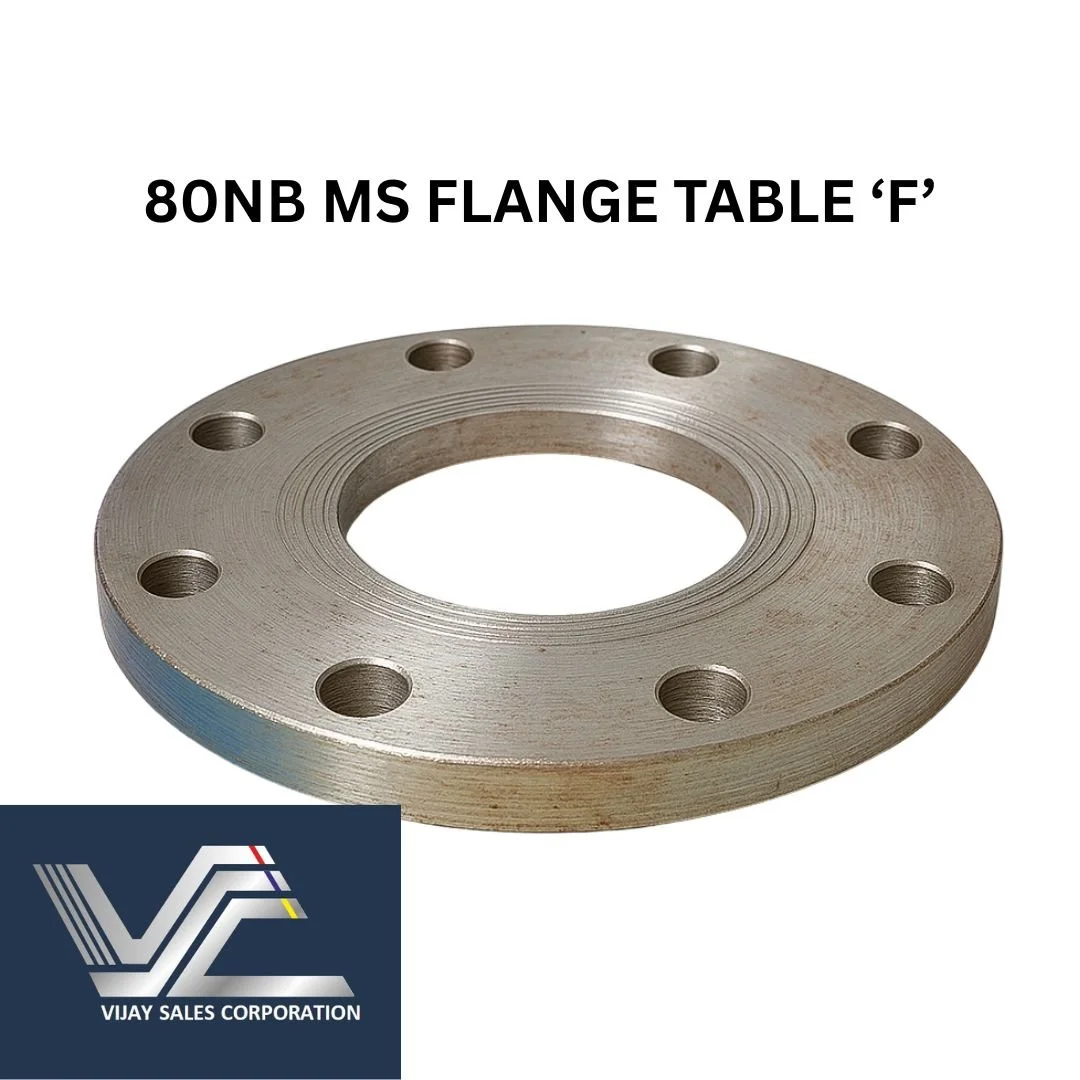

MS Flange Table F - BS 10
MS Flange Table F stands as a testament to the engineering precision and durability required in modern industrial piping systems. Defined by the rigorous standards of the British Standard BS 10, these mild steel flanges offer a comprehensive solution for creating secure, leak-proof connections across a multitude of applications. With specified dimensions including diameter, bolt circle diameter, flange thickness, and number of bolt holes, MS Flange Table F ensures a perfect fit and exceptional seal integrity for pipes, valves, and pumps.
The applications of MS Flange Table F are as diverse as they are vital. In the realm of water supply and wastewater management, these flanges provide the necessary resilience against varying pressures and flows, ensuring a leak-proof system. They are equally crucial in the oil and gas sector, where they withstand the demands of high-pressure environments, contributing to safe and uninterrupted operations. Additionally, in the manufacturing and processing industries, MS Flange Table F facilitates the smooth and efficient movement of raw materials and products, playing a key role in maintaining system reliability and productivity.
Beyond their functional benefits, MS Flange Table F flanges are celebrated for their cost-effectiveness and ease of installation, making them a favoured choice for projects where budget and time constraints are paramount. Their robust construction ensures longevity and reduces the need for frequent replacements or repairs, thereby minimizing downtime and maximizing operational efficiency.

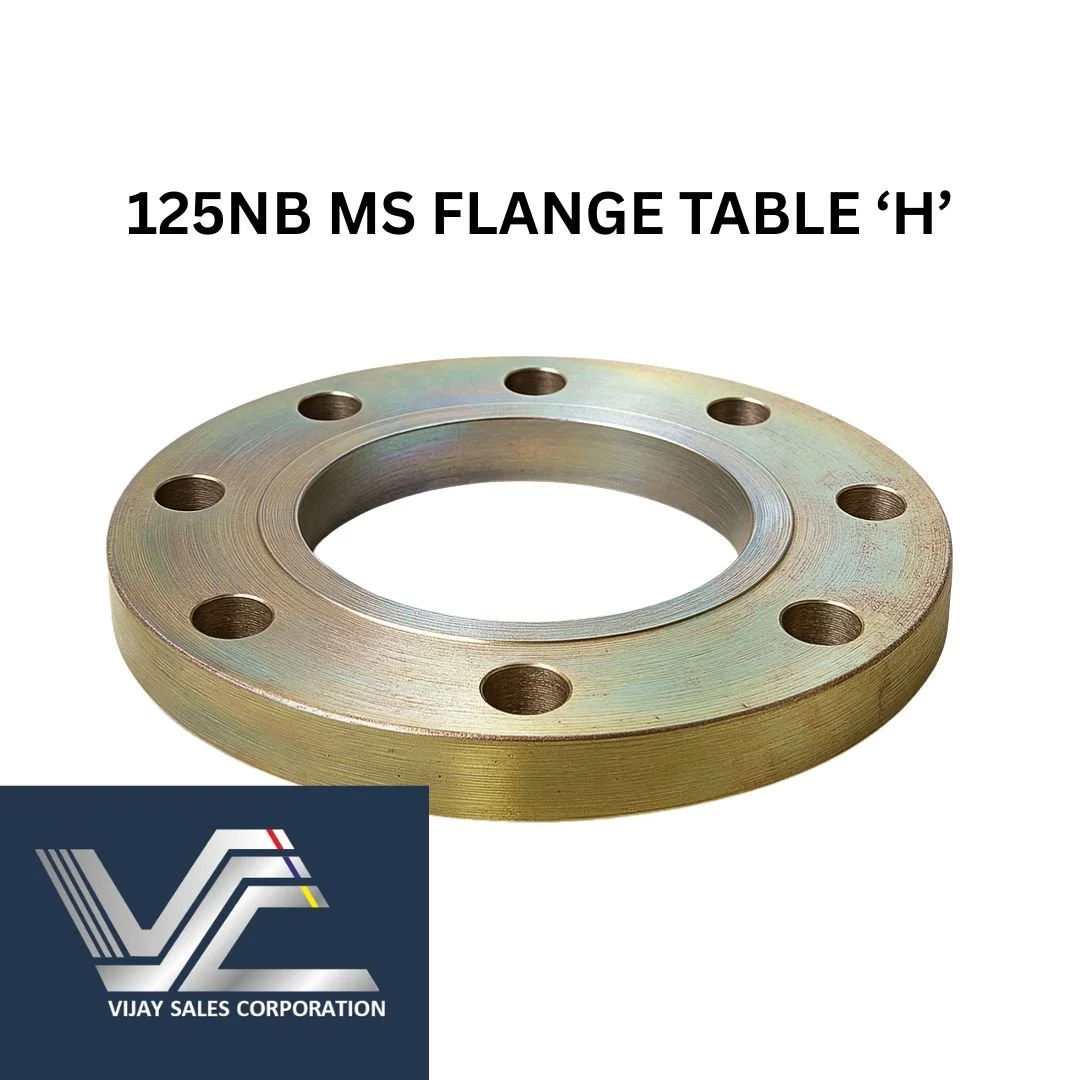

MS Flange Table H - BS 10
MS Flange Table H is a key player in the realm of industrial piping solutions, offering unmatched reliability and strength for demanding applications. Adhering to the stringent specifications of the British Standard BS 10, Table H flanges are engineered from premium mild steel, designed to meet the needs of systems requiring high pressure and temperature tolerance.
These flanges are meticulously crafted, featuring precise dimensions such as diameter, bolt circle diameter, and thickness, ensuring a perfect seal and robust connection for pipes, valves, and pumps. Ideal for sectors like oil and gas, petrochemicals, water treatment, and heavy manufacturing, MS Flange Table H flanges excel in providing a secure, leak-proof network essential for efficient operations and safety. Their durability, ease of welding, and cost-effectiveness make them a go-to choice for engineers and project managers aiming to optimize their piping systems.

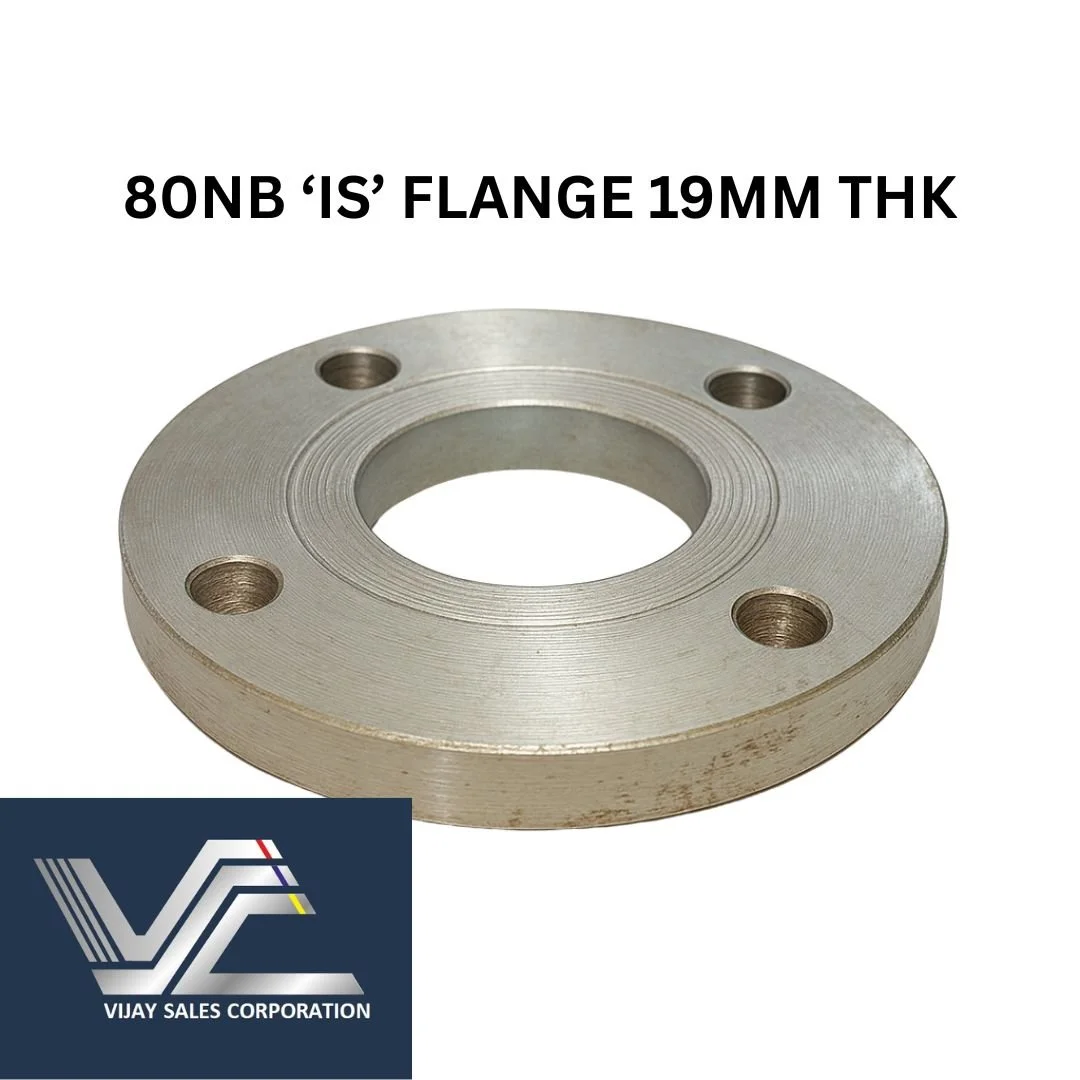

MS ‘IS’ Flange
MS "IS" Flanges emerge as the cornerstone for building resilient piping systems. Engineered to perfection in accordance with the Indian Standards (IS), these mild steel flanges boast unparalleled weldability and robustness, making them a staple in diverse applications. From facilitating the flow of water in municipal supply systems to ensuring the safe transit of oil and gases in the energy sector, MS "IS" Flanges are pivotal in establishing reliable connections that withstand the test of time and pressure.
Their adoption across various sectors, including HVAC installations, petrochemical plants, and manufacturing units, is a testament to their versatility and compliance with national quality benchmarks. MS 'IS' flanges are commonly used in various applications in India, ranging from plumbing and water supply to oil and gas pipelines, industrial machinery, and process industries. They are essential components in constructing a stable and secure piping network, allowing for the connection and disassembly of pipelines and equipment. The standardization provided by the "IS" specification guarantees uniformity and compatibility, a crucial factor for projects that demand precision and safety.

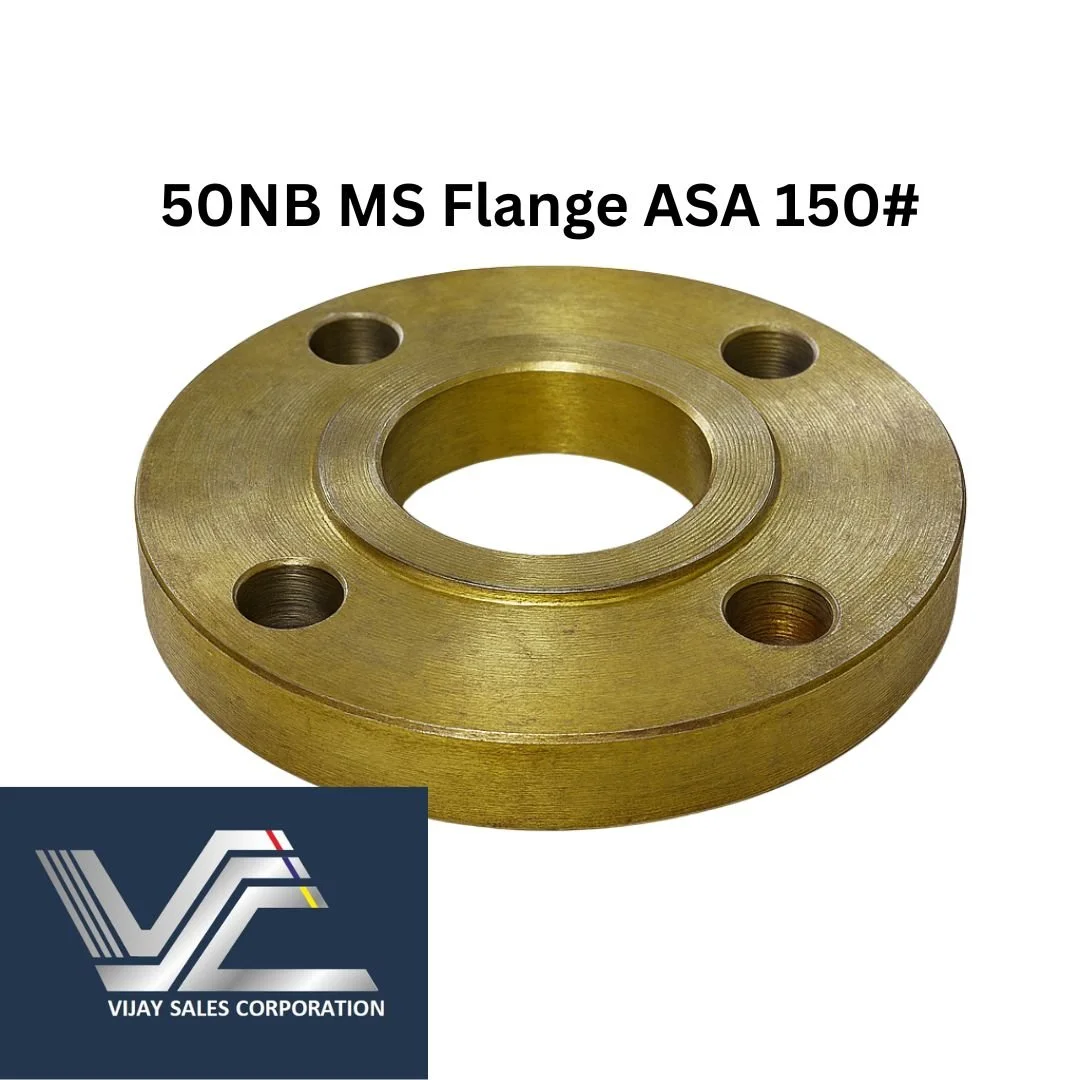

MS Flange ASA 150#
MS Flange ASA 150# is a classification of flanges that indicates a mild steel flange designed in accordance with the ASA (now known as ASME) 150-pound standard. This standard specifies dimensions, such as bolt circle diameter, bolt hole size, flange thickness, and overall diameter, ensuring the flange can manage systems operating at a maximum pressure of 150 pounds per square inch. These flanges are essential for creating strong, leak-proof connections in piping systems across a wide spectrum of applications, including water supply, HVAC systems, petrochemical processing, and oil and gas distribution networks.
The robust construction of the MS Flange ASA 150# makes it an excellent choice for moderate pressure applications where durability and reliability are paramount. Its mild steel composition offers good weldability and machinability, while also providing sufficient strength to maintain pipe integrity under fluctuating thermal conditions and mechanical stress. With their standardized specifications, these flanges facilitate easy installation and maintenance, leading to widespread use in industrial and commercial environments that prioritize safety and efficiency. Whether it’s being implemented in new construction or retrofitting into existing systems, the MS Flange ASA 150# is a fundamental component for engineers and technicians aiming for top-tier performance in their fluid handling operations.

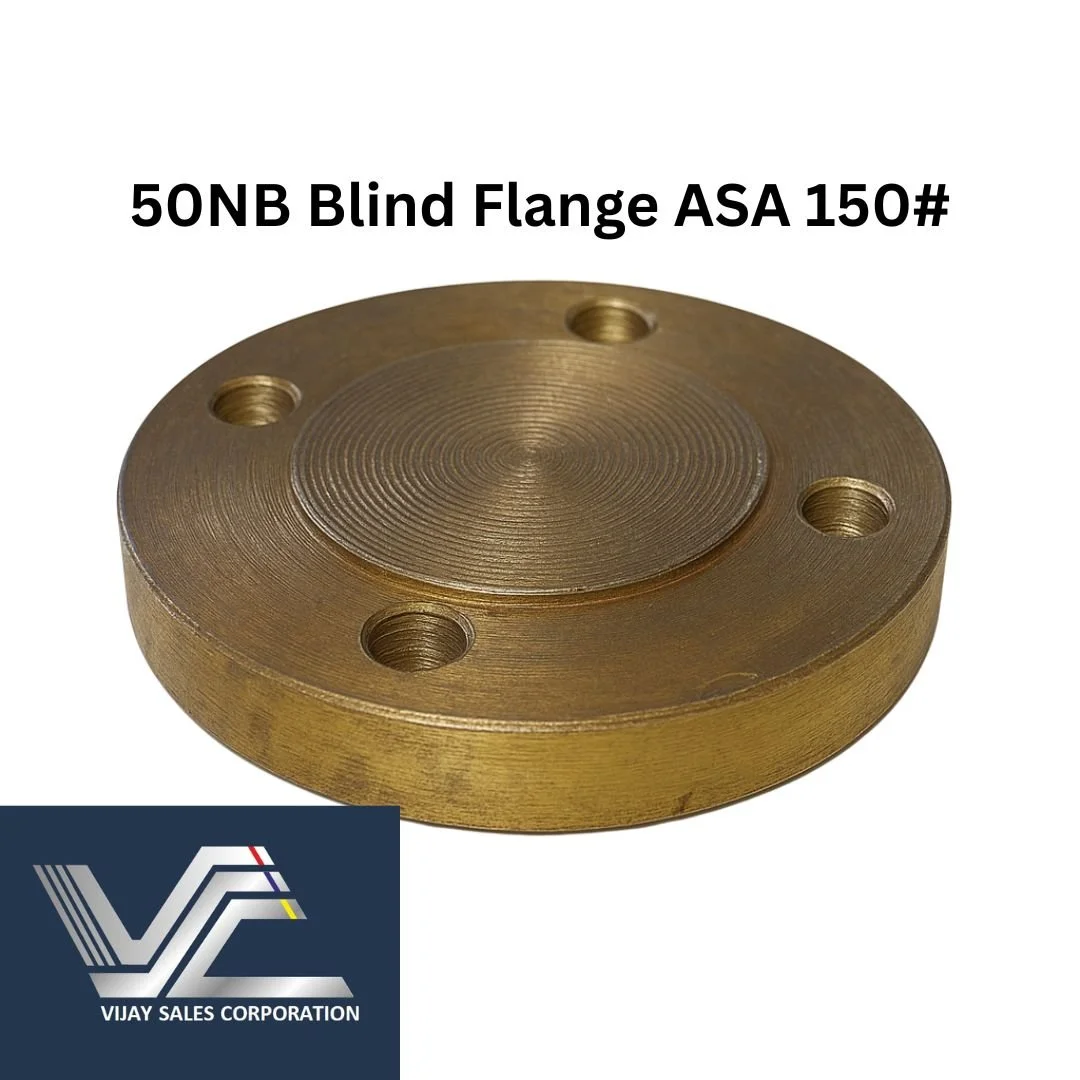

MS Blind Flange ASA 150#
The MS Blind Flange ASA 150# is a robust and pivotal component in industrial piping systems, specifically designed to provide a secure seal at the end of a pipe run. Constructed in line with the ASME B16.5 standard, this mild steel blind flange is rated for 150 pounds per square inch, making it suitable for applications that require a reliable closure mechanism at a moderate pressure range. Its primary role is to blank off pipelines, valves, or pumps that may need to be inspected, cleaned, or changed, without disrupting the rest of the system.
The versatility of the MS Blind Flange ASA 150# sees its widespread application across various sectors. It’s especially useful in industries such as water treatment, where systems need to be periodically shut down for maintenance, or in the oil and gas sectors, where sections of the pipeline might need to be isolated for safety reasons or during emergency shutdowns. The blind flange's high-quality mild steel construction ensures longevity and resilience, enabling it to withstand the rigors of heavy-duty use while providing a cost-effective solution for managing industrial flow control. With its precise compliance to the ASA 150# standards, the MS Blind Flange guarantees compatibility and interchangeability, streamlining operations and ensuring efficiency in numerous industrial processes.
