L&T Valves, stocked and supplied by Vijay Sales Corporation
Vijay Sales Corporation carries the L&T industrial valve range from its Delhi warehouse — ball valves in carbon and stainless steel, Aquaseal integrally-moulded butterfly valves, cast steel gate, globe and swing check valves, and the forged steel range in Class 800 through Class 2500. Material is supplied genuine, with manufacturer marking intact, and dispatched pan-India.
The people who buy from this counter are rarely browsing. They are project contractors closing out a piping package, OEMs building skids and pressure equipment, plant maintenance teams replacing a valve that has failed on a running line, and MEP contractors fitting out buildings where the fire and water systems have to be signed off. What all of them need is the same: the right class and end connection, genuine material with the marking intact, and a delivery date that holds.
That is why ex-stock matters more than a catalogue does. A valve that arrives in six weeks is no use to a shutdown that starts on Monday. Holding depth in the fast-moving sizes — the small screwed and socket-weld ball valves, the common wafer and lugged butterfly sizes, the forged steel Class 800 gate, globe and check range — means most requirements ship the day they are confirmed, and the ones that need calling in are flagged honestly before an order is placed rather than after.
Everything on this page is drawn from the L&T Valves catalogues. For commercial terms and the complete rate schedule, the L&T Valves price list w.e.f. 1st April 2026 is published separately and in full.
Six ranges supplied from Delhi
Ball Valves
Single, two and three-piece designs to ISO 17292 and API 6D, 8 mm - 200 mm (1/4" - 8"), ASME Class 150 to 2500. Screwed, socket-weld and flanged ends.

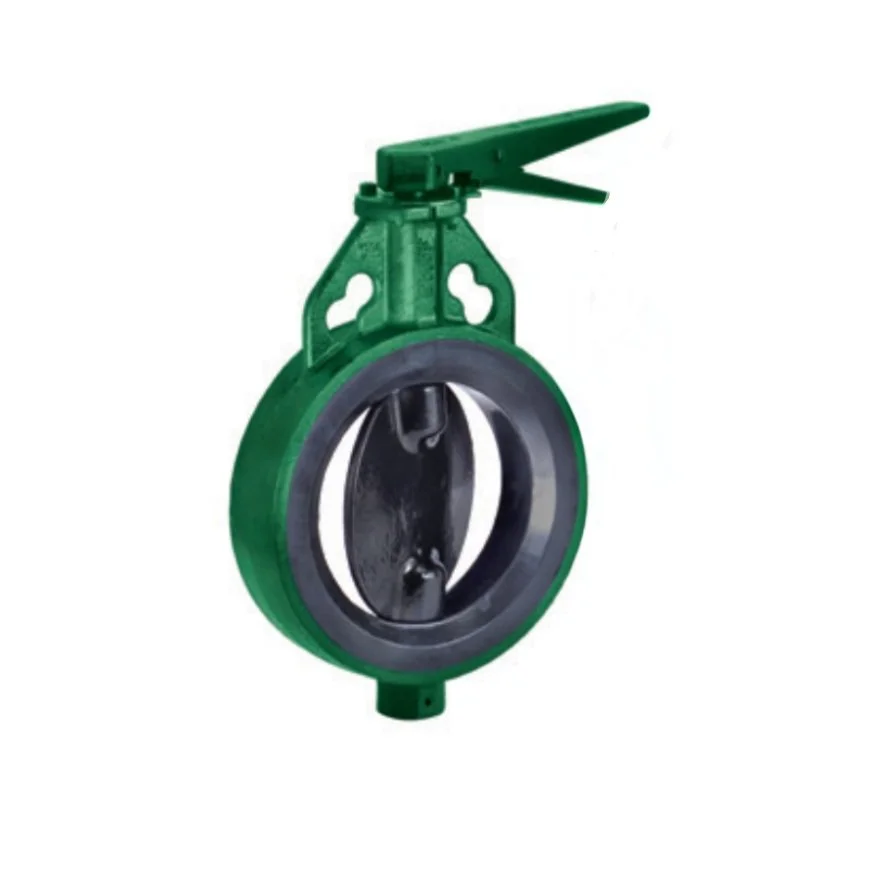

Aquaseal Butterfly Valves
Integrally-moulded seat vulcanised onto the body, built to EN 593, API 609 and MSS SP-67. Four models cover the ratings: Aquaseal 10 (PN 10), Aquaseal 16 (PN 16), Aquaseal Plus (Class 150) and Aquaseal 25 (PN 25) — wafer, lugged and flanged bodies, 50 to 900 mm.
CS Gate, Globe & Check — IBR
Cast steel gate, globe and swing check valves in Class 150 and Class 300 flanged, 50 to 600 mm, with 13% Cr. steel and hardfaced trim. Every item IBR.

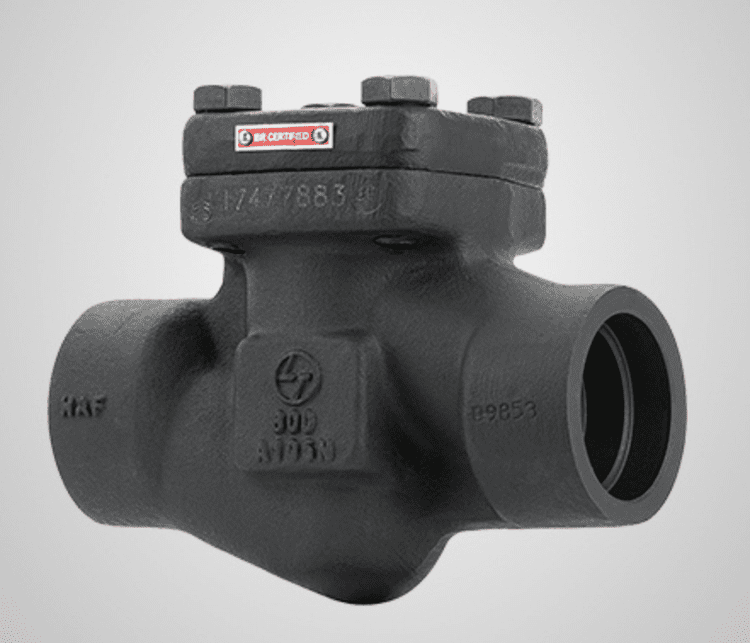

Forged Steel Gate, Globe & Check
Class 800 gate, globe and lift check in screwed and socket-weld, 15 to 50 mm, plus Class 1500 and Class 2500 globe valves in A105 and F22 bodies. Every item IBR.
Dual Plate Check Valves
Wafer pattern dual plate non-return valves in PN-10 and PN-16, cast iron body with CA15 plates and EPDM lining, supplied against enquiry.

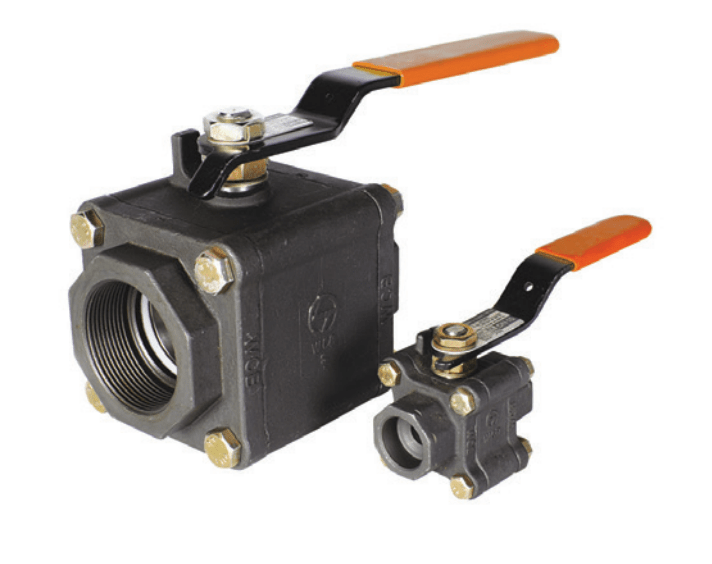

Fire-Safe Range
Ball valves tested to ISO 10497 and API 607, in threaded and flanged 150# and 300# patterns, including the Energy Miser IBR series.
L&T ball valves — construction, materials and ends
The ball valve range covers ASME Class 150 to 2500 in sizes 8 mm - 200 mm (1/4" - 8"), designed to ISO 17292 and API 6D. Three body constructions are offered and the choice is usually driven by maintenance access rather than pressure: a single-piece body is the most compact and the least likely to leak at a joint; a two-piece body splits for seat access; and a three-piece body lets the centre section be removed for servicing without disturbing the pipework either side, which is why it dominates the screwed and socket-weld sizes.
Bore is specified as either full bore, where the ball port matches the pipe bore and the pressure drop is close to that of a straight length of pipe, or reduced bore, which is smaller, lighter and less expensive for the same line size where a modest pressure drop is acceptable. Both appear across the range.
Materials of construction
Stainless components are specified by cast and forged grade rather than by the familiar 304/316 shorthand: CF8M is the cast equivalent of SS 316 and F316 its forged counterpart, while F304 is the forged 304 grade. The catalogue lists them exactly as below.
| Part | Single-piece | Two-piece | Three-piece |
|---|---|---|---|
| Body / connector / insert | ASTM A216 Gr. WCB; ASTM A351 Gr. CF8M / ASTM A182 Gr. F316 | ASTM A216 Gr. WCB; ASTM A351 Gr. CF8M / ASTM A182 Gr. F316 | ASTM A216 Gr. WCB; ASTM A105; ASTM A351 Gr. CF8M / ASTM A182 Gr. F316 |
| Ball | ASTM A351 Gr. CF8M / ASTM A182 Gr. F316 / ASTM A182 Gr. F304 | ASTM A351 Gr. CF8M / ASTM A182 Gr. F316 / ASTM A182 Gr. F304 | ASTM A351 Gr. CF8M / ASTM A182 Gr. F316 / ASTM A182 Gr. F304 |
| Seat | PTFE / RPTFE / special filled PTFE / PEEK / Devlon® / NXT-70 / SS316 + ST | PTFE / RPTFE / special filled PTFE / PEEK / Devlon® / NXT-70 / SS316 + ST | PTFE / RPTFE / special filled PTFE / PEEK / Devlon® / NXT-70 / SS316 + ST |
| Stem | ASTM A479 Type 316 | ASTM A479 Type 316 | ASTM A479 Type 316 |
| Body seal | Graphite | Graphite | PTFE / RPTFE / special filled PTFE / graphite |
| Stem thrust seal | Carbon-filled PTFE | Carbon-filled PTFE | Carbon-filled PTFE |
| Stem packing | Carbon-filled PTFE / graphite | Carbon-filled PTFE / graphite | Carbon-filled PTFE / graphite |
As published in the L&T ball valve catalogue.
End connections
Socket-weld ends are made to ASME B16.11, screwed ends to ISO 7-1 for BSPT or ASME B1.20.1 for NPT, and flanged ends to ASME B16.5 in raised face, flat face or ring-type joint. Flanged face-to-face follows ASME B16.10.
Cold working pressure by seat material
Seat choice sets the pressure ceiling as much as the body class does:
| Seat material | Cold working pressure |
|---|---|
| PTFE | 69 bar |
| RPTFE and special filled PTFE | 103 bar |
| Devlon® | 400 bar |
| PEEK | 425 bar |
Test pressures
| Test | Class 150 | Class 300 | Class 600* |
|---|---|---|---|
| Shell — hydrostatic | 30 | 77 | 155 |
| Seat — hydrostatic | 22 | 56 | 113 |
| Seat — pneumatic | 5.5 | 5.5 | 5.5 |
Pressures in bar. *With RPTFE / special filled PTFE.
Pressure testing is carried out to ISO 5208 and API 598. Where a fire-safe design is required, the valve is tested to ISO 10497 and API 607 — the standards that demonstrate a valve will still shut off after the soft seats have been burned away.

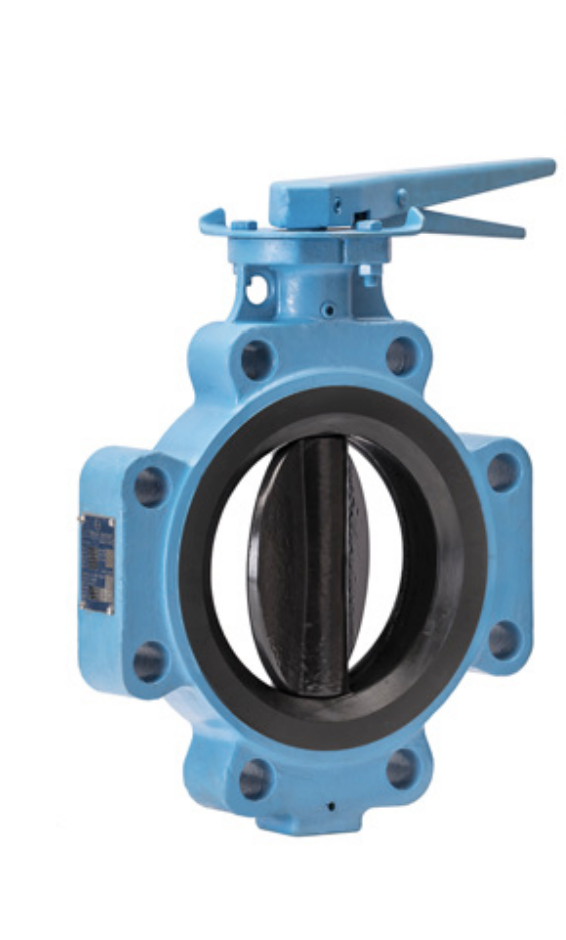

L&T Aquaseal butterfly valves
What separates Aquaseal from an ordinary resilient-seated butterfly valve is how the seat is fixed. Instead of dropping a moulded rubber liner into the body as a separate part, the elastomer is vulcanised directly onto the body casting. A loose liner can creep, roll or tear as the disc sweeps past it, and once it moves the valve starts to pass. A bonded seat has nowhere to go, so sealing stays consistent and the torque needed to turn the disc does not climb as the valve ages — which matters most on actuated valves, where rising torque eventually stalls the actuator.
The Aquaseal family
The family spans four pressure ratings: Aquaseal 10 (PN 10, wafer, 50–600 mm), Aquaseal 16 (PN 16, wafer, lugged and flanged, 50–900 mm), Aquaseal Plus (Class 150, wafer, lugged and flanged) and Aquaseal 25 (PN 25, wafer, 50–200 mm). The tables below detail Aquaseal 16, the workhorse of the range and the model held ex-stock:
| Variant | Rating | Body styles | Sizes | Body materials |
|---|---|---|---|---|

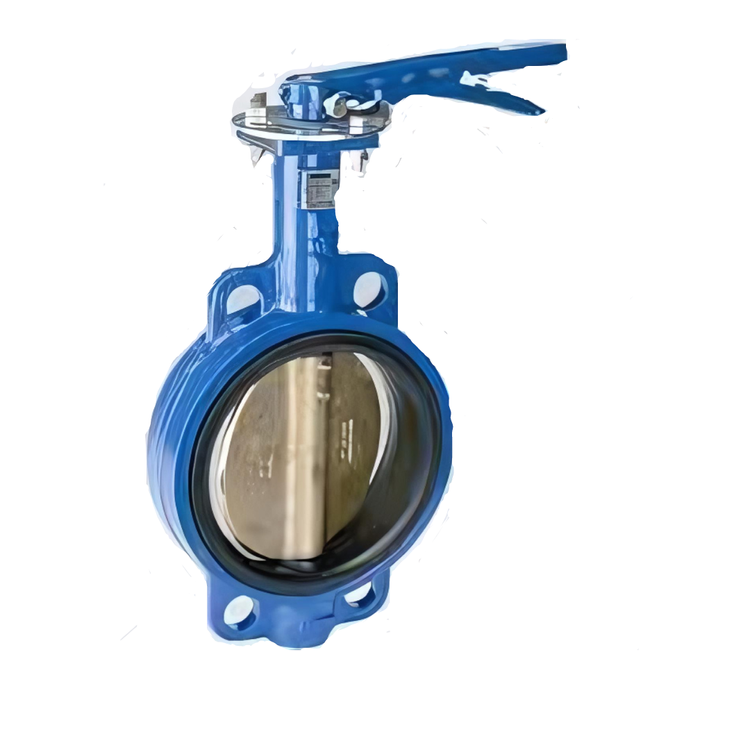

| Aquaseal 16 | PN 16 | Wafer flangeless, lugged | 50 mm (2") to 900 mm (36") | Cast iron IS 1561 EN GJL-250; SG iron EN 1563-400/18; CS A216 Gr. WCB |
| Aquaseal Plus | Class 150 | Wafer flangeless, lugged | 50 mm (2") to 900 mm (36") | SG iron EN 1563-400/18; carbon steel A216 Gr. WCB |

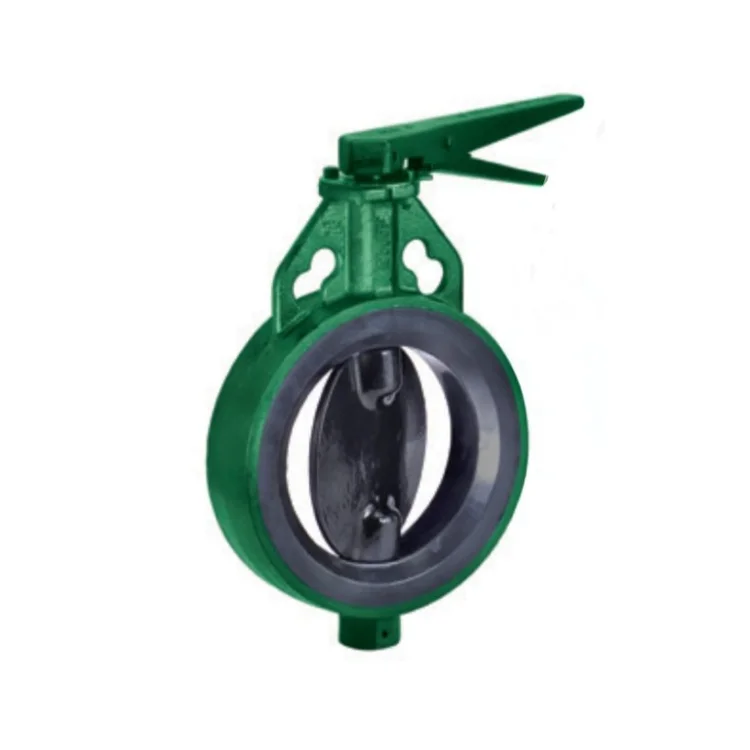

PN-10 Aquaseal valves and dual plate wafer check valves in PN-10 and PN-16 also appear on the current price list.
Pressure ratings
| Parameter | Aquaseal 16 (PN 16) | Aquaseal Plus (Class 150) |
|---|---|---|
| Rated working pressure | 16 bar | 20 bar |
| Shell test pressure | 24 bar | 30 bar |
| Seat test pressure | 17.6 bar | 22 bar |
Disc, liner and body materials
| Component | Aquaseal 16 | Aquaseal Plus |
|---|---|---|
| Body | Cast iron IS 1561 EN GJL-250; SG iron EN 1563-400/18; CS to A216 Gr. WCB | SG iron EN 1563-400/18; carbon steel A216 Gr. WCB |
| Seat / liner | Nitrile rubber, EPDM, Viton | Nitrile rubber, EPDM |
| Disc | SG iron EN 1563-400/18 nylon-coated; CF8, CF8M to A351; AB2 to IS EN 1982; CF3M | SG iron EN 1563-400/18 nylon-coated; stainless steel A351 CF8; CF8M to A351; CF3M; AB2 |
| Stem / shaft | ASTM A479 Type 410 with Xylan® coating, 17-4 Ph | ASTM A479 Type 410 with Xylan® coating, 17-4 Ph |
| Bearing | Acetal, PTFE, phosphor bronze | Acetal, PTFE, phosphor bronze |
Valves in other materials are available on demand. CF8 is the cast 304 grade; CF8M is the cast 316 grade.
Both variants carry an ISO 5211 mounting platform for direct actuator and gear-unit fitting, so gear units and pneumatic or electric actuators bolt straight to the valve without an adaptor bracket.
Cast steel and forged steel gate, globe & check valves
This is the IBR side of the range, and it splits by size. Below 50 mm the valves are forged — a solid bar or billet worked into shape, which gives a dense body with no casting porosity and lets the higher classes be built in small bores. From 50 mm upward the bodies are cast steel, flanged, in Class 150 and Class 300.
Trim is what actually wears, and it is specified separately from the body. The Class 150, 300 and 800 valves use 13% chromium steel with hardfacing on the seating surfaces; the Class 1500 and Class 2500 globe valves step up to 5% chromium steel with hardfacing, matched to A105 or F22 bodies depending on the service temperature.
| Range | Pattern | Class | Size | End | Trim |
|---|---|---|---|---|---|
| Cast steel | Gate | 150 & 300 | 50–600 mm | Flanged | 13% Cr. steel + hardfaced |
| Cast steel | Globe | 150 & 300 | 50–600 mm | Flanged | 13% Cr. steel + hardfaced |
| Cast steel | Swing check | 150 & 300 | 50–600 mm | Flanged | 13% Cr. steel + hardfaced |
| Forged steel | Gate | 800 | 15–50 mm | Screwed / socket-weld | 13% Cr. steel + hardfaced |
| Forged steel | Globe | 800 | 15–50 mm | Screwed / socket-weld | 13% Cr. steel + hardfaced |
| Forged steel | Lift check | 800 | 15–50 mm | Screwed / socket-weld | 13% Cr. steel + hardfaced |
| Forged steel | Globe (A105 body) | 1500 & 2500 | 15–50 mm | Socket-weld | 5% Cr. steel + hardfaced |
| Forged steel | Globe (F22 body) | 1500 & 2500 | 15–50 mm | Socket-weld | 5% Cr. steel + hardfaced |
Every gate, globe and check valve in the range above is IBR. Ranges and trims are as listed on the current manufacturer price list w.e.f. 1st April 2026.
Dimensional data
The figures most often needed at enquiry stage, taken from the L&T catalogues. The complete set — including flanged ball valve dimensions, gear-unit and lugged butterfly dimensions and weights — is on the price list page.
Ball valves — screwed / socket-weld end, 15 to 100 mm
| DN | NPS | A | B | C (SW) | D | E | F | G | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 15 | 1/2 | 66 | 10 | 22.2 - 21.8 | 11 | 38 | 132 | 50 | 1 |
| 20 | 3/4 | 69 | 13 | 27.6 - 27.2 | 11 | 38 | 132 | 50 | 1 |
| 25 | 1 | 90 | 13 | 34.3 - 33.9 | 17 | 46 | 132 | 58 | 1 |
| 32 | 1-1/4 | 97 | 13 | 43.1 - 42.7 | 24 | 54 | 162 | 65 | 2 |
| 40 | 1-1/2 | 103 | 13 | 49.2 - 48.8 | 27 | 56 | 162 | 66 | 2.5 |
| 50 | 2 | 122 | 16 | 61.7 - 61.2 | 37 | 75 | 192 | 83 | 4.5 |
| 80 | 3 | 185 | 16 | 90.3 - 89.8 | 62 | 200 | 390 | 200 | 17 |
| 100 | 4 | 212 | 19 | 115.7 - 115.2 | 74 | 225 | 600 | 225 | 27 |
Dimensions in mm, weights in kg. Below DN 20 the valve is built full bore only.
Aquaseal 16 — wafer, 50 to 300 mm
| NPS | DN | A | B | D |
|---|---|---|---|---|
| 2 | 50 | 43 | 99 | 65 |
| 2-1/2 | 65 | 46 | 110 | 78 |
| 3 | 80 | 46 | 116 | 85 |
| 4 | 100 | 52 | 134 | 105 |
| 5 | 125 | 56 | 164 | 118 |
| 6 | 150 | 56 | 177 | 144 |
| 8 | 200 | 60 | 235 | 169 |
| 10 | 250 | 68 | 259 | 214 |
| 12 | 300 | 78 | 284 | 249 |
All dimensions in mm. Aquaseal 16 runs to 900 mm (36") — the full chart, including gear-unit and lugged dimensions, is on the price list page.
Download the L&T catalogues
The complete manufacturer catalogues — every dimension chart, torque table, flow co-efficient and material specification — as published by L&T Valves:
About L&T Valves
L&T Valves is the flow control arm of the Larsen & Toubro group and has been building industrial valves in India for over fifty years. Manufacturing runs from plants at Kancheepuram, Coimbatore and Sriperumbudur, and the output goes into the sectors where a valve failure is expensive: oil and gas production, refining and petrochemicals, power generation, water infrastructure and general process plant.
The business holds API monogram licences for API 600, API 6D and API 609 — the gate, pipeline and butterfly valve standards respectively — which means the products are made under a licensed quality system rather than merely claimed to meet the standard. Quality management is certified to ISO 9001 and API Spec Q1, environmental management to ISO 14001, and selected product lines are certified to SIL-3 for use in safety instrumented systems.
For a buyer, the practical consequence of that accreditation stack is traceability. A monogrammed valve arrives with marking and documentation that a third-party inspector will accept, which is the difference between a package being signed off and being sent back.
Design, testing and fire-test standards by product family
Ball valves
| Scope | Standard |
|---|---|
| Design | ISO 17292 / API 6D |
| Socket-weld ends | ASME B16.11 |
| Screwed end, BSPT | ISO 7-1 |
| Screwed end, NPT | ASME B1.20.1 |
| End flange | ASME B16.5 RF / FF / RTJ |
| Face-to-face (flanged) | ASME B16.10 |
| Pressure testing | ISO 5208 / API 598 |
| Fire test | ISO 10497 / API 607 |
Aquaseal 16 butterfly valves
| Parameter | Standard |
|---|---|
| Valve design | EN 593 (BS 5155), API 609, MSS SP-67 |
| Pressure testing | EN 12266 Part 1&2, API 598, ISO 5208 |
| End connection | Wafer flangeless, lugged (EN 1092); ASME B16.42 & ASME B16.5 Class 150 / BS 4504 PN 16 |
| Face-to-face | EN 558 Series 20 (350 mm: EN 558 Series 25) / API 609 Cat A, MSS SP-67 (narrow body), ISO 5752 (short) |
Aquaseal Plus butterfly valves
| Parameter | Standard |
|---|---|
| Valve design | EN 593 (BS 5155), API 609 Cat A, MSS SP-67 |
| Pressure testing | EN 12266 Part 1&2, API 598, ISO 5208 |
| End connection | Wafer flangeless, lugged (EN 1092); ASME B16.42 & ASME B16.5 Class 150, BS 4504 PN 10/16, ASME B16.47 Series A & B, AWWA C 207 Class E |
| Face-to-face | EN 558 Series 20 (350 mm: EN 558 Series 25), API 609 Cat A, MSS SP-67 (narrow body), ISO 5752 (short) |
Why buy L&T Valves from Vijay Sales Corporation
Looking for L&T Valves in Delhi? Vijay Sales Corporation holds ready stock at its Delhi warehouse and has traded pipes, fittings and valves from the city since 1961 — three generations of the same family across the counter at Hauz Qazi, with the office at Nehru Place.
- Stock depth where it counts. The fast-moving ball, butterfly and forged steel sizes are held on the shelf, not ordered in after you commit.
- Same-day dispatch across Delhi NCR. Confirmed in the morning, on its way the same day for material in stock.
- Pan-India freight. Road dispatch to any site, with transport arranged against your preferred carrier if you have one.
- Bill of quantities priced line by line. Send the BOQ on WhatsApp 9999889008 and it comes back priced, with an honest note against anything that has to be called in.
- Genuine material. Supplied with manufacturer marking intact, so third-party inspection is not a problem.
- Recognised distribution. Listed by Industry Outlook among its top 10 distributors in Iron & Steel for 2023 and 2024.
L&T Valves ready stock ex-Delhi
Same-day dispatch across Delhi NCR, pan-India freight, genuine material with manufacturer marking intact. Send the size, class and quantity and you will have net rates the same day.
L&T Valves — frequently asked questions
Who makes L&T Valves, and is it part of Larsen & Toubro?
L&T Valves is the flow control business of the Larsen & Toubro group, manufacturing industrial valves in India for more than fifty years. Its plants at Kancheepuram, Coimbatore and Sriperumbudur build ball, butterfly, gate, globe and check valves for oil and gas, refining, petrochemicals, power, water and general process duty. Vijay Sales Corporation stocks and supplies the range from Delhi as genuine material.
Where can I buy L&T Valves in Delhi or across India?
Vijay Sales Corporation holds L&T Valves in ready stock at its Delhi warehouse, with the trade counter at Hauz Qazi and the office at Nehru Place. Orders dispatch the same day across Delhi NCR and go pan-India by road freight. Send the size, class and quantity on WhatsApp 9999889008 and you will have net rates the same day.
What is the L&T ball valve range, and what materials are used?
L&T ball valves are built to ISO 17292 and API 6D in ASME Class 150 to 2500 from 8 mm - 200 mm (1/4" - 8"). Bodies are carbon steel to ASTM A216 Gr. WCB or A105, and stainless to ASTM A351 Gr. CF8M or A182 Gr. F316. Balls are CF8M, F316 or F304 and stems are ASTM A479 Type 316. For the seat there is a choice of PTFE together with its reinforced and specially filled variants, or PEEK, Devlon® and NXT-70 where higher pressure or temperature demands it, or a metal-seated SS316 + ST option. Single-piece, two-piece and three-piece constructions are offered in screwed, socket-weld and flanged ends.
What is the L&T Aquaseal butterfly valve range?
Aquaseal is the L&T integrally-moulded butterfly valve, where the seat is vulcanised directly onto the body rather than fitted as a loose liner. Two variants are documented in the current catalogues: Aquaseal 16, rated PN 16, and Aquaseal Plus, rated Class 150. Both are offered in wafer flangeless and lugged bodies from 50 mm to 900 mm, built to EN 593, API 609 and MSS SP-67, with an ISO 5211 platform for direct actuator mounting. PN-10 valves and dual plate wafer check valves also appear on the current price list.
Is there an L&T valves price list?
Yes. The complete manufacturer list effective 1st April 2026 is published in full on the L&T Valves price list page, covering ball, Aquaseal butterfly, cast steel gate/globe/check and forged steel valves. For best net rates against a specific requirement, message WhatsApp 9999889008 with the size, class and quantity. The manufacturer catalogues (ball valve, Aquaseal PN 16, and butterfly & check valves) are also downloadable as PDFs in the dimensions section above.
Does L&T make IBR and fire-safe valves?
Yes to both. The cast steel gate, globe and swing check range in Class 150 and Class 300, and the forged steel gate, globe and lift check range in Class 800, 1500 and 2500, are all IBR. On the ball valve side, fire-safe designs are tested to ISO 10497 and API 607, and fire-safe variants appear across the threaded and flanged ranges including the Energy Miser IBR series.
What sizes are available ex-stock?
Fast-moving sizes are held ex-Delhi: ball valves in the smaller screwed and socket-weld sizes, Aquaseal butterfly valves in the common wafer and lugged sizes, and the forged steel Class 800 gate, globe and check range. Larger cast steel gate, globe and check valves and higher classes are called in against order. Ask on WhatsApp before you commit a delivery date and you will get an honest answer on what is on the shelf today.
How do I get a quotation for L&T Valves?
Send the valve type, size, class, end connection and quantity on WhatsApp 9999889008, or email sales@vijaysalescorp.com. A bill of quantities is priced line by line. Rates quoted are against the current manufacturer list w.e.f. 1st April 2026, and material is supplied genuine with manufacturer marking intact.
