VEESON VALVES PRICE LIST DATED 01st March, 2022
VEESON VALVES (A UNIT OF DRP GROUP)VEESON CI BALL VALVE SCREWED END ‘ISI’ MARKED
Design: Cast Iron Ball Valve Single Piece Design, as per IS:9890-1981, Full Bore, Blow out proof stem, Screwed Female end BSP Threaded
Temperature Range: 10 Deg. Celsius to 200 Deg. Celsius; Body Test Pressure: 500 PSI or 34 Kg/cm2
| SIZE (in MM) | SIZE (in Inches) | Price |
|---|---|---|
| 15MM | 1/2" | 318.00 |
| 20MM | 3/4" | 432.00 |
| 25MM | 1" | 557.00 |
| 32MM | 1-1/4" | 1103.00 |
| 40MM | 1-1/2" | 1262.00 |
| 50MM | 2" | 1831.00 |
| 65MM | 2-1/2" | 3206.00 |
| 80MM | 3" | 4434.00 |
| 100MM | 4" | 9346.00 |
VEESON CI BALL VALVE FLANGED END ‘ISI’ MARKED 3-PC DESIGN
Design: Cast Iron Ball Valve 3 piece design CL-125 as per IS:9890-1981, Full Bore, Blow out proof stem, Floating Ball, Flanged end as per BS: 10 Table F
Temperature Range: 10 Deg. Celsius to 200 Deg. Celsius; Test Pressure: 500 PSI/ 34 Kg/cm2
| SIZE (in MM) | SIZE (in Inches) | Price |
|---|---|---|
| 15MM | 1/2" | 921.00 |
| 20MM | 3/4" | 1012.00 |
| 25MM | 1" | 1285.00 |
| 32MM | 1-1/4" | 1649.00 |
| 40MM | 1-1/2" | 2001.00 |
| 50MM | 2" | 2899.00 |
| 65MM | 2-1/2" | 4787.00 |
| 80MM | 3" | 6618.00 |
| 100MM | 4" | 10916.00 |
| 125MM | 5" | 20853.00 |
| 150MM | 6" | 26084.00 |

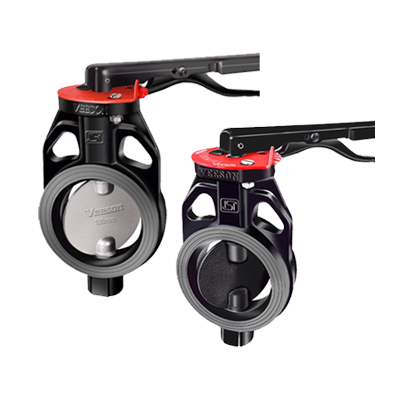

VEESON CI BUTTERFLY VALVE WITH SS-304 DISC ‘ISI MARKED PN1.6
Design: Cast Iron Wafer Type Butterfly Valve conforming to IS:13095-1991, SS-304 DISC
Temperature Range: 10 Deg. Celsius to 100 Deg. Celsius; Test Pressure: 500 PSI/ 34 Kg/cm2
| SIZE (in MM) | SIZE (in Inches) | Price |
|---|---|---|
| 40MM | 1-1/2" | 1671.00 |
| 50MM | 2" | 1887.00 |
| 65MM | 2-1/2" | 2172.00 |
| 80MM | 3" | 2388.00 |
| 100MM | 4" | 3184.00 |
| 125MM | 5" | 4059.00 |
| 150MM | 6" | 4707.00 |
| 200MM | 8" | 9938.00 |
| 250MM | 1" | 13372.00 |
| 300MM | 12" | 17465.00 |

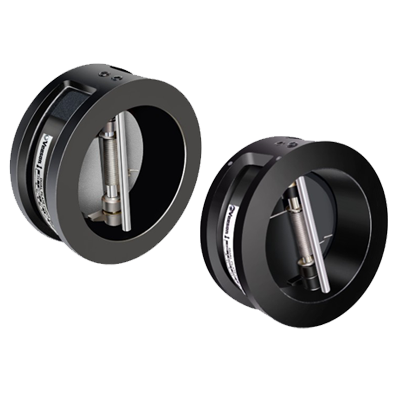

VEESON CI DUAL PLATE CHECK VALVE WITH SS-304 DOORS
Design: Cast Iron Dual Plate Check Valve, Designed to operate with a minimum flow restriction. The spring loaded half disc operates with the pipe line flow. Nominal Pressure Rating: PN1.6
Temperature Range: 10 Deg. Celsius to 80 Deg. Celsius; Test Pressure: 500 PSI/ 34 Kg/cm2
| SIZE (in MM) | SIZE (in Inches) | Price |
|---|---|---|
| 50MM | 2" | 1899.00 |
| 65MM | 2-1/2" | 2126.00 |
| 80MM | 3" | 2763.00 |
| 100MM | 4" | 4162.00 |
| 125MM | 5" | 5856.00 |
| 150MM | 6" | 7175.00 |
| 200MM | 8" | 12326.00 |
| 250MM | 1" | 20296.00 |
| 300MM | 12" | 29427.00 |
VEESON CI WAFER TYPE CHECK VALVE PN1.6
Design: Cast Iron Wafer Type Check Valve is an all purpose Check Valve/ NRV. The design is strong and light and its weight is 1/8th of a Conventional Swing Check Valve. It can be installed Horizontally or Vertically
Temperature Range: 10 Deg. Celsius to 80 Deg. Celsius; Test Pressure: 200 PSI/ 14 Kg/cm2
| SIZE (in MM) | SIZE (in Inches) | Price |
|---|---|---|
| 40MM | 1-1/2" | 1023.00 |
| 50MM | 2" | 1148.00 |
| 65MM | 2-1/2" | 1444.00 |
| 80MM | 3" | 1797.00 |
| 100MM | 4" | 2240.00 |
| 125MM | 5" | 3025.00 |
| 150MM | 6" | 3889.00 |
| 200MM | 8" | 6618.00 |
VEESON CI Y TYPE STRAINER SCREWED END
Design: Cast Iron Y Type Strainer with Stainless Steel Perforated sheet screen. Suitable for high working pressure. The strainers are available with screwed female ends (BSP)
Temperature Range: 10 Deg. Celsius to 200 Deg. Celsius; Test Pressure: 300 PSI/ 20 Kg/cm2
| SIZE (in MM) | SIZE (in Inches) | Price |
|---|---|---|
| 15MM | 1/2" | 239.00 |
| 20MM | 3/4" | 330.00 |
| 25MM | 1" | 534.00 |
| 32MM | 1-1/4" | 864.00 |
| 40MM | 1-1/2" | 1080.00 |
| 50MM | 2" | 1558.00 |
| 65MM | 2-1/2" | 2126.00 |
| 80MM | 3" | 3059.00 |
| 100MM | 4" | 5390.00 |

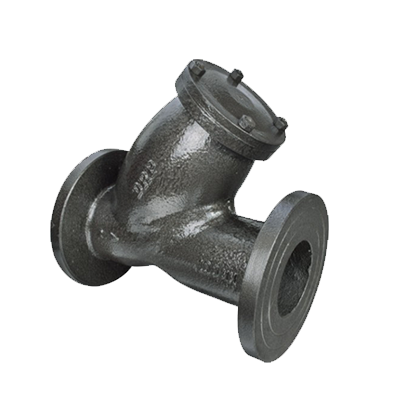

VEESON CI Y TYPE STRAINER FLANGED END
Design: Cast Iron Y Type Strainer Flanged End with Stainless Steel Perforated sheet screen. Suitable for high working pressure.
Temperature Range: 10 Deg. Celsius to 200 Deg. Celsius; Test Pressure: 300 PSI/ 20 Kg/cm2
| SIZE (in MM) | SIZE (in Inches) | Price |
|---|---|---|
| 25MM | 1" | 978.00 |
| 32MM | 1-1/4" | 1251.00 |
| 40MM | 1-1/2" | 1683.00 |
| 50MM | 2" | 2649.00 |
| 65MM | 2-1/2" | 3081.00 |
| 80MM | 3" | 4605.00 |
| 100MM | 4" | 7004.00 |
| 125MM | 5" | 9403.00 |
| 150MM | 6" | 11507.00 |
| 200MM | 8" | 24139.00 |
Terms & Conditions
Discount: 27% - Email your requirement to: punya@vijaysalescorp.com
Rates are EX Delhi Warehouse; Cartage & Freight shall be as per actual
GST @ 18% shall be extra
