Zoloto Valves — Full Range Stocked at Vijay Sales Corporation
The complete Zoloto Industries valve range — bronze, cast iron, ductile iron, cast steel, forged steel and stainless steel — stocked & supplied through Vijay Sales Corporation since 1961. ISO 9001 / 14001 / 45001 certified manufacturer. IBR approved & ISI marked under IS:13095, IS:14846, IS:5312 and IS:5290. Pan-India dispatch from our Delhi warehouse.

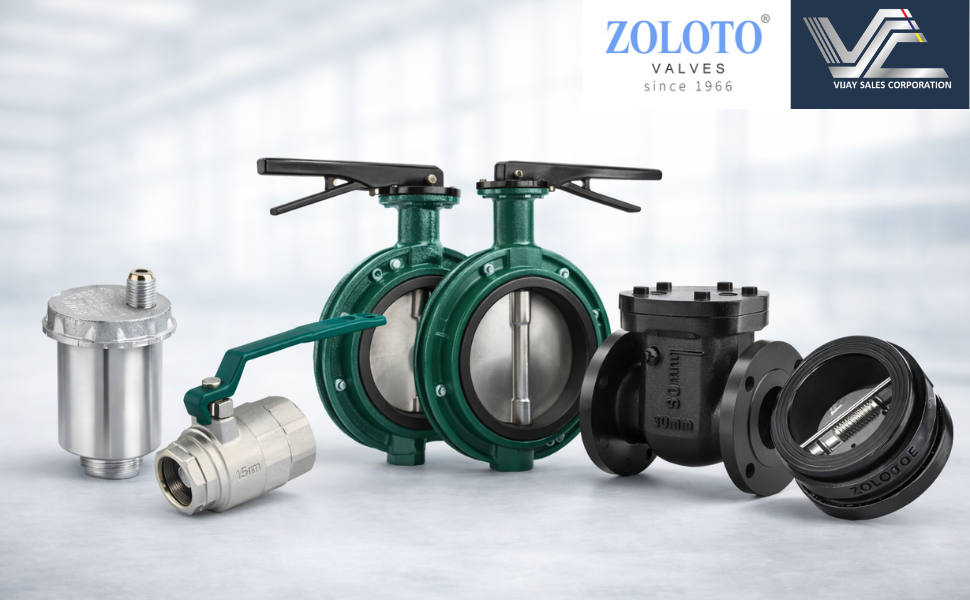

The Zoloto Range at a Glance
Twelve product families covering bronze, cast iron, ductile iron, cast steel, forged steel and stainless steel. Click any family to see article numbers, sizes, standards and pricing access.
Why Zoloto Industries is Specified
Zoloto Industries has manufactured industrial valves from Jalandhar, Punjab since 1966 — six decades of continuous production from an integrated foundry-plus-machining facility on the Nakodar Road. The company supplies the full ferrous and non-ferrous valve spectrum under one roof, which is unusual for an Indian manufacturer: bronze and gun-metal, cast iron, ductile iron, cast steel, forged steel and stainless steel — across globe, gate, ball, butterfly, check, sluice, strainer and specialty configurations.
The combination of multi-standard compliance (IS, BS, DIN, ASME, API), triple ISO certification, IBR approval for steam service and ISI marking on the flagship lines means a single Zoloto specification can satisfy public-tender, fire-fighting code, boiler code and high-rise plumbing requirements without changing supplier. Hydrostatic testing is in-house, and Form III-C IBR certificates and ISI batch test certificates ship with the consignment.
Manufacturer at a glance
- Established: 1966 · Jalandhar, Punjab
- Plant: Zoloto House, 11th Milestone, Lambra, Nakodar Road, Jalandhar – 144026
- Manufacturer phone: +91 181 4676666 (100 lines) · +91 181 5096666
- Certifications: ISO 9001:2015 · ISO 14001:2015 · ISO 45001:2018 · IBR approved · ISI marked · UL listed (UL ID 20003641)
- Tagline: "Touching Lives Everyday.. Everywhere…"
- Materials manufactured: Bronze / Forged Brass / CI / DI / CS / FS / SS
- Design standards: IS:778, IS:1538, IS:2692, IS:5290, IS:5312, IS:13095, IS:14846 · BS 10 Tables D/F/H/J · DIN 2533/2545 · ASME B16.5 · API 594
Bronze Waterline Valves
Zoloto's bronze and gun-metal waterline range — globe, gate, ball, check (horizontal and vertical lift), needle and ferrule cock — designed to IS:778 variants for the 1033/1034/1035/1036/1037/1038/1039 family. Screwed female ends to IS:554 / BS 21 / ISO 7 with flanged options on larger sizes. Stainless-steel-tipped seats on premium models; bronze body to IS:318 Gr.LTB 2.
| Spec | Detail |
|---|---|
| Standards | IS:778 (bronze valves), IS:554 / BS 21 / ISO 7 (threaded ends) |
| Body material | Bronze IS:318 Gr.LTB 2 / Gun-metal |
| Connection types | Screwed (BSP / NPT on indent), flanged |
| Size range | 1/4″ to 6″ (8NB–150NB) |
| Working pressure | Up to PN1.6 depending on article |
| Warranty | Lifetime (waterline service, per Special Note 2a) |
Bronze IBR Steam Valves & Traps
IBR-approved bronze globe steam-stop valves in screwed and flanged BS 10 Table H configurations, plus IBR lift-check and thermodynamic steam trap (1055). Designed for saturated and superheated steam service up to 225°C — every dispatched IBR valve carries Form III-C from the Director of Boilers, Punjab, available on request through Vijay Sales Corporation.
| Spec | Detail |
|---|---|
| Standards | IBR (Indian Boiler Regulations), BS 10 Table H (flange dimensions) |
| Body material | Bronze IS:318 Gr.LTB 2 |
| Connection types | Screwed BSP / Flanged BS 10 Table H |
| Configurations | Globe steam stop, lift check, thermodynamic steam trap |
| Max working temperature | 225°C (per Special Note) |
| Certification | Form III-C IBR test certificate on request |

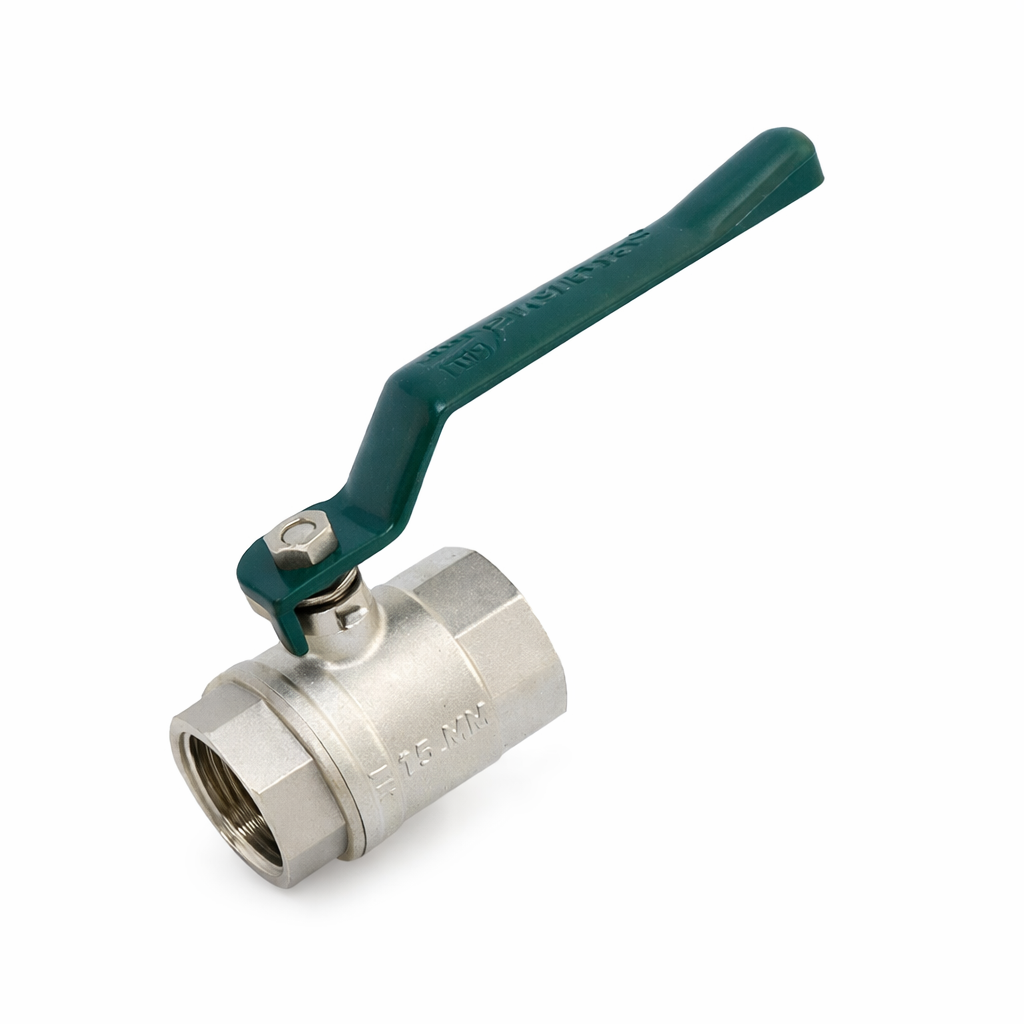

Forged Brass Valves
Hard-chrome-plated forged brass ball valve (1008B), check valve (1009A), gate valve (1024A), Y-strainer (1053A) and float-operated air-release valve (1095). Body material to IS:6912 Gr.FLB, PTFE seating, blow-out-proof stem. Full bore on the ball valve; air-release uses polypropylene float with Nitrile O-rings and SS-304 spring.
| Spec | Detail |
|---|---|
| Standards | IS:554 / BS 21 / ISO 7 (threads), IS:6912 Gr.FLB (body) |
| Body material | Forged brass, hard-chrome-plated |
| Connection types | Screwed female (1008B), screwed male (1095) |
| Size range | 1008B: 8NB to 100NB · 1095: 15NB to 25NB |
| Working pressure | Shell 25 kg/cm² · Seat 16 kg/cm² (1008B) |
| Max working temperature | 1008B: 220°C · 1095: 110°C |
| Warranty | Lifetime (waterline service, per Special Note 2a) |
Cast Iron Valves (General)
Cast-iron globe steam-stop valves in straight and angle pattern designed to DIN 2533 PN 16, horizontal lift-check valves and Y-strainers in screwed and flanged BS 10 Table F configurations. Body material to IS:210 Gr.FG200, bronze internals to IS:318 Gr.LTB 2. Standard for plant rooms, boiler ancillaries and general-purpose water and oil service.
| Spec | Detail |
|---|---|
| Standards | DIN 2533 (PN16 flanges), BS 10 Table F, IS:210 (body), IS:318 (trim) |
| Body material | Cast iron IS:210 Gr.FG200 |
| Connection types | Screwed (1065/1069), Flanged (1066/1067/1070) |
| Configurations | Globe straight, globe angle, horizontal lift check, Y-strainer |
| Max working temperature | 220°C (per Special Note) |
| Pressure rating | PN 1.6 |
CI / DI Sluice Valves · IS:14846 ISI MARKED
Cast-iron and ductile-iron sluice valves designed to IS:14846, supplied in PN 1.0 and PN 1.6 ratings with rising-stem and non-rising-stem variants. Flanged ends to IS:1538, bolted bonnet, handwheel operated. CI body to IS:210 Gr.FG200 (or DI IS:1865 Gr.400/15), bronze seat rings to IS:318 Gr.LTB 2, SS stem to IS:6603 Gr.12Cr12. Bypass, extended-stem, pad-lock and limit-switch options available at nominal extra cost.
| Spec | Detail |
|---|---|
| Standards | IS:14846 (ISI), IS:1538 (flange dimensions) |
| Body material | Cast iron IS:210 Gr.FG200 / DI IS:1865 Gr.400/15 |
| Connection types | Flanged ends |
| Size range | 2″ to 24″ (50NB to 600NB; 350–600NB Non-ISI PN1.0) |
| Configurations | 1079B (non-rising stem PN1.6), 1079A/C/D variants, 1096 |
| Max working temperature | 45°C (cold water service) |
| Shell / Seat test | 2.4 MPa / 1.6 MPa (PN1.6 ISI) |

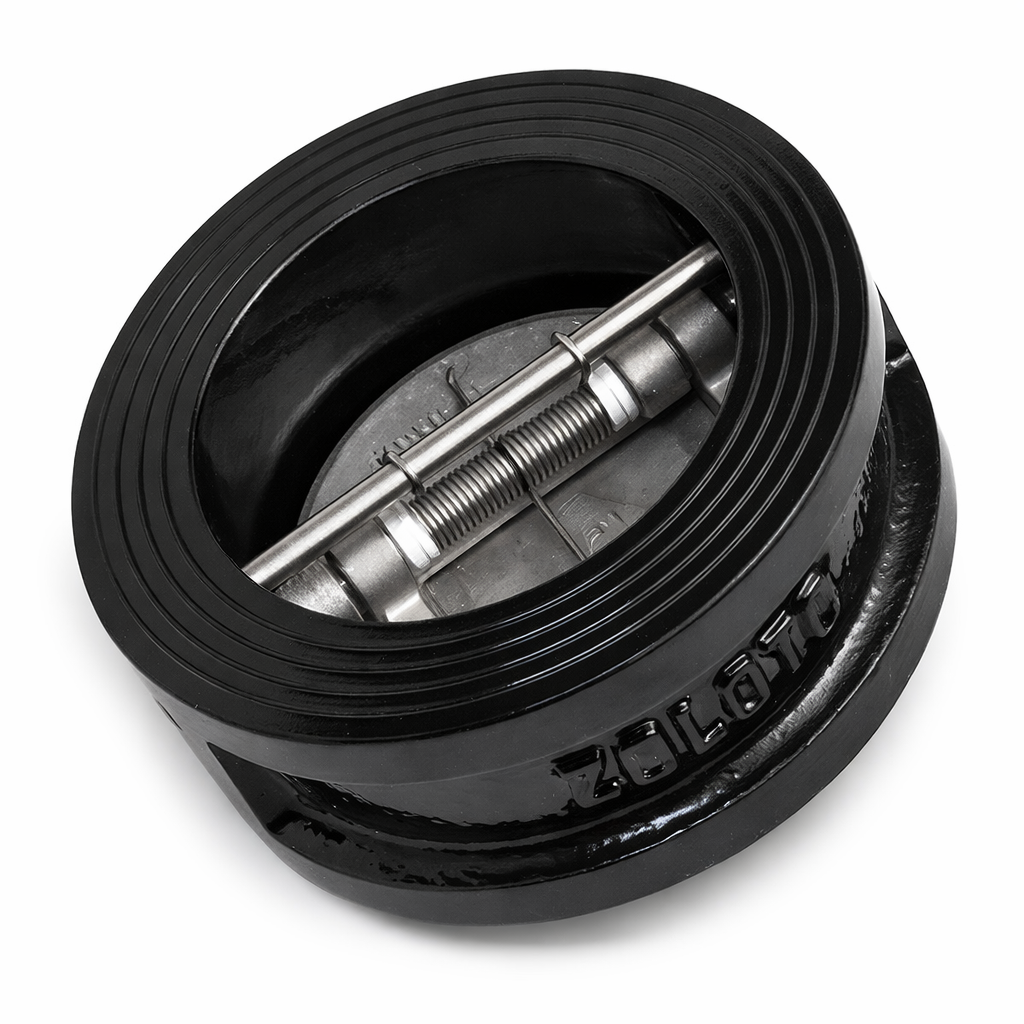

CI / DI Non-Return Valves · IS:5312 ISI MARKED
Two non-return valve families: dual-plate wafer (1082 / 1082A) designed to API 594 for compact installation and water-hammer mitigation, and flanged swing-check (1083 / 1083A / 1083B / 1083C) designed to IS:5312-1 with renewable seat and nitrile rubber flap. Bronze body seat ring to IS:318 Gr.LTB 2, bolted cover for in-line servicing. Suitable for horizontal or vertical installation.
| Spec | Detail |
|---|---|
| Standards | IS:5312-1 (swing check, ISI), API 594 (dual-plate) |
| Body material | Cast iron IS:210 Gr.FG200 |
| Connection types | Wafer (1082), Flanged IS:1538 (1083 series) |
| Size range | 1082: 40–250NB · 1083A: 50–300NB |
| Working pressure | PN 1.6 (16 kg/cm² seat) |
| Max working temperature | 80°C (per Special Note) |

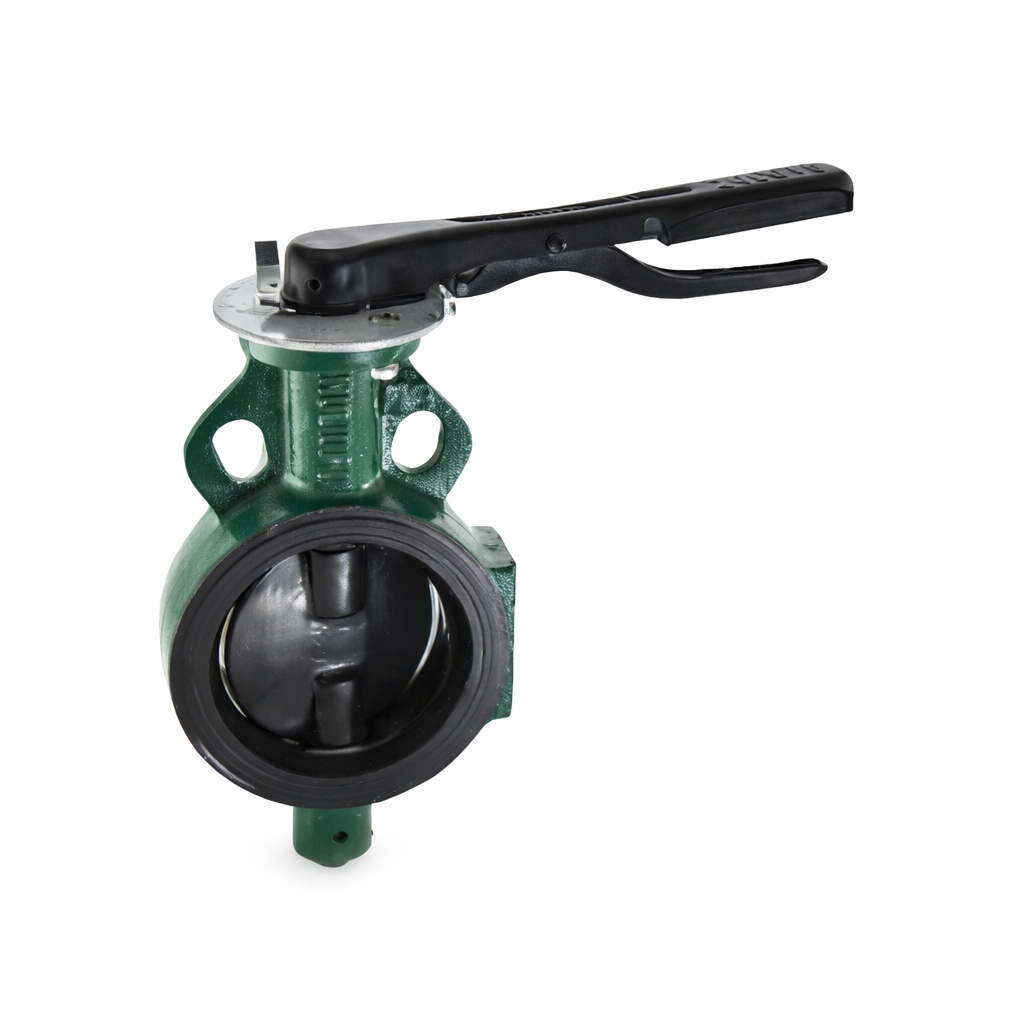

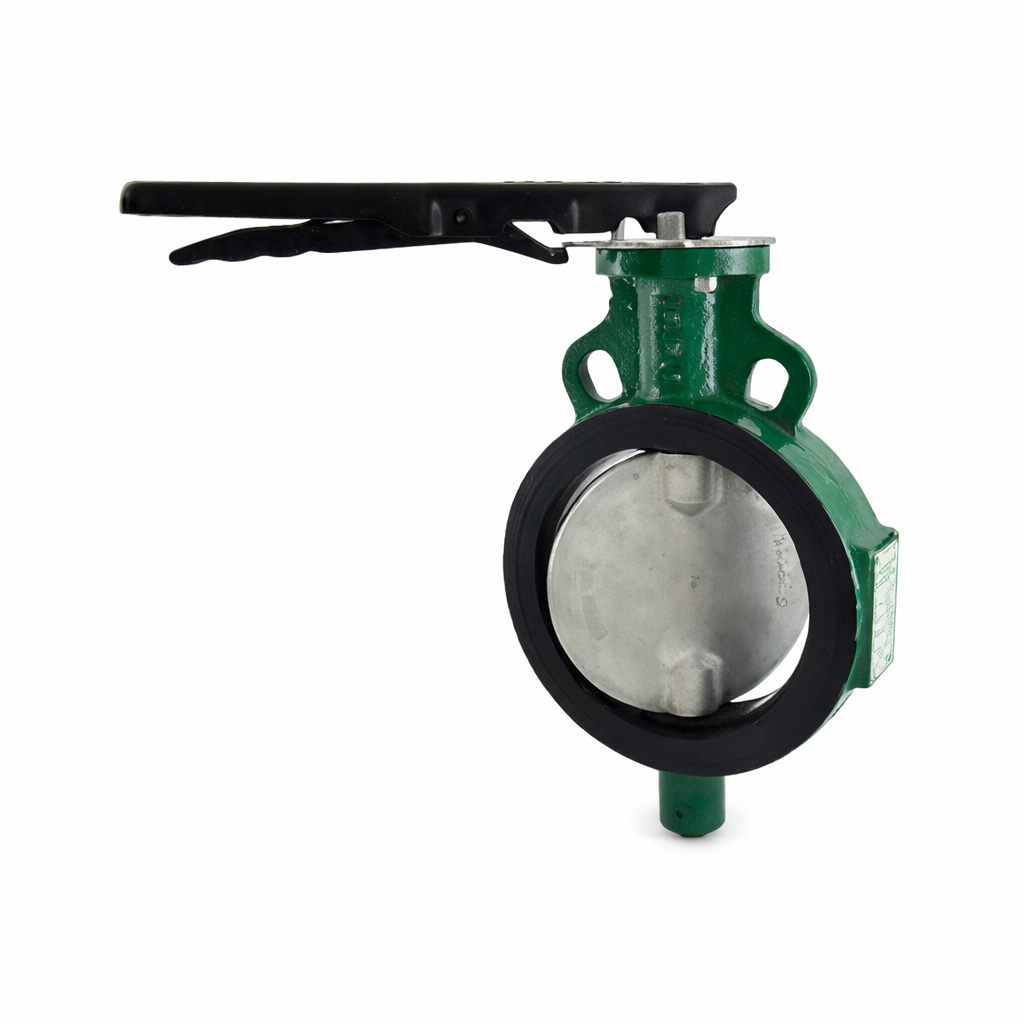

Butterfly Valves · IS:13095 ISI MARKED
Wafer-type butterfly valves designed to IS:13095 / BS EN 593. The 1078 family spans PN 1.0 / 1.6 / 2.5 ratings, lever and gear operation, and disc material in SG iron (IS:1865 Gr.400/15), SS-304 (CF8) or SS-316 (CF8M). EPDM or Nitrile rubber lining to IS:5192-1. Pneumatic and electric actuators available against indent. Flange-compatible with BS 10 Tables D/E/F/H, DIN PN10–PN40, ASA 150/300, IS:778 and IS:1538.
| Variant | Operation | Disc | Pressure | Size range | Pricing |
|---|---|---|---|---|---|
| 1078 | Lever | SG iron | PN 1.6 | 40–150NB | View → |
| 1078A | Gear | SG iron | PN 1.6 | 200–600NB | View → |
| 1078B | Lever | SS-304 (CF8) | PN 1.6 | 40–150NB | View → |
| 1078C | Gear | SS-304 (CF8) | PN 1.6 | 200–350NB | View → |
| 1078G | Lever | SG iron | PN 2.5 | 40–150NB | View → |
| 1078H | Gear | SG iron | PN 2.5 | 200–300NB | View → |
| 1078J / 1078K | Pneumatic / Electric actuator | SG iron or SS-304 | PN 1.6 / 2.5 | On indent | Quote on WA |
Cast Steel Valves
Cast-steel globe, check (1071/1072/1077), Y-strainer (DIN 2545 PN 40) and gate valves to ASME B16.5 Class-150, plus three-piece ball valves Class-150 in the 1088/1089/1091/1092 family. Body material to ASTM A 216 Gr.WCB. Used for higher-pressure steam, oil and gas service where forged steel Class-800 is over-spec but cast iron is unsuitable.
| Spec | Detail |
|---|---|
| Standards | DIN 2545 (PN40), ASME B16.5 (Class-150), API 600 |
| Body material | Cast steel ASTM A 216 Gr.WCB |
| Connection types | Flanged (Class-150 / PN40) |
| Configurations | Globe, check, Y-strainer, gate, 3-pc ball |
| Max working temperature | 400°C (per Special Note) |
| Pressure rating | PN 4.0 (CS DIN) / Class-150 (CS ASME) |
Forged Steel Class-800 Valves
High-pressure forged-steel globe, gate and horizontal-lift check valves rated to ASME B16.34 Class-800. Available in standard bore (regular) and full bore — full bore versions match the nominal pipe ID and are required where pigging, swabbing or minimum pressure drop matters. Body material to ASTM A 105. Specified for high-pressure steam, hydraulic and oil-and-gas service where Class-150 is below the required rating.
| Spec | Detail |
|---|---|
| Standards | ASME B16.34 (Class-800), API 602, BS 5352 |
| Body material | Forged steel ASTM A 105 |
| Connection types | Screwed NPT, Socket Weld, Flanged |
| Bore | Standard (regular) and Full bore |
| Configurations | Globe (1074), Gate (1075/1075A), Horizontal lift check (1076/1076A) |
| Max working temperature | 425°C (per Special Note) |
| Pressure rating | Class-800 (PN140 equivalent at ambient) |
Stainless Steel Valves
Three-piece SS-304 (CF8) and SS-316 (CF8M) ball valves to ASME B16.5 Class-150 — screwed (1080A) and flanged (1081A). CF8M with molybdenum addition resists chlorides, brackish water and acidic service better than CF8 — specify for chemical, pharma and coastal installations. Also includes SS thermodynamic steam trap (1086) and SS-304 fire hydrant landing valve (1093A) to IS:5290.
| Spec | Detail |
|---|---|
| Standards | ASTM A 351 (CF8 / CF8M), ASME B16.5 (Class-150), IS:5290 (1093A) |
| Body material | SS-304 (CF8) or SS-316 (CF8M) |
| Connection types | Screwed, flanged Class-150 |
| Configurations | 3-pc ball valve, thermodynamic steam trap, landing valve |
| Max working temperature | 450°C (per Special Note) |
| Pressure rating | Class-150 (PN20 equivalent at ambient) |

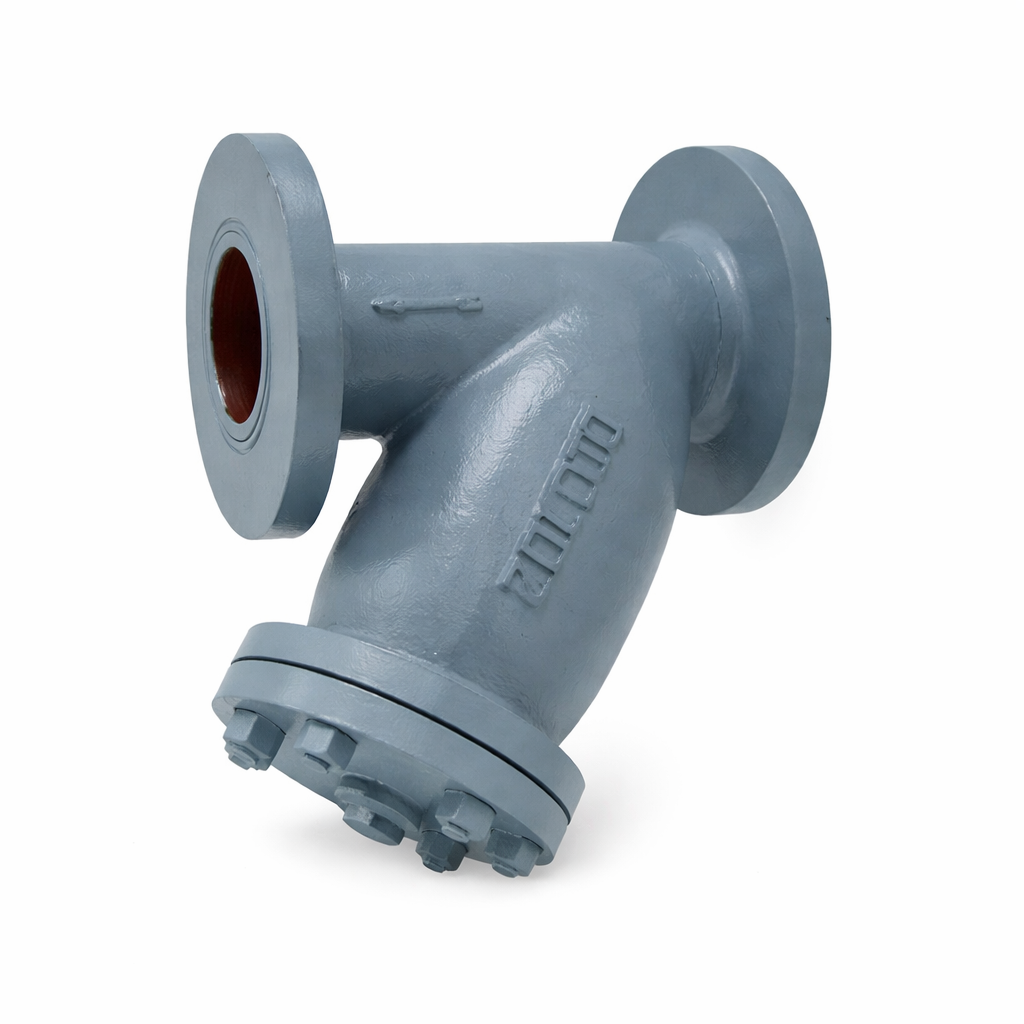

Y-Type Strainers
Y-strainers across three body materials — bronze (1053/1054), forged brass (1053A) and cast iron (1069/1070/1084/1084A). SS-304 perforated sheet screen (Ø3mm perforation) guided in body and cover gives a large screening area for low pressure drop. Screwed and flanged BS 10 Table F configurations. Magnet option available at nominal extra cost.
| Spec | Detail |
|---|---|
| Standards | BS 10 Table F (flange dimensions) |
| Body materials | Bronze, forged brass, cast iron |
| Screen | SS-304 perforated sheet, Ø3mm perforation |
| Connection types | Screwed and flanged |
| Pressure rating | PN 10 / PN 16 depending on article |
| Options | Magnet insert available at nominal extra cost |
Fire-Fighting, Safety & Specialty Valves
Specialty range covering fire-fighting and process safety: landing valves IS:5290 in bronze (1093) and SS-304 (1093A), spring-loaded safety relief valves (1094/1094A), pressure-reducing valves (1040A/1040B), double-regulating balancing valves (1087/1087A), CI bucket steam trap (1090), water-level gauges (1047–1050), brass fusible plugs (1063/1064) and ball valves with strainer / flare nut (1085 series).
| Family | Articles | Standard / Note |
|---|---|---|
| Landing valves | 1093 (bronze), 1093A (SS-304) | IS:5290 — fire-fighting hydrant |
| Safety relief | 1094, 1094A | Spring-loaded, full lift |
| Pressure reducing | 1040A, 1040B | Direct-acting / pilot-operated |
| Balancing | 1087, 1087A | Double-regulating |
| Steam trap (CI) | 1090 | Inverted bucket |
| Water level gauge | 1047–1050 | Boiler / vessel level indication |
| Fusible plug | 1063, 1064 | Brass / bronze |
| Ball valve w/ strainer | 1085 series | Combination unit |
Standards & Certifications
Zoloto Industries manufactures to Indian and international standards — and is certified under three management-system standards plus IBR, ISI and UL.
International standards Zoloto manufactures to: BS 10 Tables D / F / H / J (flange dimensions) · DIN 2533 (PN16) · DIN 2545 (PN40) · ASME B16.5 Class-150 · API 594 (dual-plate check valves) · ASME B16.34 Class-800 (forged steel)

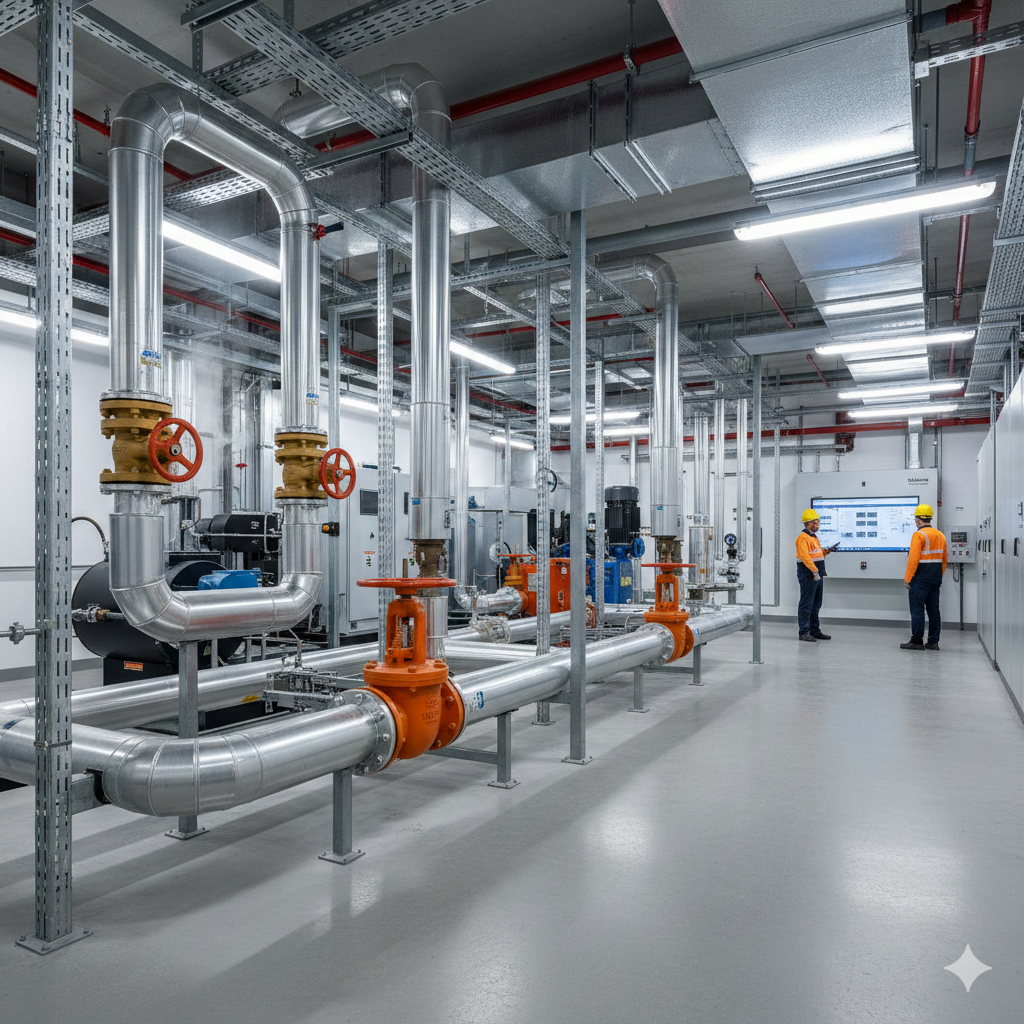

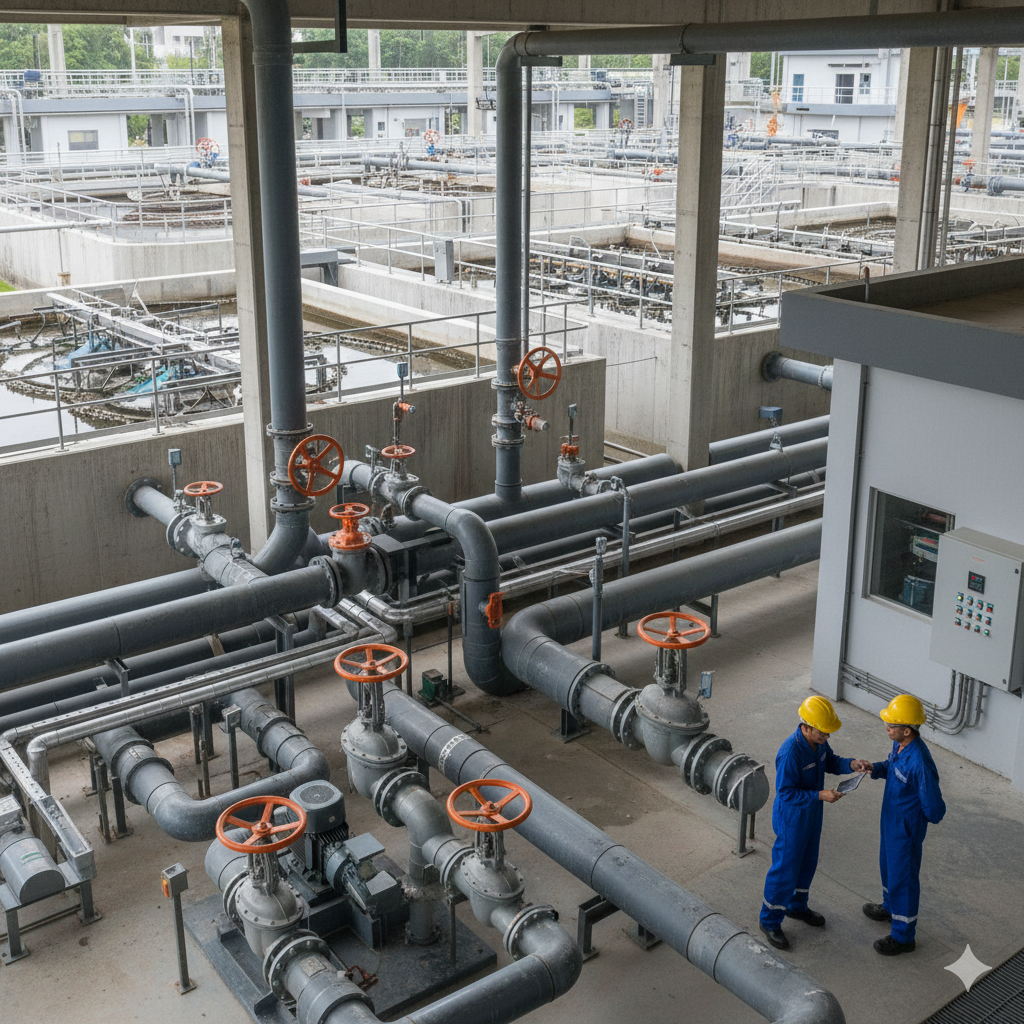

Industries Served
Zoloto valves supplied through Vijay Sales Corporation are deployed across four primary application contexts — building services, municipal water, fire-fighting and industrial process pipelines — alongside the wider sector list below.
Why Vijay Sales Corporation for Zoloto
Delhi Warehouse, Stock Visibility
Active running stock at our Hauz Qazi warehouse with real-time availability check on WhatsApp before you raise a PO.
Full Range, Not Just Runners
Access to the entire Zoloto catalogue including specialty articles (1040A PRV, 1087 balancing, 1093A SS landing) — not just the high-rotation lines.
Original Form III-C IBR TCs
Every IBR steam valve ships with the original Form III-C certificate from the Director of Boilers, Punjab — required for stage payment release on EPC sites.
GST-Compliant Invoicing & HSN Codes
GSTIN 07AAGPG5324D1Z6 · invoices carry the correct HSN code per article family for ITC reconciliation on your end.
Technical Advisory on Selection
Help with PN rating, IS-vs-international standard selection, CF8 vs CF8M material decision, and actuator sizing for butterfly valve electrical / pneumatic conversion.
Industry Outlook Top 10 Distributor
Independently ranked in the Top 10 Iron & Steel Industry Distributors — March 2023 and December 2024 editions — see the Recognition strip below.
Independent Recognition
Industry Outlook has profiled Vijay Sales Corporation in two consecutive editions of its Top 10 Iron & Steel Industry Distributors series.
Technical FAQs — Zoloto Valves
Is Vijay Sales Corporation an authorised dealer of Zoloto?
Vijay Sales Corporation does not currently hold a signed authorised-dealer certificate from Zoloto Industries. We stock and supply the full Zoloto range from our Delhi warehouse — every dispatch ships with the manufacturer's original Test Certificate, GST-compliant invoice and standard packaging. Our framing throughout the site is therefore "stocked & supplied by Vijay Sales Corporation" rather than "authorised dealer".
Which Zoloto valves are IBR-marked and what does that cover?
IBR (Indian Boiler Regulations) marking applies to Zoloto's bronze IBR steam range — Articles 1041–1046 (globe steam stop, screwed and flanged BS 10 Table H), 1055 (thermodynamic steam trap) and applicable steam-service models. IBR marking certifies the valve meets pressure-temperature requirements for boiler connections under the Indian Boiler Act. Form III-C certificates from the Director of Boilers, Punjab are available on request from Vijay Sales Corporation for any IBR-marked Zoloto valve supplied.
Which Zoloto valves are ISI-marked?
Zoloto Industries holds ISI marking under four standards: IS:13095 for butterfly valves (1078 series — lever, gear, PN1.6 and PN2.5 variants), IS:14846 for cast-iron sluice valves (1079 series, PN1.0 and PN1.6), IS:5312 for cast-iron non-return valves (1083 series, flanged), and IS:5290 for fire-fighting landing valves (1093 series, bronze and SS-304). Every ISI-marked valve we dispatch carries the manufacturer's original test certificate against the specific batch.
What's the difference between Zoloto's PN 1.0, PN 1.6 and PN 2.5 sluice and butterfly valves?
PN ratings denote maximum working pressure in MPa. PN 1.0 = 1.0 MPa (10 kg/cm²), suited to gravity-fed water supply, low-pressure HVAC and irrigation. PN 1.6 = 1.6 MPa (16 kg/cm²), the standard for municipal water, building services and most fire-fighting headers. PN 2.5 = 2.5 MPa (25 kg/cm²), specified for booster pumps, high-rise risers and hydrant mains where shut-off pressure exceeds 16 bar. Higher PN means thicker body walls and proportionally higher cost.
When should I specify CF8 (SS-304) vs CF8M (SS-316) Zoloto ball valves?
CF8 (cast SS-304 per ASTM A 351) is the default for chilled water, treated water and most non-corrosive service. CF8M (cast SS-316, the molybdenum-bearing grade) is specified where the line contains chlorides, brackish or sea-water, or acidic service — the moly addition improves pitting and crevice corrosion resistance. For most building services and HVAC, CF8 is sufficient. Chemical, pharma and coastal installations should specify CF8M (Articles 1080A / 1081A / 1086 in the SS range).
What's the maximum working temperature for bronze IBR vs cast steel vs forged steel vs SS Zoloto valves?
Per Zoloto Industries' published Special Notes in the 26.05.2026 MRP: Bronze IBR = 225°C, Cast Iron = 220°C, Cast Steel = 400°C, Forged Steel = 425°C, Stainless Steel = 450°C. These are maximum continuous working temperatures the manufacturer rates the bodies for. Always cross-check against media compatibility, gasket / seat material limits, and applicable boiler code for your installation.
What's the warranty on Zoloto bronze waterline vs ferrous and steam valves?
Per Zoloto Industries' Special Note 2a, bronze and forged-brass non-ferrous valves used in waterline service carry a LIFETIME warranty. Per Special Note 2b, ferrous valves (CI, DI, CS, FS, SS) in any application, and non-ferrous valves in steam service, carry an 18-month warranty from invoice date OR 12 months from installation, whichever ends earlier. Warranty claims are routed through Vijay Sales Corporation with manufacturer concurrence.
Can Vijay Sales Corporation supply Zoloto valves with NPT threads or other custom thread standards?
Standard threaded Zoloto valves carry IS:554 / BS 21 / ISO 7 (BSP parallel or taper) ends. NPT (ANSI/ASME B1.20.1) threading is available on indent against MOQ — please WhatsApp the required article number, size and quantity. Lead times for thread variants typically run 4–6 weeks beyond stock dispatch from our Delhi warehouse.
Which Zoloto articles have been discontinued in the 26.05.2026 MRP?
Per Zoloto Industries' Special Note 15 in the 26.05.2026 MRP, certain legacy articles have been withdrawn. We can confirm current availability for any specific article number on WhatsApp +91-9999889008 in real time. Discontinued items are usually superseded by upgraded equivalents — Vijay Sales Corporation will recommend the replacement article during quoting so the BOQ is dispatch-ready.
What's the difference between Zoloto Class-800 forged steel "standard bore" and "full bore"?
Class-800 forged steel valves (Articles 1074–1076A) are offered in two bore configurations. Standard (regular) bore has a reduced internal diameter and is used where flow capacity is not critical — lighter and cheaper. Full bore matches the nominal pipe ID and is required where pigging, swabbing or minimum pressure drop is essential. Full-bore versions are heavier and more expensive. Specify the variant on indent.
Can Vijay Sales Corporation supply Zoloto butterfly valves with pneumatic, electric or gear actuators?
Yes. Lever-operated up to 150mm and gear-operated from 200mm upward are the standard catalogue configurations. Pneumatic actuators (single-acting or double-acting) and electric actuators (24V DC or 230V AC, with positioner option for modulating service) are available against indent — typical lead time 4–6 weeks. WhatsApp the article number, size, on/off vs modulating duty, and actuator power supply for a quote.
For Zoloto sluice valves above 300mm, is the PN1.6 rating maintained?
No. Per Zoloto Industries' Special Note for Article 1079B (CI Sluice Valve IS:14846), sizes 350mm and above are supplied as Non-ISI rating PN 1.0 only. The PN 1.6 ISI marking applies up to 300mm. For larger sizes (350mm–600mm) requiring PN 1.6 service, Zoloto's ductile iron sluice valve range (1079A series) should be specified instead.
