SANT VALVES PRICE LIST W.E.F. 10th JUNE, 2024
(RATES IN INR)
SANT FORGED BRASS BALL VALVE THREADED PN2.5 (FBV-2)
SANT FORGED BRASS BALL VALVE SPECIFICATIONS:
Pressure Rating : PN-25
Body Material cum standard : Forged Brass
Product Description : Two piece design lever operated
Type of Seat : Renewable PTFE Seats
Type of Ball : Brass (Nickel Plated)
Stem: Machined Brass Nickel Plated
Packing : PTFE
Port Opening : Full Bore
End Details : Screwed female BSP Parallel Threads
| 8MM | 10MM | 15MM | 20MM | 25MM | 32MM | 40MM | 50MM | 65MM | 80MM | 100MM |
|---|---|---|---|---|---|---|---|---|---|---|
| 489.00 | 489.00 | 549.00 | 779.00 | 1204.00 | 2082.00 | 3113.00 | 4326.00 | 9258.00 | 13522.00 | 25041.00 |
SANT CI BUTTERFLY VALVE PN1.6 WITH SG IRON DISC
SANT BUTTERFLY VALVES SPECIFICATIONS:
Product : ‘SANT’ Cast Iron Butterfly Valve
Type of Pattern : Short Pattern
Product Standard : IS:13095
Pressure / Class / Rating : PN 10/PN 16
Body Material cum Standard : Cast Iron IS:210 Gr.FG200
Description : Wafer Type
Type of Seat : Nitrile / EPDM Lining
Type of Disc : SG Iron
Trim : SS AISI-410
End Details : Suitable insertion between Flanges as per BS 10 Table D/E ANSI B 16.1 CI-125
| 40MM | 50MM | 65MM | 80MM | 100MM | 125MM | 150MM | 200MM | 250MM | 300MM |
|---|---|---|---|---|---|---|---|---|---|
| 2703 | 3089 | 3347 | 3598 | 4627 | 5944 | 6833 | 13882 | 22160 | 26453 |
SANT CI DUAL PLATED NRV PN1.6 (DP)
SANT DUAL PLATE WAFER CHECK VALVE SPECIFICATIONS:
Pressure/class/rating: PN-16
Body Material cum Standard: CI IS 210 Gr. FG:200
Product Description: Wafer Type Spring loaded
Type of Seat: EPDM Rubber Lining
Type of Disc: Ductile Iron Disc
Body Test Pressure: 300Psig.Hyd.
Seat Test Pressure: 200Psig.Hyd
| 50MM | 65MM | 80MM | 100MM | 125MM | 150MM | 200MM | 250MM |
|---|---|---|---|---|---|---|---|
| 3911 | 4329 | 5700 | 7234 | 8661 | 11003 | 20482 | 30145 |
SANT CI Y STRAINER FLANGED END WITH SS-304 SCREEN (CI16B)
.
SANT CI Y STRAINER SPECIFICATIONS:
Type of Pattern : Y Type
Pressure Rating : PN16
Body Material cum Standard : Cast Iron IS:210 Gr.FG200
Description : Bolted Cover
Screen : SS AISI-304 having 1.2mm perforation
End Details : Flanges as per BS 10 Table F undrilled
| 25MM | 32MM | 40MM | 50MM | 65MM | 80MM | 100MM | 125MM | 150MM | 200MM | 250MM |
|---|---|---|---|---|---|---|---|---|---|---|
| 1879 | 324 | 3304 | 4512 | 6424 | 8340 | 12470 | 19749 | 25397 | 47626 | 67323 |
SANT CI GATE SLUICE VALVE FLANGED PN1.6 ‘ISI’ (CR32B)
.
SANT CI GATE SLUICE VALVE SPECIFICATIONS:
Product Standard : IS:14846
Pressure / Class / Rating : PN 16 PD Type
Body Material cum Standard : Cast Iron IS:210 Gr.FG200
Description : Bolted Bonnet, Inside Screw & Non Rising Stem
Type of Seat : Renewable seat
Type of Disc : Solid wedge
Trim : Cu-Alloy Rings, stem SS (12 Cr.12)
Gland Packing : Rubber ‘O’ Ring
End Details : Flanges as per IS:1538 FF drilled
| 50MM | 65MM | 80MM | 100MM | 125MM | 150MM | 200MM | 250MM | 300MM |
|---|---|---|---|---|---|---|---|---|
| 9866 | 13476 | 15234 | 23269 | 26736 | 30197 | 48008 | 77880 | 90933 |
SANT DI BALANCING VALVE FLANGED (CIBV)
SANT BALANCING VALVE SPECIFICATIONS:
Product : Sant Ductile Iron Balancing Valve
Body Material cum standard : DI
Product Description : Precise Balancing, Double Regulation Type
Trim : DI+EPDM
Stem : Stainless Steel 2 Cr. 13
End Details : Flanged Ends
Maximum Working Pressure : 1.6 MPa Hyd. (232Psig)
Body Test Pressure : 2.4 MPa Hyd. (348Psig)
Maximum Working Temperature . : 120ºC
| 65MM | 80MM | 100MM | 125MM | 150MM | 200MM | 250MM | 300MM |
|---|---|---|---|---|---|---|---|
| 17813 | 20174 | 37032 | 44869 | 58725 | 121875 | 160349 | 213986 |

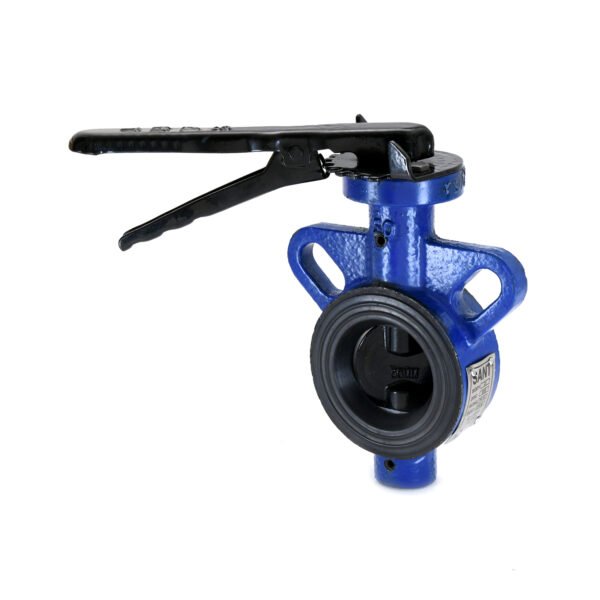

SANT CI BUTTERFLY VALVE PN 16 WITH SS-304 DISC, (BFY)
Product Description
Product : SANT Cast Iron Butterfly Valve Wafer Type (Lever Operated)
Type of Pattern : Replaceable Seat & Disc
Pressure / Class / Rating : PN 16
Body Material cum Standard : Cast Iron to IS:210 FG 200
Type of Seat : EPDM Lining
Type of Disc : SS 304
Trim : AISI-410
End Details : Suitable between Flanges as ASME B 16.1 or CIass-125
Testing & Certification
Ratings : PN16
Body Test Pressure : 2.4MPa (Hyd.)
Seat Test Pressure : 1.8MPa (Hyd.)
Our Works’ Test Certificate is furnished with every supply.
(Rates in INR- Per Unit Piece)
| MM | 50mm | 65mm | 80mm | 100mm | 125mm | 150mm | 200mm |
| Price/Pc. | 3410.00 | 3663.00 | 4456.00 | 5512.00 | 7416.00 | 8387.00 | 15779.00 |
SANT CI BUTTERFLY VALVE PN 10 WITH SG IRON DISC (CR-23)
Product Description
Product : SANT Cast Iron Butterfly Valve (Lever Operated)
Type of Pattern : Short Pattern
Pressure / Class / Rating : PN 10
Body Material cum Standard : Cast Iron IS:210 Gr.FG200
Product Description : Wafer Type
Type of Seat : Nitrile / EPDM Rubber Lining
Type of Disc : SG Iron
Trim : AISI-410
End Details : Suitable insertion between Flanges as per BS-10 Table D/E & B 16.1 CI-125
Testing & Certification
Ratings : PN10
Body Test Pressure : 1.5MPa (218 Psig) Hyd
Seat Test Pressure : 1.0MPa (145 Psig) Hyd
Our Works’ Test Certificate is furnished with every supply.
(Rates in INR- Per Unit Piece)
| MM | 40mm | 50mm | 65mm | 80mm | 100mm | 125mm | 150mm | 200mm | 250mm | 300mm |
| Price/Pc. | 2086.00 | 2341.00 | 2568.00 | 2833.00 | 3694.00 | 5149.00 | 5830.00 | 9955.00 | 14671.00 | 18368.00 |
SANT SINGLE PLATED NRV PN 16 (SP)
Product Description
Product Certification : SANT Single Plate Wafer Check Valve
Pressure Rating : PN-16
Body Material cum Standard : Ductile Iron
Description : Single Plate Wafer Check Valve
Type of Seat : EPDM
Type of Disc : Carbon Steel + Ni Plate
End Details : Wafer Type
Testing & Certification
Body Test Pressure : 24kg/cm²g (Hyd.)
Seat & Back Seat Test Pressure : 16kg/cm²g (Hyd.)
(Rates in INR- Per Unit Piece)
| MM | 50mm | 65mm | 80mm | 100mm | 150mm | 200mm |
|---|---|---|---|---|---|---|
| Price/Pc. | 1927 | 2126 | 2785 | 3582 | 6419 | 10036 |

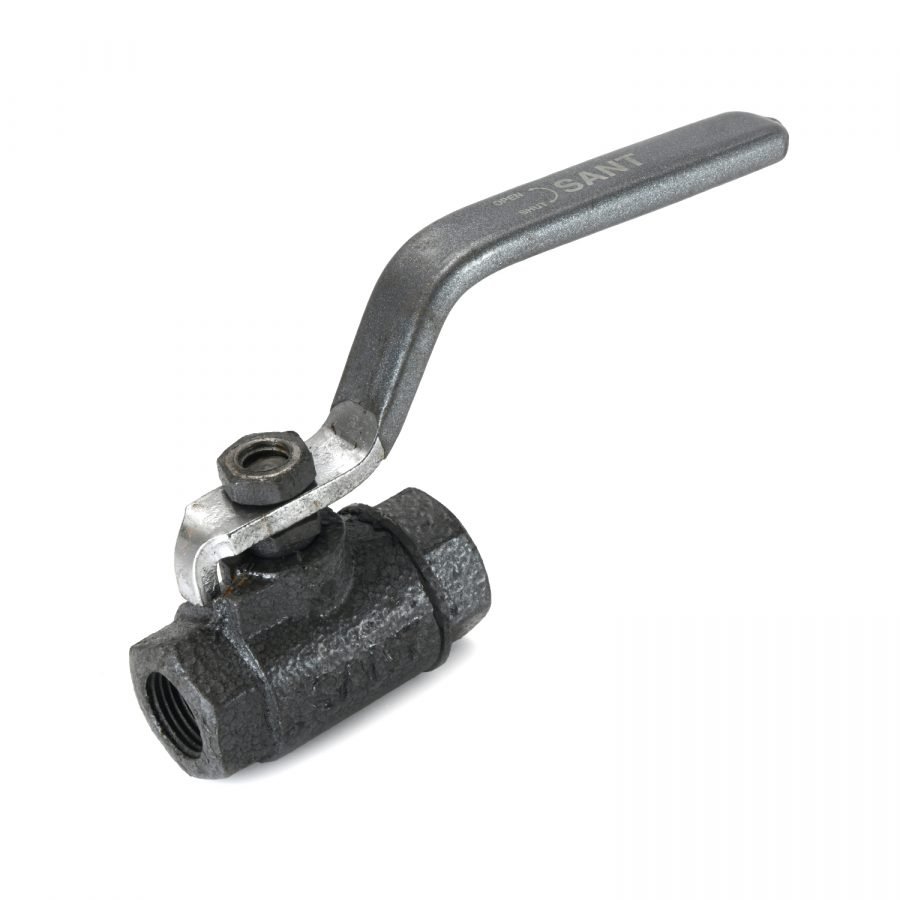

SANT CI BALL VALVE THREADED 'ISI' (CI-17)
Product Description
Product : SANT Cast Iron Ball Valve
Type of Pattern : Straight Pattern
Product Standard : IS:9890 Class 125
Pressure / Class / Rating : PN 16
Body Material cum Standard : Cast Iron IS:210 Gr.FG220
Description : Two piece design
Type of Seat : Renewable Teflon
Gland Packing : Teflon Rings
Trim : SS AISI-410, Ball: SS AISI-304
End Details : Screwed female Parallel threads as per IS:554
Table D/E ANSI B16.1 CI-125
Testing & Certification
Body Test Pressure : 300 Psig. Hyd.
Seat Test Pressure : 220 Psig. Hyd., 100 Psig. Air
Our Works’ Test Certificate is furnished with every supply.
(Rates in INR- Per Unit Piece)
| MM | 15mm | 20mm | 25mm | 32mm | 40mm | 50mm | 65mm | 80mm | 100mm |
|---|---|---|---|---|---|---|---|---|---|
| Price/Pc. | 548.00 | 820.00 | 970.00 | 1607.00 | 2094.00 | 2993.00 | 5758.00 | 8452.00 | 20114.00 |
SANT CI BALL VALVE FLANGED 'ISI' (CI-18)
Product Description
Product : SANT Cast Iron Ball Valve
Product Standard : IS:9890 Class 125
Pressure / Class / Rating : PN 16
Body Material cum Standard : Cast Iron IS:210 Gr.FG220
Description : Three piece design
Type of Seat : Renewable Teflon
Gland Packing : Teflon Rings
Trim : SS AISI-410 Stainless Steel, Ball: SS AISI-304
End Details : Flanges as per IS:3516-1966 undrilled/B.S.10 Table F
Testing & Certification
Body Test Pressure : 300 Psig. (21 bar g) Hyd.
Seat Test Pressure : 220 Psig. (15.4 bar g) Hyd., 100 Psig. (6.9 bar g) Air
Our Works’ Test Certificate is furnished with every supply.
(Rates in INR- Per Unit Piece)
| MM | 25mm | 32mm | 40mm | 50mm | 65mm | 80mm | 100mm |
|---|---|---|---|---|---|---|---|
| Price/Pc. | 2094.00 | 2910.00 | 3726.00 | 5797.00 | 8685.00 | 12421.00 | 23828.00 |
SANT CS BALL VALVE FLANGED CLASS 150 THREE PIECE DESIGN (CS-11)
Product Description
Product : SANT Cast Steel Ball Valve
Product Standard : BS 5351 / API 6D
Type of Pattern : Straight Type
Pressure / Class / Rating : Class 150
Body Material cum Standard : CCS (ASTM A216 Gr.WCB)
Description : Three Piece Design, Lever Operated
Type of Seat : Renewable seat
Trim : Stem S.S. ASTM A276 Type 410
Ball : SS (ASTM A351 Gr. CF8 / AISI-304) Seat Ring & Gland Packing PTFE
End Details : Flanges as per ANSI B 16.5 Class 150 R.F. Undrilled
Testing & Certification
Body Test Pressure : 30 Bar g (435 Psig) Hyd.
Seat Test Pressure : 22 Bar g (320 Psig) Hyd. & 6.9 Bar g (100 Psig) Air Maximum Working Temperature : 250°C
Test Certificate in Form lll-C as per IBR is furnished with every supply
(Rates in INR- Per Unit Piece)
| MM | 25mm | 40mm | 50mm | 65mm | 80mm | 100mm |
|---|---|---|---|---|---|---|
| Price/Pc. | 4491.00 | 8048.00 | 10781.00 | 15379.00 | 19523.00 | 31329.00 |
SANT CS BALL VALVE THREADED (WCB)
Product Description
Product : SANT Cast Steel Ball Valve
Pressure Temperature Rating : 69 Barg at 30°C, 5 Bar at 225°C
Body Material cum Standard : CCS (ASTM A 216 Gr. WCB)
Description : Three piece design, Lever Operated
Type of Seat : Renewable PTFE with Carbon Filled
Trim : Stem : SS AISI-410
Ball: SS AISI-304/ CF8
Gland Packing : PTFE
End Details : Screwed female BSP Taper threads
Testing & Certification
Body Test Pressure : 104 Barg Hyd.
Seat Test Pressure : 76 Barg Hyd.
Our Works’ Test Certificate is furnished with every supply.
(Rates in INR- Per Unit Piece)
| MM | 15mm | 20mm | 25mm | 32mm | 40mm | 50mm |
|---|---|---|---|---|---|---|
| Price/Pc. | 1784.00 | 2114.00 | 2964.00 | 4301.00 | 5835.00 | 7143.00 |

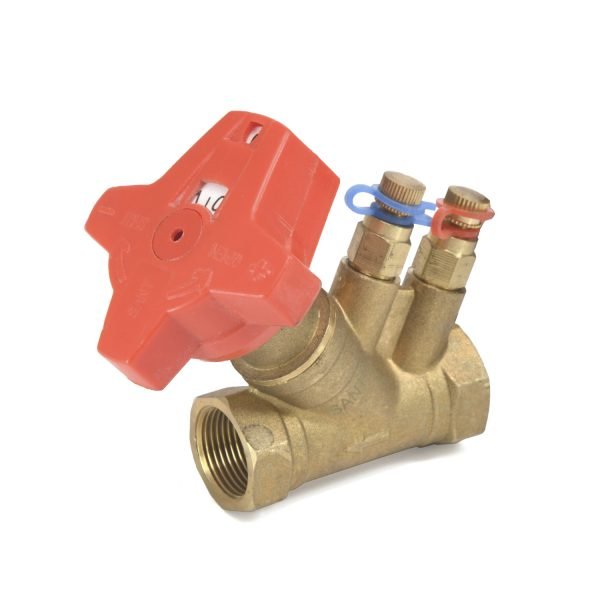

SANT BRASS BALANCING VALVE (SBBV)
Product Description
Product : SANT Brass Balancing Valve
Body Material cum Standard : Brass
Description : Precise Balancing, Double Regulation Type
Trim : Copper Alloy
End Details : Screwed female Threads to BSP Parallel
Testing & Certification
Body Test Pressure : 2.4 MPa Hyd. (348Psig)
Maximum Working Pressure : 1.6 MPa Hyd. (232Psig.)
Maximum Operating Temp. : 150°C
Our Works’ Test Certificate is furnished with every supply.
(Rates in INR- Per Unit Piece)
| MM | 20mm | 25mm | 32mm | 40mm | 50mm |
|---|---|---|---|---|---|
| Price/Pc. | 2686 | 3379 | 4432 | 5579 | 8155 |
SANT C.I. BALL FOOT VALVE (BFV)
.
Product Description
Product : SANT CI Ball Foot Valve
Type of Pattern : Y Type Pattern
Pressure/Class/Rating : PN 16
Type of Ball : Precise Balancing, MS Rubber Coated
Seat Ring : Nitrile Rubber
Strainer : Cast Iron to IS:210 FG 260
End Details : Flanges as per IS : 1538
Testing & Certification
Body Test Pressure : 2.4 MPa Hyd.
Seat Test Pressure : 1.6 MPa Hyd.
10 bar = 1MPa = 145 Psig. = 10.1972 Kg/cm²g
Our Works’ Test Certificate is furnished with every supply.
(Rates in INR- Per Unit Piece)
| MM | 50mm | 65mm | 80mm | 100mm | 150mm |
|---|---|---|---|---|---|
| Price/Pc. | 3449 | 4559 | 5915 | 9390 | 19718 |
SANT CAST IRON REFLUX VALVE PN16, IS:5312 (CR-31A)
Product Description
Product : SANT Cast Iron Reflux Valve Swing Check Type
(Non Return Valve)
Pressure Rating: PN16
Product Standard : IS:5312
Type of Pattern : Straight Type
Body Material cum Standard : Cast Iron IS:210 Gr.FG200
Description : Bolted Cover
Type of Seat : Integral / Renewable seat
Type of Disc : Renewable disc
End Details : Flanges as per IS:1538
Testing & Certification
Body Test Pressure : 2.4MPa Hyd.
Seat & Back Seat Test Pressure : 1.6MPa Hyd.
Our Works’ Test Certificate is furnished with every supply.
(Rates in INR- Per Unit Piece)
| MM | 50mm | 65mm | 80mm | 100mm | 125mm | 150mm | 200mm | 250mm | 300mm |
| Price/Pc. | 4981.00 | 6121.00 | 7853 | 10473 | 18170 | 21002 | 37525 | 62345 | 82400 |

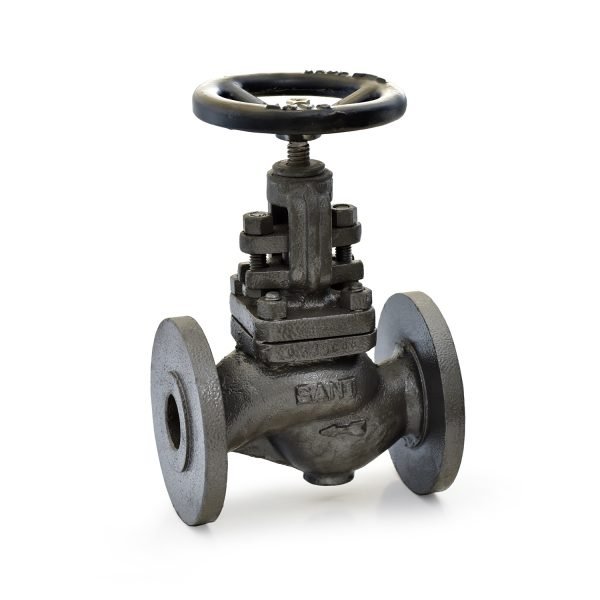

SANT CI Globe Valve (CI 1A)
.
Product Description
Product : SANT CI Globe Valve
Product Standard : BS:5152 / DIN 86251
Type of Pattern : Straight Pattern
Pressure / Class / Rating : PN 16
Body Material cum Standard : Cast Iron IBR 86 to 93 Gr.A
Description : Bolted Bonnet, Outside Screw & Yoke Type Rising Stem
Trim : SS AISI-410
Gland Packing : Expanding Pure Flexible Graphite
Type of Seat : Renewable seat
Type of Disc : Renewable disc
End Details : Flanges as per DIN 2533 RF (PN 16) Undrilled
Testing & Certification
Body Test Pressure : 26Kg/cm²g (Hyd.)
Seat Test Pressure : 16Kg/cm²g (Hyd.)
Backseat Pressure : 16Kg/cm²g (Hyd.)
Working Pressure : Max BOP 13Kg/cm²g at 220°C Steam
Our Works’ Test Certificate is furnished with every supply.
(Rates in INR- Per Unit Piece)
| MM | 15mm | 20mm | 25mm | 32mm | 40mm | 50mm | 65mm | 80mm | 100mm | 125mm | 150mm | 200mm |
| Price/Pc. | 3090.00 | 3368.00 | 3756 | 5463.00 | 6865.00 | 8717 | 12798 | 16421 | 22465 | 33002 | 44377 | 71197 |
Terms & Conditions
Discount: _____________% (Subject to requirement)
Rates are EX Delhi Warehouse; Cartage & Freight shall be as per actual
GST @ 18% shall be extra
Price List at the time of Dispatch shall be applicable
