About Kartar Valves Private Limited

Indian manufacturer of cast iron, ductile iron and forged brass industrial valves — manufactured in Jalandhar, Punjab.

Who is Kartar Valves?

Kartar Valves Private Limited (also written as Kartar Valves Pvt Ltd, and sometimes mis-spelled online as ‘Karr Valves’ or ‘Karr Valves Pvt Ltd’) is an Indian industrial valve manufacturer that has been in operation since 1972. Originally established as Juneja Metal Works, the company today operates as Kartar Valves Pvt. Ltd. and is an ISO 9001 certified manufacturer based in Jalandhar, Punjab. Over five decades, Kartar has built a reputation for producing certified industrial valves at value-engineered price points — a position now reflected in the brand’s wide adoption across Indian water utilities, sugar mills, fire-fighting installations, cement plants, and process plants.

Manufacturing Standards & Certifications

Kartar Valves is an ISO 9001 certified manufacturer. Butterfly valves are ISI certified under IS:13095 (BIS licence number CM/L:9440477) and additionally carry CE marking. Wafer check valves and dual plate check valves are manufactured to IS 1865-500/7 (ductile iron) and IS 1030 230-450W (cast steel) standards. Sluice valves in the broader range conform to IS:14846. Hydraulic test pressures are PN-rating specific: at PN16, body test is 24 bar (5 min) and seat test is 17.6 bar (2 min). All test certificates — hydrostatic test, material composition, dimensional inspection — are available on request with every order through Vijay Sales Corporation.

Why Specifiers Choose Kartar

Kartar is among the most cost-competitive Indian valve manufacturers while maintaining ISI and IS-standard compliance — making it a preferred specification for projects where commercial budgets are tight but certification cannot be compromised. The product range covers virtually all standard industrial valve types in sizes from 10NB up to 600NB, and the kartar price for stock sizes is held in our Delhi NCR warehouse. The range covers butterfly valves from 40NB to 600NB (1½″ to 24″), check valves to 450NB, and the full industrial valve catalogue from sluice and gate valves through air valves, globe valves, ball valves, landing valves, fire hydrants and sprinklers. Vijay Sales Corporation is among the established valve manufacturer and distributor networks in Delhi NCR servicing this category.

Choosing the Right Kartar Valve for Your Application

Practical selection guidance from Vijay Sales Corporation’s specifications desk.

Butterfly Valve — Which Kartar Series?

Kartar offers four primary butterfly valve series, each suited to a different installation profile. The K-Line series (K701 and K702) is the workhorse — wafer-type with an integral liner and four lugs for proper bolt alignment, used across general water, HVAC and fire-fighting utility duty. The K-Line New series (K701N and K702N) is the same form factor with only two lugs, saving overhead weight where access is restricted or ceiling clearance is tight. The K-Line Replaceable Liner series (K703 and K704) keeps the same dimensions but with a field-replaceable liner — preferred where the maintenance team can access the valve for periodic liner change and where chemical or thermal duty accelerates wear. The K-Line CS Body (K713) is the cast-steel-body variant for steam, hot condensate, higher-temperature service, and projects where specifying authorities require cast steel rather than cast iron. The Aqualine (K706A/K707A) and Slimline (K706/K707) ranges are lighter-duty with reduced face-to-face dimensions — specified for tight installations where the standard wafer face-to-face won’t fit.

PN10 vs PN16 vs PN20 vs Class 150 — Pressure Rating Selection

Pressure rating selection should match the system’s design pressure plus a safety margin. PN10 (10 bar / 145 psi) is the right call for water mains at modest static heads, HVAC chilled-water circuits, fire-fighting risers in low-rise buildings, and most irrigation duty. PN16 (16 bar / 232 psi) — the most-specified rating in India — handles general process water, fire-fighting in mid- and high-rise buildings, sugar mill and cement plant utility lines, and any application where design pressure could touch 14–15 bar in service. PN20 (20 bar / 290 psi) is specified for higher-pressure water-hammer-prone pumping installations and steam-condensate service. Class 150 (American flange standard, ~19.7 bar / 285 psi) is specified on projects engineered in ANSI/ASME terms or where cast-steel-body butterfly valves are required.

Wafer NRV vs Dual Plate Check Valve — Quick Selection

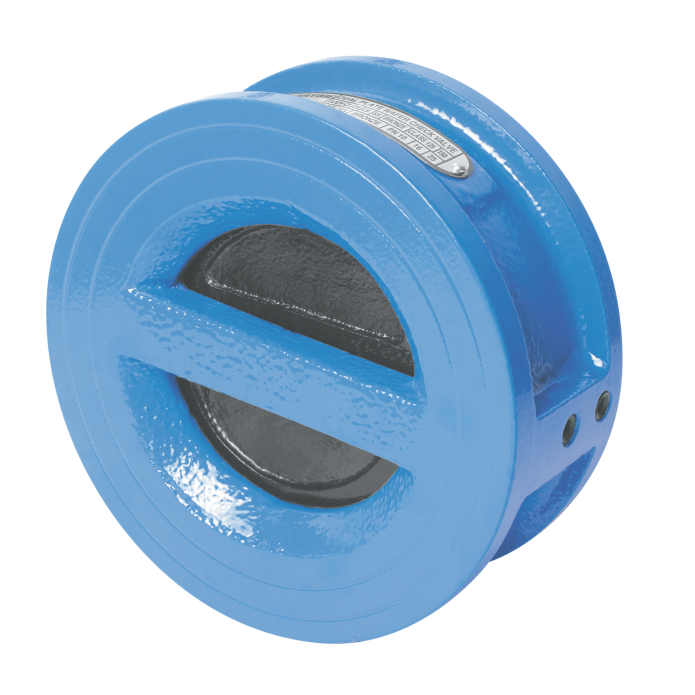

The wafer single-plate non-return valve (K710) is the simpler and lower-cost option — suited to vertical-pipe applications and gravity-flow lines where reverse-flow events are infrequent. The dual-plate check valve (K711, available in both wafer and flanged versions) closes significantly faster than a single-plate design — because both half-discs close simultaneously, water-hammer pressure spikes are reduced markedly. The dual-plate is the right specification for pump discharge lines, fire-fighting mains downstream of a pump set, and any application where reverse-flow velocity is high. For pump suction protection specifically, the better choice is often Kartar’s CI/DI foot valve range (single-door, double-door, and DI ball-type) rather than an in-line NRV.

Liner Material — Nitrile vs EPDM vs Neoprene vs Silicone

Kartar butterfly valves are offered with four standard liner options. Nitrile (NBR) is the default — handles water, hydrocarbons, oils and most utility duty up to 80°C. EPDM is preferred for hot water, steam-condensate service up to 110°C, and chlorinated water applications, but should NOT be used with petroleum-based fluids. Neoprene is a balanced compromise — fair on chemicals, fair on hydrocarbons, used where exposure is mixed or uncertain. Silicone is specified for high-purity water (pharma, ultrapure), food-grade duty, and applications with higher operating temperatures. For ambiguous media chemistry — particularly process chemicals, acid lines, sludge, or unusual temperature profiles — WhatsApp us with the media composition and operating range and we’ll confirm liner compatibility against Kartar’s material data sheet before order is placed.

Full Kartar Valves Product Range

The complete Kartar Valves catalogue covers twelve industrial valve product families.

• Butterfly Valves

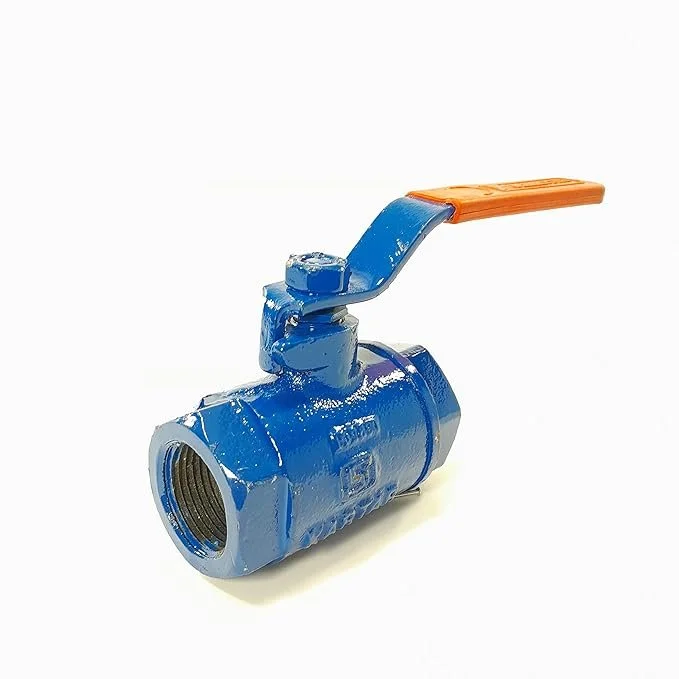

• Ball Valves

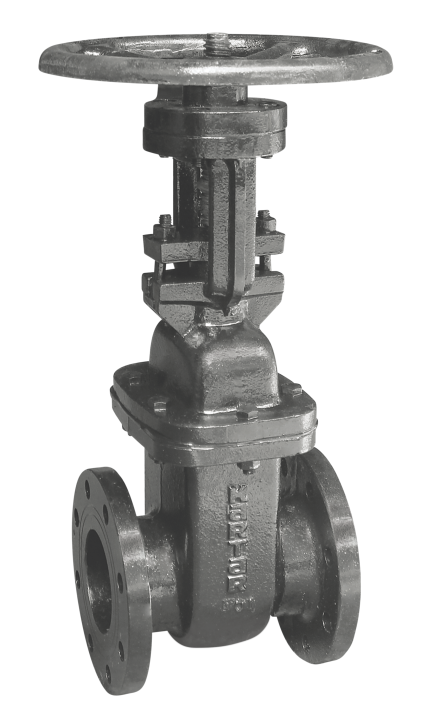

• Sluice Valves
• Air Valves
• Gate Valves
• Landing Valves
• Resilient Seated Gate Valves
• Fire Hydrants
• Reflux (Non-Return) Valves
• Sprinklers
• Globe Valves
• DI Fittings

Of these twelve product families, Vijay Sales Corporation stocks the highest-running items ex-godown in Delhi NCR — butterfly valves, sluice valves, NRVs, ball valves, strainers and foot valves — and procures the remainder against confirmed orders. Non-stock items typically dispatch within 1–2 weeks from Kartar’s Jalandhar facility. For specifications outside the standard price list — gate valves, air valves, globe valves, fire hydrants, landing valves, sprinkler accessories, or DI fittings — WhatsApp +91-9999889008 with your size, pressure rating, and application and we will revert with a tailored quote inside one working day.

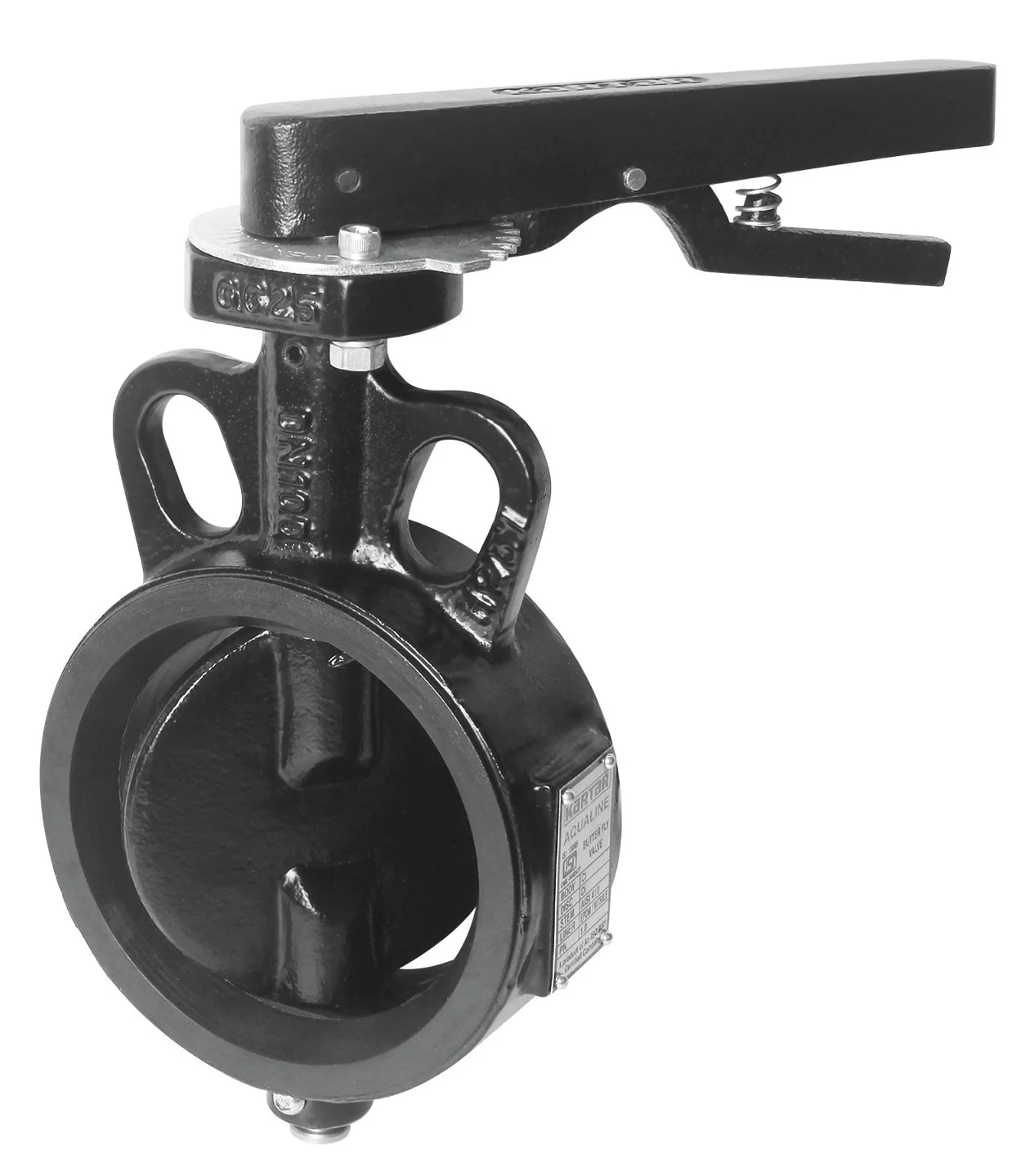

Kartar Butterfly Valve — Technical Reference

Material specifications, pressure ratings, and dimensional data from the manufacturer’s catalogue.

Material Specifications (K-Line / K-Line New)

Body

Cast Iron (IS:210 Gr FG 200) or Ductile Iron — Cast Steel option on K713

Disc

Stainless Steel (IS 3444:GR.7) or AISI 304 / AISI 316

Liner

Nitrile / EPDM / Neoprene / Silicon (specify by application)

Upper & Lower Stem

Stainless Steel (IS 6603) or AISI 410

Bushing

Teflon or Nylon

O-Rings

Nitrile / Silicon / Viton

Pressure Rating (CI / DI body)

PN10 or PN16

Pressure Rating (Cast Steel body, K713)

PN16 / PN20 / Class 150

Certification

ISI under IS:13095 (CM/L:9440477) + CE marking + ISO 9001

Hydraulic Test Pressures

PN10

Body 16 bar (5 min), Seat 11 bar (2 min)

PN16

Body 24 bar (5 min), Seat 17.6 bar (2 min)

PN20

Body 30 bar (5 min), Seat 22 bar (2 min)

Class 150

Body 30 bar (5 min), Seat 22 bar (2 min)

Size Range & Operation

Kartar butterfly valves are available from 40NB (1½″) through 600NB (24″). Valves 40NB through 150NB are typically supplied lever-operated as standard. From 200NB upwards, gear-operated is standard (and from 300NB up, gear is the default per the manufacturer). Pneumatic and electric actuators are available across the full size range from 40mm onwards — specify actuator type at order time, with separate Aqualine and Slimline series offering reduced face-to-face dimensions for installations where space is constrained. The standard face-to-face dimension (Dim A) at 100NB is 286mm for K701/K702; the Aqualine equivalent (K706A/K707A) is 180mm.

Why Source Kartar Valves Through Vijay Sales Corporation

Multi-decade industrial supplies and distribution from the heart of Delhi’s industrial trade.

Established Trade Experience

Vijay Sales Corporation has been supplying industrial fittings, valves, piping and fire-fighting equipment from 3356 Hauz Qazi, Delhi-110006 for multiple decades. The firm services contractors and procurement teams across sugar mills, cement plants, oil & gas, pharmaceutical, water treatment, fire-fighting, and general construction sectors. Kartar Valves is one of the long-standing brand relationships in our supply roster — we maintain ex-godown stock of the highest-running Kartar items (butterfly valves, sluice valves, NRVs, ball valves) and procure non-stock items against firm orders.

How We Quote

Quotes are typically issued within 3–4 working hours during business hours. We work line-item, HSN-wise, with GST shown separately and freight estimated upfront. Test certificates accompany every order on request — hydrostatic test, material composition, and dimensional inspection. For project quantities (50+ valves on a single order, or any size at 100+ pieces), we work out project-specific rates against your full BOQ; share via WhatsApp +91-9999889008 or email sales@vijaysalescorp.com.

Pan-India Dispatch

Our base is Delhi, but we routinely dispatch to project sites across Haryana, Punjab, UP, Rajasthan, Maharashtra, and pan-India by transport. Buyers searching for ‘Kartar valves in Delhi NCR’ can collect ex-stock from our warehouse during business hours, or have material loaded onto your nominated transporter for project sites.
