Grooved Pipe Fittings — Ductile Iron, UL Listed & FM Approved
Ready stock ex-Delhi in sizes 1" to 12" — the full range of couplings, elbows, tees, crosses, mechanical tees, reducers and flanges. Vijay Sales Corporation supplies grooved fittings to fire contractors, HVAC contractors and industrial buyers across India.
What grooved fittings are, and how the joint works
A grooved joint replaces welding and threading with a mechanical connection. A shallow groove is rolled or cut into each pipe end on site. A gasket is slipped over the gap between the two pipe ends, and a two-part housing closes around it. When the bolts are tightened, keys on the inside face of the housing drop into the grooves on both pipes and lock them together.
The gasket does the sealing and the housing does the holding, and the two jobs stay separate. That is why the joint behaves well under pressure: line pressure pushes the C-shaped gasket lip harder against the pipe wall, so the seal tightens as the system loads up rather than relaxing. No flame is involved, no threading machine is needed, and the joint can be taken apart later with a spanner.
Because a fitter can make up a joint in a couple of minutes with one wrench, grooved piping is now the default on fire sprinkler and hydrant systems, chilled water risers and plant-room headers — anywhere labour time, hot-work permits or later maintenance access matter.
The full grooved product family
Twenty-two priced product types, 358 individual sizes. Couplings are covered in depth on the grooved couplings — rigid vs flexible page; every dimension table sits on the grooved fittings dimensions and groove specs page.

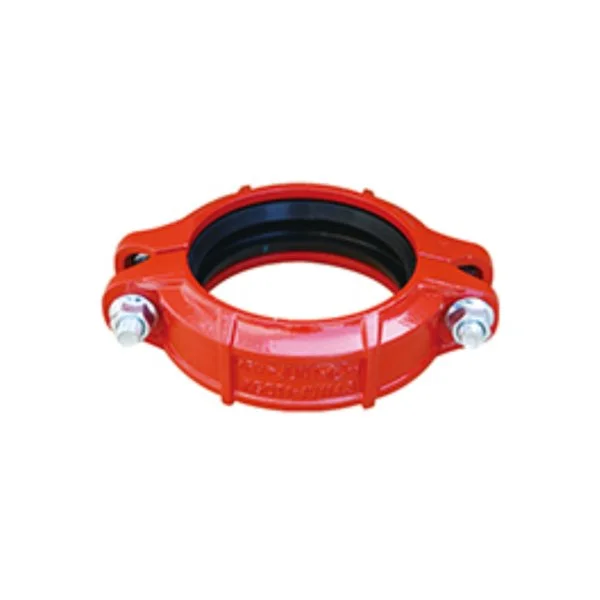

XGQT 1
Rigid Coupling
Rigid joint for risers, pump connections and anywhere pipe movement is not wanted.

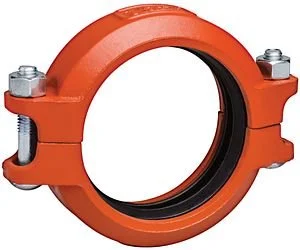

XGQT 2
Flexible Coupling
Absorbs thermal movement, seismic drift and pump vibration on straight runs.

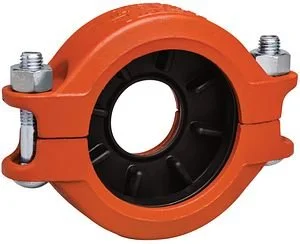

XGQT 2B
Reducing Coupling
Joins two different pipe sizes directly, without a separate reducer.

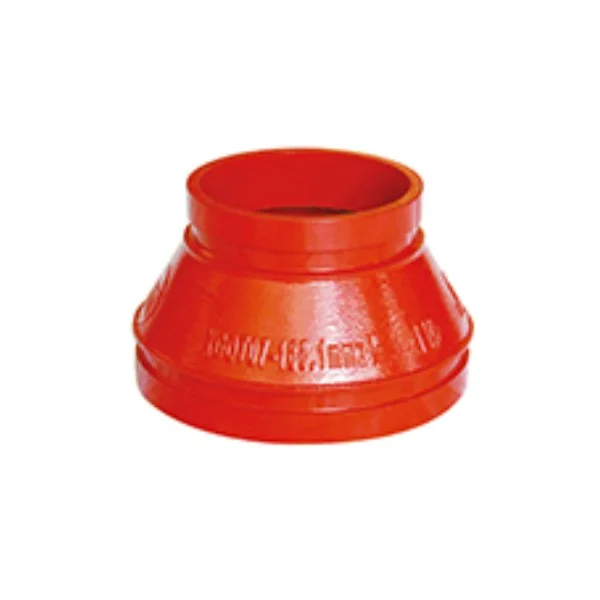

XGQT 07
Concentric Reducer — Grooved Outlet
Steps a line down to a smaller grooved size.
XGQT 07S
Concentric Reducer — Threaded Outlet
Steps a line down to a threaded outlet for gauges, drains and small branches.

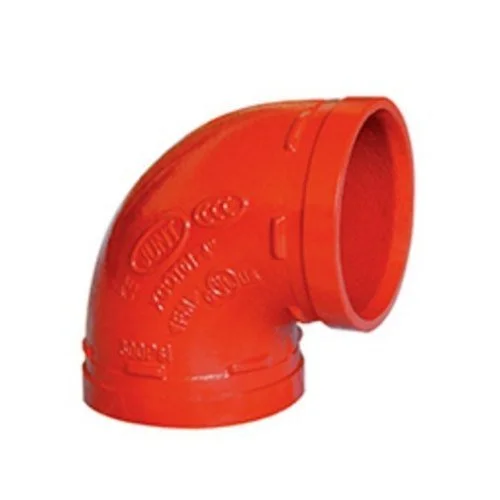

XGQT 01
Elbow 90 Deg.
Standard 90 degree change of direction on mains and risers.

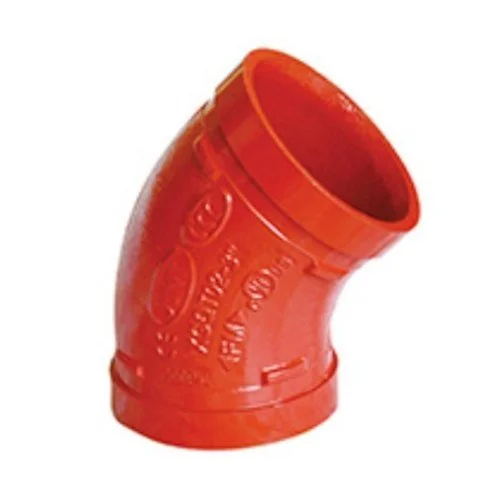

XGQT 02
Elbow 45 Deg.
45 degree offset around beams, ducts and structure.

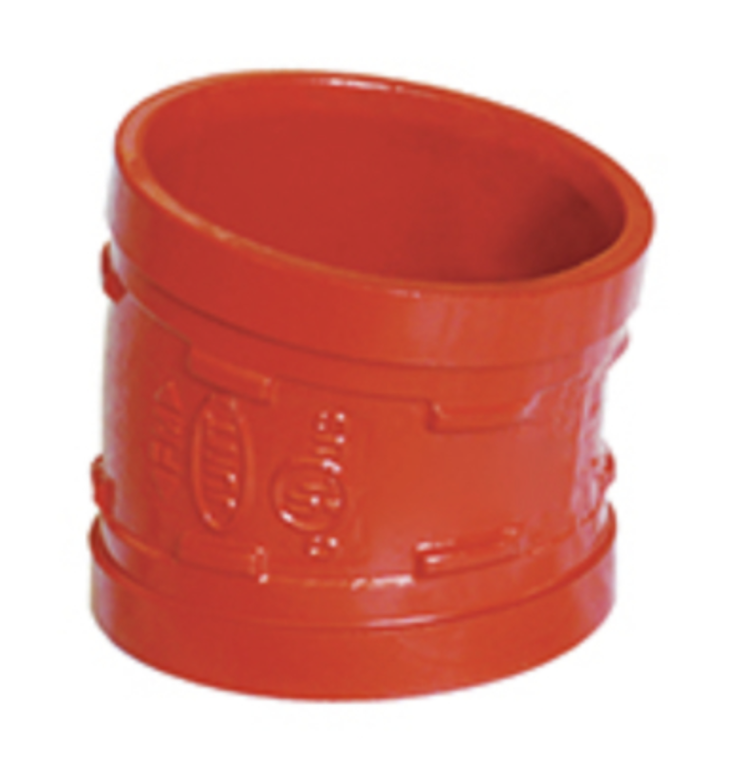

XGQT 022
Elbow 11.25 Deg.
Shallow 11.25 degree offset for long, gently curved runs.

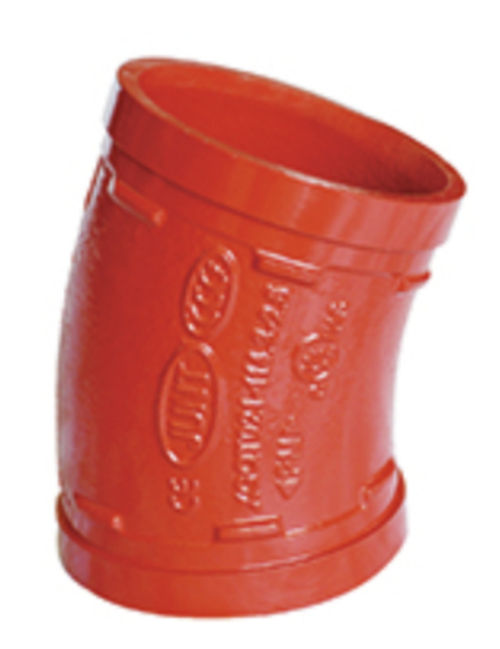

XGQT 021
Elbow 22.5 Deg.
22.5 degree offset where a 45 is too sharp.

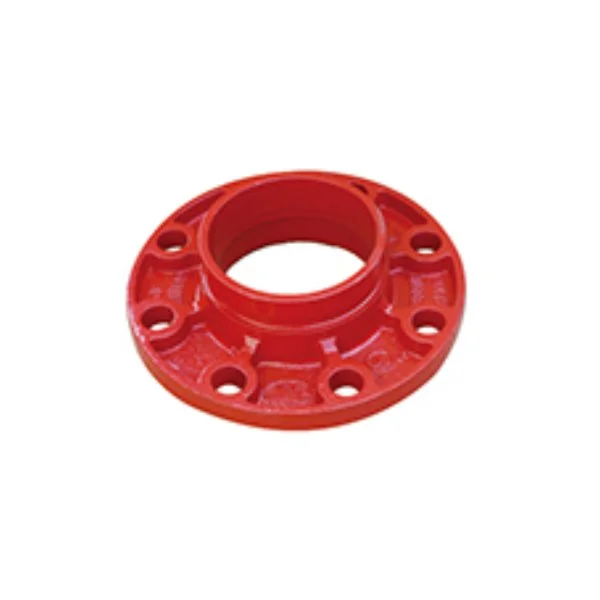

XGQT 08
Adaptor Flange
Connects a grooved line to any flanged valve, pump or vessel.

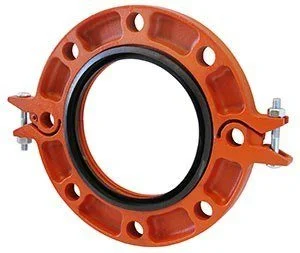

XGQT 18
Grooved Flange
Flanged end with a grooved face for valve and equipment tie-ins.

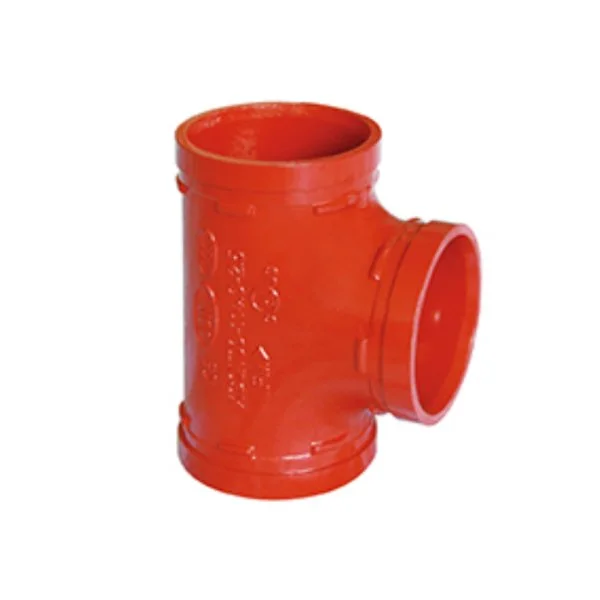

XGQT 03
Equal Tee
Equal branch off a main, all three ends grooved.

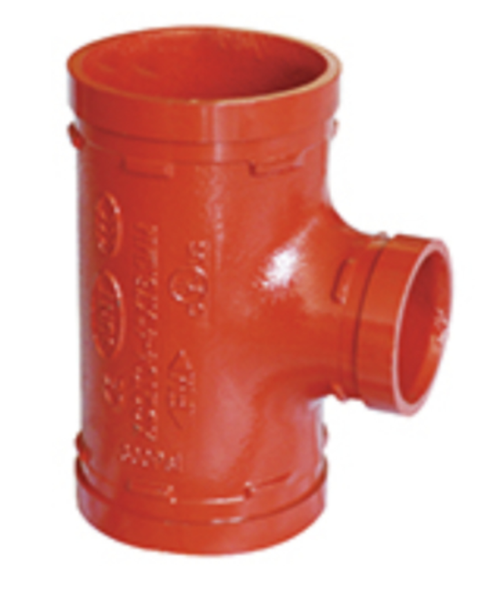

XGQT 04
Reducing Tee — Grooved Outlet
Reduced grooved branch off a larger main.

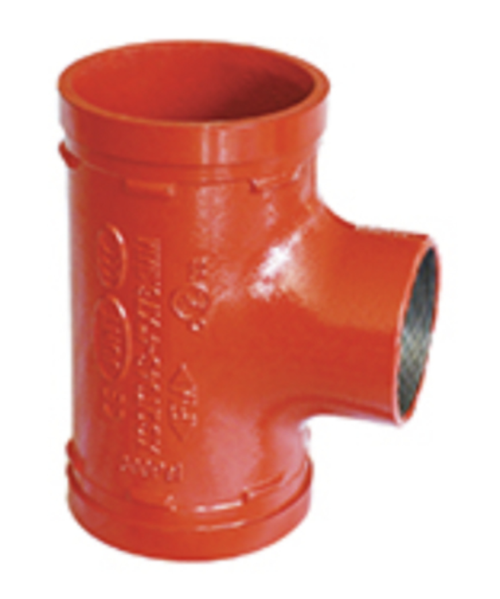

XGQT 04S
Reducing Tee — Threaded Outlet
Reduced threaded branch for instruments and small offtakes.

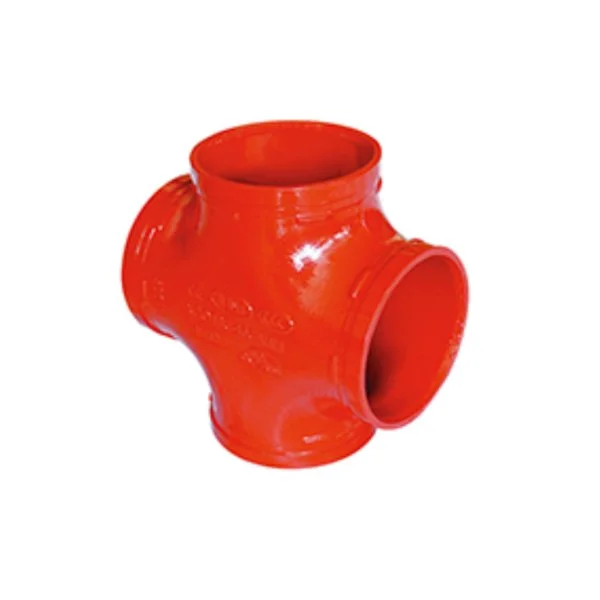

XGQT 05
Equal Cross
Four-way equal junction on distribution headers.

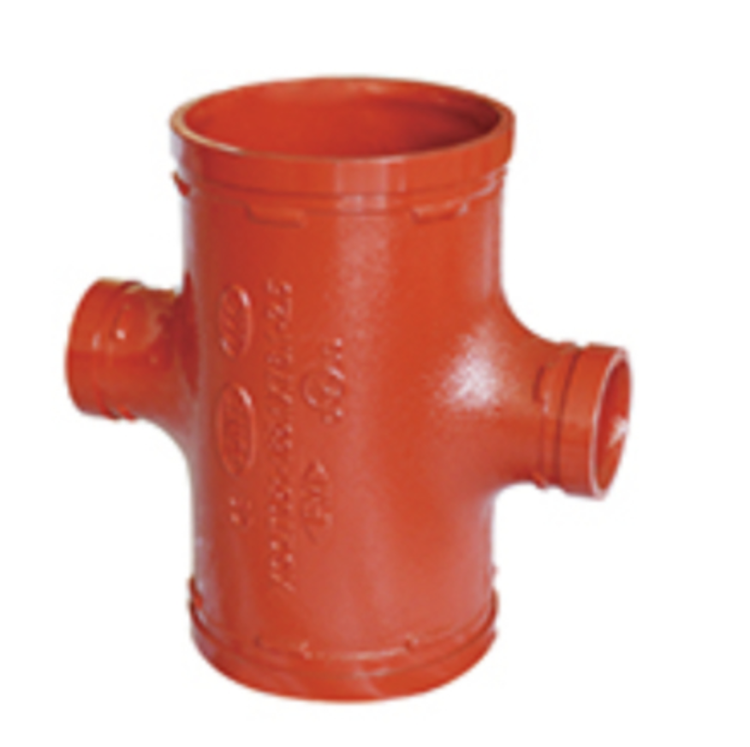

XGQT 051
Reducing Cross — Grooved Outlet
Four-way junction with a reduced grooved branch.

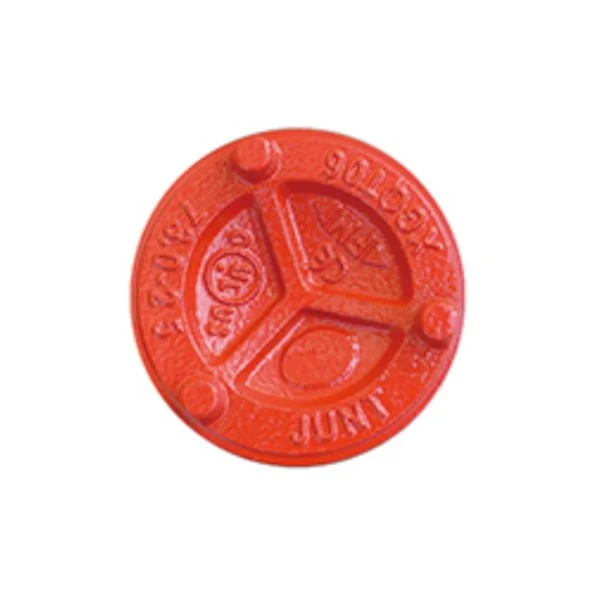

XGQT 06
End Cap
Closes off a line end or a future extension point.

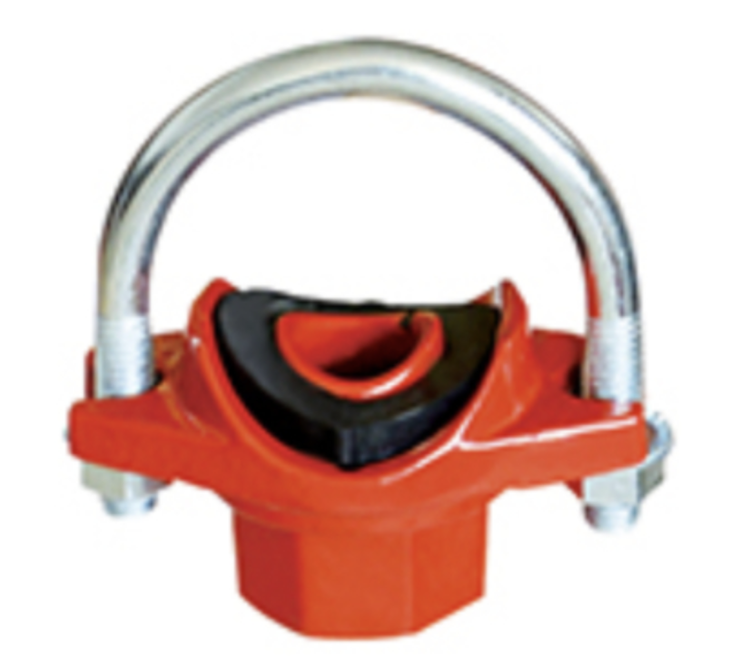

XGQT 3U
U-Bolt Mechanical Tee
U-bolt outlet clamped straight onto a drilled run — no cut, no weld.

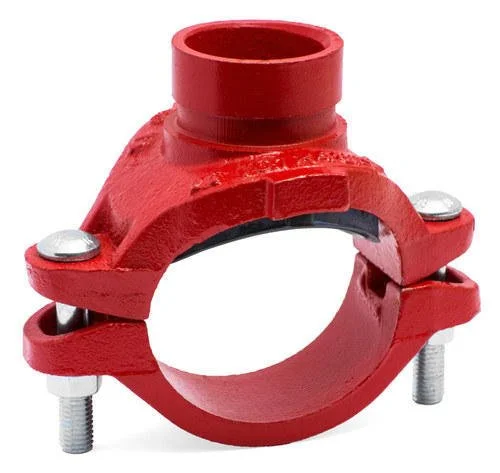

XGQT 3
Mechanical Tee — Grooved Outlet
Bolted grooved outlet onto a drilled run, for branch lines.
XGQT 3S
Mechanical Tee — Threaded Outlet
Bolted threaded outlet onto a drilled run — the standard sprinkler drop.
XGQT 3SSG
Mechanical Cross — Grooved Outlet
Two opposed grooved outlets from a single drilled run.
XGQT 3SST
Mechanical Cross — Threaded Outlet
Two opposed threaded outlets from a single drilled run.
Also stocked without a published rate: 11.25 and 22.5 degree elbows in larger sizes, adaptor nipples, angle-pad couplings and gasket spares. Ask for these on WhatsApp.
Specifications
- Body material
- Ductile iron to ASTM A536 Gr. 65-45-12
- Test pressure
- 12.5 MPa
- Max working pressure
- 2.5 MPa
- Working pressure by size
- 300 PSI (2.07 MPa) up to 6"; 232 PSI (1.60 MPa) for 8" to 12"
- Coating
- Epoxy, red (3000 / 3001)
- Bolts and nuts
- 40Cr or 35# steel, Gr. 8.8 after heat treatment
- Gasket options
- EPDM, nitrile or silicone — see the gasket temperature table
- Size range
- 1" to 12" priced; roll groove data published to 20"
Figures are as published in the Sant grooved catalogue. The 300 PSI rating holds through 6"; from 8" upward the catalogue rates couplings and tees at 232 PSI. Elbows are rated 300 PSI across the full size range.
Grooved against welded and threaded
| Grooved | Welded | Threaded | |
|---|---|---|---|
| Installation time | Fastest — cut, groove, bolt up | Slowest — fit-up, weld, cool, test | Slow in larger sizes; threading is laborious above 2" |
| Hot work permit | Not required | Required — fire watch, NOC conditions apply | Not required |
| Skill needed | Fitter with a wrench | Certified welder | Threading machine operator |
| Seismic and thermal movement | Flexible couplings absorb it by design | Rigid; needs expansion loops or bellows | Rigid |
| Vibration at pumps | Absorbed at the joint | Transmitted along the line | Transmitted along the line |
| Reusability | Unbolt, reuse the housing, renew the gasket | Cut out and re-weld | Limited; threads damage on removal |
| Maintenance access | Any joint opens with a spanner | Cutting required | Union or flange needed at each break point |
| Wall thickness lost | Groove depth only | None, but heat-affected zone forms | Significant — threads cut into the wall |
| Labour cost | Lowest | Highest | Moderate to high |
Rigid or flexible coupling?
Both couplings use the same housing, gasket and bolts, and both seal the same way. The difference is the shape of the housing key. A rigid coupling (XGQT 1) has a key profile that grips the groove tightly on both sides, so the two pipes are held in line and cannot rotate or draw apart. Use it on risers, at valve and pump connections, and anywhere a designer has treated the line as a rigid structure.
A flexible coupling (XGQT 2) leaves a deliberate clearance between the key and the groove wall. That clearance lets the joint deflect a degree or so and take up a small amount of linear movement, which is what absorbs thermal expansion, pump vibration and seismic drift. On a long straight run, flexible couplings placed at intervals do the job that expansion loops do on a welded line. Grooved couplings — rigid vs flexible works through the choice in full, with dimension tables and bolt torques.
Where grooved piping is used
Fire sprinkler and hydrant systems
The largest single use. Grooved joints go in without a hot-work permit, which matters in occupied buildings, and mechanical tees let a fitter take a sprinkler drop off a main without cutting it. See grooved fittings for fire fighting systems.
HVAC chilled water
Chilled and condenser water headers move as they cycle between temperatures. Flexible couplings take that movement at the joint, and plant-room equipment can be isolated and pulled without cutting pipework.
Plumbing risers
Tall risers are quick to erect floor by floor, and the joint absorbs building settlement. Nothing has to be welded inside a finished shaft.
Industrial process lines
Where a line carries a slurry or an abrasive medium and sections need periodic replacement, unbolting a coupling is far cheaper than cutting and re-welding.
Mining and dewatering
Temporary and semi-permanent lines that get relocated. Housings and gaskets travel with the pipe and are reused.
Also available on indent — eccentric reducer (XGQT 17), angle-pad coupling, gasket rings in EPDM, nitrile and silicone, bolts and nuts, roll grooving machines, hole cutting machines and pipe cutting machines. These are not carried as ready stock and are not on the published price list; ask on WhatsApp for a rate and lead time.
Why buy grooved fittings from Vijay Sales Corporation
Ready Delhi stock
The moving sizes sit on the shelf at Hauz Qazi, so a fire or HVAC contractor is not waiting on a factory dispatch to close out a floor.
Same-day dispatch across Delhi-NCR
Orders confirmed in the morning generally move the same working day within the NCR.
Pan-India supply
Regular despatch to project sites across India by road transport, with documentation handled at this end.
BOQ quotation support
Send a bill of quantities in any format and get it back priced line by line, usually the same working day.
Authorised dealer pricing
Vijay Sales Corporation is an Authorised Dealer & Distributor for Sant, so rates come off the current list rather than through a sub-stockist.
Frequently asked questions
What are grooved fittings?
Grooved fittings are ductile iron pipe fittings that join pipe by mechanical means rather than by welding or threading. A groove is rolled into each pipe end, a gasket bridges the gap, and a bolted two-part housing seats its keys into the grooves to hold the joint. The result is a pressure-tight joint that goes in without a flame and can be opened again with a spanner.
Are grooved fittings suitable for fire fighting systems?
Yes, and it is the most common use. The Sant range Vijay Sales Corporation stocks is UL Listed and FM Approved, which is what fire consultants and approving authorities look for on sprinkler and hydrant work. Because no hot work is involved, the system can be installed and extended inside an occupied building. The grooved fittings for fire fighting systems page covers approvals and the engineering tests behind them.
What do grooved fittings cost?
Rates depend on the item and the size — a 1" end cap and a 12" cross are two very different things. Every current rate is published on the Sant grooved fittings price list with dealer discount, which lists all 358 sizes across 22 product types.
What is the difference between a rigid and a flexible coupling?
A rigid coupling holds the two pipe ends firmly in line and allows no movement at the joint. A flexible coupling leaves a small clearance in the groove so the joint can deflect slightly and take up thermal expansion, vibration and seismic movement. Both use the same gasket and the same bolts. Grooved couplings — rigid vs flexible sets out where each one belongs.
What sizes are available?
Priced sizes run from 1" to 12" depending on the item. Couplings, 90 degree elbows, equal tees, equal crosses and end caps go the full 1" to 12"; mechanical tees and reducing items cover the size combinations shown on each price table. Roll groove data is published up to 20" on the grooved fittings dimensions and groove specs page.
How do I order, and is there a minimum?
Send a bill of quantities or a list of sizes on WhatsApp at 9999889008 or by email to sales@vijaysalescorp.com, and it comes back priced. Minimum order value is Rs. 20,000. Rates are ex-Delhi warehouse with GST at 18 percent extra.
How quickly can material be delivered?
Stock items generally dispatch the same working day within Delhi-NCR. For a full project BOQ where some sizes have to come from the factory, allow one to two weeks from receipt of a firm order.
Which gasket should I specify for my service?
EPDM is the standard choice and covers water service from −34 to +150 °C, including hot water and many dilute chemicals. Nitrile handles petroleum products, oils and air with oil vapour from −29 to +82 °C but must not be used on hot water. Silicone covers dry hot air up to +177 °C. The full table is on the dimensions and technical data page.
