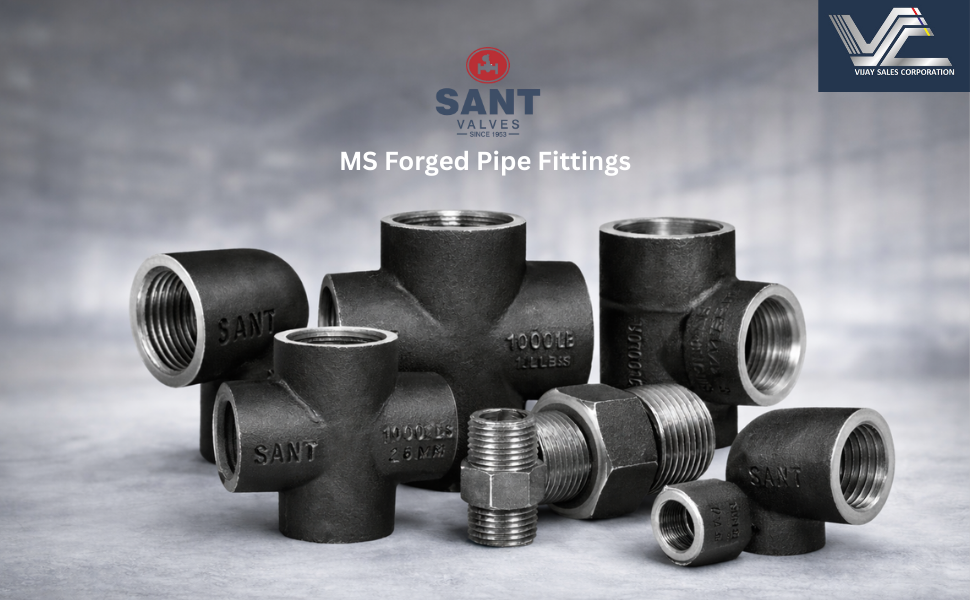

Sant MS Forged Pipe Fittings Price List 2026
Drop-forged steel pipe fittings from Sant Steel Forgings — threaded (1000 LBS) and socket-weld (3000 LBS) elbow, tee, socket, union, hex nipple, reducing bush, cross & plug. Manufactured to IS-1239 (Part-II) and IS:4712:1984. Sizes 1/4" (8NB) to 3" (80NB). Ready stock at our Delhi warehouse.
Sant MS Forged Threaded Fittings Price List (1000 LBS)
Drop-forged carbon-steel threaded fittings to IS-1239 (Part-II) — BSP parallel threads as standard, hydro-tested at 1000 LBS class. For low/medium-pressure water, air, steam-condensate and instrument lines where the joint must remain serviceable.
Body is forged from solid steel billet (continuous grain flow, no porosity). Threads are precision-cut and gauge-checked. Each consignment dispatched from our Delhi warehouse is accompanied by the manufacturer's original Test Certificate.
| Fitting | 1/4"8NB | 3/8"10NB | 1/2"15NB | 3/4"20NB | 1"25NB | 1-1/4"32NB | 1-1/2"40NB | 2"50NB | 2-1/2"65NB | 3"80NB |
|---|---|---|---|---|---|---|---|---|---|---|
| SANT ELBOW THREADED | Rs.65/- | Rs.84/- | Rs.111/- | Rs.167/- | Rs.260/- | Rs.528/- | Rs.699/- | Rs.1,304/- | Rs.2,650/- | Rs.4,137/- |
| SANT TEE THREADED | Rs.95/- | Rs.116/- | Rs.154/- | Rs.220/- | Rs.352/- | Rs.699/- | Rs.931/- | Rs.1,645/- | Rs.4,289/- | Rs.6,705/- |
| SANT SOCKET THREADED | Rs.25/- | Rs.28/- | Rs.53/- | Rs.56/- | Rs.95/- | Rs.149/- | Rs.184/- | Rs.311/- | Rs.601/- | Rs.715/- |
| SANT UNION THREADED | Rs.151/- | Rs.163/- | Rs.204/- | Rs.250/- | Rs.367/- | Rs.634/- | Rs.794/- | Rs.1,257/- | — | — |
| SANT RED. ELBOW THREADED | — | Rs.89/- | Rs.119/- | Rs.185/- | Rs.292/- | Rs.580/- | Rs.777/- | Rs.1,441/- | Rs.3,056/- | Rs.4,782/- |
| SANT RED. TEE THREADED | — | Rs.134/- | Rs.169/- | Rs.250/- | Rs.391/- | Rs.777/- | Rs.1,037/- | Rs.1,815/- | Rs.4,930/- | Rs.7,710/- |
| SANT RED. SOCKET THREADED | — | Rs.25/- | Rs.36/- | Rs.65/- | Rs.125/- | Rs.187/- | Rs.229/- | Rs.397/- | — | — |
| SANT HEX NIPPLE THREADED | Rs.22/- | Rs.26/- | Rs.41/- | Rs.61/- | Rs.79/- | Rs.149/- | Rs.180/- | Rs.321/- | — | — |
| SANT RED. BUSH THREADED | Rs.19/- | Rs.19/- | Rs.23/- | Rs.35/- | Rs.59/- | Rs.144/- | Rs.174/- | Rs.337/- | — | — |
| SANT RED. HEX NIPPLE THREADED | — | Rs.28/- | Rs.35/- | Rs.53/- | Rs.102/- | Rs.204/- | Rs.234/- | Rs.491/- | — | — |
| SANT CROSS THREADED | Rs.234/- | Rs.234/- | Rs.248/- | Rs.358/- | Rs.613/- | Rs.1,284/- | Rs.1,676/- | Rs.2,891/- | — | — |
| SANT M/F ELBOW THREADED | Rs.90/- | Rs.117/- | Rs.153/- | Rs.233/- | Rs.349/- | Rs.678/- | Rs.919/- | Rs.1,656/- | — | — |
| SANT PLUG THREADED | Rs.13/- | Rs.14/- | Rs.22/- | Rs.34/- | Rs.57/- | Rs.86/- | Rs.112/- | Rs.190/- | — | — |
All rates per piece, ex-godown Delhi, exclude GST & freight.

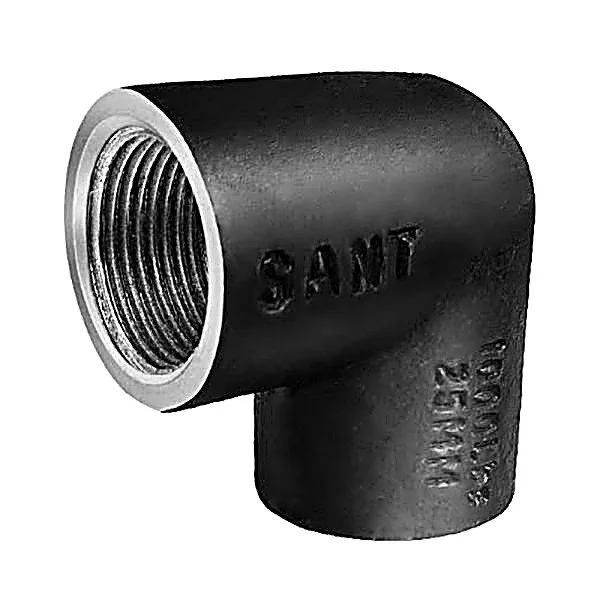

SANT ELBOW THREADED
SANT TEE THREADED

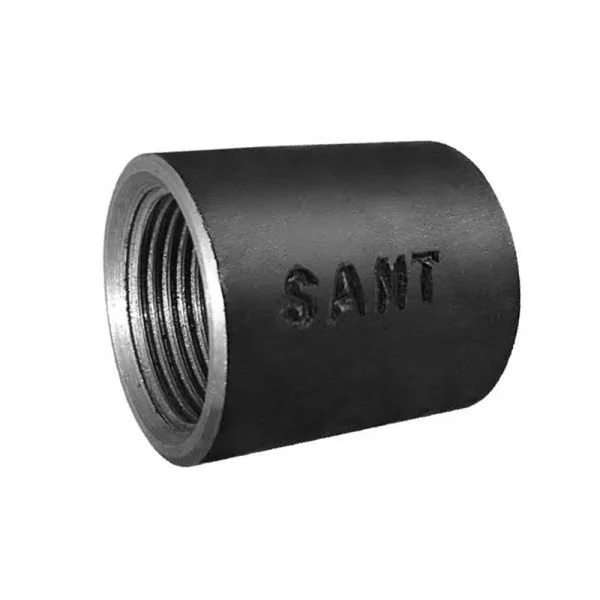

SANT SOCKET THREADED

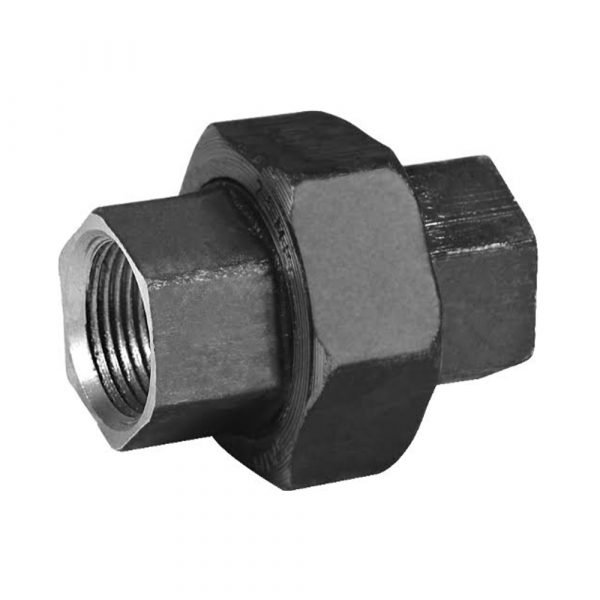

SANT UNION THREADED

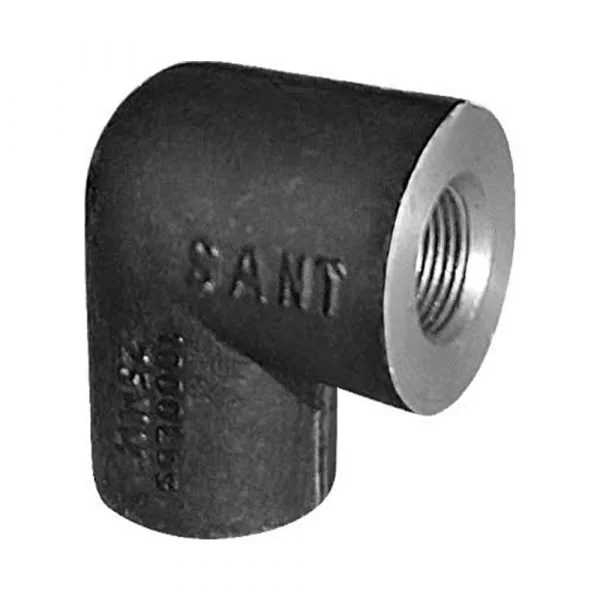

SANT RED. ELBOW THREADED

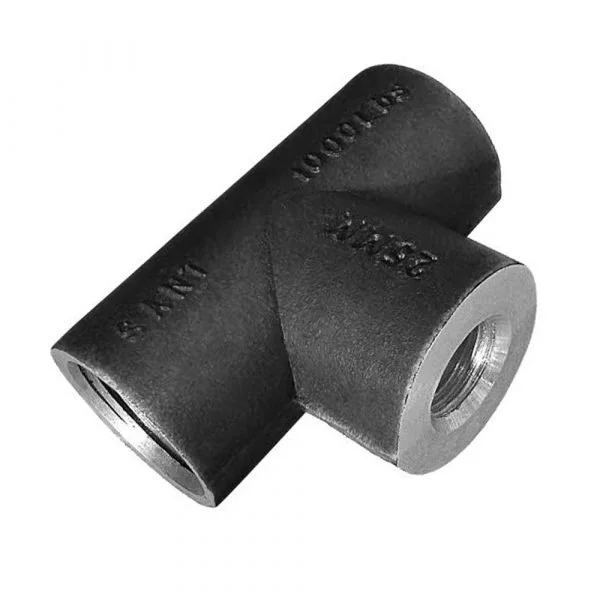

SANT RED. TEE THREADED

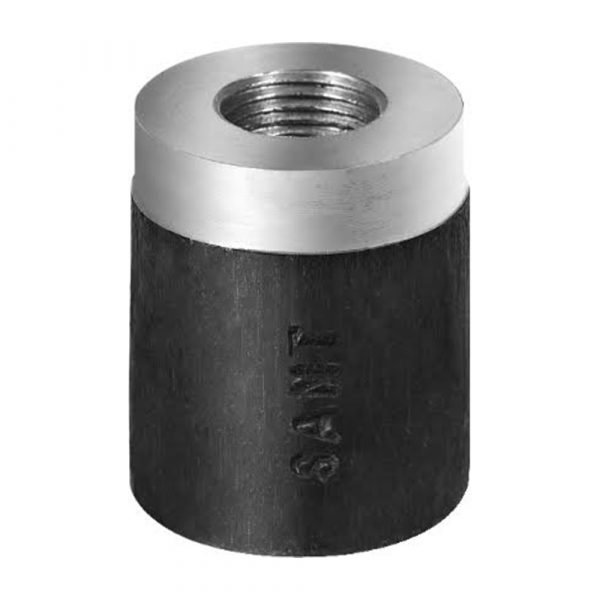

SANT RED. SOCKET THREADED

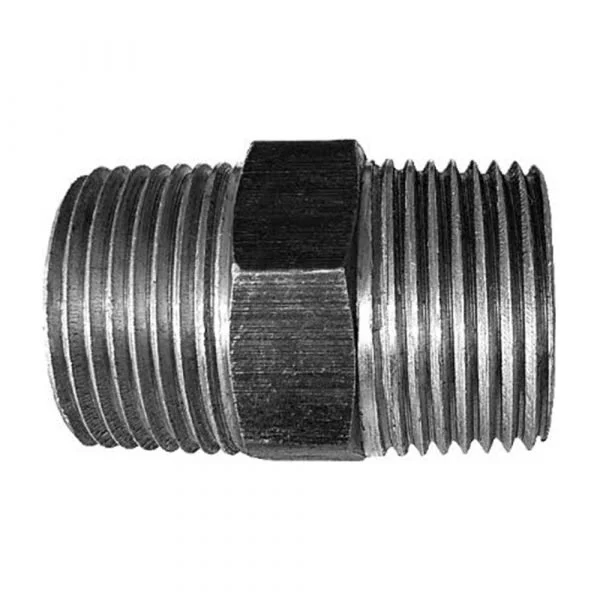

SANT HEX NIPPLE THREADED
SANT RED. BUSH THREADED
SANT RED. HEX NIPPLE THREADED

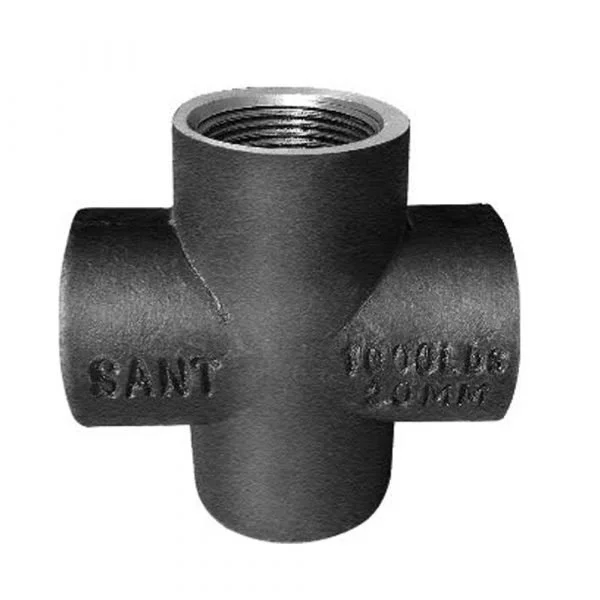

SANT CROSS THREADED

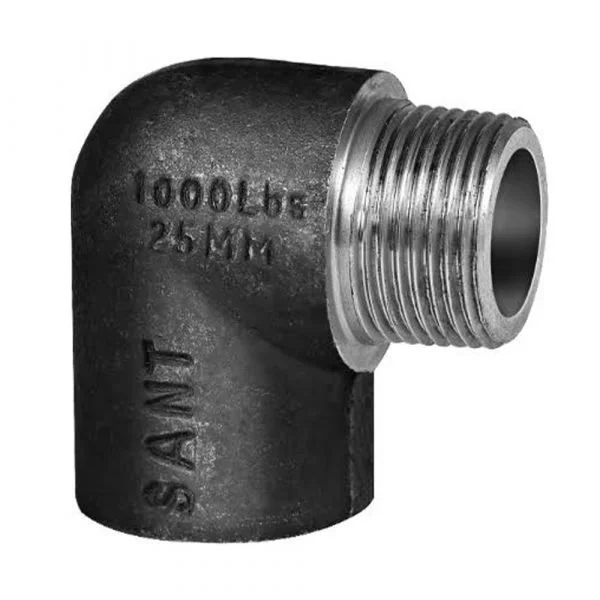

SANT M/F ELBOW THREADED

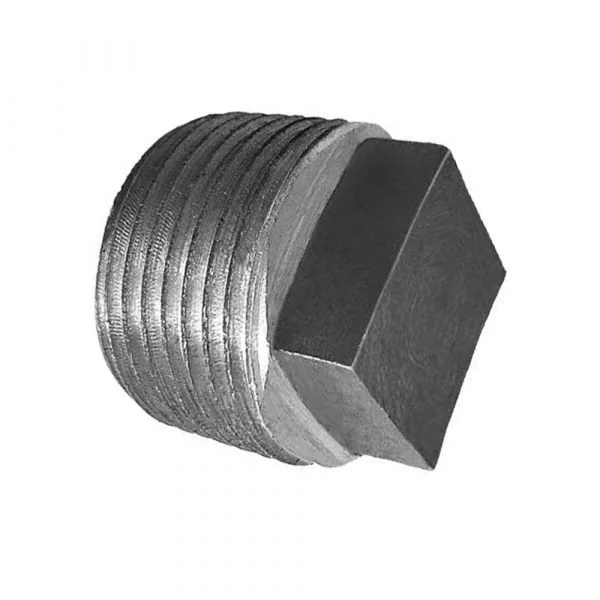

SANT PLUG THREADED
Sant MS Forged Socket-Weld Fittings Price List (3000 LBS)
Heavier-class drop-forged socket-weld (S.W.) fittings to IS:4712:1984, hydro-tested at 3000 LBS for higher-pressure welded pipework. The pipe is inserted into the recessed socket and fillet-welded to give a permanent, leak-free joint.
Suited to compressed-air mains, hydraulic lines, instrument tap-offs, steam-condensate and small-bore process piping where occasional disassembly is unnecessary.
| Fitting | 1/4"8NB | 3/8"10NB | 1/2"15NB | 3/4"20NB | 1"25NB | 1-1/4"32NB | 1-1/2"40NB | 2"50NB | 2-1/2"65NB | 3"80NB |
|---|---|---|---|---|---|---|---|---|---|---|
| SANT S.W. ELBOW | Rs.117/- | Rs.123/- | Rs.123/- | Rs.184/- | Rs.292/- | Rs.520/- | Rs.690/- | Rs.1,265/- | — | — |
| SANT S.W. TEE | Rs.155/- | Rs.165/- | Rs.165/- | Rs.243/- | Rs.378/- | Rs.686/- | Rs.905/- | Rs.1,613/- | — | — |
| SANT S.W. RED. ELBOW | — | Rs.142/- | Rs.142/- | Rs.201/- | Rs.323/- | Rs.573/- | Rs.757/- | Rs.1,400/- | — | — |
| SANT S.W. RED. TEE | — | Rs.184/- | Rs.184/- | Rs.271/- | Rs.427/- | Rs.756/- | Rs.997/- | Rs.1,771/- | — | — |
| SANT S.W. UNION | — | Rs.271/- | Rs.278/- | Rs.472/- | Rs.702/- | Rs.1,173/- | Rs.1,417/- | Rs.2,031/- | — | — |
| SANT S.W. SOCKET | Rs.41/- | Rs.54/- | Rs.67/- | Rs.107/- | Rs.134/- | Rs.235/- | Rs.293/- | Rs.487/- | — | — |
| SANT S.W. RED. SOCKET | — | Rs.67/- | Rs.85/- | Rs.134/- | Rs.167/- | Rs.297/- | Rs.367/- | Rs.609/- | — | — |
All rates per piece, ex-godown Delhi, exclude GST & freight.
SANT S.W. ELBOW

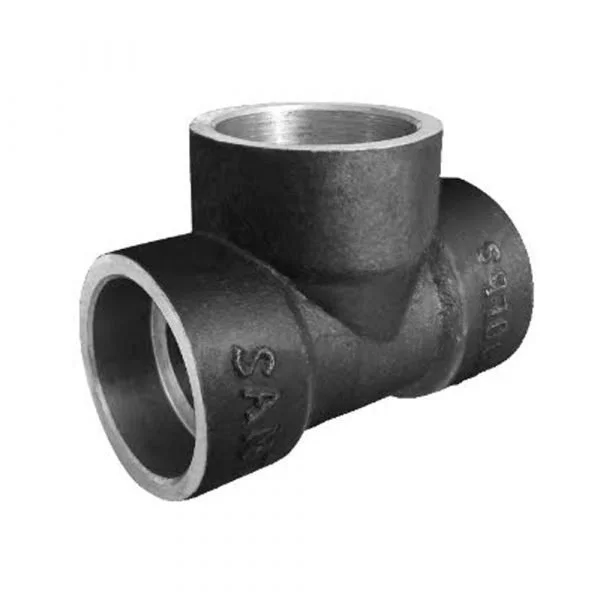

SANT S.W. TEE
SANT S.W. RED. ELBOW
SANT S.W. RED. TEE

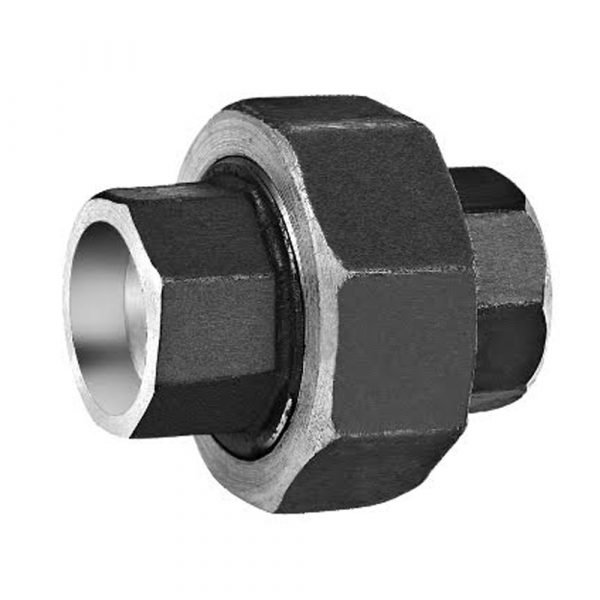

SANT S.W. UNION
SANT S.W. SOCKET
SANT S.W. RED. SOCKET
Sant MS Forged Fittings — Visual Reference
Every fitting in the rate tables above, illustrated. Each photograph is the manufacturer's reference image — preserved here so the visual you order against is the exact part dispatched from our Delhi warehouse.
Official Sant MS Forged Fittings price list on VSC letterhead — effective 01.04.2026.
Terms & Conditions
- Discount: 60% on price list (subject to requirement).
- Above quoted rates are EX-GODOWN DELHI; cartage & freight extra as per actual.
- GST @ 18% extra on all rates above.
- For NPT & BSPT threading, 25% extra will be charged on rate list.
- Payment against Proforma Invoice.
- Price list prevailing at the time of dispatch shall be applicable.
- Test certificates available on request with every order.
Get a Quote on Sant Forged Fittings
Send your requirement — itemised quote on WhatsApp in 3–4 hours during business hours.
About Sant Steel Forgings
- Drop-forged steel pipe fittings manufacturer based in Jalandhar, Punjab.
- Threaded fittings manufactured to IS-1239 (Part-II) in the 1000 LBS pressure class.
- Socket-weld fittings manufactured to IS:4712:1984 in the 3000 LBS pressure class.
- Forged from solid carbon-steel billet — continuous grain flow, no porosity.
- Every fitting hydro-tested before dispatch.
Why VSC for Sant Forged Fittings
- Ready stock at our Delhi warehouse (Hauz Qazi).
- Genuine Sant material — every consignment ships with proper Test Certificates.
- GST-compliant invoicing with correct HSN codes.
- 3–4 hour quote turnaround via WhatsApp.
- Trade since 1961 — direct line +91-9999889008.
Threaded vs Socket-Weld — choosing the right Sant forged fitting
Threaded forged fittings (1000 LBS class) connect via BSP parallel threads — the female thread engages a male-threaded pipe end, with PTFE tape or pipe dope sealing the joint. They are removable and re-makeable, which suits small-bore lines where occasional disassembly matters — instrumentation tap-offs, air-line filters, hydraulic test points, low-pressure water and steam-condensate piping. Sizes run 1/4" (8NB) through 3" (80NB).
Socket-weld fittings (3000 LBS class) connect via a recessed socket into which the pipe is inserted and fillet-welded. The 3000 LBS rating reflects heavier wall thickness for higher working pressure. Socket-weld is permanent, leak-free, and preferred for compressed-air mains, hydraulic lines, steam-condensate and small-bore process piping where occasional disassembly is unnecessary. Sizes run 8NB through 50NB with select items to 65NB.
1000 LBS and 3000 LBS are pressure-class designators (analogous to ASME B16.11 class ratings) that refer to the manufacturer's hydro-test pressure, not a hard maximum working pressure. Actual operating limits depend on pipe wall thickness, temperature, and fluid service — the class number is a strength indicator and a procurement reference.
Forged vs cast — forged steel fittings have continuous grain flow and no porosity, making them significantly stronger than cast fittings of equivalent size. For pressurised service, forging is the industry standard; cast is reserved for low-pressure water lines only.
BSP vs NPT — Sant fittings are produced as standard with BSP (British Standard Pipe) parallel threads to IS-1239 (Part-II). NPT (ANSI/ASME B1.20.1) and BSPT (BSP taper) variants are available on indent at 25% extra over the rate list — useful when matching imported equipment with NPT taps.
Typical applications: hydraulic test rigs, instrument impulse lines, compressed-air mains, steam-condensate trap stations, small-bore process and chilled-water headers, fire-protection ancillaries.
How VSC Works
Send your requirement
WhatsApp or call us with fittings, sizes, quantities and any project notes.
Itemised quote in 3–4 hours
Structured quote with rates, GST, freight and delivery timeline.
Dispatch from Delhi warehouse
Material dispatched against Proforma Invoice from our Hauz Qazi warehouse, with original Test Certificate.
Explore more
Sant MS Forged Pipe Fittings — Brand Page
Technical depth on the full Sant forged range — IS standards, material specs, applications, drop-forging process and dimensional data.
View brand page →Sant DI Pipe Fittings — Price List
UL/FM approved ductile iron pipe fittings price list — alternative Sant range for fire-protection and water supply mains.
View DI fittings price list →Request a Detailed Quote / Send Your BOQ
Have a multi-line BOQ? Paste it below — full landed-price quote on WhatsApp in 3–4 hours.
Frequently Asked Questions
What is the latest Sant MS forged fittings price list date?
The current Sant Steel Forgings price list, effective 01 April 2026, is published on this page. Rates are quoted per piece, ex-godown Delhi, and exclude GST (18% extra) and freight or cartage at actual. We update this page within 48 hours of receiving a new manufacturer list, and an older list is retained internally for any active contract comparisons — WhatsApp +91-9999889008 with the date you need.
What discount do you give on Sant forged fittings?
Our standard discount on Sant MS forged fittings is 60% off the list rates shown above, subject to requirement. GST at 18% is extra on the net rate, and freight or cartage is charged at actual ex-godown Delhi. The simplest landed-cost calculation: list × 0.40 + GST + freight. Larger BOQs may attract additional benefit on confirmation via WhatsApp.
What's the difference between 1000 LBS threaded and 3000 LBS socket-weld Sant fittings?
1000 LBS threaded fittings use BSP parallel threads to IS-1239 (Part-II) and are removable — ideal for serviceable low- and medium-pressure connections in air, water, instrument and condensate lines. 3000 LBS socket-weld fittings are inserted into the pipe and fillet-welded to IS:4712:1984, giving a heavier-wall leak-free permanent joint suited to compressed-air mains, hydraulic and small-bore process service. The class number reflects manufacturer hydro-test pressure, not a hard working-pressure limit.
Are Sant forged fittings IS certified?
Yes. Sant Steel Forgings threaded fittings are manufactured to IS-1239 (Part-II), and socket-weld fittings to IS:4712:1984. They are drop-forged from carbon steel, hydro-tested at the relevant class pressure (1000 or 3000 LBS), and dispatched with proper manufacturer Test Certificates (TC) for every consignment from our Delhi warehouse.
Do you charge extra for NPT / BSPT threading?
Yes. Sant supplies BSP parallel threading as standard per IS-1239 (Part-II). NPT (ANSI/ASME B1.20.1) and BSPT (BSP taper) thread variants are available on indent against a 25% surcharge over the published rate list, per manufacturer terms. Lead times for thread variants typically run an additional 2 to 4 weeks beyond stock dispatch.
Are the prices GST inclusive?
No — all rates published are ex-godown Delhi and exclude GST. GST is charged at 18% on the net rate (after the 60% discount), and freight or cartage is extra at actual. WhatsApp +91-9999889008 with your itemised BOQ and pin code for a fully landed delivered-price quote in 3 to 4 hours during business hours.
What sizes are available?
Sant MS forged threaded fittings are available from 1/4 inch (8NB) up to 3 inch (80NB). Socket-weld fittings cover 8NB to 50NB and select items to 65NB. Not every fitting is manufactured in every size — blank cells marked with an em-dash in the price table indicate sizes that are not currently produced. WhatsApp us to confirm any odd-size requirement.
Can I get an older Sant price list for contract comparison?
Yes. We maintain an archive of Sant Steel Forgings price lists going back several revisions. If you need to verify rates against an older contract or a previously raised purchase order, WhatsApp the specific date or revision you need at +91-9999889008 and we'll send the relevant scanned price list as a PDF.
