DRP industrial valves are made by the DRP Group of Jalandhar, a valve manufacturer since 1976, and supplied with the Veeson co-brand. Butterfly valves PN-16, PN-20 and PN-25 with lever, gear, pneumatic or electric actuation, sluice valves to IS:14846, NRV to IS:5312, check valves, wheel valves, air valves and strainers, 15 mm to 400 mm.
Or email sales@vijaysalescorp.com for tender BOQs and detailed enquiries.

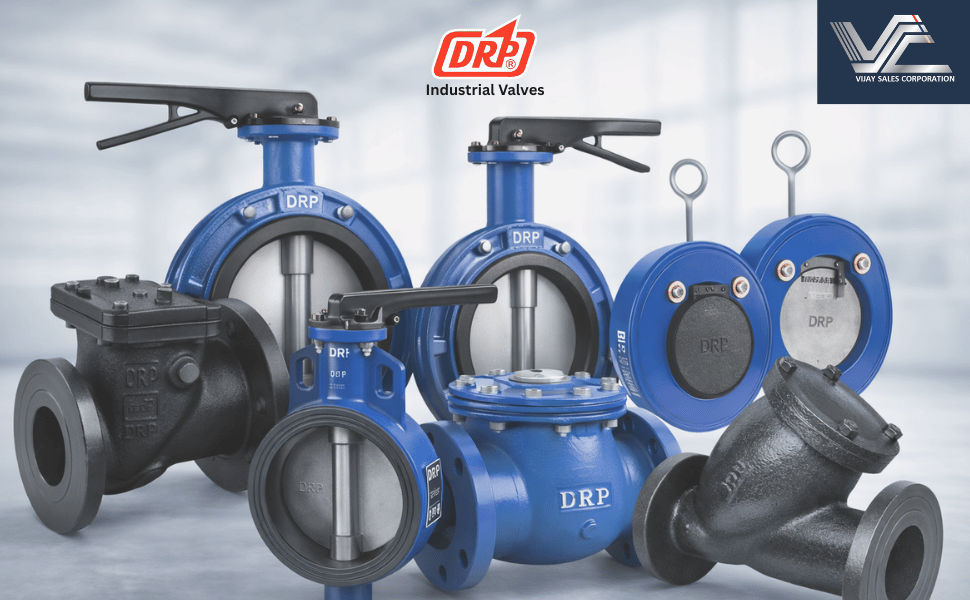

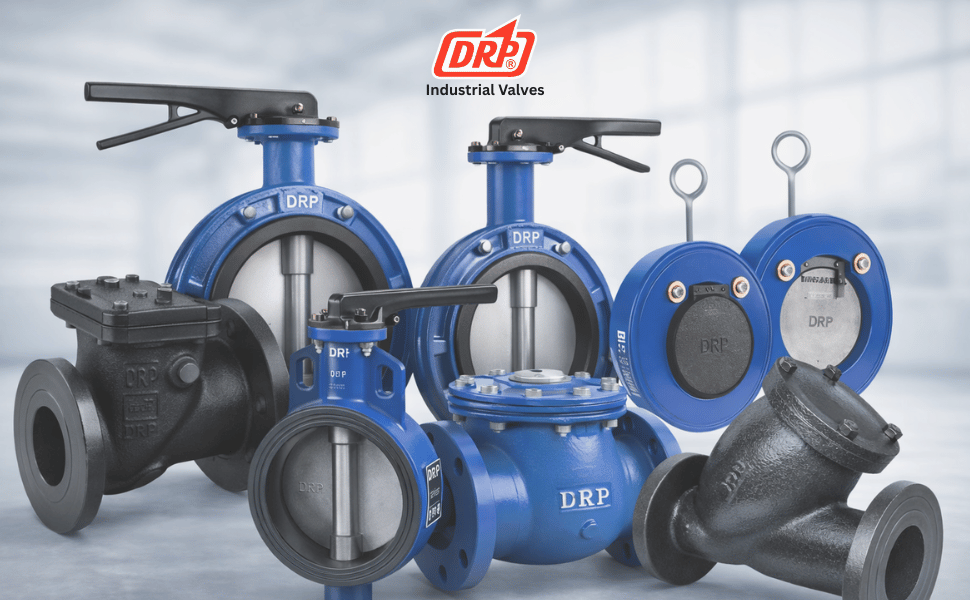

About the range
DRP industrial valves are made by the DRP Group of Jalandhar, a valve manufacturer since 1976, and are supplied in India with the Veeson co-brand. The group runs DRP Metal Works (1976, bronze and stainless valves), Veeson Valves Pvt. Ltd. (1992, cast iron industrial valves) and DRP Malleables Pvt. Ltd. (1996, M.I.G.I. and C.S. pipe fittings) at DRP Lane, Bulandpur Road, Jalandhar.
The DRP range covers cast iron butterfly valves in PN-16, PN-20 and PN-25 with lever, gear, pneumatic or electric actuation, sluice and gate valves to IS:14846, non-return reflux valves to IS:5312, wafer swing and dual plate check valves, wheel valves, air valves and strainers. Vijay Sales Corporation is an authorised distributor of Veeson and DRP valves, with Delhi stock and prices w.e.f. 01 April 2026 (List No. PL-129).
Butterfly valves PN-16, PN-20 & PN-25
A DRP butterfly valve is a wafer-pattern, quarter-turn isolation and regulation valve to IS:13095-1991, ISI marked, fitted between BS:10 Table D/E or ANSI B16.1 flanges.

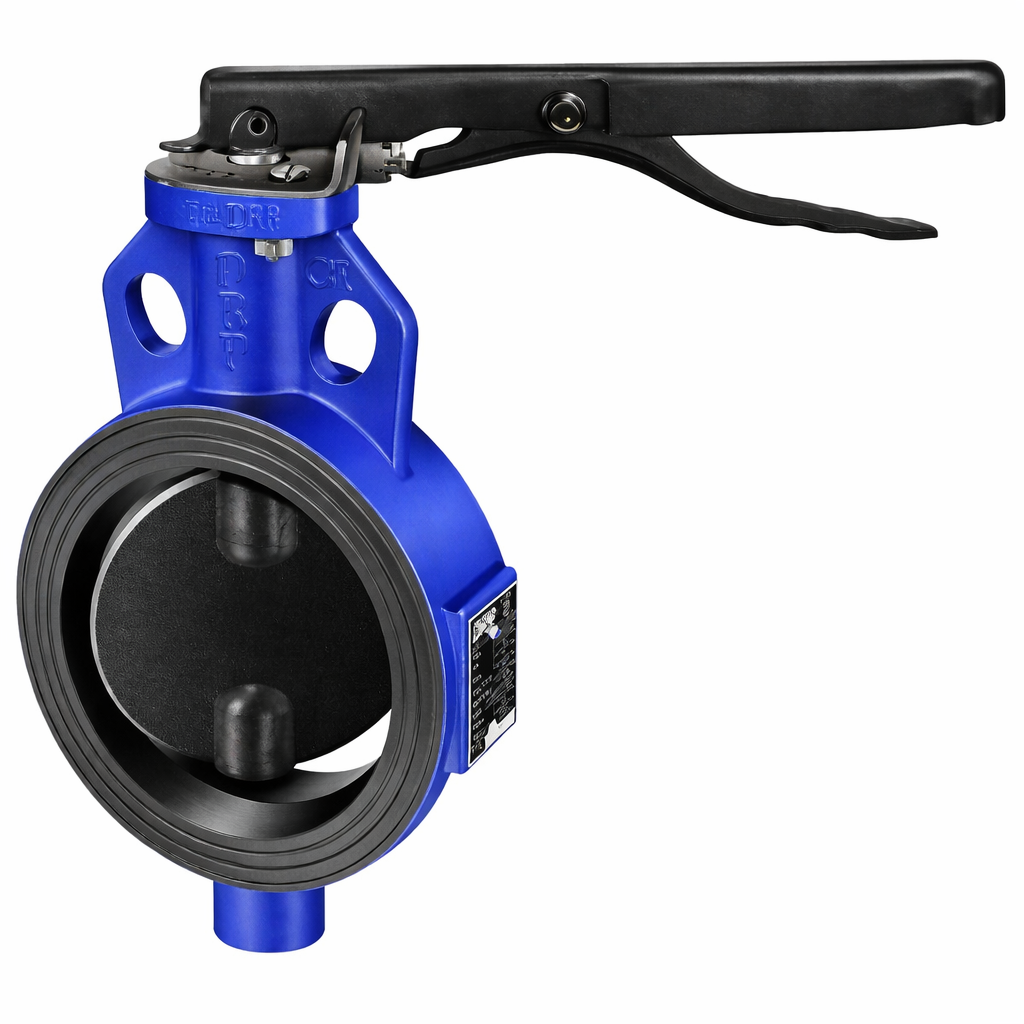

Butterfly Valve — Lever Operated, S.G. Iron Disc
DRP/Veeson brand · Art. DBF · Sizes 40–300 mm
PN-16 · IS:13095 · ISI marked · Wafer

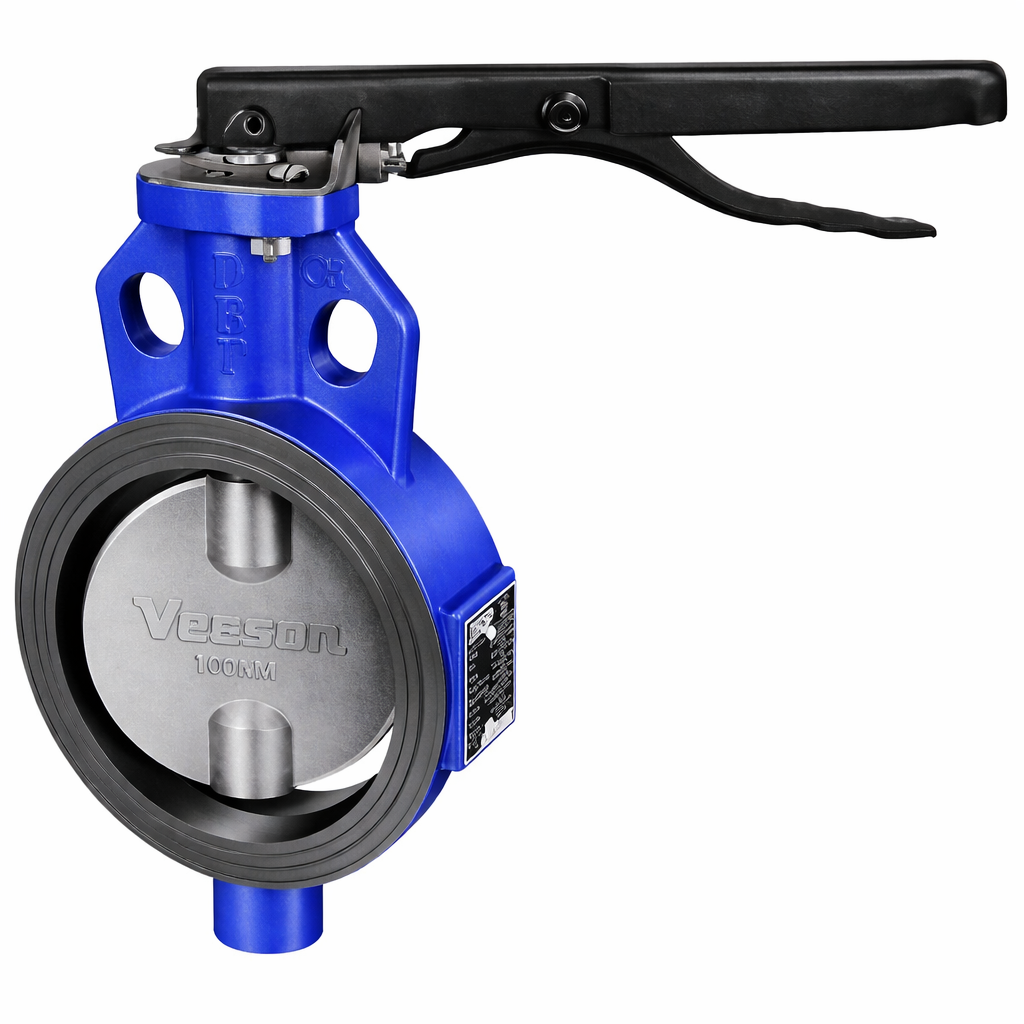

Butterfly Valve — Lever Operated, S.S. Disc (CF-8)
DRP/Veeson brand · Art. DBFS · Sizes 40–300 mm
PN-16 · IS:13095 · ISI marked · Wafer

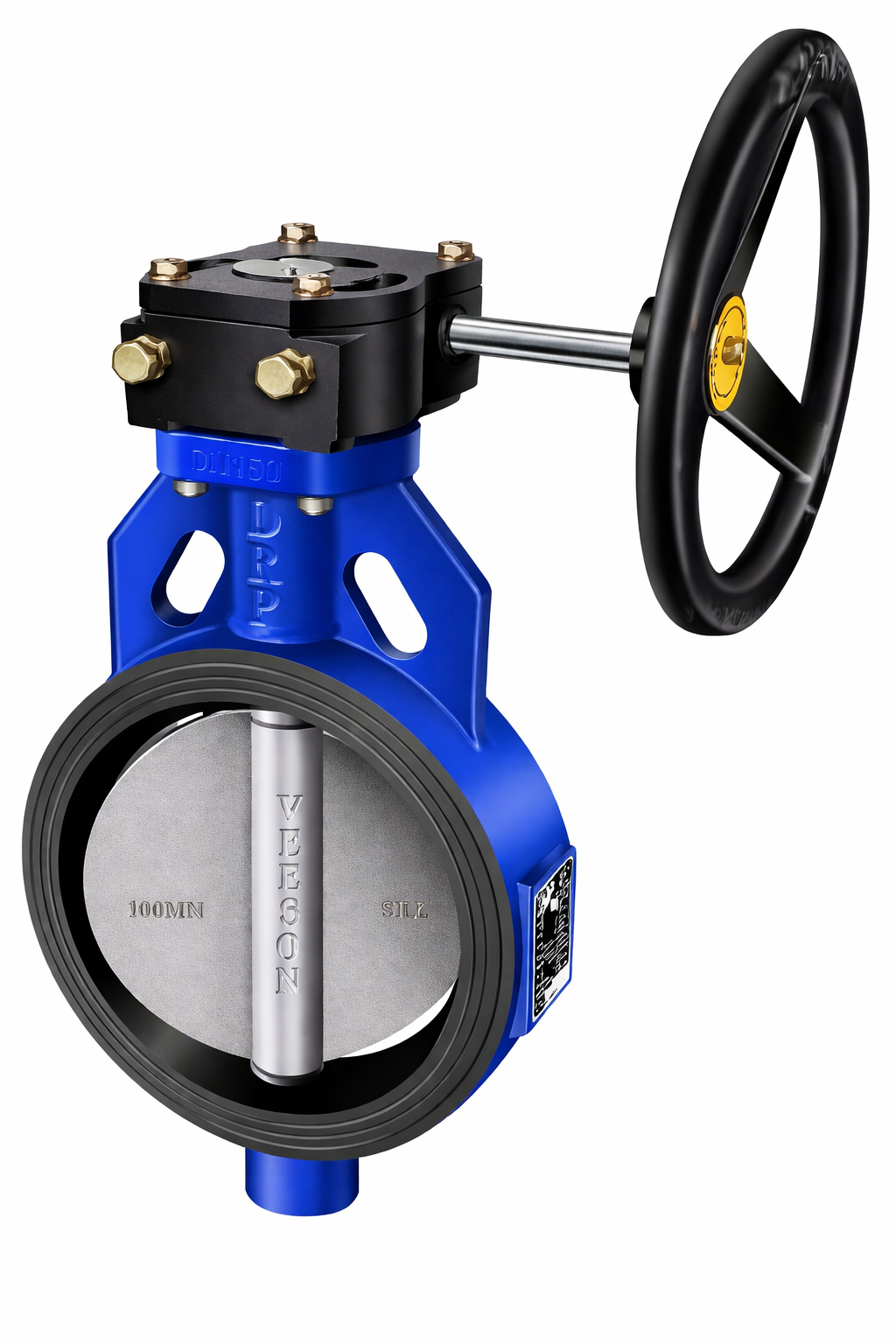

Butterfly Valve — Gear Operated
DRP/Veeson brand · Art. DBFG · Sizes 40–400 mm
PN-16 · IS:13095 · ISI marked · Wafer
Selection & engineering notes
| Standard / marking | IS:13095-1991, ISI marked |
| Body | Cast iron / S.G. iron, wafer pattern, fixed bonded liner (Nitrile or EPDM) |
| Disc / trim | S.G. iron or investment-cast CF-8 (SS-304); AISI-410 spindle, AISI-304 pins, PTFE gland packing |
| Sizes / pressure | 40–400 mm · PN-16, PN-20, PN-25 |
| Testing | Body 200 lbs hyd. · seat 150 lbs hyd. · works test certificate on request |
| Temperature | 80°C max (Nitrile liner) · 130°C max (EPDM liner) |
| Flanging | Suits BS:10 Table D/E and ANSI B16.1 drilling |
View sizes & prices in the DRP Price List →
| Art. No. | Disc | Operation | Rating | Sizes |
|---|---|---|---|---|
| DBF | S.G. iron | Lever | PN-16 | 40–300 mm |
| DBFS | CF-8 (SS-304) | Lever | PN-16 | 40–300 mm |
| DBFG | S.G. iron | Gear | PN-16 | 40–400 mm |
| DBFSG | CF-8 (SS-304) | Gear | PN-16 | 40–300 mm |
| DBD2 | S.G. iron | Lever | PN-20 | 40–300 mm |
| DBS2 | CF-8 (SS-304) | Lever | PN-20 | 40–300 mm |
| DBD2G | S.G. iron | Gear | PN-20 | 40–300 mm |
| DBS2G | CF-8 (SS-304) | Gear | PN-20 | 40–300 mm |
| DB25 | S.G. iron | Lever | PN-25 | 40–300 mm |
| DB25G | S.G. iron | Gear | PN-25 | 40–300 mm |
Body is cast iron / SG iron with a fixed (bonded) liner in Nitrile (80°C max) or EPDM (130°C max); disc is S.G. iron or investment-cast CF-8 (SS-304 equivalent); spindle AISI-410 stainless with AISI-304 pins and PTFE gland packing. Every valve is hydro-tested at 200 lbs body / 150 lbs seat, works test certificate on request.
Choosing within the range: the S.G. iron disc series (DBF, DBD2, DB25) is the workhorse for clear water, HVAC and fire duty; specify the CF-8 disc series (DBFS, DBS2) for raw water, high-TDS bore water, STP/ETP service or any line where disc corrosion is the failure mode. Move from PN-16 to PN-20 (DBD2/DBS2) or PN-25 (DB25) as shut-off pressure rises — pump headers, high-rise risers and hydrant mains. Lever operation is standard to 150 mm; specify gear operators (DBFG, DBFSG, DBD2G, DBS2G, DB25G) at 200 mm and above, and on any valve used for throttling.
Actuated butterfly valves — pneumatic & electric
Actuated DRP butterfly valves pair the same IS:13095 wafer body with pneumatic or electric actuators for remote and automated isolation.
CI Butterfly Valve PN-10, S.S. Disc (CF-8), Pneumatic Actuated
DRP/Veeson brand · Art. DBSP · Sizes 40–300 mm
PN-10 · IS:13095 · ISI marked · Wafer
CI Butterfly Valve PN-10, S.S. Disc (CF-8), Electrical Actuated
DRP/Veeson brand · Art. DBSE · Sizes 40–300 mm
PN-10 · IS:13095 · ISI marked · Wafer
Selection & engineering notes
| Standard / marking | IS:13095, ISI marked, PN-10 body |
| Disc / trim | Investment-cast CF-8 (SS-304) disc, AISI-410 spindle |
| Actuation | Pneumatic rack-and-pinion (DBSP) or electric actuator (DBSE); solenoid & limit-switch options |
| Sizes | 40–300 mm |
| Testing | Body 200 lbs hyd. · seat 150 lbs hyd. · actuator sizing sheets with supply |
The pneumatic series (Art. DBSP, ₹7,391–₹58,899) uses a rack-and-pinion actuator for fast on/off duty on compressed-air-rich plants — ETPs, batching plants, OEM skids; single and double acting options, solenoid and limit-switch accessories on request. The electrical series (Art. DBSE, ₹22,241–₹1,23,971) suits pump houses and remote water infrastructure where air is unavailable — specify supply voltage and duty cycle at enquiry. Both carry CF-8 stainless discs on PN-10 bodies, 40–300 mm; actuator sizing sheets and works test certificates are furnished with supply.
Sluice & gate valves
A sluice valve (gate valve) is a full-bore linear isolation valve; DRP sluice valves are cast iron to IS:14846, ISI marked, PN-16, flanged.
DI Resilient Seated Gate Valve PN-16, Non-Rising S.S. Spindle
DRP/Veeson brand · Art. DSVS · Sizes 50–300 mm
PN-16 · Flanged

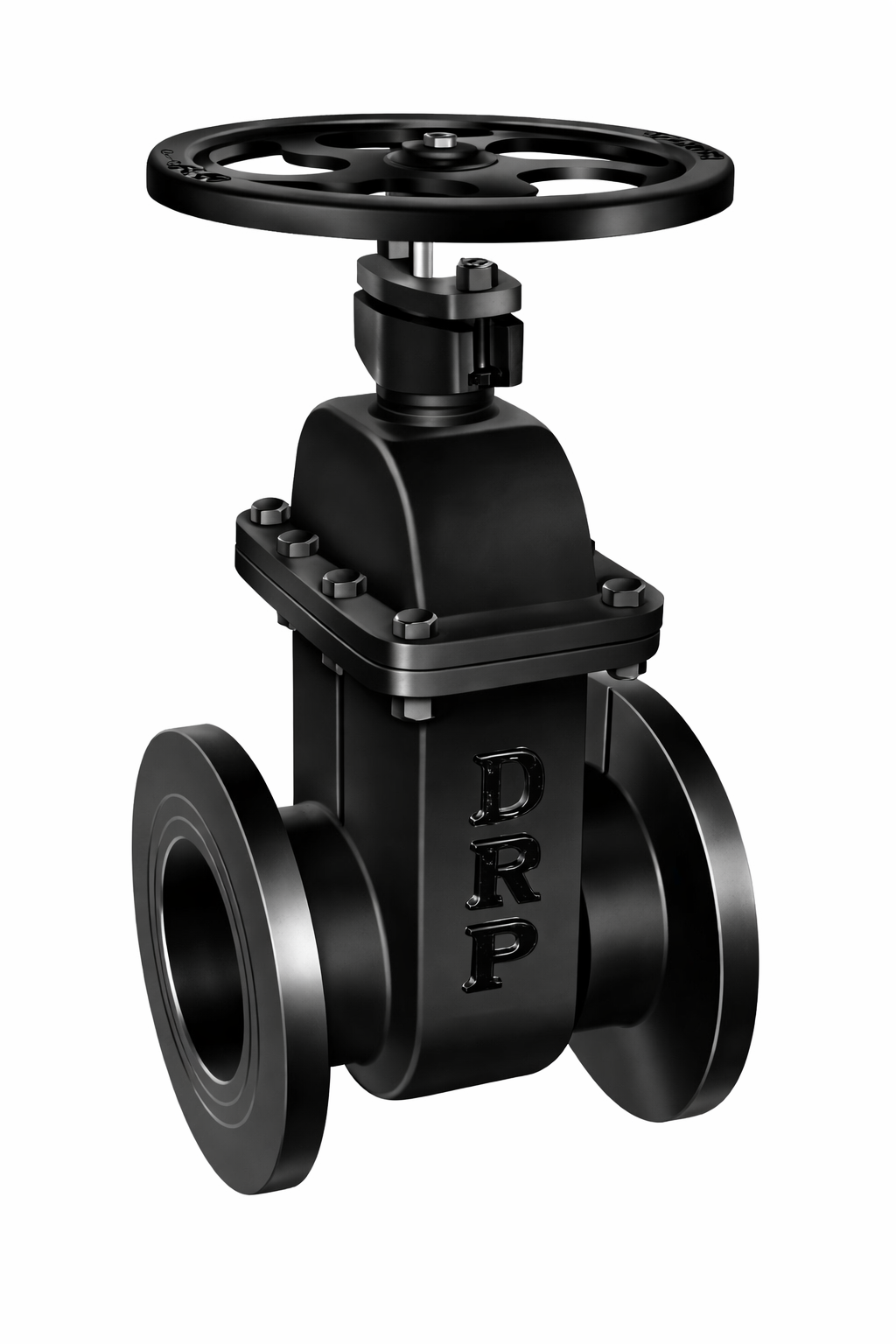

CI Sluice Valve PN-16, Non-Rising S.S. Spindle
DRP/Veeson brand · Art. DSV · Sizes 50–300 mm
PN-16 · IS:14846 · ISI marked · Flanged
CI Sluice Valve PN-16, Non-Rising Forged Brass Spindle
DRP/Veeson brand · Art. DSB · Sizes 50–300 mm
PN-16 · IS:14846 · ISI marked · Flanged

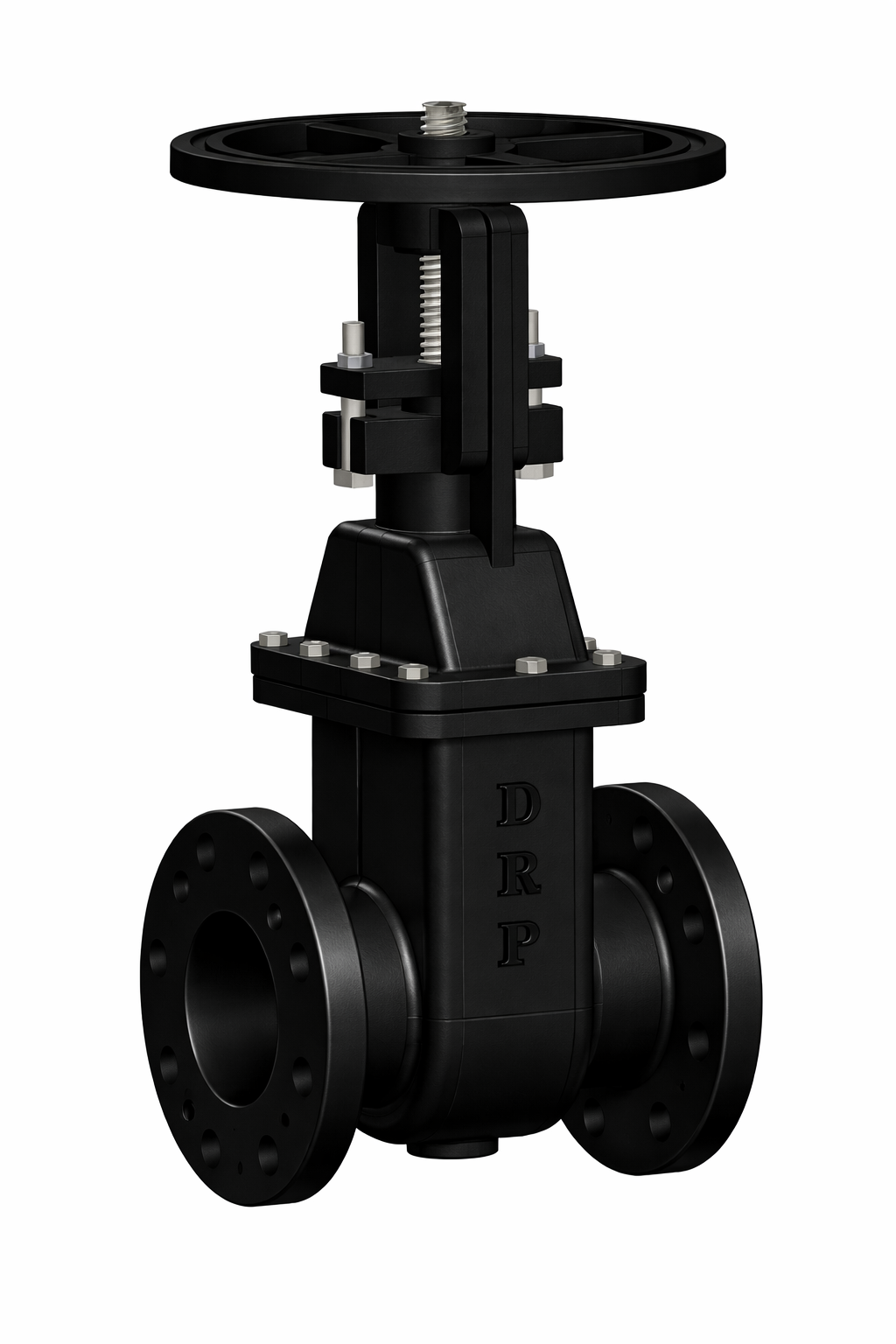

CI Sluice Valve PN-16, Rising S.S. Spindle
DRP/Veeson brand · Art. DSVR · Sizes 50–300 mm
PN-16 · IS:14846 · ISI marked · Flanged
Selection & engineering notes
| Standard / marking | IS:14846, ISI marked, PN-16, flanged |
| Body | Cast iron IS:210 Gr.FG200, bolted bonnet (DSVS: ductile iron, rubber-encapsulated wedge) |
| Spindle | Non-rising S.S. (DSV/DSVS), non-rising forged brass (DSB) or rising S.S. (DSVR) |
| Sizes | 50–300 mm |
| Duty | Water mains, fire headers, chambers & buried service; DSVS for drinking-water distribution |
Bodies and wedges are cast iron IS:210 Gr.FG200 with stainless or forged-brass spindles and bolted bonnets. Non-rising spindle patterns (DSV with S.S. spindle, DSB with forged brass) save headroom in chambers and pits — brass spindles are preferred where dezincification-free operation in buried service matters. The rising spindle DSVR gives visual open/closed indication for pump houses and fire headers. The ductile iron resilient-seated gate valve DSVS carries a rubber-encapsulated wedge for drop-tight shut-off in drinking water distribution.
Gate vs sluice: the terms describe the same valve — municipal specifications say sluice valve, mechanical specifications say gate valve. All four patterns are stocked 50–300 mm ex-Delhi.

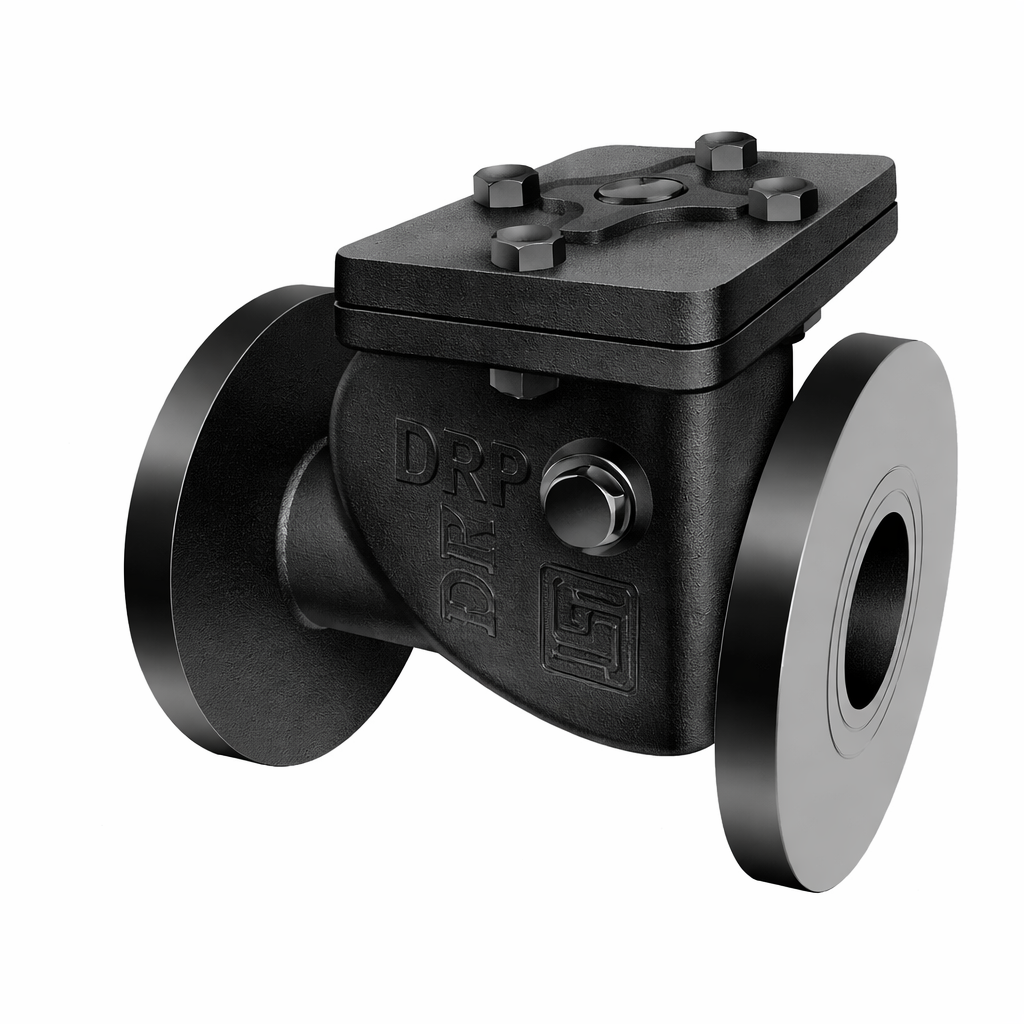

NRV / reflux valves
A non-return (reflux) valve permits flow in one direction only; the DRP NRV is a cast iron swing-type reflux valve to IS:5312, ISI marked, PN-16.
Selection & engineering notes
| Standard / marking | IS:5312, ISI marked, PN-16 |
| Body | Cast iron IS:210, bolted cover, flanged to IS:1538 |
| Door / seat | Rubber-faced swing door — quiet re-seating, tolerant of suspended solids |
| Sizes | 50–300 mm |
| Duty | Centrifugal pump delivery, borewell headers, rising mains |
Art. DRV carries a rubber-faced door on a cast iron IS:210 body with bolted cover, flanged to IS:1538 — the standard protection for centrifugal pump delivery lines, borewell headers and rising mains, 50–300 mm (₹3,889–₹45,914). The rubber seat gives quiet re-seating and tolerance to suspended solids. Where water hammer or vertical installation governs, consider the spring-assisted dual plate check series instead; where headroom is tight, the wafer swing check saves seven-eighths of the weight.

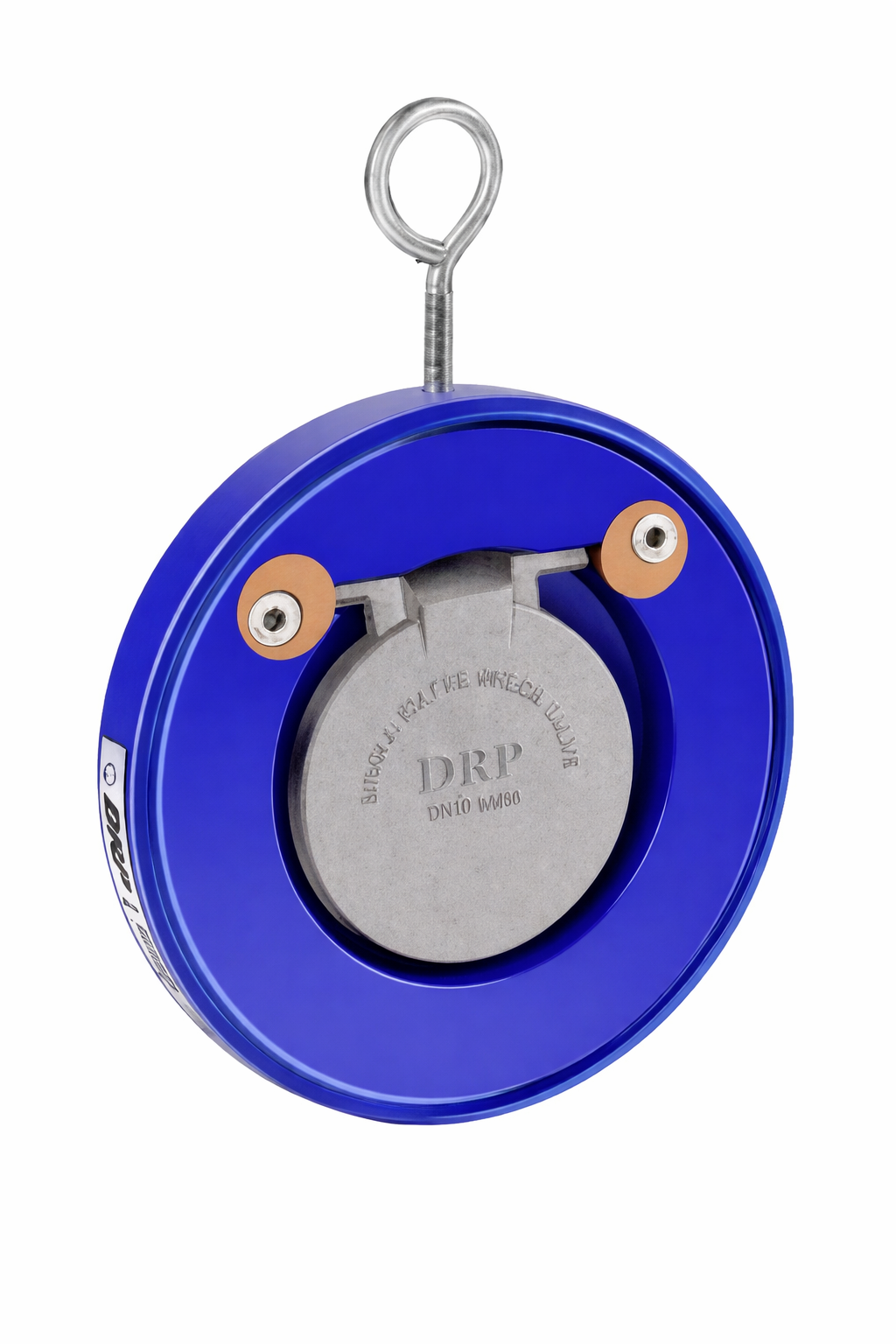

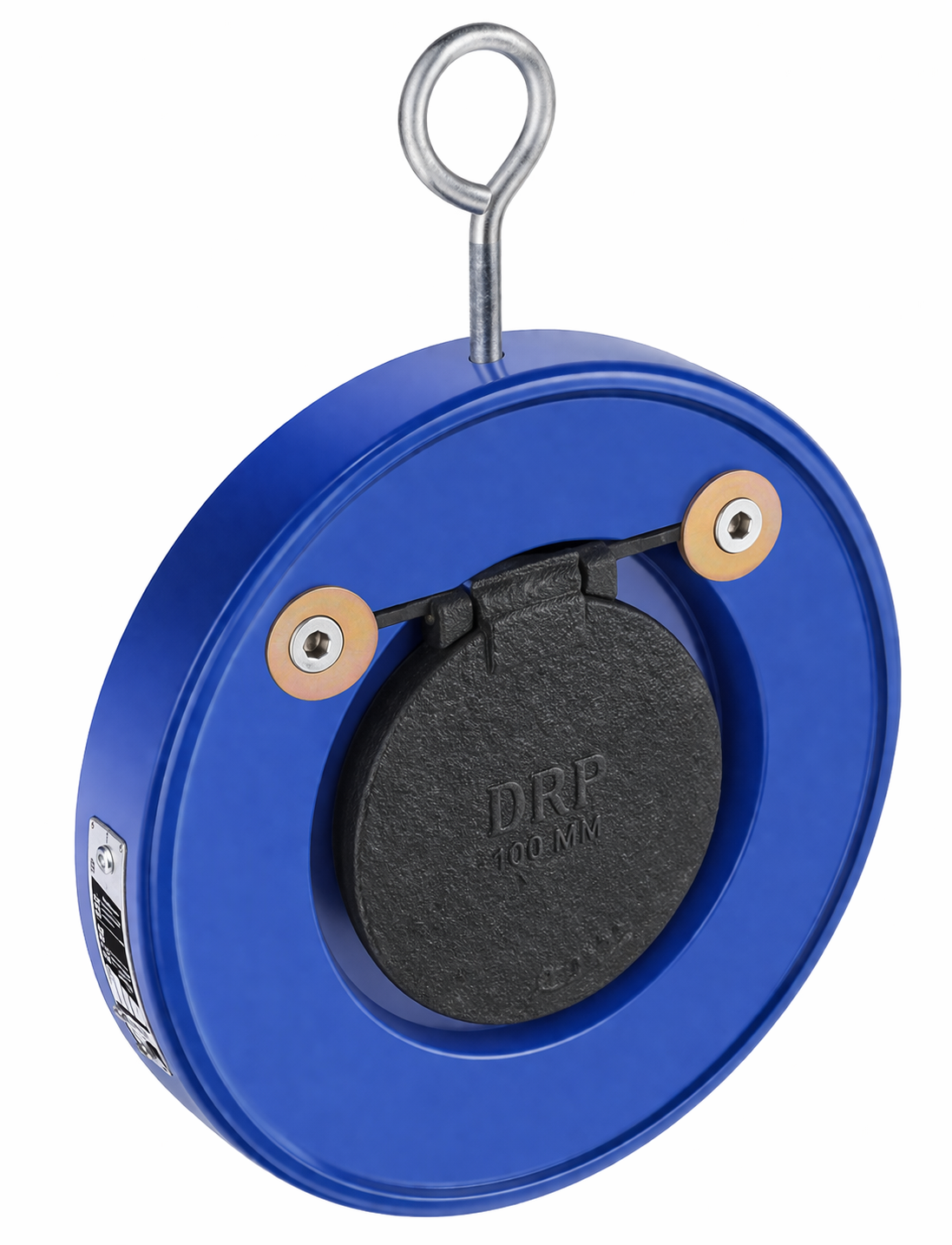

Wafer swing check valves
DRP wafer type swing check valves are compact non-slam NRVs designed to API 594 and tested to API 598, fitting between standard flanges without pipe supports.
Selection & engineering notes
| Design / testing | API 594 design · API 598 inspection & testing |
| Body | Ductile iron wafer body — approx. 1/8th the weight of a conventional swing check |
| Flap / seal | M.S. flap (DWM) or CF-8 stainless flap (DWCV); Nitrile / Neoprene / EPDM seal, S.S. hinge pin |
| Sizes / rating | 40–300 mm · ANSI 125/150 class |
| Installation | Horizontal or vertical, between standard flanges, no pipe supports |
At roughly one-eighth the weight of a conventional swing check, the ductile iron wafer body carries a single plate on a stainless hinge pin with Nitrile/Neoprene/EPDM sealing, installable horizontally or vertically. The M.S. flap series (Art. DWM, ₹898–₹10,870, 40–300 mm) covers clear water and HVAC duty; specify the CF-8 stainless flap (Art. DWCV, 40–200 mm) for corrosive or high-TDS service. Silent closing all but eliminates water hammer and slamming, and the short face-to-face drops straight between existing gaskets during retrofits.

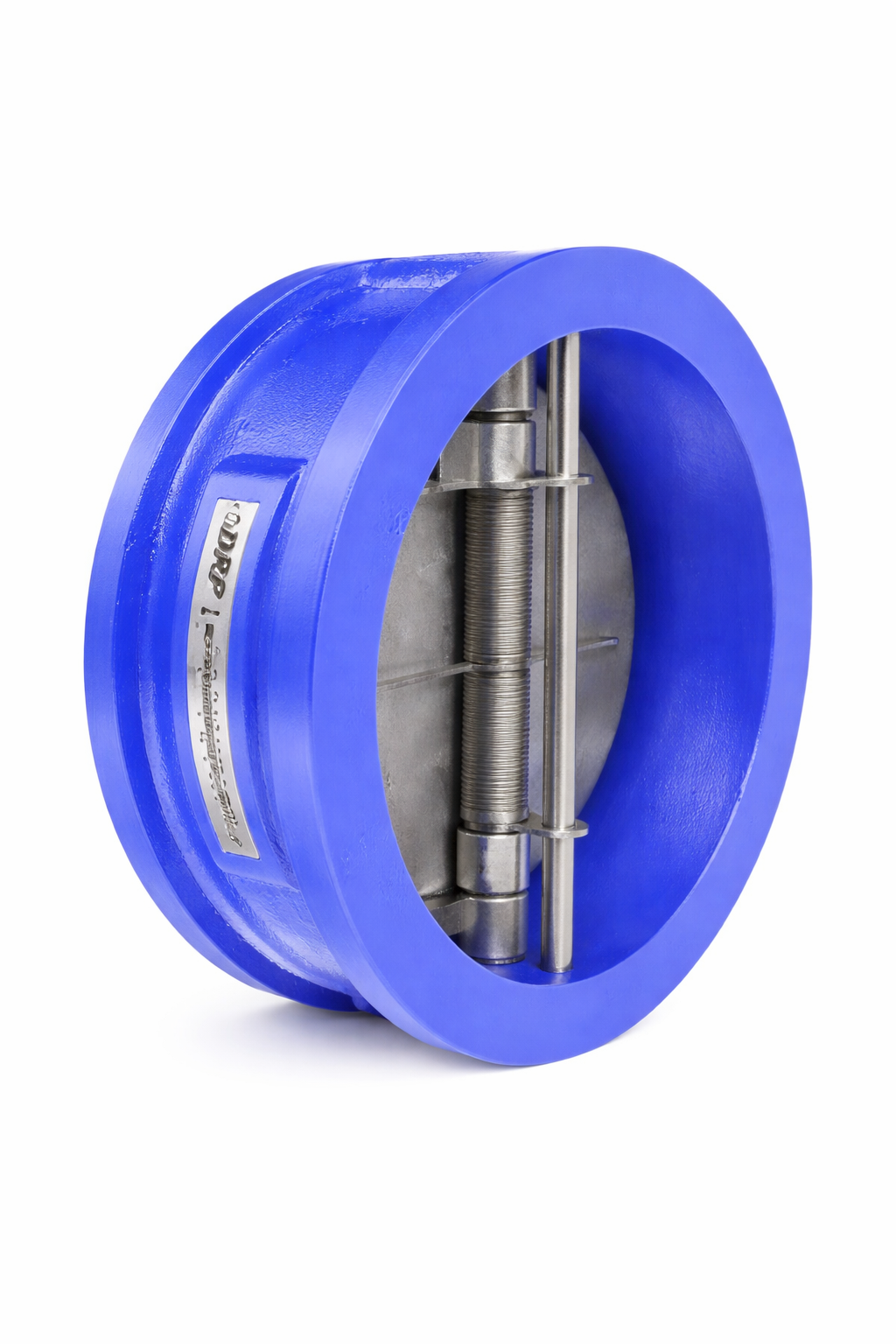

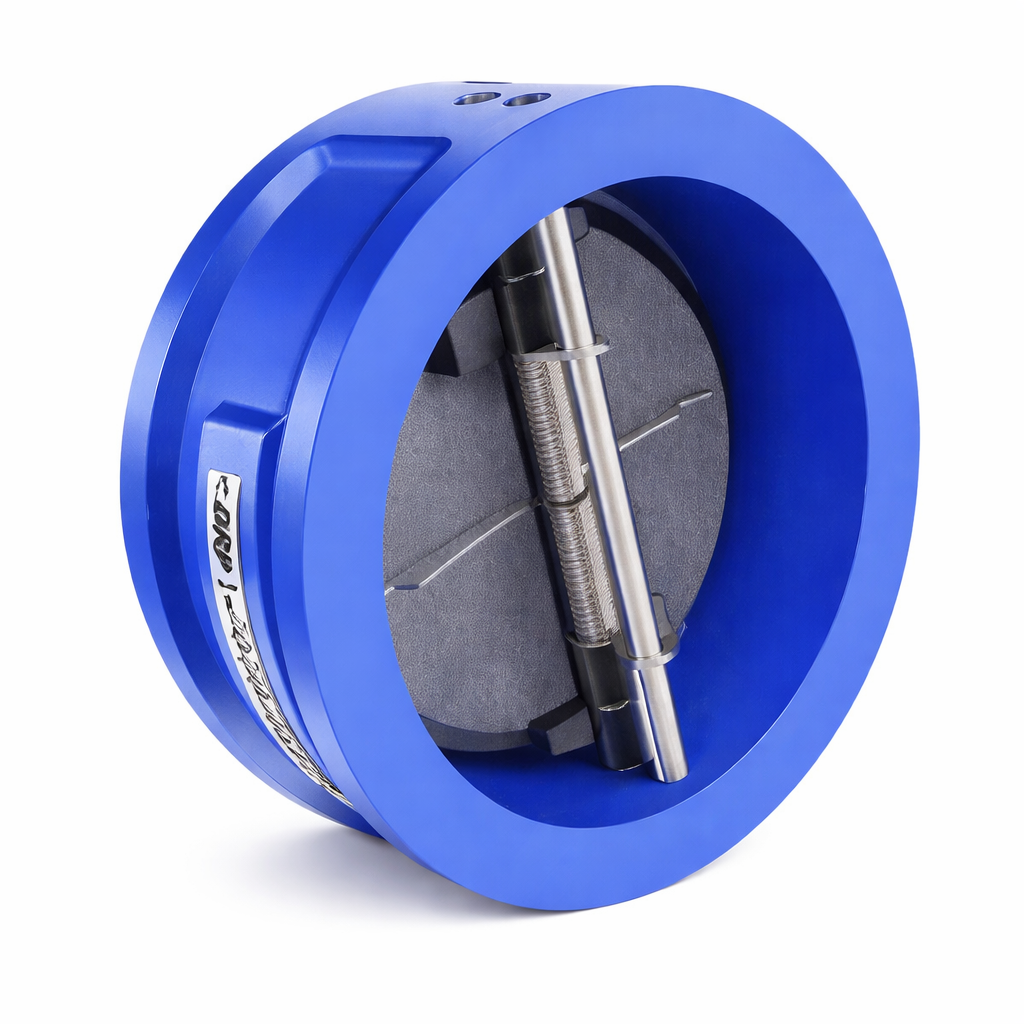

Dual plate check valves
A dual plate check valve is a spring-loaded, wafer-pattern NRV whose two half-discs close before reverse flow establishes — the non-slam choice for pump discharge.
Selection & engineering notes
| Pattern | Spring-loaded dual plate, wafer type · PN-16 / PN-20 / PN-25 |
| Body / doors | Cast iron body; D.I. doors (DDD) or CF-8 stainless doors (DDPC/DD20/DD25) |
| Trim / seat | S.S. springs, hinge & stop pins · Buna-N/EPDM resilient seat |
| Sizes | 50–300 mm |
| Testing | Body 200 lbs hyd. · seat 150 lbs hyd. · 80°C Nitrile / 130°C EPDM |
View sizes & prices in the DRP Price List →
| Art. No. | Doors | Rating | Sizes |
|---|---|---|---|
| DDD | D.I. | PN-16 | 50–300 mm |
| DDPC | S.S. (CF-8) | PN-16 | 50–300 mm |
| DD20 | S.S. (CF-8) | PN-20 | 50–300 mm |
| DD25 | S.S. (CF-8) | PN-25 | 50–300 mm |
Cast iron bodies carry spring-loaded plates on stainless hinge and stop pins with Buna-N/EPDM resilient seating; hydro-tested 200 lbs body / 150 lbs seat, 80°C (Nitrile) or 130°C (EPDM). Choose D.I. doors (Art. DDD) for general water duty and S.S. CF-8 doors (Art. DDPC) for aggressive media; step up to PN-20 (DD20) or PN-25 (DD25) on high-head pump headers and hydrant mains. Sizes 50–300 mm, ₹1,660–₹38,796 by class — the compact answer to water hammer on booster pumps, fire risers and HVAC condenser lines.
Wheel valves
DRP wheel valves are compact cast iron globe-pattern isolation valves with brass spindles and teflon seats for low-cost shut-off on small bores.
CI Wheel Valve, Screwed Ends (BSP), Brass Spindle, Teflon Seated
DRP/Veeson brand · Art. DWVS · Sizes 15–32 mm
Screwed (BSP)
CI Wheel Valve, Flanged Ends, Brass Spindle, Teflon Seated
DRP/Veeson brand · Art. DWVF · Sizes 15–50 mm
Flanged
CI Wheel Valve, One Side Flanged, Brass Spindle, Teflon Seated
DRP/Veeson brand · Art. DWSV · Sizes 15–50 mm
One side flanged
Selection & engineering notes
| Pattern | Cast iron globe-type wheel valve |
| Trim / seat | Brass spindle · teflon seat, drip-tight closure |
| Ends | Screwed BSP (DWVS), flanged (DWVF) or one side flanged (DWSV) |
| Sizes | 15–50 mm |
Available screwed BSP (Art. DWVS, 15–32 mm, from ₹500), fully flanged (Art. DWVF, 15–50 mm) and one-side-flanged (Art. DWSV) for tank and header connections. Teflon seating gives drip-tight closure on water and mildly aggressive fluids; the brass spindle resists seizure in infrequently operated positions — tanker filling points, float-valve isolation and utility take-offs.
Air valves
Air valves vent accumulated air from pipelines and admit air on draining — essential protection on rising mains, pump delivery lines and pipeline summits.
Selection & engineering notes
| Patterns | Single acting (DSAV) · double action/double orifice (DDAV) · kinetic (DKAV) |
| Body | Cast iron, flanged |
| Sizes | DSAV 15–65 mm · DDAV 40–200 mm · DKAV 50–150 mm |
| Duty | Air release & admission on rising mains, pump delivery lines, pipeline summits |
The single acting valve (Art. DSAV, 15–65 mm) releases small volumes of pressurised air continuously at local high points. The double action / double orifice valve (Art. DDAV, 40–200 mm) additionally admits and expels large air volumes during filling and draining — the standard fitment on transmission mains. The kinetic air valve (Art. DKAV, 50–150 mm) is shaped to discharge air at high velocity without premature closure, specified on pumping mains subject to rapid filling. Cast iron bodies, flanged, works test certificates on request.

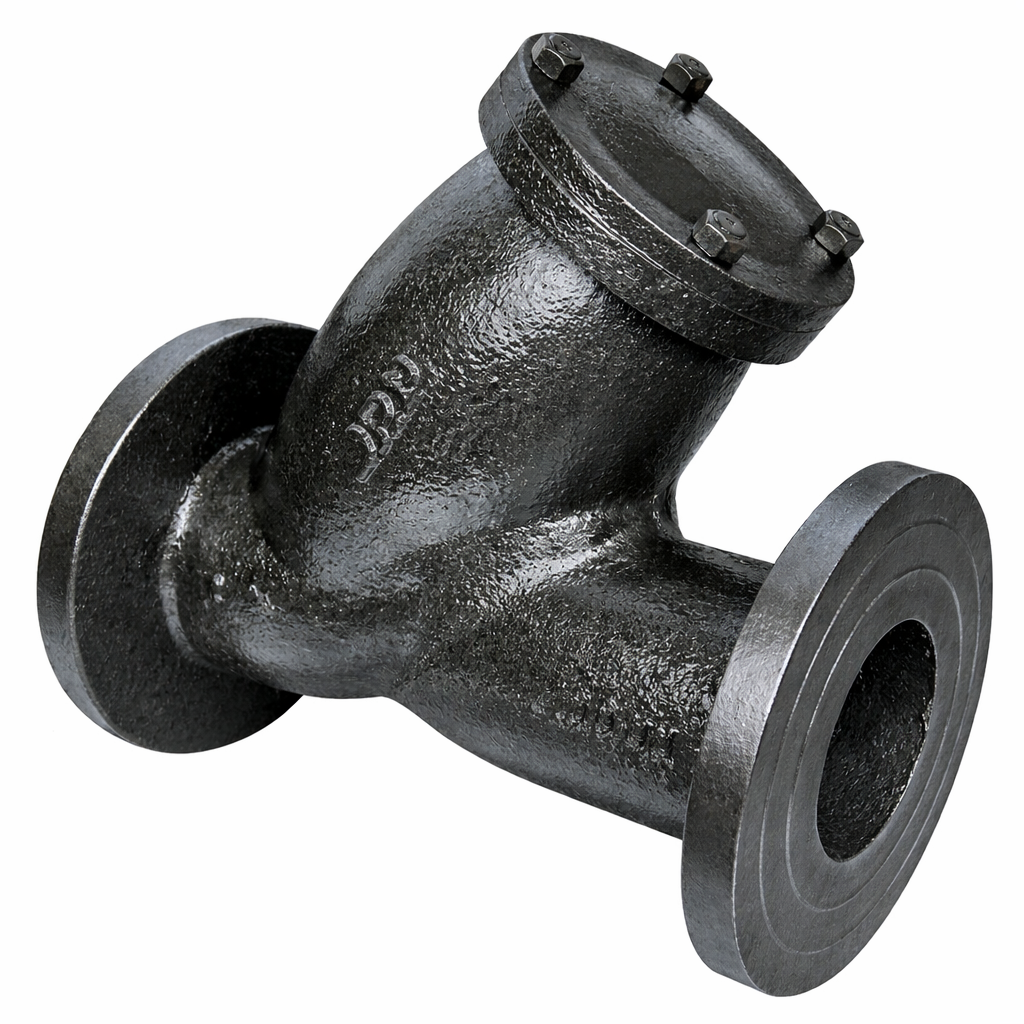

Y & T strainers
A strainer protects pumps, meters, control valves and traps by capturing pipeline debris in a stainless screen ahead of the equipment.
Selection & engineering notes
| Body | Cast iron IS:210 Gr.FG200 · flanged to BS:10 D/E/F, PN-16 drilling |
| Screen | S.S.-304 / IS:410 perforated sheet, replaceable; finer mesh on request |
| Gasket / fasteners | CAF gasket · M.S. fasteners |
| Sizes | Y-type (DSTF) 50–300 mm · T-type (DTS) 40–200 mm |
| Testing / duty | Body 300 lbs hyd. · 150 lbs steam working · 200°C max |
Bodies are cast iron IS:210 Gr.FG200 with SS-304 / IS:410 perforated screens, CAF gaskets and mild steel fasteners; body hydro-test 300 lbs, suitable to 150 lbs steam working pressure and 200°C. The Y-type Table-E flanged strainer (Art. DSTF, 50–300 mm, ₹2,229–₹40,228) is the general-purpose pattern for water, air and steam lines to BS:10 D/E/F and PN-16 drilling. The T-type flanged strainer (Art. DTS, 40–200 mm) offers a straight-through body where the Y-leg fouls adjacent pipework and allows in-line screen withdrawal. Screens are replaceable; finer meshes on request.
Veeson & DRP — one manufacturer, two brands
Veeson and DRP are two brands of the same manufacturer, the DRP Group of DRP Lane, Bulandpur Road, Jalandhar-144 0012, Punjab. DRP Metal Works began in 1976 with bronze and stainless steel valves, Veeson Valves Pvt. Ltd. followed in 1992 with cast iron industrial valves, and DRP Malleables Pvt. Ltd. was added in 1996 for M.I.G.I. and C.S. pipe fittings. Veeson-branded valves are the cast iron industrial range; the DRP/Veeson co-branded range covers butterfly, sluice, check, wheel and air valves. Both come from the same works, to the same IS standards, and both are stocked in Delhi by Vijay Sales Corporation.
Standards & testing
DRP cast iron butterfly valves conform to IS:13095-1991 and are ISI marked, with a fixed liner, ductile iron or CF-8 stainless disc and AISI-410 stainless stem; they are tested at 200 lbs. hyd. body and 150 lbs. hyd. seat, for 80°C max with Nitrile and 130°C max with EPDM liners. Sluice valves are ISI marked to IS:14846 and non-return reflux valves to IS:5312.
Dual plate check valves use spring-loaded half discs with stainless hinge and stop pins and a Buna-N or EPDM seal. Wafer swing check valves are designed to API 594 and tested to API-598. Works test certificates are furnished with the order when required.
| Product group | Standard / marking | Body test | Seat test | Temp. limit |
|---|---|---|---|---|
| Butterfly valves PN-16/20/25 | IS:13095-1991, ISI marked | 200 lbs hyd. | 150 lbs hyd. | 80°C Nitrile / 130°C EPDM |
| Sluice & gate valves | IS:14846, ISI marked | As per IS:14846 (PN-16) | Water service | |
| NRV / reflux valve | IS:5312, ISI marked | As per IS:5312 (PN-16) | Water service | |
| Wafer swing check | Design API 594 · testing API 598 | ANSI 125/150 class | Per seal: Nitrile/Neoprene/EPDM | |
| Dual plate check | Wafer pattern, PN-16/20/25 | 200 lbs hyd. | 150 lbs hyd. | 80°C Nitrile / 130°C EPDM |
| Y & T strainers | Body IS:210 Gr.FG200 · BS:10 D/E/F | 300 lbs hyd. | — | 150 lbs steam · 200°C |
Why buy from Vijay Sales Corporation
Authorised distributor
Veeson and DRP valves held at our Delhi warehouse, supplied ex-stock.
Trading since 1961
Nehru Place and Hauz Qazi, Delhi. Industry Outlook Top 10 Distributor 2023 & 2024.
Net rates, same day
Dealer and project discounts on the list below — WhatsApp for your rate.
Alongside DRP and Veeson, VSC stocks and prices the full valve aisle — Sant, Zoloto, L&T and Audco lines — plus NewAge fire-fighting equipment, so mixed BOQs are quoted from one warehouse in one go.
Where DRP valves are deployed
Typical duties our Delhi stock ships against, with the families specified for each.
Frequently Asked Questions
Who makes DRP valves?
DRP valves are made by the DRP Group at DRP Lane, Bulandpur Road, Jalandhar. DRP Metal Works was established in 1976, Veeson Valves Pvt. Ltd. in 1992 and DRP Malleables Pvt. Ltd. in 1996. The industrial valve range is co-branded DRP/Veeson.
What is the DRP sluice valve price?
DRP cast iron sluice valves run from ₹4,469 – ₹45,357 for the non-rising S.S. spindle type (65–300 mm) and ₹6,185 – ₹65,846 for the rising spindle type, per PL-129 w.e.f. 01 April 2026, GST 18% extra.
Is the DRP NRV ISI marked?
Yes. The DRP/Veeson cast iron non-return reflux valve with rubber seat is ISI marked to IS:5312, rated PN-16, in sizes 50–300 mm. List prices run ₹3,889 – ₹45,914 per PL-129.
What is the difference between DRP and Veeson?
Both brands come from the same manufacturer in Jalandhar. Veeson-branded valves are the cast iron industrial range; DRP/Veeson co-branded valves cover butterfly, sluice, check, wheel and air valves. Same works, same IS standards, both stocked in Delhi.
Do you have gear, pneumatic and electric operated butterfly valves?
Yes. Gear-operated butterfly valves are listed in PN-16, PN-20 and PN-25. Pneumatic actuated (Art. DBSP) run ₹7,391 – ₹58,899 and electrical actuated (Art. DBSE) run ₹22,241 – ₹1,23,971, both PN-10 with CF-8 stainless disc, 40–300 mm.
Where can I download the DRP catalogue PDF?
The Veeson and DRP catalogue is available as a PDF download, and the full PL-129 price list is on the DRP valves price list page.
What is the difference between a gate valve and a sluice valve?
They are the same valve. Municipal and public-health specifications in India typically write “sluice valve” while mechanical and HVAC specifications write “gate valve” — both describe the full-bore, wedge-gate isolation valve made to IS:14846. DRP supplies non-rising S.S. spindle (DSV), non-rising forged brass spindle (DSB), rising spindle (DSVR) and ductile iron resilient-seated (DSVS) patterns, 50–300 mm, PN-16.
When should I specify gear operated instead of lever operated butterfly valves?
Specify gear operators at 200 mm and above — seating torque at those sizes exceeds comfortable lever effort — and on any valve used for balancing or throttling, where the self-locking gearbox holds the disc position. Lever operation is standard and economical up to 150 mm. For remote or automated lines, DRP also supplies pneumatic (DBSP) and electrically actuated (DBSE) butterfly valves 40–300 mm.
Do DRP valves come with test certificates?
Yes. Every DRP/Veeson valve is manufactured in an ISO 9001:2015 works with in-house chemical, physical, air and hydraulic testing, and a works test certificate is furnished with supply on request. Butterfly valves are ISI marked to IS:13095, sluice valves to IS:14846 and reflux valves to IS:5312; hydro test values for each family are listed in the standards table above.
S.G. iron disc or CF-8 (SS-304) disc — which butterfly valve should I choose?
Choose the S.G. iron disc series (DBF, DBD2, DB25) for clear water, HVAC and fire-fighting duty — it is the economical workhorse. Specify the CF-8 (SS-304 equivalent) disc series (DBFS, DBS2) for raw water, high-TDS borewell water, STP/ETP service or any line where disc corrosion is the likely failure mode. Both carry the same IS:13095 ISI-marked body; the price difference at most sizes is modest against the service life gained.
How quickly can Vijay Sales Corporation dispatch DRP valves?
Standard sizes across all 31 article numbers are held ex-stock at our Delhi warehouse (3356 Hauz Qazi and Nehru Place offices). Delhi-NCR orders typically dispatch the same or next working day; outstation dispatches go by surface transport with LR shared on WhatsApp. Actuated valves and non-standard configurations are procured against order from the Jalandhar works.
Can VSC supply DRP valves outside Delhi?
Yes — we dispatch pan-India daily against advance payment or agreed credit terms, with transport arranged to your city or project site. Send your BOQ on WhatsApp 9999889008 with the delivery pincode and we quote landed rates including freight.
