DRP MS Forged Pipe Fittings — 1000 LBS & 3000 LBS Dimensions & Specifications

Dimensional charts, standards and range for the DRP forged steel fittings supplied by Vijay Sales Corporation.

Drop Forged Steel 1000 LBS Threaded 3000 LBS Socket Weld 6mm – 100mm ISO 9001:2015 Manufacturer
View Price List 2026 Download Catalogue WhatsApp for Net Rates

Written & maintained by Punya Gupta, COO, Vijay Sales Corporation · ★ Industry Outlook Top 10 Distributor 2023 & 2024

✓ Authorised DRP Dealer & Distributor — View Certificate

Vijay Sales Corporation is an authorised DRP dealer and distributor. Every DRP forged fitting is tested at the manufacturer, carries the DRP trademark forged into the body, and is held as ready stock at our Delhi warehouse for dispatch across India.

DRP MS forged pipe fittings are drop-forged from solid steel billet, so the grain follows the shape of the fitting and the body carries pressure that a cast fitting of the same wall could not. Vijay Sales Corporation supplies the DRP range as an authorised dealer, in two working classes. The 1000 LBS threaded class has BSP threads and screws onto steel pipe for serviceable joints; the 3000 LBS socket weld class takes the pipe into a deep socket for a fillet-welded, permanent connection. This page gives the catalogue dimensions for each pattern.

The range covers elbow, tee, socket, union, reducing elbow, reducing tee, reducing socket, male/female elbow, reducing bush, plug, hex nipple, reducing hex nipple, cross and 45° elbow in the threaded class, and elbow, reducing elbow, tee, reducing tee, socket, reducing socket, union and cross in the socket weld class. The dimensional charts below carry centre-to-face, body and socket-bore figures for every size. For current rates see the DRP MS forged fittings price list.

WHY VIJAY SALES CORPORATION

Why Buy DRP from Vijay Sales Corporation

Authorised supply, ready stock and trade terms in one place.

Authorised dealer

We are an authorised DRP dealer and distributor — genuine, trademark-forged DRP fittings with the manufacturer's test certificate on every consignment. Our dealership certificate is on file.

Ready stock, pan-India dispatch

Both classes, 6mm to 100mm, held as ready stock at our Delhi warehouse and dispatched across India, typically in 2–6 days depending on location.

Trade terms

Net rates on WhatsApp, GST invoice with full HSN detail, and BOQ support — send an itemised list and we quote the whole requirement together.

DIMENSIONAL SPECIFICATIONS

DRP Forged Fitting Dimensions

Catalogue reference dimensions in millimetres, for the 1000 LBS threaded and 3000 LBS socket weld ranges.

Reading the charts

On the threaded fittings, A is the centre-to-face on elbows, tees and crosses (or the overall length on sockets, unions and nipples), and D is the body outside diameter; B, C, L and T follow the catalogue drawings — thread length, square or shoulder height and hex band width. On the socket weld fittings, the MIN and MAX columns are inspection limits on the socket bores and outside diameters, not working dimensions — the socket is bored a controlled amount larger than the pipe so it can be welded. Allow for thread make-up on threaded joints and for the weld gap on socket-weld joints when you set out a run. If a single dimension is critical, WhatsApp us and we will physically verify it against stock before you order.

Charts extracted from the official DRP catalogue and verified against warehouse stock — July 2026. Download the DRP catalogue (PDF).

1000 LBS Threaded

SizeAD
1/8" · 6mm2321
1/4" · 8mm2321
3/8" · 10mm2425
1/2" · 15mm3330
3/4" · 20mm3637
1" · 25mm4443
1.1/4" · 32mm5251
1.1/2" · 40mm5558
2" · 50mm6674
2.1/2" · 65mm7687
3" · 80mm89102
SizeAD
1/8" · 6mm2321
1/4" · 8mm2321
3/8" · 10mm2425
1/2" · 15mm3330
3/4" · 20mm3637
1" · 25mm4443
1.1/4" · 32mm5251
1.1/2" · 40mm5558
2" · 50mm6674
2.1/2" · 65mm7687
3" · 80mm89102
SizeAD
1/8" · 6mm2016
1/4" · 8mm2420
3/8" · 10mm2822
1/2" · 15mm3730
3/4" · 20mm4034
1" · 25mm4641
1.1/4" · 32mm5249
1.1/2" · 40mm5256
2" · 50mm6270
2.1/2" · 65mm6885
3" · 80mm75100
4" · 100mm90120
SizeAD
1/8" · 6mm3837
1/4" · 8mm4437
3/8" · 10mm5137
1/2" · 15mm6245
3/4" · 20mm7053
1" · 25mm8060
1.1/4" · 32mm9073
1.1/2" · 40mm10085
2" · 50mm110100
2.1/2" · 65mm120110
3" · 80mm135115
SizeAD
1/4×1/8" · 8×6mm2321
3/8×1/8" · 10×6mm2425
3/8×1/4" · 10×8mm2425
1/2×1/4" · 15×8mm3330
1/2×3/8" · 15×10mm3330
3/4×1/4" · 20×8mm3637
3/4×3/8" · 20×10mm3637
3/4×1/2" · 20×15mm3637
1×3/8" · 25×10mm4443
1×1/2" · 25×15mm4443
1×3/4" · 25×20mm4443
1.1/4×1/2" · 32×15mm5251
1.1/4×3/4" · 32×20mm5251
1.1/4×1" · 32×25mm5251
1.1/2×1/2" · 40×15mm5558
1.1/2×3/4" · 40×20mm5558
1.1/2×1" · 40×25mm5558
1.1/2×1.1/4" · 40×32mm5558
2×1/2" · 50×15mm6674
2×3/4" · 50×20mm6674
2×1" · 50×25mm6674
2×1.1/4" · 50×32mm6674
2×1.1/2" · 50×40mm6674
2.1/2×1.1/2" · 65×40mm7687
2.1/2×2" · 65×50mm7687
3×1" · 80×25mm89102
3×1.1/4" · 80×32mm89102
3×1.1/2" · 80×40mm89102
3×2" · 80×50mm89102
3×2½" · 80×65mm89102
SizeAD
1/4×1/8" · 8×6mm2321
3/8×1/8" · 10×6mm2425
3/8×1/4" · 10×8mm2425
1/2×1/4" · 15×8mm3330
1/2×3/8" · 15×10mm3330
3/4×1/4" · 20×8mm3637
3/4×3/8" · 20×10mm3637
3/4×1/2" · 20×15mm3637
1×3/8" · 25×10mm4443
1×1/2" · 25×15mm4443
1×3/4" · 25×20mm4443
1.1/4×1/2" · 32×15mm5251
1.1/4×3/4" · 32×20mm5251
1.1/4×1" · 32×25mm5251
1.1/2×1/2" · 40×15mm5558
1.1/2×3/4" · 40×20mm5558
1.1/2×1" · 40×25mm5558
1.1/2×1.1/4" · 40×32mm5558
2×1/2" · 50×15mm6674
2×3/4" · 50×20mm6674
2×1" · 50×25mm6674
2×1.1/4" · 50×32mm6674
2×1.1/2" · 50×40mm6674
2.1/2×1.1/2" · 65×40mm7687
2.1/2×2" · 65×50mm7687
3×1" · 80×25mm89102
3×1.1/4" · 80×32mm89102
3×1.1/2" · 80×40mm89102
3×2" · 80×50mm89102
3×2¼" · 80×65mm89102
SizeAD
1/4×1/8" · 8×6mm2420
3/8×1/8" · 10×6mm2822
3/8×1/4" · 10×8mm2822
1/2×1/8" · 15×6mm3730
1/2×1/4" · 15×8mm3730
1/2×3/8" · 15×10mm3730
3/4×1/4" · 20×8mm4034
3/4×3/8" · 20×10mm4034
3/4×1/2" · 20×15mm4034
1×1/4" · 25×8mm4641
1×3/8" · 25×10mm4641
1×1/2" · 25×15mm4641
1×3/4" · 25×20mm4641
1.1/4×3/8" · 32×10mm5249
1.1/4×1/2" · 32×15mm5249
1.1/4×3/4" · 32×20mm5249
1.1/4×1" · 32×25mm5249
1.1/2×1/2" · 40×15mm5256
1.1/2×3/4" · 40×20mm5256
1.1/2×1" · 40×25mm5256
1.1/2×1.1/4" · 40×32mm5256
2×1/2" · 50×15mm6270
2×3/4" · 50×20mm6270
2×1" · 50×25mm6270
2×1.1/4" · 50×32mm6270
2×1.1/2" · 50×40mm6270
2.1/2×1" · 65×25mm6885
2.1/2×1.1/4" · 65×32mm6885
2.1/2×1.1/2" · 65×40mm6885
2.1/2×2" · 65×50mm6885
SizeAD
1/8" · 6mm2321
1/4" · 8mm2321
3/8" · 10mm2425
1/2" · 15mm3330
3/4" · 20mm3637
1" · 25mm4443
1.1/4" · 32mm5251
1.1/2" · 40mm5558
2" · 50mm6674
2.1/2" · 65mm7687
3" · 80mm89102
SizeBCD
1/8" · 6mm1066
1/4" · 8mm1269
3/8" · 10mm14811
1/2" · 15mm151013
3/4" · 20mm171115
1" · 25mm201220
1.1/4" · 32mm211425
1.1/2" · 40mm221628
2" · 50mm231832
2.1/2" · 65mm272140
3" · 80mm302345
SizeAD
1/4" · 8mm2321
3/8" · 10mm2425
1/2" · 15mm3330
3/4" · 20mm3637
1" · 25mm4443
1.1/4" · 32mm5251
1.1/2" · 40mm5558
2" · 50mm6674
2.1/2" · 65mm7687
3" · 80mm89102
SizeABLT
1/8" · 6mm2513.109.506.0
1/4" · 8mm3115.5012.506.0
3/8" · 10mm3317.9012.508.0
1/2" · 15mm4323.0017.508.0
3/4" · 20mm4827.8019.0010.0
1" · 25mm5235.3021.0010.0
1.1/4" · 32mm5947.0023.0012.5
1.1/2" · 40mm6152.0024.0013.0
2" · 50mm6861.5027.0014.0
2.1/2" · 65mm8079.0032.0016.0
3" · 80mm9092.0035.0019.0
SizeABL1L2T
1/4×1/8" · 8×6mm28.0015.5012.509.506
3/8×1/4" · 10×8mm33.0017.9012.5012.508
1/2×1/4" · 15×8mm38.0023.0017.5012.508
1/2×3/8" · 15×10mm38.0023.0017.5012.508
3/4×3/8" · 20×10mm41.5027.8019.0012.5010
3/4×1/2" · 20×15mm46.5027.8019.0017.5010
1×1/2" · 25×15mm48.5035.3021.0017.5010
1×3/4" · 25×20mm50.0035.3021.0019.0010
1.1/4×3/4" · 32×20mm54.5047.0023.0019.0012.5
1.1/4×1" · 32×25mm56.5047.0023.0021.0012.5
1.1/2×1" · 40×25mm58.5052.0024.0021.0013
1.1/2×1/4" · 40×32mm60.0052.0024.0023.0013
2×1.1/4" · 50×32mm64.0061.5027.0023.0014
2×1.1/2" · 50×40mm65.0061.5027.0024.0014
SizeL minT minA minB
1/4×1/8" · 8×6mm12.506.0018.5015.50
3/8×1/4" · 10×8mm12.508.0020.5017.90
1/2×1/4" · 15×8mm17.508.0025.5023.00
1/2×3/8" · 15×10mm17.508.0025.5023.00
3/4×3/8" · 20×10mm19.0010.0029.0027.80
3/4×1/2" · 20×15mm19.0010.0029.0027.80
1×1/2" · 25×15mm21.0010.0031.0035.30
1×3/4" · 25×20mm21.0010.0031.0035.30
1.1/4×1/2" · 32×15mm23.0012.5035.5047.00
1.1/4×3/4" · 32×20mm23.0012.5035.5047.00
1.1/4×1" · 32×25mm23.0012.5035.5047.00
1.1/2×3/4" · 40×20mm24.0013.0037.0052.00
1.1/2×1" · 40×25mm24.0013.0037.0052.00
1.1/2×1/4" · 40×32mm24.0013.0037.0052.00
2×1" · 50×25mm27.0014.0041.0061.50
2×1.1/4" · 50×32mm27.0014.0041.0061.50
2×1.1/2" · 50×40mm27.0014.0041.0061.50

3000 LBS Socket Weld

SizeA minA maxB minB maxC minC avgD minD maxG minJ max
1/8" · 6mm101210.710.93.23.26.17.62.410
1/4" · 8mm101214.114.43.303.808.510.03.0010
3/8" · 10mm121517.517.83.504.0011.813.33.2010
1/2" · 15mm141721.722.04.104.6515.016.63.7510
3/4" · 20mm182127.127.34.254.9020.221.73.9013
1" · 25mm202433.834.05.005.725.927.44.5513
1.1/4" · 32mm252942.542.85.306.0534.335.84.8513
1.1/2" · 40mm303448.648.95.556.3540.141.75.1013
2" · 50mm364061.161.46.056.9551.753.55.5516
A min10
A max12
B min10.7
B max10.9
C min3.2
C avg3.2
D min6.1
D max7.6
G min2.4
J max10
A min10
A max12
B min14.1
B max14.4
C min3.30
C avg3.80
D min8.5
D max10.0
G min3.00
J max10
A min12
A max15
B min17.5
B max17.8
C min3.50
C avg4.00
D min11.8
D max13.3
G min3.20
J max10
A min14
A max17
B min21.7
B max22.0
C min4.10
C avg4.65
D min15.0
D max16.6
G min3.75
J max10
A min18
A max21
B min27.1
B max27.3
C min4.25
C avg4.90
D min20.2
D max21.7
G min3.90
J max13
A min20
A max24
B min33.8
B max34.0
C min5.00
C avg5.7
D min25.9
D max27.4
G min4.55
J max13
A min25
A max29
B min42.5
B max42.8
C min5.30
C avg6.05
D min34.3
D max35.8
G min4.85
J max13
A min30
A max34
B min48.6
B max48.9
C min5.55
C avg6.35
D min40.1
D max41.7
G min5.10
J max13
A min36
A max40
B min61.1
B max61.4
C min6.05
C avg6.95
D min51.7
D max53.5
G min5.55
J max16
SizeA minA maxB1 minB1 maxB2 minB2 maxC minC avgD1 minD1 maxD2 minD2 maxG minJ1 minJ2 max
8×6 mm101214.114.410.710.93.303.808.510.06.17.63.01010
10×8 mm121517.517.814.114.43.504.0011.813.38.510.03.201010
15×10 mm141721.722.017.517.84.104.6515.016.611.813.33.751010
20×15 mm182127.127.321.722.04.254.9020.221.715.016.63.901310
25×15 mm202433.834.021.722.05.005.7025.927.415.016.64.551310
25×20 mm202433.834.027.127.35.005.7025.927.420.221.74.551313
32×20 mm252942.542.827.127.35.306.0534.335.820.221.74.851313
32×25 mm252942.542.833.834.05.306.0534.335.825.927.44.851313
40×25 mm303448.648.933.834.05.556.3540.141.725.927.45.101313
40×32 mm303448.648.942.542.85.556.3540.141.734.335.85.101313
50×32 mm364061.161.442.542.86.056.9551.753.734.335.85.551613
50×40 mm364061.161.448.648.96.056.9551.753.740.141.75.551613
A min10
A max12
B1 min14.1
B1 max14.4
B2 min10.7
B2 max10.9
C min3.30
C avg3.80
D1 min8.5
D1 max10.0
D2 min6.1
D2 max7.6
G min3.0
J1 min10
J2 max10
A min12
A max15
B1 min17.5
B1 max17.8
B2 min14.1
B2 max14.4
C min3.50
C avg4.00
D1 min11.8
D1 max13.3
D2 min8.5
D2 max10.0
G min3.20
J1 min10
J2 max10
A min14
A max17
B1 min21.7
B1 max22.0
B2 min17.5
B2 max17.8
C min4.10
C avg4.65
D1 min15.0
D1 max16.6
D2 min11.8
D2 max13.3
G min3.75
J1 min10
J2 max10
A min18
A max21
B1 min27.1
B1 max27.3
B2 min21.7
B2 max22.0
C min4.25
C avg4.90
D1 min20.2
D1 max21.7
D2 min15.0
D2 max16.6
G min3.90
J1 min13
J2 max10
A min20
A max24
B1 min33.8
B1 max34.0
B2 min21.7
B2 max22.0
C min5.00
C avg5.70
D1 min25.9
D1 max27.4
D2 min15.0
D2 max16.6
G min4.55
J1 min13
J2 max10
A min20
A max24
B1 min33.8
B1 max34.0
B2 min27.1
B2 max27.3
C min5.00
C avg5.70
D1 min25.9
D1 max27.4
D2 min20.2
D2 max21.7
G min4.55
J1 min13
J2 max13
A min25
A max29
B1 min42.5
B1 max42.8
B2 min27.1
B2 max27.3
C min5.30
C avg6.05
D1 min34.3
D1 max35.8
D2 min20.2
D2 max21.7
G min4.85
J1 min13
J2 max13
A min25
A max29
B1 min42.5
B1 max42.8
B2 min33.8
B2 max34.0
C min5.30
C avg6.05
D1 min34.3
D1 max35.8
D2 min25.9
D2 max27.4
G min4.85
J1 min13
J2 max13
A min30
A max34
B1 min48.6
B1 max48.9
B2 min33.8
B2 max34.0
C min5.55
C avg6.35
D1 min40.1
D1 max41.7
D2 min25.9
D2 max27.4
G min5.10
J1 min13
J2 max13
A min30
A max34
B1 min48.6
B1 max48.9
B2 min42.5
B2 max42.8
C min5.55
C avg6.35
D1 min40.1
D1 max41.7
D2 min34.3
D2 max35.8
G min5.10
J1 min13
J2 max13
A min36
A max40
B1 min61.1
B1 max61.4
B2 min42.5
B2 max42.8
C min6.05
C avg6.95
D1 min51.7
D1 max53.7
D2 min34.3
D2 max35.8
G min5.55
J1 min16
J2 max13
A min36
A max40
B1 min61.1
B1 max61.4
B2 min48.6
B2 max48.9
C min6.05
C avg6.95
D1 min51.7
D1 max53.7
D2 min40.1
D2 max41.7
G min5.55
J1 min16
J2 max13
SizeA minA maxB minB maxC minC avgD minD maxG minJ max
1/8" · 6mm101210.710.93.23.26.17.62.410
1/4" · 8mm101214.114.43.303.808.510.03.0010
3/8" · 10mm121517.517.83.504.0011.813.33.2010
1/2" · 15mm141721.722.04.14.6515.016.63.7510
3/4" · 20mm182127.127.34.254.9020.021.73.9013
1" · 25mm202433.834.05.005.725.927.44.5513
1.1/4" · 32mm252942.542.85.306.0534.335.84.8513
1.1/2" · 40mm303448.648.95.556.3540.141.75.1013
2" · 50mm364061.161.46.056.9551.753.55.5516
A min10
A max12
B min10.7
B max10.9
C min3.2
C avg3.2
D min6.1
D max7.6
G min2.4
J max10
A min10
A max12
B min14.1
B max14.4
C min3.30
C avg3.80
D min8.5
D max10.0
G min3.00
J max10
A min12
A max15
B min17.5
B max17.8
C min3.50
C avg4.00
D min11.8
D max13.3
G min3.20
J max10
A min14
A max17
B min21.7
B max22.0
C min4.1
C avg4.65
D min15.0
D max16.6
G min3.75
J max10
A min18
A max21
B min27.1
B max27.3
C min4.25
C avg4.90
D min20.0
D max21.7
G min3.90
J max13
A min20
A max24
B min33.8
B max34.0
C min5.00
C avg5.7
D min25.9
D max27.4
G min4.55
J max13
A min25
A max29
B min42.5
B max42.8
C min5.30
C avg6.05
D min34.3
D max35.8
G min4.85
J max13
A min30
A max34
B min48.6
B max48.9
C min5.55
C avg6.35
D min40.1
D max41.7
G min5.10
J max13
A min36
A max40
B min61.1
B max61.4
C min6.05
C avg6.95
D min51.7
D max53.5
G min5.55
J max16
SizeA minA maxB1 minB1 maxB2 minB2 maxC minC avgD1 minD1 maxD2 minD2 maxG minJ1 minJ2 max
8×6 mm101214.114.410.710.93.303.808.510.06.17.63.01010
10×8 mm121517.517.814.114.43.504.0011.813.38.510.03.201010
15×10 mm141721.722.017.517.84.104.6515.016.611.813.33.751010
20×15 mm182127.127.321.722.04.254.9020.221.715.016.63.901310
25×15 mm202433.834.021.722.05.005.7025.927.415.016.64.551310
25×20 mm202433.834.027.127.35.005.7025.927.420.221.74.551313
32×20 mm252942.542.827.127.35.306.0534.335.820.221.74.851313
32×25 mm252942.542.833.834.05.306.0534.335.825.927.44.851313
40×25 mm303448.648.933.834.05.556.3540.141.725.927.45.101313
40×32 mm303448.648.942.542.85.556.3540.141.734.335.85.101313
50×32 mm364061.161.442.542.86.056.9551.753.734.335.85.551613
50×40 mm364061.161.448.648.96.056.9551.753.740.141.75.551613
A min10
A max12
B1 min14.1
B1 max14.4
B2 min10.7
B2 max10.9
C min3.30
C avg3.80
D1 min8.5
D1 max10.0
D2 min6.1
D2 max7.6
G min3.0
J1 min10
J2 max10
A min12
A max15
B1 min17.5
B1 max17.8
B2 min14.1
B2 max14.4
C min3.50
C avg4.00
D1 min11.8
D1 max13.3
D2 min8.5
D2 max10.0
G min3.20
J1 min10
J2 max10
A min14
A max17
B1 min21.7
B1 max22.0
B2 min17.5
B2 max17.8
C min4.10
C avg4.65
D1 min15.0
D1 max16.6
D2 min11.8
D2 max13.3
G min3.75
J1 min10
J2 max10
A min18
A max21
B1 min27.1
B1 max27.3
B2 min21.7
B2 max22.0
C min4.25
C avg4.90
D1 min20.2
D1 max21.7
D2 min15.0
D2 max16.6
G min3.90
J1 min13
J2 max10
A min20
A max24
B1 min33.8
B1 max34.0
B2 min21.7
B2 max22.0
C min5.00
C avg5.70
D1 min25.9
D1 max27.4
D2 min15.0
D2 max16.6
G min4.55
J1 min13
J2 max10
A min20
A max24
B1 min33.8
B1 max34.0
B2 min27.1
B2 max27.3
C min5.00
C avg5.70
D1 min25.9
D1 max27.4
D2 min20.2
D2 max21.7
G min4.55
J1 min13
J2 max13
A min25
A max29
B1 min42.5
B1 max42.8
B2 min27.1
B2 max27.3
C min5.30
C avg6.05
D1 min34.3
D1 max35.8
D2 min20.2
D2 max21.7
G min4.85
J1 min13
J2 max13
A min25
A max29
B1 min42.5
B1 max42.8
B2 min33.8
B2 max34.0
C min5.30
C avg6.05
D1 min34.3
D1 max35.8
D2 min25.9
D2 max27.4
G min4.85
J1 min13
J2 max13
A min30
A max34
B1 min48.6
B1 max48.9
B2 min33.8
B2 max34.0
C min5.55
C avg6.35
D1 min40.1
D1 max41.7
D2 min25.9
D2 max27.4
G min5.10
J1 min13
J2 max13
A min30
A max34
B1 min48.6
B1 max48.9
B2 min42.5
B2 max42.8
C min5.55
C avg6.35
D1 min40.1
D1 max41.7
D2 min34.3
D2 max35.8
G min5.10
J1 min13
J2 max13
A min36
A max40
B1 min61.1
B1 max61.4
B2 min42.5
B2 max42.8
C min6.05
C avg6.95
D1 min51.7
D1 max53.7
D2 min34.3
D2 max35.8
G min5.55
J1 min16
J2 max13
A min36
A max40
B1 min61.1
B1 max61.4
B2 min48.6
B2 max48.9
C min6.05
C avg6.95
D1 min51.7
D1 max53.7
D2 min40.1
D2 max41.7
G min5.55
J1 min16
J2 max13
SizeB minB maxC minC avgD minD maxE minE maxJ min
1/8" · 6mm10.710.93.203.206.17.65810
1/4" · 8mm14.114.43.303.808.510.05810
3/8" · 10mm17.517.83.504.0011.813.35910
1/2" · 15mm21.722.04.104.6515.016.661310
3/4" · 20mm27.127.34.254.9020.221.761313
1" · 25mm33.834.05.005.7025.927.491713
1.1/4" · 32mm42.542.85.306.0534.335.891713
1.1/2" · 40mm48.648.95.556.3540.141.791713
2" · 50mm61.161.46.056.9551.753.5152316
B min10.7
B max10.9
C min3.20
C avg3.20
D min6.1
D max7.6
E min5
E max8
J min10
B min14.1
B max14.4
C min3.30
C avg3.80
D min8.5
D max10.0
E min5
E max8
J min10
B min17.5
B max17.8
C min3.50
C avg4.00
D min11.8
D max13.3
E min5
E max9
J min10
B min21.7
B max22.0
C min4.10
C avg4.65
D min15.0
D max16.6
E min6
E max13
J min10
B min27.1
B max27.3
C min4.25
C avg4.90
D min20.2
D max21.7
E min6
E max13
J min13
B min33.8
B max34.0
C min5.00
C avg5.70
D min25.9
D max27.4
E min9
E max17
J min13
B min42.5
B max42.8
C min5.30
C avg6.05
D min34.3
D max35.8
E min9
E max17
J min13
B min48.6
B max48.9
C min5.55
C avg6.35
D min40.1
D max41.7
E min9
E max17
J min13
B min61.1
B max61.4
C min6.05
C avg6.95
D min51.7
D max53.5
E min15
E max23
J min16
SizeB1 minB1 maxB2 minB2 maxC minC avgD minD maxE minE maxJ1J2
8×6 mm14.114.410.710.93.303.806.17.6581010
10×8 mm17.517.814.114.43.504.008.510.0591010
15×10 mm21.722.017.517.84.104.6511.813.36131010
20×15 mm27.127.321.722.04.254.9015.016.66131310
25×15 mm33.834.021.722.05.005.7015.016.69171310
25×20 mm33.834.027.127.35.005.7020.221.79171313
32×20 mm42.542.827.127.35.306.0520.221.79171313
32×25 mm42.542.833.834.05.306.0525.927.49171313
40×25 mm48.648.933.834.05.556.3525.927.49171313
40×32 mm48.648.942.542.85.556.3534.335.89171313
50×32 mm61.161.442.542.86.056.9534.335.815231613
50×40 mm61.161.448.648.96.056.9540.141.715231613
B1 min14.1
B1 max14.4
B2 min10.7
B2 max10.9
C min3.30
C avg3.80
D min6.1
D max7.6
E min5
E max8
J110
J210
B1 min17.5
B1 max17.8
B2 min14.1
B2 max14.4
C min3.50
C avg4.00
D min8.5
D max10.0
E min5
E max9
J110
J210
B1 min21.7
B1 max22.0
B2 min17.5
B2 max17.8
C min4.10
C avg4.65
D min11.8
D max13.3
E min6
E max13
J110
J210
B1 min27.1
B1 max27.3
B2 min21.7
B2 max22.0
C min4.25
C avg4.90
D min15.0
D max16.6
E min6
E max13
J113
J210
B1 min33.8
B1 max34.0
B2 min21.7
B2 max22.0
C min5.00
C avg5.70
D min15.0
D max16.6
E min9
E max17
J113
J210
B1 min33.8
B1 max34.0
B2 min27.1
B2 max27.3
C min5.00
C avg5.70
D min20.2
D max21.7
E min9
E max17
J113
J213
B1 min42.5
B1 max42.8
B2 min27.1
B2 max27.3
C min5.30
C avg6.05
D min20.2
D max21.7
E min9
E max17
J113
J213
B1 min42.5
B1 max42.8
B2 min33.8
B2 max34.0
C min5.30
C avg6.05
D min25.9
D max27.4
E min9
E max17
J113
J213
B1 min48.6
B1 max48.9
B2 min33.8
B2 max34.0
C min5.55
C avg6.35
D min25.9
D max27.4
E min9
E max17
J113
J213
B1 min48.6
B1 max48.9
B2 min42.5
B2 max42.8
C min5.55
C avg6.35
D min34.3
D max35.8
E min9
E max17
J113
J213
B1 min61.1
B1 max61.4
B2 min42.5
B2 max42.8
C min6.05
C avg6.95
D min34.3
D max35.8
E min15
E max23
J116
J213
B1 min61.1
B1 max61.4
B2 min48.6
B2 max48.9
C min6.05
C avg6.95
D min40.1
D max41.7
E min15
E max23
J116
J213
SizeACD
1/4" · 8mm382350
3/8" · 10mm452750
1/2" · 15mm493355
3/4" · 20mm604060
1" · 25mm724668
1.1/4" · 32mm765675
1.1/2" · 40mm826082
2" · 50mm1037990
SizeA minA maxB minB maxC minC avg
1/8" · 6mm101210.710.93.23.2
1/4" · 8mm101214.114.43.303.80
3/8" · 10mm121517.517.83.504.00
1/2" · 15mm141721.722.04.14.65
3/4" · 20mm182121.727.34.254.90
1" · 25mm202433.834.05.005.7
1.1/4" · 32mm252942.542.85.306.05
1.1/2" · 40mm303448.648.95.556.35
2" · 50mm364061.161.46.056.95
A min10
A max12
B min10.7
B max10.9
C min3.2
C avg3.2
A min10
A max12
B min14.1
B max14.4
C min3.30
C avg3.80
A min12
A max15
B min17.5
B max17.8
C min3.50
C avg4.00
A min14
A max17
B min21.7
B max22.0
C min4.1
C avg4.65
A min18
A max21
B min21.7
B max27.3
C min4.25
C avg4.90
A min20
A max24
B min33.8
B max34.0
C min5.00
C avg5.7
A min25
A max29
B min42.5
B max42.8
C min5.30
C avg6.05
A min30
A max34
B min48.6
B max48.9
C min5.55
C avg6.35
A min36
A max40
B min61.1
B max61.4
C min6.05
C avg6.95

STANDARDS & TESTING

Material, Threads, Classes & QA

How DRP forged fittings are made, threaded, rated and checked.

Material

Drop-forged from carbon steel billet. Forging gives a continuous grain structure that follows the body, with none of the porosity or shrinkage a cast fitting can carry — so the same wall holds far more pressure.

Threads

Threaded fittings are cut to IS:1239 (Part-II) / BS EN-10241 — BSP parallel female and BSPT taper male. NPT threading is available on request. Threads mate with standard steel pipe.

Classes

1000 LBS is the threaded working class; 3000 LBS is the socket weld class per ANSI B16.11. The class number is the manufacturer hydro-test pressure, which is why the heavier socket-weld body carries the higher figure.

Testing & QA

Bodies are CNC-machined, compression- and pressure-tested, and laser-marked for traceability, under an ISO 9001:2015 quality system. Every consignment ships with the manufacturer's test certificate.

FROM OUR TRADE COUNTER

What We Fix at the Counter

Three things worth getting right before you order.

Spec the class before the size

The most common gap we fix on an RFQ is "MS elbow, 1 inch" with no LBS class. A 1000 LBS threaded elbow and a 3000 LBS socket-weld elbow are different fittings at different prices — tell us the class first and the rest is quick.

A hydraulic nipple is not a hex nipple

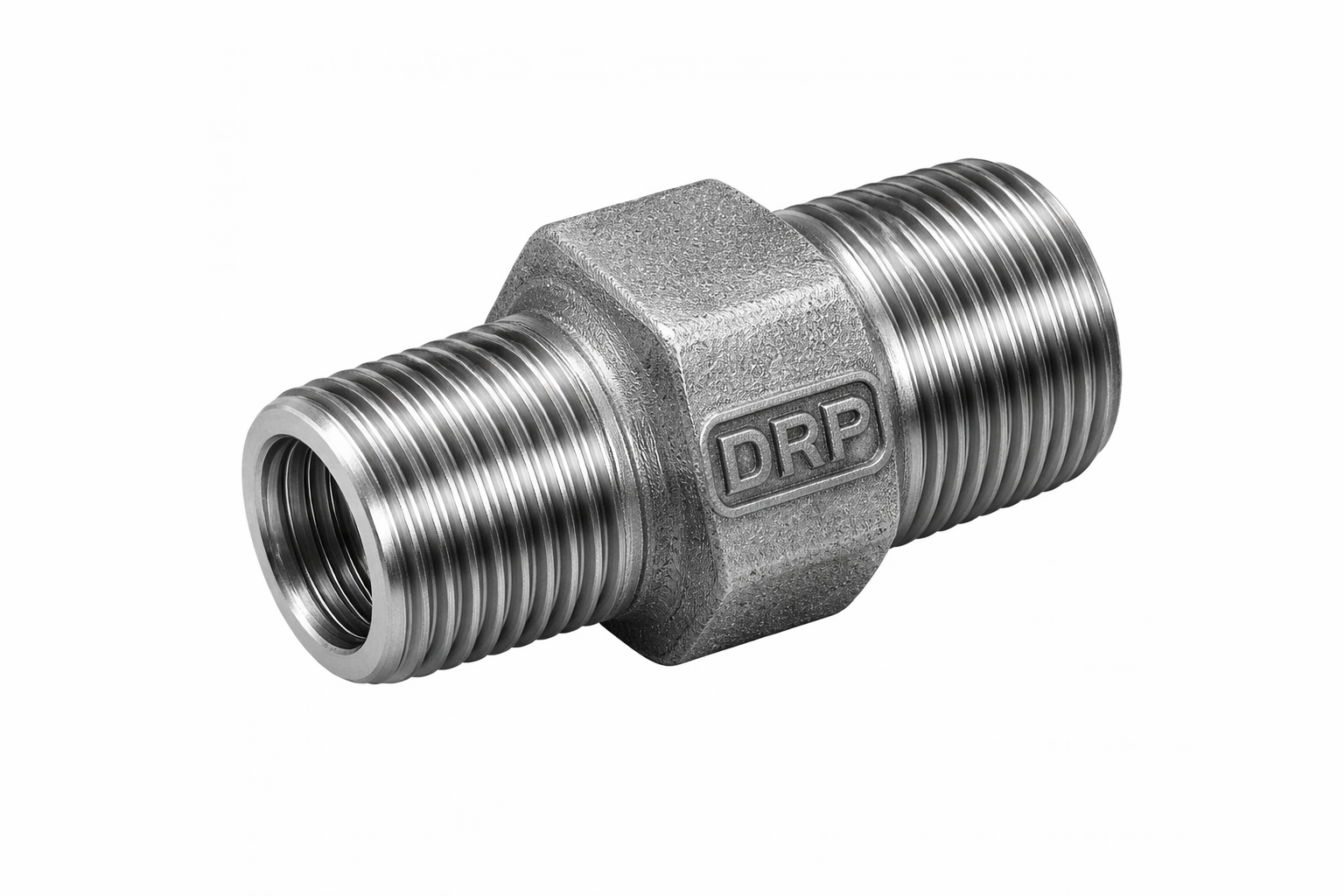

The long-barrel hydraulic pattern seals differently from a plain hex nipple and is a separate line item. If a drawing calls for a hydraulic nipple, quote it by that name so you get the right part, not the nearest hex.

Reducing items are Equal O.D.

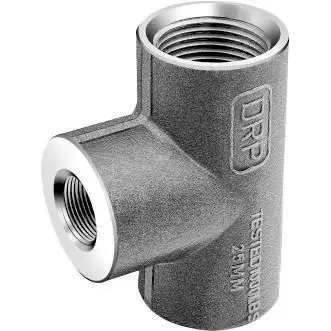

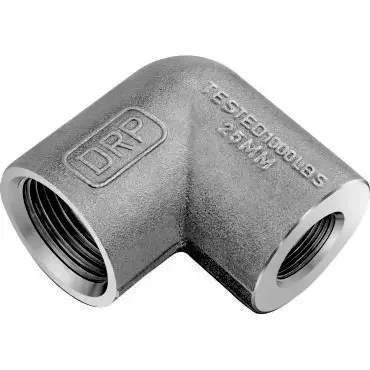

The reducing elbows, tees and sockets here are Equal O.D. items, priced by the listed nominal size. Confirm both ends on WhatsApp and we lock the exact piece — it saves a wrong-size return later.

DROP-FORGED STEEL

DRP MS Forged Fittings Range

The DRP forged steel range, photographed at our Delhi warehouse.

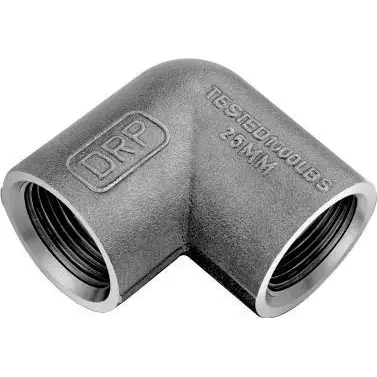

DRP MS forged steel threaded elbow fitting
DRP Elbow

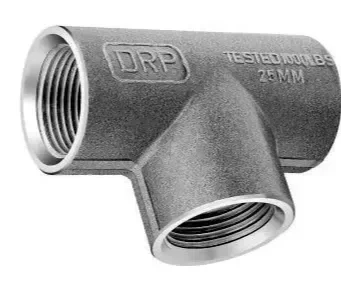

DRP MS forged steel threaded tee fitting

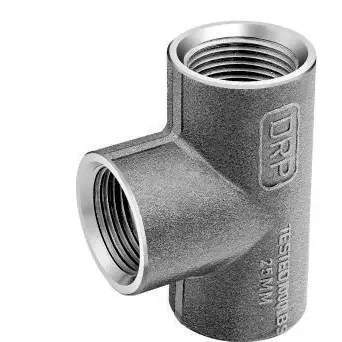

DRP Tee

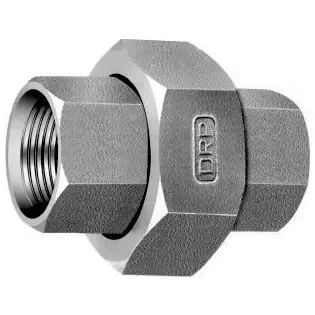

DRP MS forged steel threaded union fitting

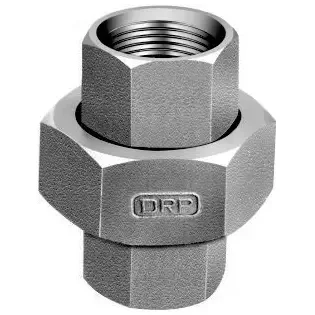

DRP Union
DRP MS forged steel threaded socket fitting
DRP Socket
DRP MS forged steel cross and reducing cross fitting

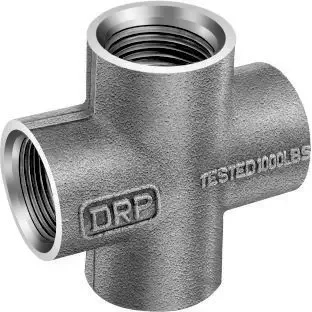

DRP Cross & Reducing Cross
DRP MS forged steel hex nipple and reducing hex nipple fitting

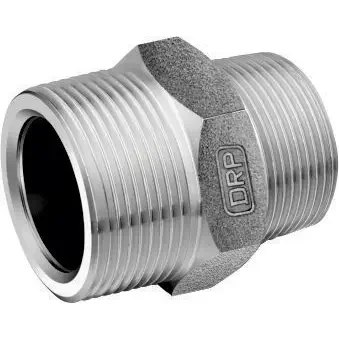

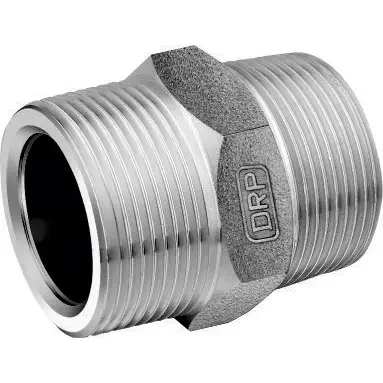

DRP Hex Nipple & Reducing Hex Nipple
DRP MS forged steel plug fitting
DRP Plug
DRP MS forged steel reducing elbow fitting
DRP Reducing Elbow

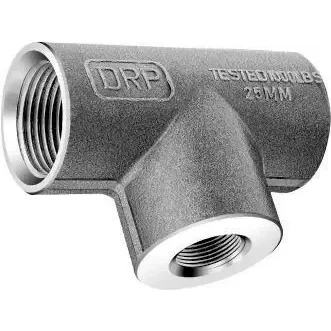

DRP MS forged steel reducing tee fitting
DRP Reducing Tee
DRP MS forged steel reducing socket fitting

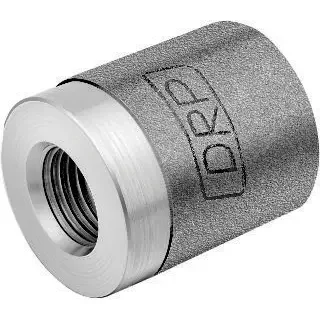

DRP Reducing Socket
DRP MS forged steel reducing bush fitting
DRP Reducing Bush
DRP MS forged steel male/female elbow fitting

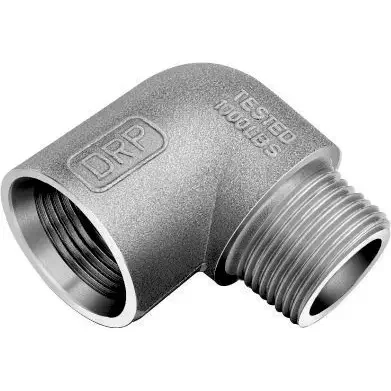

DRP Elbow (Male/Female)
DRP MS forged steel hydraulic nipple fitting

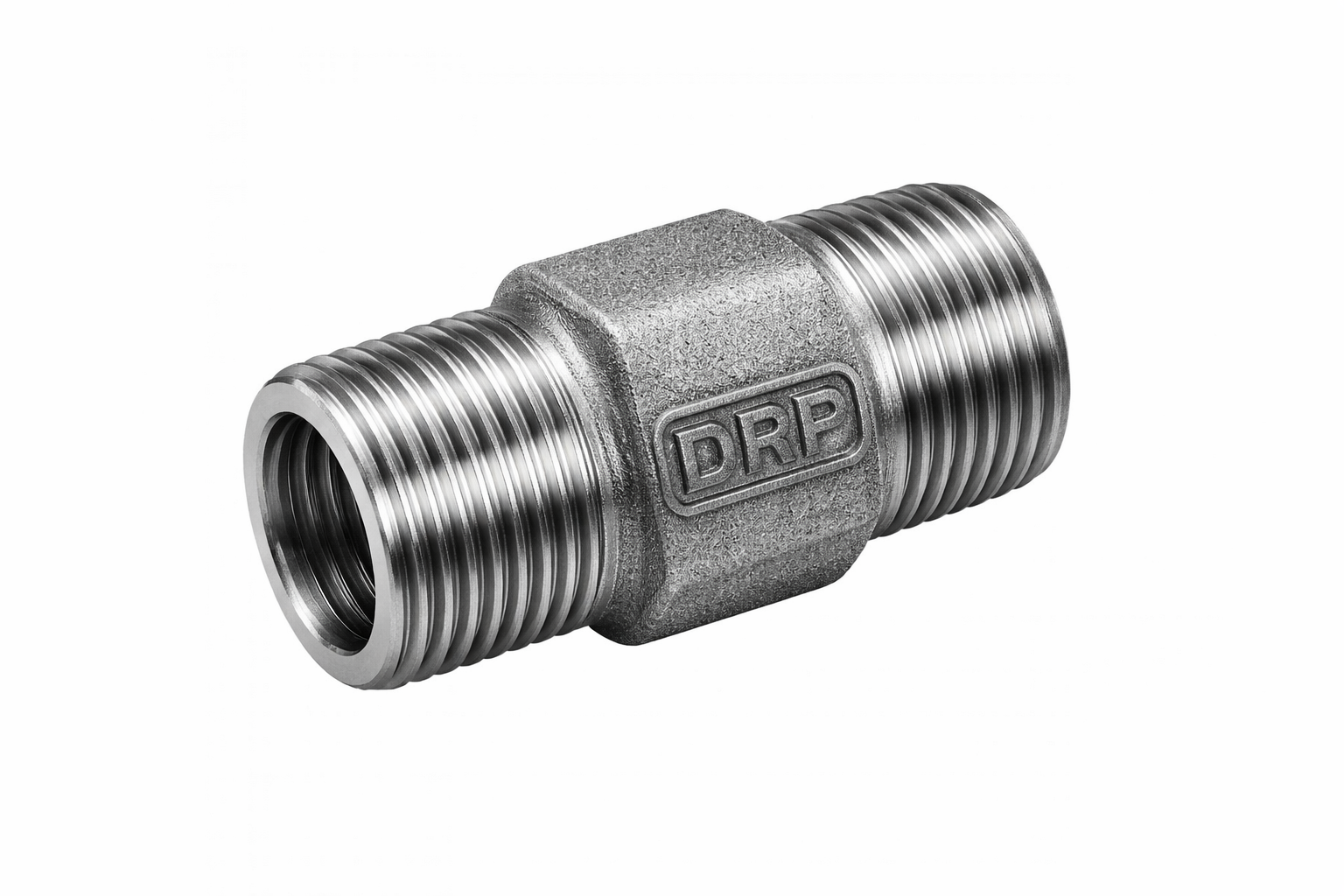

DRP Nipple (Hydraulic)
DRP MS forged steel reducing hydraulic nipple fitting
DRP Reducing Nipple (Hydraulic)

Elbow 45° and the full 3000 LBS socket-weld range are also ex-stock — dimensions in the charts above.

ABOUT THE BRAND

About DRP

A Jalandhar forgings house with roots in the Indian valve industry since 1965.

The DRP brand belongs to DRP Malleables Pvt. Ltd. of Jalandhar, part of the wider DRP group founded by Pran Bhala. The story began in 1965, when he started out as a foreman under the name Meenu Metal; in 1976 he established DRP Metal Works to manufacture DRP-brand valves. Through the following decades the group broadened into stainless steel valves in 1987, brass ball valves, cast-iron industrial valves, and in 1996 the DRP-M range of galvanised pipe fittings. In 2012 the works moved to a purpose-built plant of around 270,000 square feet, and in 2013 the company began making high-pressure MS forged steel pipe fittings — the range on this page.

Every forged fitting starts as a CAD model, is drop-forged from steel bar under forging hammers and presses, then CNC-machined, compression- and pressure-tested, and laser-marked for traceability before final inspection and packing — the group works to a Total Quality Management discipline under an ISO 9001:2015 quality system. Vijay Sales Corporation supplies these fittings as an authorised DRP dealer and distributor, from ready stock in Delhi.

1965 Meenu Metal → 1976 DRP Metal Works → 1987 SS valves → 1996 DRP-M fittings → 2012 270,000 sq ft plant → 2013 MS forged fittings

WHERE THEY ARE USED

Applications

Typical uses across buildings, commercial and industrial piping.

Buildings

Fire-fighting mains, hydrant branches and utility water lines in residential and commercial buildings.

Commercial & HVAC

Chilled water, instrument air and plant-room utility piping in commercial installations.

Oil, gas & petrochemical

Small-bore process, sampling and utility connections in refineries and gas plants.

Steam & hydraulics

Steam, condensate and high-pressure hydraulic power circuits — socket-weld class.

Power, cement & steel

Thermal power, cement, fertiliser and steel plant piping where pressure matters.

Rail, shipping & industry

Railways, shipping, paper mills, textiles and compressed-air handling.

RELATED

Related Ranges

Prices and other fitting ranges stocked at our Delhi warehouse.

DRP MS Forged Fittings Price List 2026 →

Full rate matrix — 1000 LBS & 3000 LBS, 6mm to 100mm.

Jindal Hissar Pipes →

MS & GI pipes these fittings thread onto.

VS Pipe Fittings →

GI & MI threaded fittings range.

Butt-Welded Fittings →

Elbows, tees, reducers & caps for welded lines.

QUESTIONS & ANSWERS

DRP MS Forged Fittings — FAQ

Technical questions on dimensions, classes and standards.

What are the dimensions of a 1 inch 1000 LBS forged elbow?

The DRP 1 inch (25mm) 1000 LBS threaded elbow measures A 44mm centre-to-face and D 43mm body, per the DRP catalogue. See the elbow dimension chart for every size from 1/8 inch to 3 inch.

What does 1000 LBS or 3000 LBS mean?

It is the fitting class, taken from the manufacturer's hydro-test pressure in pounds. 1000 LBS is the threaded working class; 3000 LBS is the heavier socket-weld class. The number rates the fitting, not the pipe, and is not a direct working-pressure figure for a given line — always design to the line's own rating.

Threaded or socket weld — which should I use?

Use 1000 LBS threaded where a joint may be opened again with hand tools — small-bore water, air and instrument lines with no welder on site. Use 3000 LBS socket weld where the joint is welded and permanent, for higher-pressure steam, hydraulic and process lines. Where one break-point is needed on a welded line, use a socket-weld union.

What material are DRP forged fittings made from?

Carbon steel, drop-forged from solid billet. Forging gives a continuous grain structure with none of the porosity of a casting, which is why a forged fitting holds much more pressure for the same wall thickness.

Are the MIN/MAX socket-weld tolerances guaranteed working sizes?

No. On the socket-weld charts the MIN and MAX figures are inspection limits on the socket bore and outside diameter, not working dimensions. The socket is bored a controlled amount larger than the pipe so it can be fillet-welded; allow for the weld gap when you set out a run.

Is Vijay Sales Corporation an authorised DRP dealer?

Yes. Vijay Sales Corporation is an authorised DRP dealer and distributor. You can view our DRP dealership certificate, and every fitting carries the DRP trademark forged into the body.

Do you supply DRP forged fittings outside Delhi?

Yes. The range is held as ready stock at our Delhi warehouse and dispatched pan-India, typically in 2–6 days depending on location. Share your delivery city and PIN and we confirm the dispatch time with your quote.

Where can I see DRP forged fitting prices?

Current rates for every fitting and size are on the DRP MS forged fittings price list, alongside the terms and the downloadable PDF.

BUILD YOUR REQUIREMENT

Build Your DRP Requirement

Add each fitting, size and quantity to your list — we build one WhatsApp message for the whole requirement.

    No items yet — add fittings above to build your requirement.

    ABOUT THE AUTHOR

    Punya Gupta — COO, Vijay Sales Corporation

    Punya Gupta maintains Vijay Sales Corporation's technical pages and price lists, working from official manufacturer catalogues and live warehouse stock. Vijay Sales Corporation has traded industrial pipes, tubes and fittings from Delhi since 1961, and was named an Industry Outlook Top 10 Iron & Steel Distributor 2023 and 2024.

    Corporate Office 803, International Trade Tower, Nehru Place, New Delhi-110019  |  Works 3356 Hauz Qazi, Delhi-110006  |  GSTIN 07AAGPG5324D1Z6  |  Udyam UDYAM-DL-01-0005438  |  Industry Outlook Top 10 Distributor 2023 & 2024

    Authorised DRP Dealer & Distributor. Dimensions extracted from the official DRP forged fittings catalogue; standards per IS:1239 Pt-II / BS EN-10241 / ANSI B16.11; verified against stock at our Delhi warehouse. Maintained by Punya Gupta, COO.
