Exceed Cast Steel Valves — Gate, Globe, Check, Strainer, Safety & Ball
ASTM A216 WCB · Class 150 & 300 · Stocked & Supplied from Delhi by Vijay Sales Corporation
Cast steel gate valves, globe valves, swing check valves, Y strainers, spring loaded safety valves and ball valves from Exceed, all in ASTM A216 Gr. WCB, in Class 150 and Class 300. Built to API 600, BS 1873, BS 1868 and BS EN ISO 17292 with ASME B16.34, tested to API 598, flanged to ASME B16.5. A cast steel gate valve Class 150 is listed 25 NB to 600 NB.

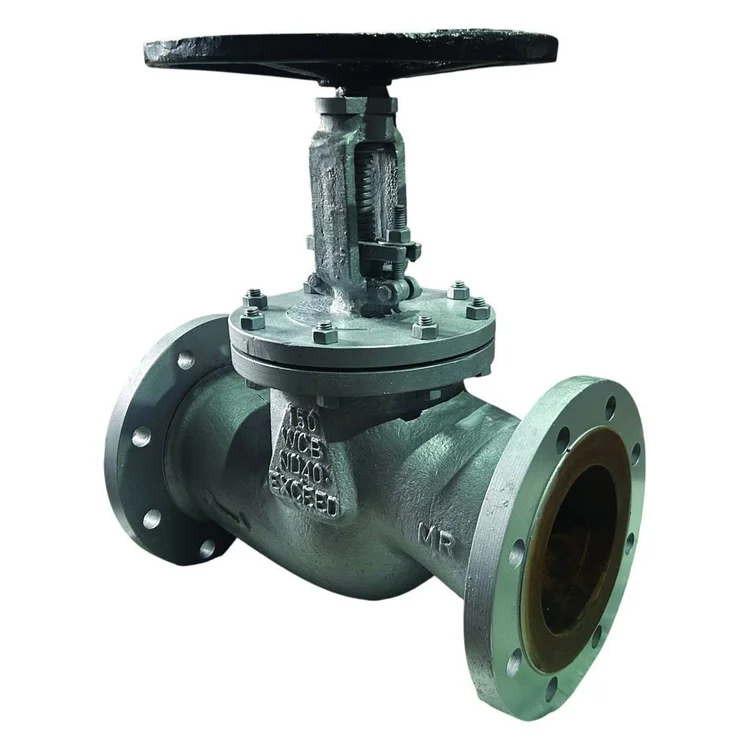

Exceed CS Globe Valve · BS 1873
Exceed cast steel globe valves are built to BS 1873 and ASME B16.34, flanged to ASME B16.5, face-to-face to ASME B16.10 and tested to API 598. Body and bonnet are ASTM A216 Gr. WCB; stem, plug and backseat are ASTM A276 Type 410; the seat is ASTM A53 with an SS410 (13% Cr) overlay; gland packing is graphite rings and the gasket is spiral wound SS304 with carbon filler, with handwheel and yoke in ASTM A536. Class 150 works at 19.6 bar and Class 300 at 51.1 bar, both at 38°C, to a maximum of 425°C.
Catalogue options — on enquiry: Electric actuation, bypass arrangement, extended spindle, stellite hardfacing.
View sizes & prices in the price list →| Class | Standard | End | Sizes with rates |
|---|---|---|---|
| Class 150# | BS 1873 / ASME B16.34 | Flanged, ASME B16.5 | 15 NB to 250 NB |
| Class 300# | BS 1873 / ASME B16.34 | Flanged, ASME B16.5 | 25 NB to 100 NB |
| Part | Material |
|---|---|
| Body & bonnet | ASTM A216 Gr. WCB |
| Stem, plug, backseat | ASTM A276 Type 410 |
| Seat | ASTM A53 with SS410 (13% Cr) overlay |
| Gland packing | Graphite rings |
| Gasket | Spiral wound SS304 with carbon filler |
| Handwheel & yoke | ASTM A536 |

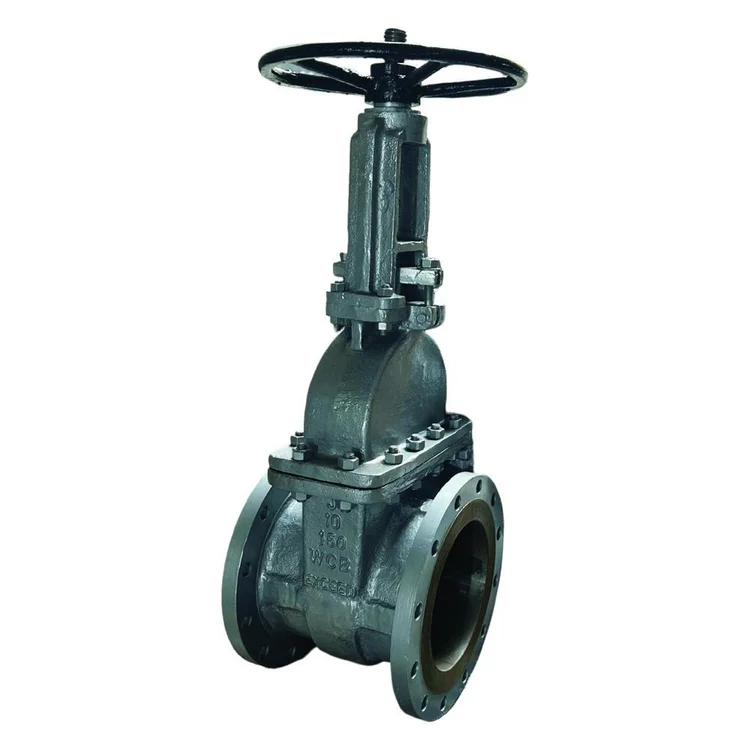

Exceed CS Gate Valve · API 600
Exceed cast steel gate valves are built to API 600 and ASME B16.34, flanged to ASME B16.5, face-to-face to ASME B16.10 and tested to API 598. Body and bonnet are ASTM A216 Gr. WCB; the wedge is ASTM A743 CA15 / A216 WCB with an SS410 (13% Cr) overlay; seat rings are ASTM A268 TP410 and the stem is ASTM A276 Type 410; gland packing is graphite rings and the gasket is spiral wound SS304 with carbon filler, with yoke and handwheel in ASTM A536. Class 150 works at 19.6 bar and Class 300 at 51.1 bar, both at 38°C, to a maximum of 425°C.
Catalogue options — on enquiry: Electric actuation, bypass arrangement, extended spindle, stellite hardfacing.
View sizes & prices in the price list →| Class | Standard | End | Sizes with rates |
|---|---|---|---|
| Class 150# | API 600 / ASME B16.34 | Flanged, ASME B16.5 | 25 NB to 600 NB |
| Class 300# | API 600 / ASME B16.34 | Flanged, ASME B16.5 | 25 NB to 250 NB |
| Part | Material |
|---|---|
| Body & bonnet | ASTM A216 Gr. WCB |
| Wedge | ASTM A743 CA15 / A216 WCB with SS410 (13% Cr) overlay |
| Seat rings | ASTM A268 TP410 |
| Stem | ASTM A276 Type 410 |
| Gland packing | Graphite rings |
| Gasket | Spiral wound SS304 with carbon filler |
| Yoke & handwheel | ASTM A536 |

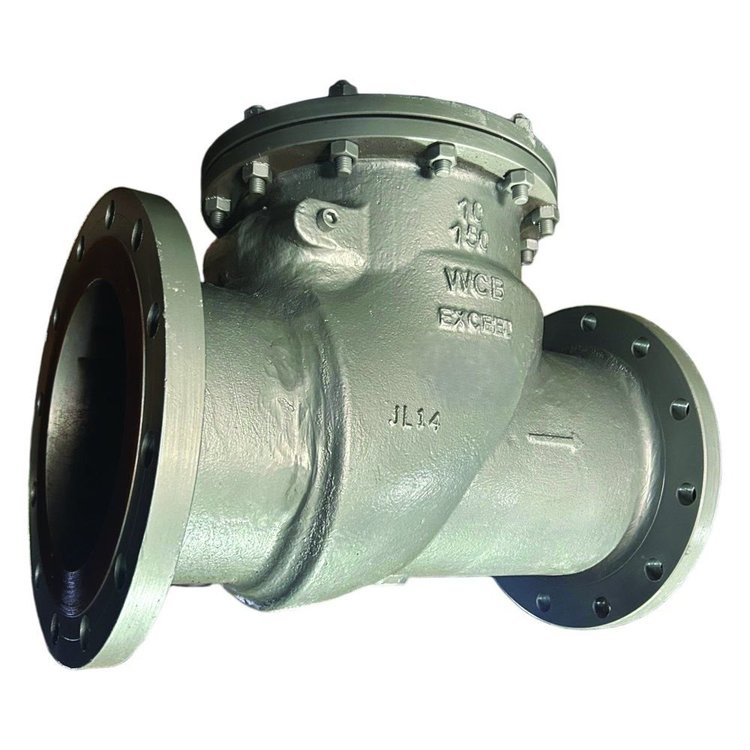

Exceed CS Swing Check Valve · BS 1868
Exceed cast steel swing check valves are built to BS 1868 and ASME B16.34, flanged to ASME B16.5, face-to-face to ASME B16.10 and tested to API 598. Body and lever are ASTM A216 Gr. WCB; the flap is ASTM A743 CA15 / A216 WCB with an SS410 (13% Cr) overlay; the seat ring is ASTM A268 TP410, the hinge pin ASTM A108 Gr. 1045 and the cover ASTM A36 / A216 WCB, with a spiral wound SS304 gasket with carbon filler. Class 150 works at 19.6 bar and Class 300 at 51.1 bar, both at 38°C, to a maximum of 425°C.
Catalogue options — on enquiry: Counterweight / hydraulic damper, bypass, stellite hardfacing.
View sizes & prices in the price list →| Class | Standard | End | Sizes with rates |
|---|---|---|---|
| Class 150# | BS 1868 / ASME B16.34 | Flanged, ASME B16.5 | 25 NB to 300 NB |
| Class 300# | BS 1868 / ASME B16.34 | Flanged, ASME B16.5 | 25 NB to 200 NB |
| Part | Material |
|---|---|
| Body & lever | ASTM A216 Gr. WCB |
| Flap | ASTM A743 CA15 / A216 WCB with SS410 (13% Cr) overlay |
| Seat ring | ASTM A268 TP410 |
| Hinge pin | ASTM A108 Gr. 1045 |
| Cover | ASTM A36 / A216 WCB |
| Gasket | Spiral wound SS304 with carbon filler |

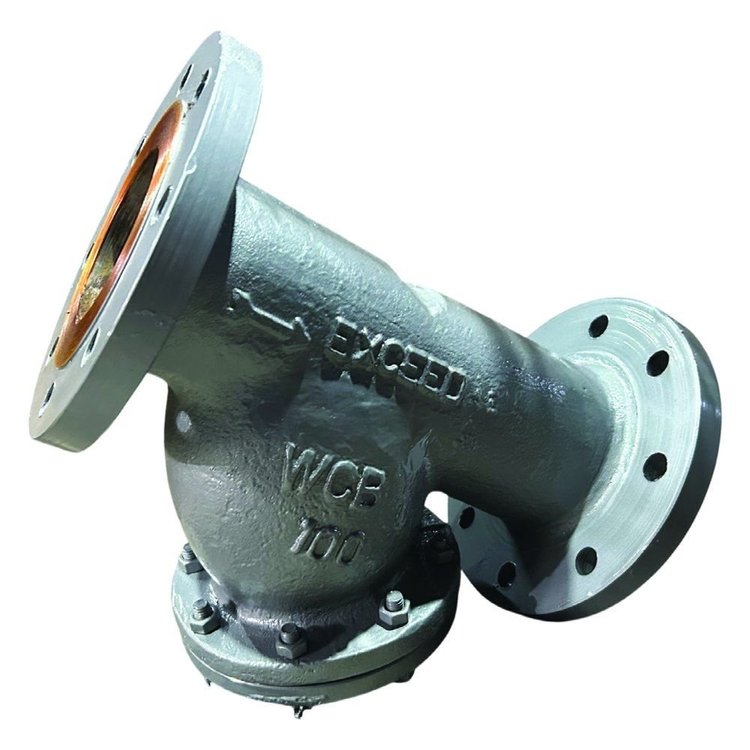

Exceed CS Y Strainer · Class 150
Exceed cast steel Y strainers are flanged to ASME B16.5 and tested to API 598. The body is ASTM A216 Gr. WCB and the cover ASTM A36 / A216 WCB, with a spiral wound SS304 gasket with carbon filler. The screen is SS304 double layer — a perforated base with an SS304 40-micron (325 mesh) inner lining. In Class 150 the working pressure is 19.6 bar with a shell test of 29.4 bar, to a maximum of 425°C.
Catalogue options — on enquiry: Custom mesh / perforation.
View sizes & prices in the price list →| Class | Standard | End | Sizes with rates |
|---|---|---|---|
| Class 150# | Testing API 598 | Flanged end, ASME B16.5 | 25 NB to 300 NB |
| Part | Material |
|---|---|
| Body | ASTM A216 Gr. WCB |
| Cover | ASTM A36 / A216 WCB |
| Screen | SS304 double layer — perforated base + SS304 40-micron (325 mesh) inner lining |
| Gasket | Spiral wound SS304 with carbon filler |

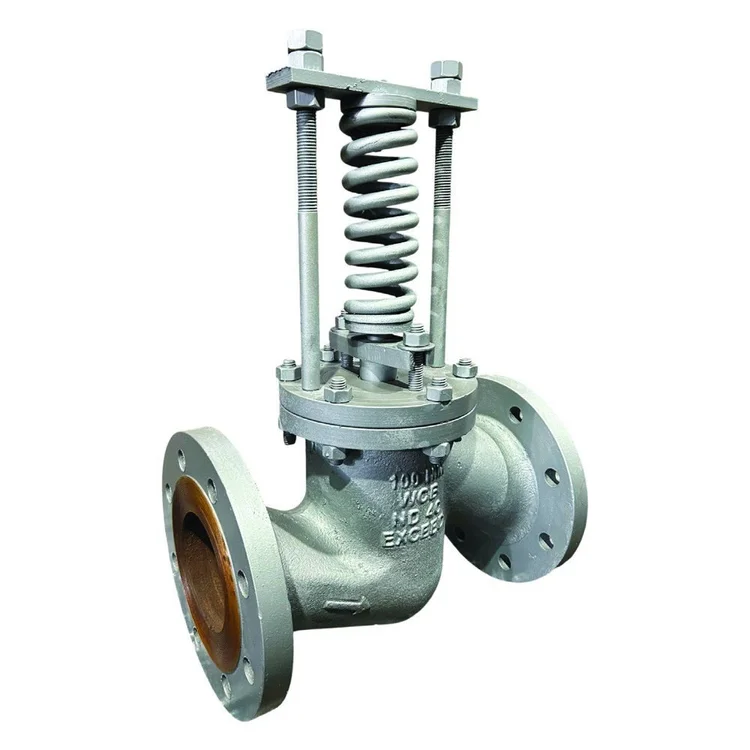

Exceed CS Safety Valve · ND-40
Exceed cast steel spring loaded safety valves are straight pattern and flanged ND-40, with flanges to BS EN 1092-1 PN40 / ASME B16.5 Class 150. The body is ASTM A216 Gr. WCB, the plate ASTM A36, stem and plug ASTM A276 Type 410, the seat ASTM A53 with an SS410 (13% Cr) overlay and the spring ASTM A229, with a graphite ring gland packing. Set pressure range 3 to 6 bar (adjustable).
View sizes & prices in the price list →| Class | Standard | End | Sizes with rates |
|---|---|---|---|
| ND-40 | Flanges BS EN 1092-1 PN40 / ASME B16.5 Class 150 | Flanged ND-40, BS EN 1092-1 PN40 / ASME B16.5 Class 150 | 25 NB to 100 NB |
| Part | Material |
|---|---|
| Body | ASTM A216 Gr. WCB |
| Plate | ASTM A36 |
| Stem & plug | ASTM A276 Type 410 |
| Seat | ASTM A53 with SS410 (13% Cr) overlay |
| Spring | ASTM A229 |
| Gland packing | Graphite ring |

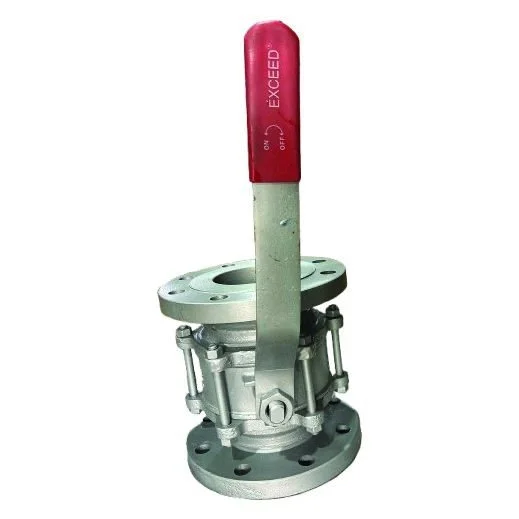

Exceed CS Ball Valve · ISO 17292
Exceed cast steel ball valves are built to BS EN ISO 17292 and ASME B16.34, flanged to ASME B16.5, face-to-face to ASME B16.10 and tested to API 598. The body is ASTM A216 Gr. WCB, the ball ASTM A351 Gr. CF20 and the stem ASTM A276 Type 202, with seat ring, stem seal and body seal in PTFE / CFT and an ASTM A36 handle. Class 150 works at 19.6 bar and Class 300 at 51.1 bar, both at 38°C. Max temperature 100°C.
Catalogue options — on enquiry: Pneumatic / electric actuation, extended spindle.
View sizes & prices in the price list →| Class | Standard | End | Sizes with rates |
|---|---|---|---|
| Class 150# | BS EN ISO 17292 / ASME B16.34 | Flanged, ASME B16.5 | 15 NB to 200 NB |
| Class 300# | BS EN ISO 17292 / ASME B16.34 | Flanged, ASME B16.5 | 25 NB to 100 NB |
| Part | Material |
|---|---|
| Body | ASTM A216 Gr. WCB |
| Ball | ASTM A351 Gr. CF20 |
| Stem | ASTM A276 Type 202 |
| Seat ring, stem seal, body seal | PTFE / CFT |
| Handle | ASTM A36 |
Dimensions · all figures in mm
Face-to-face dimensions
Face-to-face is the length of a valve measured from one flange face to the other. It is the gap the valve occupies in the pipeline, so it is the figure needed to set flange positions on a new line and to check that a replacement valve will fit an existing one. Exceed gate, globe, swing check and ball valves follow ASME B16.10. The figures below are taken from the manufacturer’s catalogue.
Globe valve
DN 15 to DN 300 · ASME B16.10| DN | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class 150 | 108 | 118 | 127 | 165.1 | 203 | 216 | 241 | 292 | 356 | 406 | 495 | 622 | 698 |
| Class 300 | 152 | 178 | 203 | 229 | 267 | 292 | 317.5 | 356 | 400 | 444.5 | 559 | 622 | 711 |
Gate valve
DN 15 to DN 600 · ASME B16.10| DN | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class 150 | 108 | 118 | 127 | 165.1 | 177.8 | 190.5 | 203.2 | 228.6 | 254 | 266.7 | 292.1 | 330.2 | 355.6 | 381 | 406.4 | 432 | 457 | 508 |
| Class 300 | 140 | 152 | 165 | 190.5 | 215.9 | 241.3 | 282.5 | 304.8 | 381 | 403.2 | 419.1 | 457.2 | 501.6 | 762 | 838.2 | 914 | 991 | 1143 |
Swing check valve
DN 25 to DN 600 · ASME B16.10| DN | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class 150 | 127 | 165.1 | 203 | 216 | 241 | 292 | 330 | 356 | 495 | 622 | 699 | 787 | 864 | 978 | 978 | 1295 |
| Class 300 | 203 | 241 | 266.7 | 292 | 317.5 | 355.6 | 400 | 444.5 | 533 | 622 | 711 | 838 | 863 | — | — | — |
Y strainer
DN 25 to DN 350 · Class 150| DN | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length | 160 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 622 | 698 | 787 |
Safety valve
DN 25 to DN 200 · ND-40| DN | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
|---|---|---|---|---|---|---|---|---|---|
| Length | 160 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 |
Ball valve
DN 15 to DN 250 · ASME B16.10| DN | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Class 150 | 108 | 118 | 127 | 165 | 178 | 191 | 203 | 229 | 254 | 267 | 292 | 330 |
| Class 300 | 140 | 152 | 165 | 190.5 | 216 | 241 | 282.5 | 305 | 381 | 403 | 419 | 457 |
Dimension tables are from the manufacturer's catalogue and cover the catalogue range; sizes with current rates are on the price list.
Pressure, testing & standards
Pressure and test figures below are for the ASTM A216 Gr. WCB build.
| Class 150 | Class 300 | |
|---|---|---|
| Working pressure at 38°C | 19.6 bar | 51.1 bar |
| Shell test | 29.4 bar | 76.7 bar |
| High-pressure closure test (water) | 21.6 bar | 56.2 bar |
| Low-pressure closure test (air) | 7 bar | 7 bar |
Maximum temperature is 425°C for globe, gate, swing check and Y strainer. The ball valve is rated to 100°C. The Y strainer in Class 150 works at 19.6 bar with a shell test of 29.4 bar. The safety valve is adjustable over a set pressure range of 3 to 6 bar.
| Family | Design | Testing | Face-to-face | Flanges |
|---|---|---|---|---|
| Globe | BS 1873 / ASME B16.34 | API 598 | ASME B16.10 | ASME B16.5 |
| Gate | API 600 / ASME B16.34 | API 598 | ASME B16.10 | ASME B16.5 |
| Swing check | BS 1868 / ASME B16.34 | API 598 | ASME B16.10 | ASME B16.5 |
| Y strainer | — | API 598 | — | ASME B16.5 |
| Ball | BS EN ISO 17292 / ASME B16.34 | API 598 | ASME B16.10 | ASME B16.5 |
| Safety | — | — | — | BS EN 1092-1 PN40 / ASME B16.5 Class 150 |
About Exceed — Accord Engineers
Exceed is the valve brand of Accord Engineers, Ahmedabad, Gujarat, founded in 1995. The quality system is certified to ISO 9001:2015 and the firm is MSME registered.
Machining, lapping, welding, assembly, pressure testing and painting are all done in house. Heat numbers are recorded against materials and valves, and linked to inspection and testing records.
The cast steel range on this page is built in ASTM A216 Gr. WCB.
Supplied by Vijay Sales Corporation
Vijay Sales Corporation is a stockist & supplier of Exceed valves in Delhi, established 1961.
| Corporate Office | 803, International Trade Tower, Nehru Place, New Delhi-110019 |
| Works | 3356 Hauz Qazi, Delhi-110006 |
| GSTIN | 07AAGPG5324D1Z6 |
| Udyam | UDYAM-DL-01-0005438 |
| +91-9999889008 | |
| sales@vijaysalescorp.com |
Frequently Asked Questions
Who manufactures Exceed valves?
Exceed valves are made by Accord Engineers, Ahmedabad, Gujarat, founded in 1995. The quality system is certified to ISO 9001:2015.
Which standards are Exceed valves made to?
Globe valves are built to BS 1873, gate valves to API 600, swing check valves to BS 1868 and ball valves to BS EN ISO 17292, all with ASME B16.34. All are tested to API 598.
What is the pressure rating of Class 150 and Class 300 in WCB?
In ASTM A216 Gr. WCB the working pressure is 19.6 bar for Class 150 and 51.1 bar for Class 300, both at 38°C.
What is the maximum temperature?
425°C for gate, globe, swing check and Y strainer. The ball valve is rated to 100°C.
What test pressures are applied?
Class 150 is shell tested at 29.4 bar with a high-pressure closure test at 21.6 bar. Class 300 is shell tested at 76.7 bar with a high-pressure closure test at 56.2 bar. The low-pressure closure test is 7 bar of air in both classes.
What is the body and trim material?
The body is ASTM A216 Gr. WCB. The seat carries an SS410 (13% Cr) overlay, and the stem on gate and globe valves is ASTM A276 Type 410.
What is the face-to-face length of a 100 NB Class 150 gate valve?
228.6 mm, to ASME B16.10. The full face-to-face table for every family is on this page.
What flange standard do they follow?
ASME B16.5. The safety valve uses BS EN 1092-1 PN40 / ASME B16.5 Class 150.
What screen does the Y strainer have?
An SS304 double layer screen: a perforated base with an SS304 40-micron (325 mesh) inner lining.
What is the set pressure of the safety valve?
The spring loaded safety valve is adjustable over a set pressure range of 3 to 6 bar.
What sizes are available?
Globe 15 NB to 250 NB in Class 150 and 25 NB to 100 NB in Class 300. Gate 25 NB to 600 NB in Class 150 and 25 NB to 250 NB in Class 300. Swing check 25 NB to 300 NB in Class 150 and 25 NB to 200 NB in Class 300. Y strainer 25 NB to 300 NB in Class 150. Safety valve 25 NB to 100 NB in ND-40. Ball 15 NB to 200 NB in Class 150 and 25 NB to 100 NB in Class 300.
Where can I see prices?
Net selling rates for every size are published on the Exceed valves price list page on this site.
