DRP MS Forged Pipe Fittings Price List 2026 — 1000 LBS & 3000 LBS
LIST prices · per piece · Ex-Delhi Warehouse · GST 18% extra
Vijay Sales Corporation is an authorised DRP dealer and distributor for DRP MS forged pipe fittings — drop-forged steel fittings made to both Indian standards, 1000 LBS threaded to IS:1239 (Part-II) and 3000 LBS socket weld to IS:4712 / ANSI B16.11. Ready stock is held at our Delhi warehouse and supplied across India.
MS forged pipe fittings are made by drop-forging solid steel billet into shape, giving a dense, grain-following body far stronger than a cast fitting for the same wall. This price list covers the full DRP forged steel range that Vijay Sales Corporation stocks in Delhi, in two working classes. The 1000 LBS threaded class has BSP threads and screws onto steel pipe so joints can be opened again with hand tools. The 3000 LBS socket weld class drops the pipe into a deep socket and is fillet-welded for a heavier-wall, permanent, leak-free joint.
Between the two classes the list runs every common pattern: elbow, tee, socket, union, reducing elbow, reducing tee, reducing socket, male/female elbow, reducing bush, plug, hex nipple, reducing hex nipple, hydraulic nipple, reducing hydraulic nipple, cross, reducing cross and 45° elbow, plus the socket-weld elbow, tee, union, socket, cross and their reducing variants. Every rate below is a list price, per piece, ex-Delhi. Full dimensional charts for each fitting are on the DRP MS forged fittings specifications page.
1000 LBS THREADED · IS:1239 (PART-II) 2011 / BS EN-10241:2000
1000 LBS Threaded Fittings — 17 Items × 12 Sizes
List prices per piece, ex-Delhi warehouse. GST 18% extra; discount on requirement.
| Fitting Type | 6MM | 8MM | 10MM | 15MM | 20MM | 25MM | 32MM | 40MM | 50MM | 65MM | 80MM | 100MM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1.1/4" | 1.1/2" | 2" | 2.1/2" | 3" | 4" | |

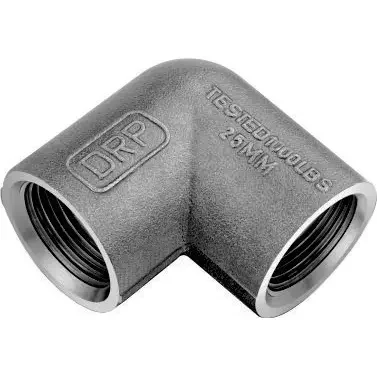

| DRP MS Forged Elbow Threaded — 1000 LBS | Rs. 56 | Rs. 56 | Rs. 73 | Rs. 98 | Rs. 151 | Rs. 231 | Rs. 473 | Rs. 626 | Rs. 1,170 | Rs. 2,374 | Rs. 3,707 | — |

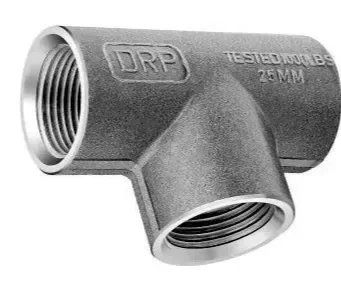

| DRP MS Forged Tee Threaded — 1000 LBS | Rs. 83 | Rs. 83 | Rs. 100 | Rs. 140 | Rs. 197 | Rs. 315 | Rs. 626 | Rs. 835 | Rs. 1,476 | Rs. 3,846 | Rs. 6,011 | — |

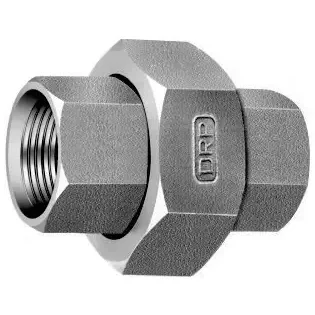

| DRP MS Forged Union Threaded — 1000 LBS | Rs. 130 | Rs. 130 | Rs. 142 | Rs. 178 | Rs. 223 | Rs. 329 | Rs. 568 | Rs. 712 | Rs. 1,128 | Rs. 3,409 | Rs. 4,426 | — |
| DRP MS Forged Socket Threaded — 1000 LBS | Rs. 19 | Rs. 19 | Rs. 25 | Rs. 46 | Rs. 51 | Rs. 85 | Rs. 129 | Rs. 162 | Rs. 279 | Rs. 530 | Rs. 584 | Rs. 823 |

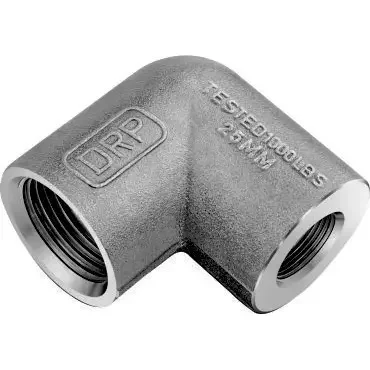

| DRP MS Forged Reducing Elbow (Equal O.D.) — 1000 LBS | — | Rs. 61 | Rs. 77 | Rs. 108 | Rs. 166 | Rs. 260 | Rs. 520 | Rs. 697 | Rs. 1,292 | Rs. 2,742 | Rs. 4,286 | — |

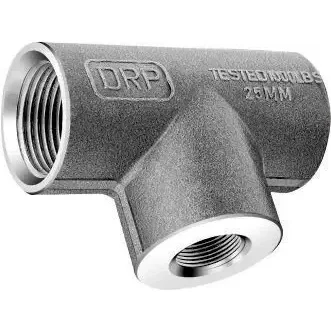

| DRP MS Forged Reducing Tee (Equal O.D.) — 1000 LBS | — | Rs. 98 | Rs. 117 | Rs. 152 | Rs. 223 | Rs. 351 | Rs. 697 | Rs. 929 | Rs. 1,628 | Rs. 4,419 | Rs. 6,913 | — |
| DRP MS Forged Reducing Socket (Equal O.D.) — 1000 LBS | — | Rs. 17 | Rs. 21 | Rs. 46 | Rs. 58 | Rs. 110 | Rs. 163 | Rs. 199 | Rs. 346 | Rs. 724 | Rs. 787 | — |

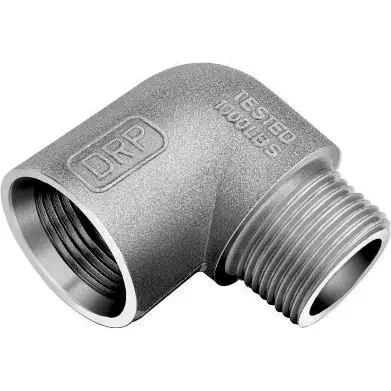

| DRP MS Forged Elbow (Male/Female) — 1000 LBS | — | Rs. 78 | Rs. 101 | Rs. 138 | Rs. 209 | Rs. 314 | Rs. 609 | Rs. 825 | Rs. 1,484 | Rs. 3,362 | Rs. 4,530 | — |
| DRP MS Forged Reducing Bush — 1000 LBS | — | Rs. 16 | Rs. 17 | Rs. 19 | Rs. 31 | Rs. 52 | Rs. 126 | Rs. 151 | Rs. 293 | Rs. 808 | Rs. 1,141 | — |
| DRP MS Forged Plug — 1000 LBS | Rs. 10 | Rs. 11 | Rs. 15 | Rs. 19 | Rs. 32 | Rs. 50 | Rs. 75 | Rs. 98 | Rs. 165 | Rs. 432 | Rs. 648 | — |
| DRP MS Forged Hex Nipple — 1000 LBS | Rs. 19 | Rs. 19 | Rs. 22 | Rs. 37 | Rs. 53 | Rs. 76 | Rs. 129 | Rs. 158 | Rs. 280 | Rs. 984 | Rs. 1,390 | — |
| DRP MS Forged Reducing Hex Nipple — 1000 LBS | — | Rs. 23 | Rs. 25 | Rs. 39 | Rs. 52 | Rs. 95 | Rs. 177 | Rs. 212 | Rs. 427 | — | — | — |

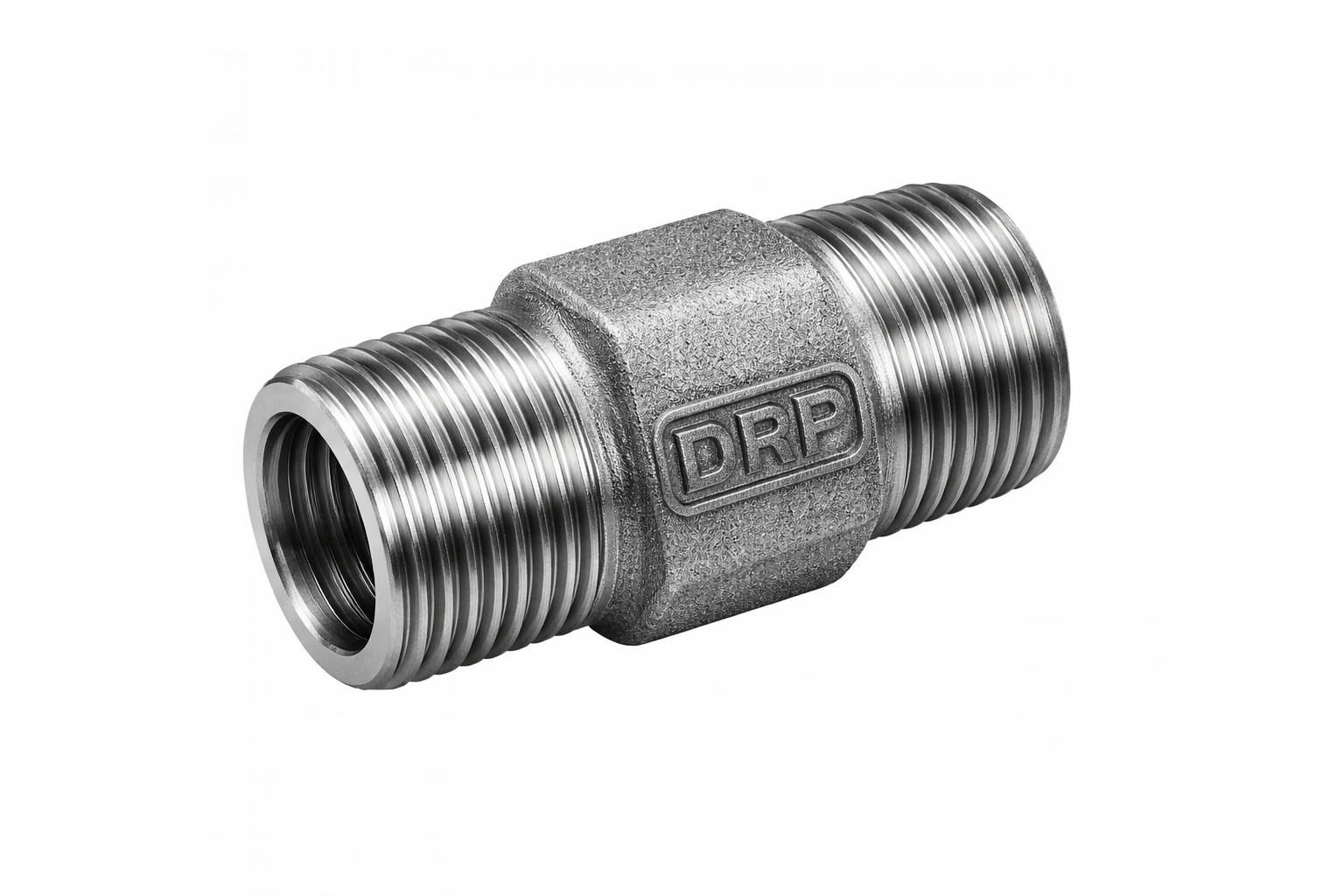

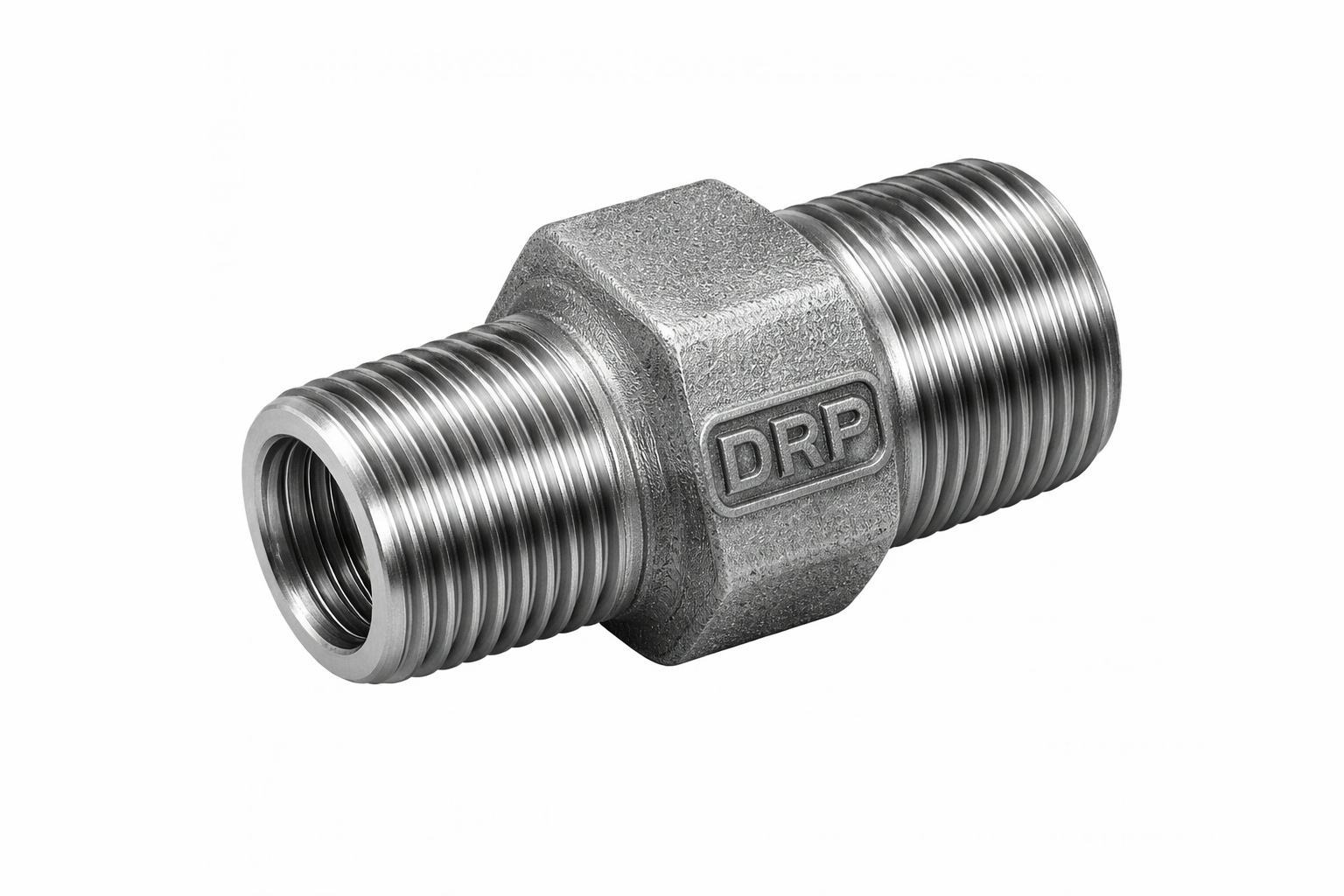

| DRP MS Forged Nipple (Hydraulic) — 1000 LBS | — | Rs. 50 | Rs. 50 | Rs. 70 | Rs. 84 | Rs. 118 | Rs. 317 | Rs. 431 | Rs. 790 | — | — | — |
| DRP MS Forged Reducing Nipple (Hydraulic) — 1000 LBS | — | Rs. 58 | Rs. 58 | Rs. 86 | Rs. 106 | Rs. 146 | Rs. 395 | Rs. 539 | Rs. 988 | — | — | — |
| DRP MS Forged Cross — 1000 LBS | — | Rs. 193 | Rs. 204 | Rs. 223 | Rs. 323 | Rs. 550 | Rs. 1,149 | Rs. 1,503 | Rs. 2,589 | — | — | — |
| DRP MS Forged Reducing Cross — 1000 LBS | — | Rs. 211 | Rs. 225 | Rs. 247 | Rs. 356 | Rs. 606 | Rs. 1,264 | Rs. 1,651 | Rs. 2,847 | — | — | — |
| DRP MS Forged Elbow 45° — 1000 LBS | — | — | — | Rs. 139 | Rs. 222 | Rs. 354 | Rs. 592 | Rs. 783 | Rs. 1,463 | — | — | — |
All rates in Rs. per piece. "—" indicates size not offered. NPT & BSPT threading 20% extra · Hot Galvanised 25% extra · Bombay Polish 15% extra · DRP Steel Cap Socket 10% extra.
3000 LBS SOCKET WELD · IS:4712-2011 / ANSI B16.11
3000 LBS Socket Weld Fittings — 10 Items
List prices per piece, ex-Delhi warehouse. GST 18% extra; discount on requirement.
| Fitting Type | 6MM | 8MM | 10MM | 15MM | 20MM | 25MM | 32MM | 40MM | 50MM | 65MM | 80MM | 100MM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1.1/4" | 1.1/2" | 2" | 2.1/2" | 3" | 4" | |
| DRP Steel Elbow Forged S.W. — 3000 LBS | — | Rs. 101 | Rs. 111 | Rs. 111 | Rs. 166 | Rs. 267 | Rs. 471 | Rs. 624 | Rs. 1,146 | Rs. 2,374 | Rs. 3,707 | — |
| DRP Steel Reducing Elbow S.W. — 3000 LBS | — | Rs. 111 | Rs. 123 | Rs. 123 | Rs. 183 | Rs. 293 | Rs. 517 | Rs. 685 | Rs. 1,262 | Rs. 2,612 | Rs. 4,077 | — |
| DRP Steel Tee Forged S.W. — 3000 LBS | — | Rs. 135 | Rs. 150 | Rs. 152 | Rs. 223 | Rs. 348 | Rs. 623 | Rs. 821 | Rs. 1,459 | Rs. 3,843 | Rs. 6,010 | — |
| DRP Steel Reducing Tee S.W. — 3000 LBS | — | Rs. 150 | Rs. 165 | Rs. 166 | Rs. 247 | Rs. 383 | Rs. 684 | Rs. 904 | Rs. 1,604 | Rs. 4,226 | Rs. 6,611 | — |
| DRP Steel Union Forged S.W. — 3000 LBS | — | Rs. 235 | Rs. 235 | Rs. 250 | Rs. 428 | Rs. 636 | Rs. 1,060 | Rs. 1,281 | Rs. 1,837 | — | — | — |
| DRP Steel Socket Forged S.W. — 3000 LBS | — | Rs. 35 | Rs. 47 | Rs. 60 | Rs. 96 | Rs. 121 | Rs. 214 | Rs. 264 | Rs. 442 | Rs. 918 | Rs. 1,208 | Rs. 1,712 |
| DRP Steel Reducing Socket S.W. — 3000 LBS | — | Rs. 43 | Rs. 58 | Rs. 75 | Rs. 121 | Rs. 152 | Rs. 269 | Rs. 332 | Rs. 551 | Rs. 1,146 | Rs. 1,507 | Rs. 2,200 |
| DRP Steel Cross Forged S.W. — 3000 LBS | — | Rs. 211 | Rs. 225 | Rs. 247 | Rs. 355 | Rs. 606 | Rs. 1,264 | Rs. 1,651 | Rs. 2,847 | — | — | — |
| DRP Steel Reducing Cross S.W. — 3000 LBS | — | Rs. 233 | Rs. 248 | Rs. 270 | Rs. 391 | Rs. 668 | Rs. 1,390 | Rs. 1,816 | Rs. 3,131 | — | — | — |
| DRP Steel Elbow 45° S.W. — 3000 LBS | — | — | — | Rs. 160 | Rs. 242 | Rs. 387 | Rs. 682 | Rs. 904 | Rs. 1,452 | — | — | — |
All rates in Rs. per piece. "—" indicates size not offered. NPT & BSPT threading 20% extra · Hot Galvanised 25% extra · Bombay Polish 15% extra.
BUYING GUIDE
Choosing the Right Forged Fitting
Class, pattern and the small parts, in plain terms.
1000 LBS threaded vs 3000 LBS socket-weld
Pick 1000 LBS threaded where a line stays serviceable and may be opened again — small-bore water, compressed air, instrument tap-offs and utility runs that need no welder on site. Pick 3000 LBS socket-weld where the joint is welded and permanent, for higher-pressure steam, hydraulic and process lines that will be tested once and left. The class number is the manufacturer hydro-test pressure, not a fixed working limit.
Straight vs reducing fittings
A straight elbow, tee or socket keeps one bore right through. A reducing pattern steps the line down to a smaller branch or run. DRP reducing elbows, tees and sockets here are Equal O.D. items, priced by the listed nominal size rather than by each end combination — so confirm both ends when you order and we match the exact piece.
Nipples, plugs and bushes decoded
A hex nipple is a short male-male connector with a hex centre for a spanner; the hydraulic nipple is a longer-barrel pattern that seals differently and is quoted by name. A reducing nipple joins two different sizes. To close a line, a plug shuts a female opening, while a reducing bush steps a female thread down to a smaller male — the two are not interchangeable.
DROP-FORGED STEEL
DRP MS Forged Fittings Range
The DRP forged steel range, photographed at our Delhi warehouse.
Elbow 45° and the full 3000 LBS socket-weld range are also ex-stock — rates above.
Need dimensions?
Full dimensional charts for every DRP forged fitting — centre-to-face, body OD and socket-weld min/max, extracted from the DRP catalogue.
WHERE THEY ARE USED
Applications
Where DRP MS forged fittings are commonly used.
Oil & gas lines
Small-bore process, sampling and utility connections on plant piping.
Fire-fighting mains
Hydrant branches, sprinkler sub-mains and hose-reel take-offs.
Steam & condensate
Steam traps, drip legs and condensate return on medium-pressure lines.
Compressed air & pneumatics
Workshop ring mains, drops and tool points that must not leak.
Hydraulic lines
High-pressure hydraulic power packs and press circuits — socket-weld class.
HVAC & industrial utility
Chilled water, instrument air and general utility piping in plant rooms.
BRAND & SUPPLY
DRP Malleables Pvt. Ltd. — ISO 9001:2015
Certified forged-fitting manufacturer, stocked and supplied by Vijay Sales Corporation.
DRP MS forged fittings are manufactured by DRP Malleables Pvt. Ltd. in Jalandhar, an ISO 9001:2015 certified forgings maker, and drop-forged from steel for a dense grain-following body. Vijay Sales Corporation is an authorised DRP dealer and distributor, holding ready stock at our Delhi warehouse and supplying across India. Read about DRP on the specifications page →
RELATED RANGES
Related Ranges
Specifications and other ranges stocked at our Delhi warehouse.
DRP MS Forged Fittings — Specifications →
Dimensional charts for the 1000 LBS & 3000 LBS ranges.
Jindal Hissar Price List →
MS & GI pipes these fittings thread onto.
VS Fittings Price List →
GI & MI threaded fittings — full rate matrix.
Butt-Welded Fittings Price List →
Elbows, tees, reducers & caps for welded lines.
TERMS OF SALE
Pricing & Terms
How rates, discount and dispatch work.
- Discount on LIST PRICE of DRP MS Forged Fittings: 55% (subject to requirement) — for your net landed rate, WhatsApp 9999889008 or email sales@vijaysalescorp.com.
- NPT & BSPT threading 20% extra; Hot Galvanised 25% extra; Bombay Polish 15% extra; DRP Steel Cap Socket 10% extra.
- Rates are per piece, Ex-Delhi Warehouse; cartage & freight extra at actual.
- GST @ 18% extra.
- Ruling price at the time of despatch shall be applicable.
- Prices subject to change without notice.
DRP MS forged fittings, 6mm to 100mm, in both 1000 LBS threaded and 3000 LBS socket-weld classes — ready stock at our Delhi warehouse, dispatched pan-India in 2–6 days. Same-day quotation on WhatsApp.
WhatsApp for Net RatesQUESTIONS & ANSWERS
MS Forged Pipe Fittings — FAQ
Common questions on DRP forged fitting prices, classes and sizes.
What is the difference between 1000 LBS and 3000 LBS forged fittings?
1000 LBS fittings are threaded, with BSP threads to IS:1239 (Part-II), so they screw onto steel pipe and can be opened again with hand tools — used on serviceable water, air and instrument lines. 3000 LBS fittings are socket weld to IS:4712 / ANSI B16.11 — the pipe drops into a deep socket and is fillet-welded for a heavier-wall, permanent, leak-free joint on higher-pressure steam, hydraulic and process lines. The number is the manufacturer hydro-test pressure, not a hard working-pressure limit.
What is the price of a 1/2" MS forged elbow?
The DRP 1/2" (15mm) MS forged elbow in the 1000 LBS threaded class is Rs. 98 per piece at list price, GST 18% extra. The 3/4" elbow is Rs. 151 and the 1" is Rs. 231. A 55% discount applies subject to requirement.
What is the price of a 1" MS forged socket?
The DRP 1" (25mm) MS forged socket, 1000 LBS threaded, is Rs. 85 per piece at list price. The 1/2" socket is Rs. 46 and the 2" is Rs. 279. Socket-weld sockets in the 3000 LBS class are priced separately in the second matrix above.
What are the types of MS forged pipe fittings?
The 1000 LBS threaded range covers elbow, tee, union, socket, reducing elbow, reducing tee, reducing socket, male/female elbow, reducing bush, plug, hex nipple, reducing hex nipple, hydraulic nipple, reducing hydraulic nipple, cross, reducing cross and 45° elbow — 17 items. The 3000 LBS socket-weld range adds elbow, reducing elbow, tee, reducing tee, union, socket, reducing socket, cross, reducing cross and 45° elbow — 10 items. All 27 are in the matrices above.
What standard are MS forged threaded fittings made to?
DRP 1000 LBS threaded fittings are made to IS:1239 (Part-II) 2011 / BS EN-10241:2000, with BSP threads. The 3000 LBS socket-weld fittings are made to IS:4712-2011 / ANSI B16.11. Both are drop-forged from steel and dispatched with the manufacturer's test certificate.
Is Vijay Sales Corporation an authorised DRP dealer?
Yes. Vijay Sales Corporation is an authorised DRP dealer and distributor. You can view our DRP dealership certificate and buy genuine DRP forged fittings from ready stock at our Delhi warehouse.
Is discount available on DRP list prices?
Yes. A discount of 55% on the DRP list price is available, subject to requirement (quantity and mix). Message us on WhatsApp 9999889008 or email sales@vijaysalescorp.com for your net landed rate.
Are galvanised or NPT-threaded forged fittings available?
Yes, as extras on the list rate: NPT & BSPT threading is 20% extra, hot galvanising 25% extra, Bombay polish 15% extra, and a DRP steel cap socket 10% extra. Specify the finish and threading when you send your requirement.
Do you supply outside Delhi?
Yes. DRP forged fittings are held as ready stock at our Delhi warehouse and dispatched pan-India, typically in 2–6 days depending on location. Freight and cartage are extra at actual; share your delivery city and PIN for a landed quote.
What is the difference between forged and malleable GI fittings?
Forged steel fittings are drop-forged from solid billet for a dense, high-pressure body used on steam, hydraulic and process lines. Malleable GI fittings are cast and galvanised for corrosion-resistant water and gas lines at lower pressure. For the GI range see our UNIK GI fittings price list.
BUILD YOUR REQUIREMENT
Build Your DRP Requirement
Add each fitting, size and quantity to your list — we build one WhatsApp message for the whole requirement.
No items yet — add fittings above to build your requirement.
