DI Fittings vs Forged Fittings
Ductile-iron and forged-steel pipe fittings sit in different pressure-temperature envelopes, use different joint methods and follow different standards. This guide explains where each one belongs — material, manufacturing route, IS and ASME standards, end connections, approvals including UL Listed / FM Approved for fire-protection grade DI, cost ratio and a selection decision tree. Sourced from manufacturer catalogues and IS/ASME standards by Vijay Sales Corporation, India's pipeline products distributor since 1961.
DI vs Forged — the technical comparison
Eleven attributes that determine which family belongs on your line. Specifics are taken from IS 1538, IS 1879, IS 9523, ISO 2531, ASME B16.11 and MSS SP-83.
| Attribute | DI Fittings | Forged Fittings |
|---|---|---|
| Material | Ductile (spheroidal-graphite) iron — ISO 1083 grade 450-10 or 500-7. Sant DI specifically to ASTM A536. | Carbon & low-temperature steel ASTM A105 · A350 LF2 · A106; stainless & low-alloy ASTM A182 F304 / F304L / F316 / F316L / F317L / F321 / F11 / F22 / F91 |
| Manufacturing route | Sand casting with magnesium treatment (spheroidising) to produce nodular graphite — gives ductility absent in grey iron | Hot forging from billet — produces directional grain flow, no internal porosity, higher fatigue strength |
| Primary Indian standards | IS 9523 (DI pressure pipes, water & sewage), IS 1538 (CI/DI flanged for water, gas, sewage), IS 1879 (malleable threaded) |
IS:1239 Pt 2:2011 (1000 lbs threaded), IS:4712:2011 (3000 & 6000 lbs). |
| Primary international standards | ISO 2531 (DI for water mains). Sant DI specifically to ASME B16.3 (threaded dimensions), B16.14 (bushings & plugs), B16.39 (unions). |
ASME B16.11-2011 (2000 to 6000 lbs threaded + socket-weld), BS EN 10241:2000 (1000 lbs threaded), MSS SP-83 (3000/6000 lbs size envelope), ASME B16.9 (butt-weld wrought) |
| Pressure rating | PN10, PN16, PN25 on flanged products; socket-spigot rated by IS 9523 K-class | 1000# · 2000# · 3000# · 6000#. 1000# & 2000# threaded only · 3000# & 6000# threaded + socket-weld |
| Working temperature | 0 to 60°C continuous (potable water IS 9523); EPDM-gasket envelope to 80°C in HVAC | A105: -29°C to 425°C · F304/F316: -196°C to 815°C (per ASME B31.3) |
| Typical size range | DN50 to DN700+ (2" to 28") — flanged and socket-spigot | NPS 1/8" to 4" (DN6 to DN100) per ASME B16.11 |
| End connections | Flanged (PN drilling per IS 1538 or EN 1092-2), socket & spigot, mechanical joint, threaded (Sant DI 1/2" to 4" threaded) | Socket-weld; threaded NPT, BSPT or BSP (per ASME B1.20.1 / ISO 7-1); butt-weld if wrought B16.9 |
| Conformity marks & approvals | BIS ISI mark; UL Listed / FM Approved range for fire-protection service (Sant DI) | Mill test certificate to EN 10204 3.1 supplied with dispatch on request. |
| Cost ratio (same DN, indicative) | Baseline — 1× | CS forged: 2–4× DI · SS F304/F316 forged: 4–8× DI |
| Primary services | Water mains, sewage, fire-fighting wet riser, hydrant network, HVAC chilled / condenser water, low-pressure utility | Steam, boiler feedwater, hot oil, fuel gas, hydraulic, process piping, instrument tap-offs, skid-mounted utility |

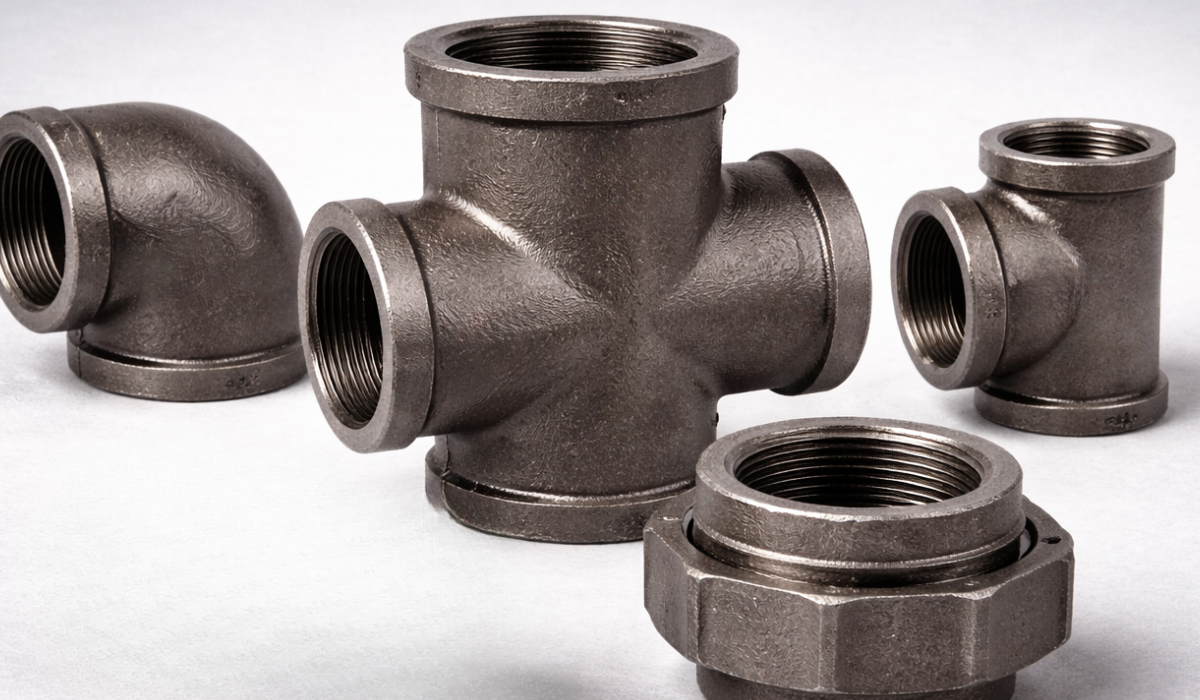

What are DI fittings?
Ductile-iron (DI) fittings are sand-cast in iron treated with magnesium during pouring. The magnesium converts the graphite flakes of grey iron into spherical nodules — the result is an iron with the castability of grey iron and the ductility (and impact strength) of mild steel. That combination makes DI the default material for buried water mains, sewerage, fire-fighting wet risers and large-bore HVAC.
Indian standards applicable to DI fittings generally: IS 9523 (DI fittings for water & sewage, socket-spigot or flanged) · IS 1538 (CI/DI flanged for water, gas, sewage — PN drilling) · IS 1879 (malleable cast-iron threaded, small bore) · ISO 2531 (international DI for water mains). Conformity by BIS ISI mark.
Sant DI specifically: Ductile iron to ASTM A536; threaded dimensions to ASME B16.3; bushings & plugs to ASME B16.14; union dimensions to ASME B16.39; threads to ASME B1.20.1 / ISO 7-1. Sizes 1/2" to 4". UL Listed and FM Approved for fire-protection service.
Where DI is specified
- Buried water mains and distribution networks
- Sewerage and storm-water lines
- Fire-fighting wet risers and hydrant networks per NBC 2016 Part 4
- Large-bore HVAC chilled and condenser-water loops
DI brands we stock

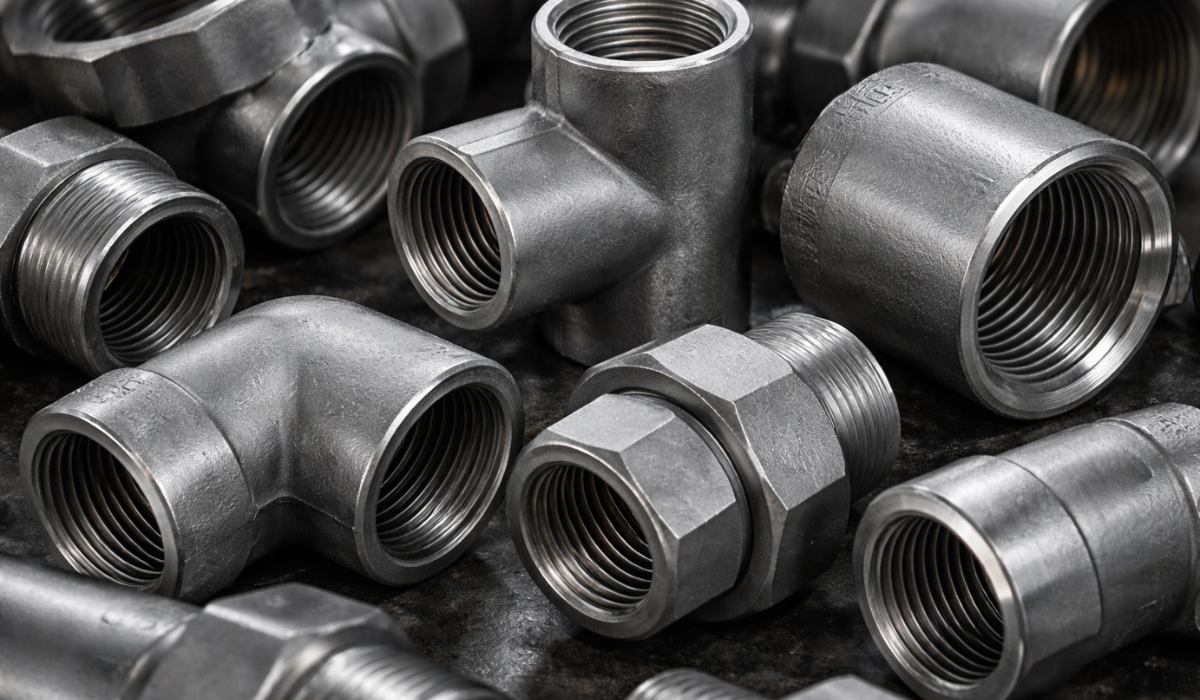

What are forged fittings?
Forged fittings are produced by heating a steel billet above its recrystallisation temperature and pressing it into a closed die. The process aligns the grain flow with the fitting's contour, eliminates internal porosity and produces a denser, higher-strength fitting than casting. The class structure runs 1000# / 2000# / 3000# / 6000#: the 1000 lbs threaded class is built to IS:1239 Pt 2:2011 and is the staple for IS-spec utility and fire-fighting work; 2000 lbs threaded follows ASME B16.11-2011; 3000 lbs and 6000 lbs (threaded + socket-weld) follow ASME B16.11-2011 and IS:4712:2011.
Standards in force: ASME B16.11-2011 (forged threaded + socket-weld, 2000# to 6000#) · IS:1239 Pt 2:2011 / BS EN 10241:2000 (1000# threaded) · IS:4712:2011 (3000# & 6000#) · MSS SP-83 (3000/6000 dimensional envelope) · ASTM A105, A350 LF2, A106 (CS & LTCS forgings) · ASTM A182 F304 / F304L / F316 / F316L / F317L / F321 / F11 / F22 / F91 · ASME B16.9 (butt-weld wrought, when applicable). Threads NPT / BSPT / BSP.
Where forged is specified
- Steam mains and boiler feedwater lines
- Hot oil, fuel gas, hydraulic, refinery and chemical process piping
- Fire-fighting pump rooms and IS-spec hydrant installations (1000# threaded to IS:1239 Pt 2:2011 — hex bush, plug, nipple, threaded elbow)
- Instrument tap-offs and small-bore pipe-rack work
- Cryogenic and high-temperature SS service in F304 / F304L / F316 / F316L / F321; low-alloy F11 / F22 / F91 for high-temperature creep
Forged & threaded brands we stock
Industrial applications — DI vs forged
Four representative services with the specification hook a piping engineer would look for.
Fire-fighting wet riser, hydrant & sprinkler
UL Listed / FM Approved DI flanged fittings on the wet riser and ring-main. Below-ground laterals on socket-spigot DI with EPDM gaskets.
Spec hook: NBC 2016 Part 4 §3.4 (fire-fighting); insurer schedule referencing FM 1130 or UL 213 approval; flange drilling per IS 1538 PN16.
Buried water mains & sewerage
Socket-spigot DI bends, tees and tapers on push-on rubber-ring joints. Flanged DI at chamber transitions and pump-house tie-ins.
Spec hook: IS 9523 K-class matched to the DI pipe class; cement-mortar lining for potable; zinc-coat + bituminous external for buried duty.
Boiler feedwater & steam mains
A105 forged socket-weld elbows and tees on the feedwater line; class selected to match the pipe-class pressure rating at design temperature.
Spec hook: Class 3000# / 6000# socket-weld on the feedwater line; A105 envelope -29°C to 425°C per ASME B31.1 / B31.3; SW gap per ASME B16.11 §5.2.
Fire pump rooms & hydrant installations
1000 lbs threaded forged fittings — hex bush, plug, nipple, threaded elbow and tee — on IS-spec fire hydrant networks, pump-room manifolds and process-piping interfaces. Used where the project specification does not call for UL/FM listing.
Spec hook: IS:1239 Part 2:2011 / BS EN 10241:2000 for the 1000# threaded class; thread form per ASME B1.20.1 (NPT) or ISO 7-1 (BSPT); galvanised finish on threaded fire-utility per project specification.
Which family belongs on your line?
Walk top to bottom. The first question that resolves your service decides the family.
Is the service medium steam, hot oil, fuel gas or hydraulic?
If yes — Forged. The pressure-temperature envelope of A105 (to 425°C) or F304/F316 (to 815°C) is required; DI is not on the steam tables.
Is this a fire-fighting wet riser, hydrant or sprinkler line with a UL Listed or FM Approved requirement per project spec or insurer schedule?
If yes — DI. The UL Listed / FM Approved range is a DI category (Sant DI, DRP DI); forged is not the conventional listing for that requirement.
Is this IS-spec fire fighting or hydrant work without a UL/FM listing requirement?
Either family is acceptable. Forged 1000# threaded per IS:1239 Pt 2:2011 (VS, Sant MS, DRP MS) is the cost-correct choice on small-bore pump-room manifolds, hex-bush takeoffs and hydrant tap-offs; DI is the convention on larger-bore mains. Match the choice to the piping class and end-connection on the drawing.
Is the working pressure above PN25 (≈ 2.5 MPa / 25 bar)?
If yes — Forged. DI flanged caps out at PN25; the higher forged classes (2000# / 3000# / 6000#) cover the band above PN25 per ASME B16.11-2011.
Is the nominal bore DN80 or larger and the service water, sewage or low-pressure utility?
If yes — DI. ASME B16.11 forged caps at NPS 4" (DN100), and DI is the cost-correct family in this size band.
Does the piping class call for socket-weld or threaded end connections?
If yes — Forged. Socket-weld and NPT/BSPT/BSP threaded ends are forged-fitting territory per ASME B16.11 and IS:1239 Pt 2. DI runs primarily on flanges or socket-spigot (Sant DI threaded is a separate small-bore line).
Is corrosion or chloride exposure (seawater, chemical) a concern?
If yes — Forged in SS F304 / F316. DI is not the right family for process corrosion service; F316 is the convention for chloride exposure.
How much more do forged fittings cost?
An honest ratio with a worked example on a common size.
The rough ratio at the same nominal bore
At the same nominal bore, carbon-steel forged fittings cost 2–4× a comparable DI fitting. Stainless forged in F304 / F316 sits at 4–8× DI. The spread depends on pressure class, end connection (socket-weld vs threaded), and order quantity. The forging route, the steel input cost, and heat-treatment account for the gap — and they are the reasons forged is the right family at higher pressure and temperature where DI cannot be used.
DN50 DI flanged elbow PN16 typically lands in the Rs. 900 – 1,400 band ex-Delhi. A comparable NPS 2" Class 3000# A105 forged socket-weld elbow typically lands in the Rs. 2,400 – 4,200 band — about 2.5–3× the DI rate. SS F316 forged at the same class lands at Rs. 6,500 – 9,500 — about 5–7× DI. Quote the exact size, class, end connection and material for current rates.
Rates indicative, ex-Delhi, GST 18% extra, freight as per actual. Share your BOQ for the dispatch-day price.
What you get when you source from us
Operational specifics, not adjectives.
Distributing since 1961 · Udyam Medium Enterprise
One of India's oldest pipeline-product distributors. Government-registered Medium Enterprise under UDYAM-DL-01-0005438, with GSTIN 07AAGPG5324D1Z6 — every claim defensible from a published register.
DI and forged brands stocked side-by-side
DI: Sant UL/FM, DRP. Forged & threaded: VS, Sant MS, DRP MS, Unik GI. A mixed-line BOQ closes from one warehouse.
Same-working-day BOQ response on 10+ line items
Send the BOQ before 5 PM IST on a working day — you'll have a line-item quotation by close of business. We don't sit on enquiries.
24–48 hour dispatch on stock items

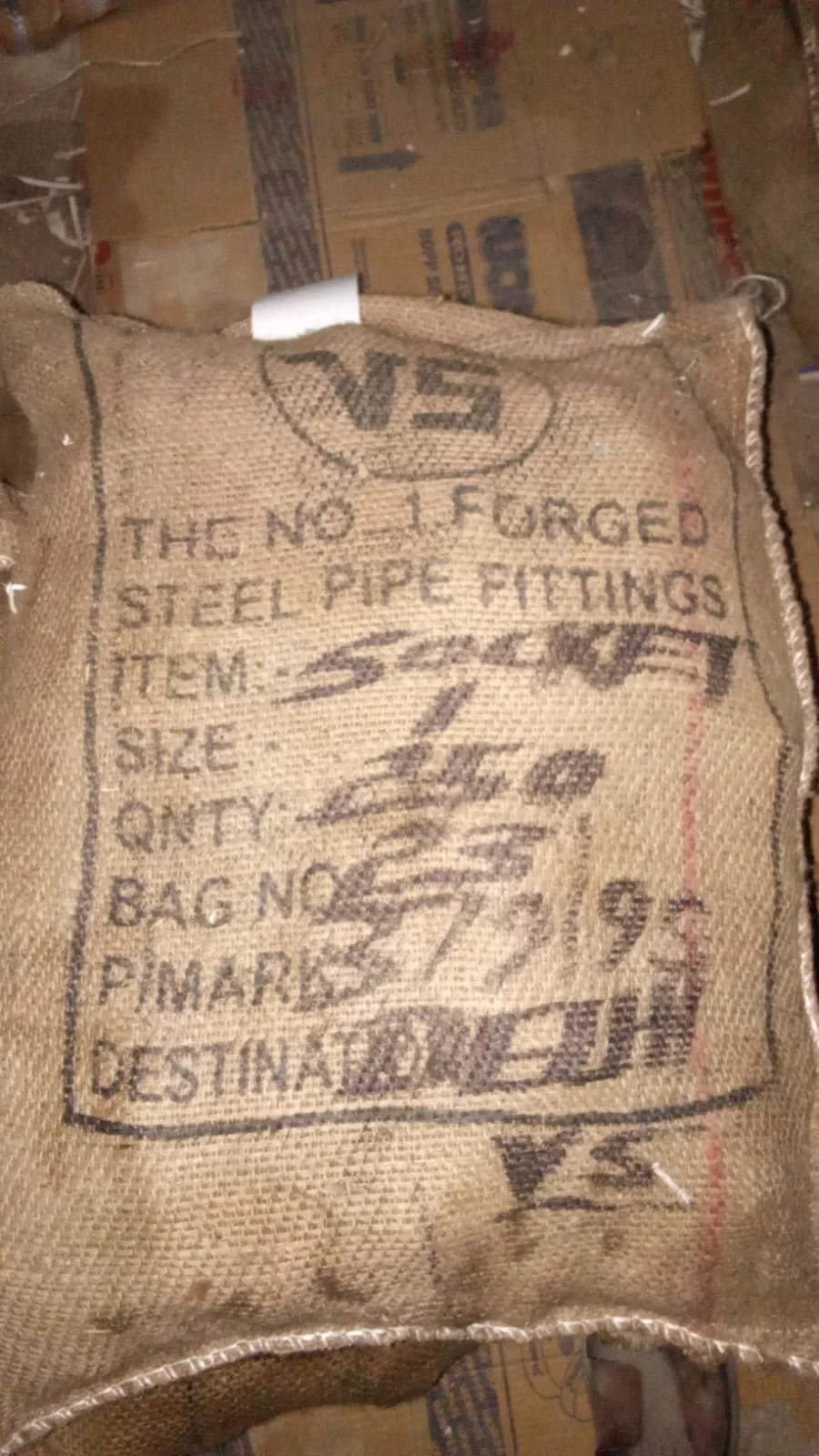

Stock items ship ex-Delhi within 24–48 hours of PI clearance. Non-stock or large-project quantities ship in 2–4 weeks subject to factory schedule. Mill test certificates to EN 10204 3.1 supplied with dispatch on request.
Industry Outlook — Top 10 Distributors in Iron & Steel
Vijay Sales Corporation has been profiled and ranked in the Top 10 Distributors in the Iron & Steel Industry for two consecutive editions of Industry Outlook magazine.
Vijay Sales Corporation — Committed To Leadership In Pipeline Supply & Customer Satisfaction.
Industry Outlook · December 2024 issue — Read the full feature
Vijay Sales Corporation — Quality Assured Distribution Of Premium Pipes, Fittings & Valves.
Industry Outlook · March 2023 issue — Read the full feature
Principal place of business — 3356 Hauz Qazi, Delhi-110006 · stock dispatched ex-Delhi within 24–48 hours of PI clearance.
DI vs Forged — questions answered
Direct answers in the first sentence. No hedging.
What is the difference between DI fittings and forged fittings?
DI fittings are cast from ductile (spheroidal-graphite) iron and used for water, sewage and fire-fighting service in flanged, socket-spigot or threaded end connections. Forged fittings are hot-forged from carbon steel (ASTM A105, A350 LF2, A106) or stainless / low-alloy steel (ASTM A182 F304, F304L, F316, F316L, F317L, F321, F11, F22, F91), manufactured in four pressure classes — 1000#, 2000#, 3000# and 6000# — for steam, oil, gas, process, refinery and IS-spec fire-fighting service. The two families overlap on fire-fighting and utility duty; they differ on pressure-temperature envelope, end connection and the standard the fitting is built to.
Are forged fittings more expensive than DI fittings?
Forged carbon-steel fittings typically cost 2–4× a comparable DI fitting at the same nominal bore, and stainless-steel forged fittings in F304/F316 are 4–8× DI. The forging process, the steel input cost and the heat-treatment route account for the gap. Quote a specific size, class and material for a current rate — share the BOQ on WhatsApp 9999889008.
Which Indian standards apply to DI fittings?
DI fittings used in India are manufactured to one of three IS standards depending on the joint and service. IS 9523 covers ductile iron fittings for pressure pipes (water and sewage) with socket-spigot or flanged ends. IS 1538 covers flanged cast-iron and ductile-iron fittings for water, gas and sewage with PN10 / PN16 / PN25 flange drilling. IS 1879 covers malleable cast-iron threaded fittings for low-pressure work. The international equivalent is ISO 2531. The BIS ISI mark is the conformity scheme.
Which standards apply to forged fittings?
Forged fittings are manufactured in four pressure classes, each built to its own standards. The 1000 lbs threaded class follows IS:1239 Part 2:2011 and BS EN 10241:2000. The 2000 lbs threaded class follows ASME B16.11-2011. The 3000 lbs and 6000 lbs classes — available in both threaded and socket-weld ends — follow ASME B16.11-2011 and IS:4712:2011. MSS SP-83 documents the 3000 lbs and 6000 lbs dimensional envelope.
When should I choose DI fittings over forged fittings?
Choose DI for water mains, sewage, fire-fighting wet risers per NBC 2016 Part 4, low-pressure HVAC chilled-water and condenser-water service, and any pipeline requiring UL Listed or FM Approved fittings for life-safety. DI is the lower-cost option for medium-to-large bores (DN80 and above) at PN10 to PN25 with flanged or socket-spigot joints.
When should I choose forged fittings over DI fittings?
Choose forged for high-pressure and high-temperature service — steam, hot oil, fuel gas, process lines, refinery and chemical service — and for any small-bore pipe-rack or skid-mounted work where the piping class calls out ASME B16.11. Forged is also routine on IS-spec fire-fighting and hydrant installations: the 1000 lbs threaded class to IS:1239 Part 2:2011 is widely used for hex bush, plug, nipple and threaded elbow on fire pump rooms and hydrant networks. Pick by service conditions and piping class, not by family alone.
What is the working temperature range for DI vs forged fittings?
DI fittings to IS 9523 operate at ambient through 60°C continuous for potable water service; the practical EPDM-gasket envelope extends to 80°C in HVAC. Forged ASTM A105 carbon-steel fittings operate from -29°C to 425°C per ASME B31.3. Forged ASTM A182 F304 / F316 stainless fittings operate from -196°C (cryogenic) to 815°C. Pick by the service temperature, not by the cost difference.
Do DI fittings come with UL/FM approval for fire protection?
Yes. Ductile-iron pipe fittings used in fire-fighting wet risers, sprinkler and hydrant networks are available as UL Listed and FM Approved when specified by NBC 2016 Part 4 or the project insurer. We stock the Sant UL/FM-approved DI fittings range; share your BOQ on WhatsApp 9999889008 for sizes, end-connection (flanged or grooved) and pricing.
What dispatch lead time can I expect on DI and forged fittings?
Stock items dispatch in 24 to 48 hours from proforma-invoice clearance, ex-Delhi. Non-stock sizes or large-project quantities ship in 2 to 4 weeks subject to the factory schedule. BOQs with 10 or more line items receive a same-working-day response. Send the BOQ on WhatsApp 9999889008 — Vijay Sales Corporation has been distributing pipeline products since 1961.
