VS IBR Forged Fittings — Socket Weld & NPT, 3000# / 6000#
IBR-certified forged carbon steel elbows, tees, unions and sockets, 1/4" to 3", supplied by Vijay Sales Corporation, Delhi
sales@vijaysalescorp.com · +91-9999889008 · 9999039633
Reviewed by Punya Gupta, Vijay Sales Corporation · updated · VS IBR list w.e.f.
Vijay Sales Corporation supplies VS IBR forged fittings — elbows, tees, unions and sockets in forged carbon steel A105 to ASME B16.11-2011, with socket weld or NPT threaded ends, in classes 3000# and 6000#, from 8 mm (1/4") to 80 mm (3"). Every piece comes with an IBR test certificate in Form III-C. Current list rates, effective 01.10.2026 at 45% off list, are on the VS IBR price list. Need IBR butt-weld fittings (ASTM A234 WPB, 15–300 NB)? See IBR butt-weld fittings.
Forged IBR vs Butt-weld IBR — which one you need
View sizes & prices in the price list →| Forged IBR (VS, this page) | Butt-weld IBR | |
|---|---|---|
| Fitting type | Forged — socket weld (S.W.) or NPT threaded | Butt-weld |
| Standard | ASME B16.11 | ASME B16.9 |
| Material | A105 forged carbon steel | ASTM A234 WPB |
| Size range on our lists | 8–80 mm (1/4"–3") | 15–300 NB |
| Rating basis | Pressure class 3000# / 6000# | Pipe schedule |
| Joint | Socket fillet weld or NPT thread | Full-penetration butt weld |
| IBR paperwork | Form III-C with every piece | Form III-C with every piece |
| Page | VS IBR price list (this range) | IBR fittings price list |
Socket Weld IBR Fittings · ASME B16.11

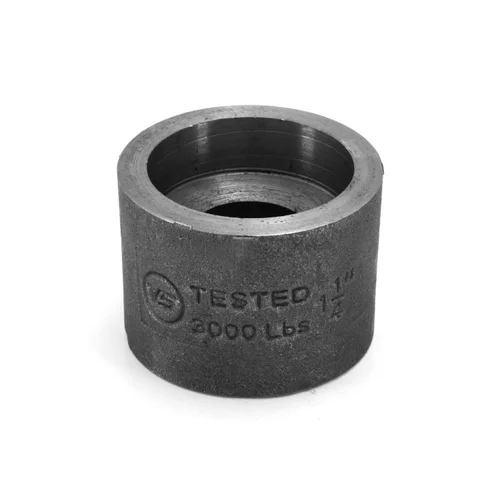

VS IBR socket weld fittings are forged carbon steel A105 elbows, tees, unions and sockets made to ASME B16.11-2011. The pipe end sits in the fitting’s socket and is joined with a fillet weld. In 3000# all four fittings are listed from 8 mm (1/4") to 80 mm (3"); in 6000# the elbow, tee and socket are listed from 8 mm to 65 mm (2-1/2"). Every piece comes with an IBR test certificate in Form III-C.
| Fitting | End | Class | Sizes |
|---|---|---|---|
| Elbow | S.W. | 3000# | 8–80 mm |
| Tee | S.W. | 3000# | 8–80 mm |
| Union | S.W. | 3000# | 8–80 mm |
| Socket | S.W. | 3000# | 8–80 mm |
| Elbow | S.W. | 6000# | 8–65 mm |
| Tee | S.W. | 6000# | 8–65 mm |
| Socket | S.W. | 6000# | 8–65 mm |
NPT Threaded IBR Fittings · ASME B16.11

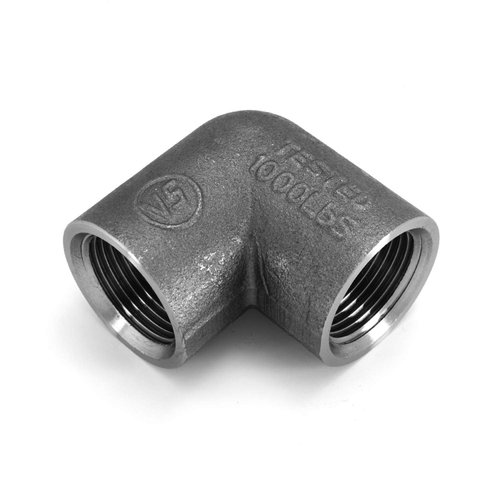

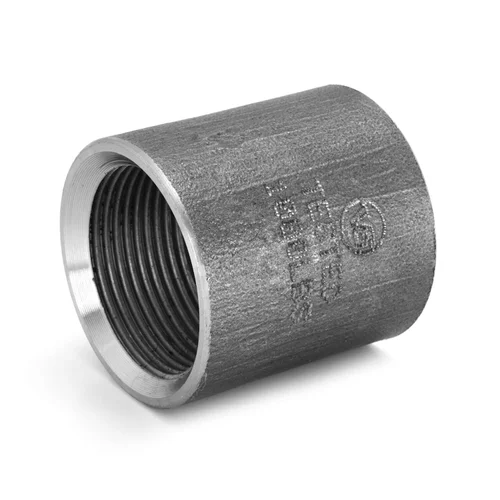

VS IBR NPT threaded fittings are forged carbon steel A105 elbows, tees, unions and sockets made to ASME B16.11-2011, with an NPT taper pipe thread that screws on to the pipe. In 3000# all four fittings are listed from 8 mm (1/4") to 65 mm (2-1/2"); in 6000# the elbow, tee and socket are listed from 8 mm to 50 mm (2"). Every piece comes with an IBR test certificate in Form III-C.
| Fitting | End | Class | Sizes |
|---|---|---|---|
| Elbow | NPT | 3000# | 8–65 mm |
| Tee | NPT | 3000# | 8–65 mm |
| Union | NPT | 3000# | 8–65 mm |
| Socket | NPT | 3000# | 8–65 mm |
| Elbow | NPT | 6000# | 8–50 mm |
| Tee | NPT | 6000# | 8–50 mm |
| Socket | NPT | 6000# | 8–50 mm |
Standards & documents
ASME B16.11-2011, A105 and a Form III-C for every piece. The VS socket-weld facts below are as already published on our VS pipe fittings page.
About the VS brand
VS is a brand of forged steel high-pressure fittings. These VS IBR fittings are made to ASME B16.11-2011 in forged carbon steel A105, and every piece carries an IBR test certificate (Form III-C).
Vijay Sales Corporation — Delhi
Vijay Sales Corporation, Supplier of VS IBR forged fittings, has traded from Delhi since 1961.
| Supplier | Vijay Sales Corporation — Supplier of VS IBR forged fittings |
| Since | 1961, Delhi |
| Corporate office | 803, International Trade Tower, Nehru Place, New Delhi 110019 |
| Works | 3356 Hauz Qazi, Delhi 110006 |
| WhatsApp / phone | +91-9999889008, 9999039633 |
| sales@vijaysalescorp.com |
What to send for a quote
- Fitting — elbow, tee, union or socket
- End — S.W. or NPT
- Class — 3000# or 6000#
- Size
- Quantity
- Reducing or galvanised?
- City / site
Get a Quote on VS IBR Forged Fittings
Send the fitting, end, class, size and quantity — we reply on WhatsApp with net rates.
Frequently Asked Questions
What are VS IBR forged fittings?
VS IBR forged fittings are small-bore elbows, tees, unions and sockets in forged carbon steel A105, made to ASME B16.11-2011 with socket weld or NPT threaded ends, in classes 3000# and 6000#, from 8 mm (1/4") to 80 mm (3"). Every piece comes with an IBR test certificate in Form III-C.
Socket weld or NPT — which should I choose?
Choose by the joint your line uses. A socket weld (S.W.) fitting takes the pipe end into a socket and is joined with a fillet weld. An NPT fitting has a taper pipe thread and is screwed on. Both are listed in 3000# and 6000#; your piping specification decides which one the line calls for.
What does 3000# or 6000# mean?
3000# and 6000# are pressure classes under ASME B16.11, the standard these forged fittings are made to, and 6000# is the higher class. Match the class to your piping specification. Take pressure-temperature ratings from ASME B16.11 or your piping consultant.
Which sizes are available?
Socket weld fittings run 8 mm to 80 mm (1/4" to 3") in 3000# and 8 mm to 65 mm (2-1/2") in 6000#. NPT threaded fittings run 8 mm to 65 mm in 3000# and 8 mm to 50 mm (2") in 6000#. Unions are listed in 3000# only. The variants tables on this page show every fitting.
What is Form III-C?
Form III-C is the IBR test certificate supplied with fittings for service under the Indian Boiler Regulations. Every VS IBR forged fitting comes with one, for every piece. Our IBR fittings page explains IBR certification and Form III-C in more detail.
How are forged IBR fittings different from butt-weld IBR fittings?
Forged IBR fittings are small-bore, ASME B16.11, A105, joined by a socket fillet weld or an NPT thread, 8 mm to 80 mm. Butt-weld IBR fittings are ASTM A234 WPB to ASME B16.9, 15 to 300 NB, joined by a full-penetration butt weld. For butt-weld needs see IBR butt-weld fittings.
Is the VS QAP available?
Yes. The VS forged fittings QAP (quality assurance plan) is published as a PDF, and so is the VS catalogue. Both are also linked under standards & documents on this page. WhatsApp 9999889008 if you need them sent with your quote.
Where are the prices?
List rates for every size, end and class are on the VS IBR forged fittings price list, effective 01.10.2026. Vijay Sales Corporation gives 45% off those list rates; GST 18% is extra and rates are ex Delhi. For example, a 3000# socket weld elbow at 15 mm (1/2") lists at Rs. 193.
How do I get a quote?
WhatsApp 9999889008 or use the form on this page. Send the fitting, the end (S.W. or NPT), the class (3000# or 6000#), size, quantity, whether you need reducing or galvanised fittings, and your city or site. We reply on WhatsApp with net rates against the current VS IBR list.
